Accessories included - UPS USB cable Serial cable Quick start guide Safety instructions
ACoutletsquantity - 4 AC outlet(s)
AC outlets quantity Ports & interfaces - 4 AC outlet(s)
ACoutlettypes - IEC 320
AC outlet types Ports & interfaces - IEC 320
Active power - 800 W
Apparent power - 1000 VA
AutomaticVoltageRegulationAVR -
Backup time (100% load) - 5 min
Battery -
Battery - Typical backup time at full load - 4 min
Battery - Typical backup time at half load - 12 min
Batterycapacity -
Battery capacity - 9 Ah
Batterytechnology -
Batteryvoltage -
Cablesincluded -
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category Code - UPW
Certificates - IEC/EN 62040-1 IEC/EN 62040-2 CE EAC TUV
Certificates - Certification - IEC/EN 62040 -2, CE, CB report (TUV)
Certification Certificates - IEC/EN 62040 -2, CE, CB report (TUV)
Chassis type - Tower
Code - 9E1000I
Color - Black
Depth - 144 mm
Depth Weight & dimensions - 144 mm
Description - Eaton 9E UPS, 1000 VA, 800 W, input: C14, output: 4 x C13, tower
Description - The Eaton 9E UPS constantly monitors power conditions and regulates voltage and frequency thanks to the double conversion topology. Eaton 9E UPS can power more servers than most similar UPS because of a 0.8 power factor.Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interfaceEasily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-MS). Relay cards or Modbus cards are also availableIntegrate 9E into all software environments. The Eaton 9E is delivered with Eaton’s Intelligent Power™ Software and is compatible with all major OS including advanced integration in VMware vCenter and Microsoft Hyper-VWide input voltage range will minimize the battery usage and help to extend battery lifetimeThe internal bypass allows service continuity in case of an internal faultExtend runtime as you like by adding up to 4 external battery modules (EBM) for 2kVA and above. For extra-long runtime, XL models with internal supercharger are also available at 3kVA
Design -
Design > Form factor - Tower
Designation - CE+WEEE
dimensionalWeight - 6746
dimension depth - 440 mm
dimension height - 335 mm
Dimensions - 356 x 228 x 144 mm
dimension weight - 11000 g
dimension width - 240 mm
Displaytype -
EAN - 786689166564
ean - 786689166564
Eans - 786689166564
Efficiency - 91%
Efficiency Features - 91%
Environment requirements - Operating temperature: 0 to 40°C Relative humidity: 0-95%, non-condensing Altitude: 3,000 m
Features -
Features - Efficiency - 91%
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 37 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 800 W
Features - Output power capacity - 1 kVA
Features - Overload capacity (1 minute) - 130%
Features - Overload capacity (5 minute) - 150%
Features - Overload capacity (10 seconds) - 150%
Features - UPS topology - Double-conversion (Online)
Filters / protection - Overdischarge
Formfactor -
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 356 mm
Height Weight & dimensions - 356 mm
HighLights -
Hotswapbattery -
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Inputfrequency - 50/60 Hz
Input frequency Features - 50/60 Hz
Input operation voltage (max) Features - 300 V
Input operation voltage (min) Features - 100 V
Inputoperationvoltagemax - 300 V
Inputoperationvoltagemin - 100 V
Input power ports - IEC-C14
Link - https://www.eaton.com/za/en-gb/skuPage.9E1000I.html
LongDesc -
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/9E1000I.pdf
Name - Eaton 9E1000I
Name - Eaton | OnLine UPS | 9E1000I | 1000 VA | 800 W | C14
name - UPS 9E 1000 VA 800 W 9E1000I
Networkcardslot -
No. of batteries - 2
Noiselevel - 37 dB
Noise level Features - 37 dB
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Slot for optional communication card: Network-M2, ModBus-MS or Relay-MS
Outputfrequency - 50/60 Hz
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 208 V
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 208 V
Outputpower - 800 W
Outputpowercapacity - 1 kVA
Output power capacity Features - 1 kVA
Output power Features - 800 W

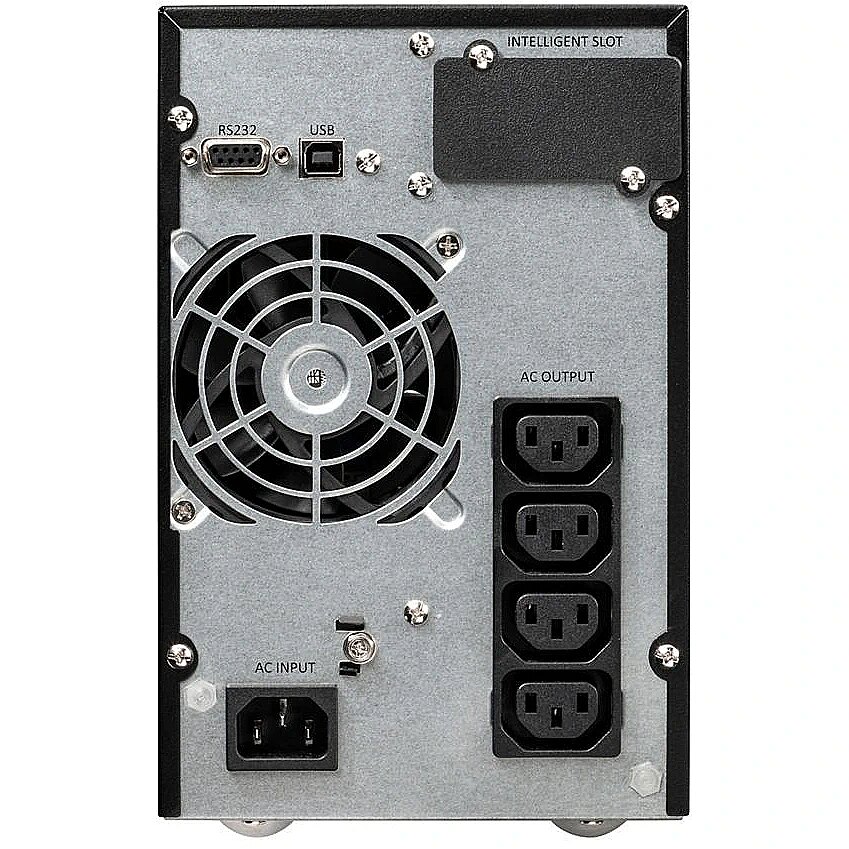

Output power ports - 4 x IEC-C13
Overload capacity (1 minute) Features - 130%
Overload capacity (5 minute) Features - 150%
Overload capacity (10 seconds) Features - 150%
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 240.00 mm
Package features > Gross height (mm) - 330.00 mm
Package features > Gross width (mm) - 435.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 50 pc(s)
Package features > Paper/Pasteboard - 900.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > TI weight (kg) - 8.00 kg
Package features > Type of battery - Battery
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
PDF - https://www.blobs.lt/products/9/0/4/1/8/3/31ede873171b3bceea52837e04484234/original.pdf
Performance > Capacity - 1000 VA
Performance > UPS topology - On line
Performance > Waveform - Sine wave
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - IEC 320
Ports & interfaces - Power plug - C13 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces > Power plug - C14
Portsinterfaces -
Powerfactor -
Powerplug - C13 coupler
Power plug Ports & interfaces - C13 coupler
ProdDesc - Eaton 9E 1000i
producer - Eaton
Producer - Eaton
producerCode - 9E1000I
ProducerCode - 9E1000I
Producer product family - OnLine UPS
Producer product name - 9E1000I
Productcolour -
Productcondition - Original
ProductHighLights -
- Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface
productName - Eaton 9E uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 4 AC outlet(s)
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/9E1000I_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_6.jpg
productSize - Normal
Quickinstallationguide -
Rackmountkit -
RS-232 ports Ports & interfaces - 1
RS232ports - 1
Safety regulation & standards - Safety - IEC/EN 62040-1
Safety Safety regulation & standards - IEC/EN 62040-1
Safety warning - Warnings - Do not disassemble the unit housing, there may be a risk of electric shock.
Safety warning - Warnings - Keep away from sources of fire and water.
Safety warning - Warnings - Use the appliance in well-ventilated areas to avoid overheating.
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
ShortDescription - Zasilacz awaryjny 9E1000I UPS Online 1000 VA / 900W
sizeX - 235
sizeY - 330
sizeZ - 435
Software - Intelligent Power Editions
Special functions - Double conversion topology Continuously monitors power supply conditions and regulates voltage and frequency Internal bypass ensures continuous operation in the event of a UPS failure LCD display showing status and measurements in real time Compatibility with virtual environments (VMware, Hyper-V, Citrix Xen, Redhat) Automatic battery test
Summary - Eaton 9E. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: IEC 320, Power plug: C13 coupler, AC outlets quantity: 4 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 12 min. Certification: IEC/EN 62040 -2, CE, CB report (TUV). Safety: IEC/EN 62040-1
Technical details > Capacity - 800 W
Technical details > Gross weight - 11.00 kg
Technical details > Net weight - 10.00 kg
Technical details > Other features - Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-M2). Relay cards or ModBus cards are also available. Output 4xC13
Technical details > Producer - Eaton
The shape of the output voltage - Full sine wave
Typical backup time at full load Battery - 4 min
Typicalbackuptimeathalfload - 12 min
Typical backup time at half load Battery - 12 min
Unit Box Height - 0.325
Unit Box Length - 0.43
Unit Box Width - 0.24
Unit Calculated Volume - 0.03354 cubm
Unit Calculated Weight - 10.7 kg
Units per Shipping Box - 1
UPS Architecture - on-line double conversion
UPStopology - Double-conversion (Online)
UPS topology Features - Double-conversion (Online)
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype -
Vendor Homepage - https://powerquality.eaton.com/Products-services/Backup-Power-UPS/9E-1-3kVA.aspx?cx=41
vendpn - 9E1000I
Video -
Voltage - 12 V
Warranty - 12 months
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Warrantyandmisc -
warrantyLength - 24
warrantyType - F
Waveform -
Weight - 9.5 kg
Weight - 9.5 kg
weight - 10700
Weight & dimensions - Depth - 144 mm
Weight & dimensions - Height - 356 mm
Weight & dimensions - Weight - 9.5 kg
Weight & dimensions - Width - 228 mm
Weightdimensions -
Weight Weight & dimensions - 9.5 kg
Width - 228 mm
Width Weight & dimensions - 228 mm
