ID: 335997
Product code: 9E1000I
In stock 5 units
Warranty: 2 years
(Warranty for business entities 1 year)

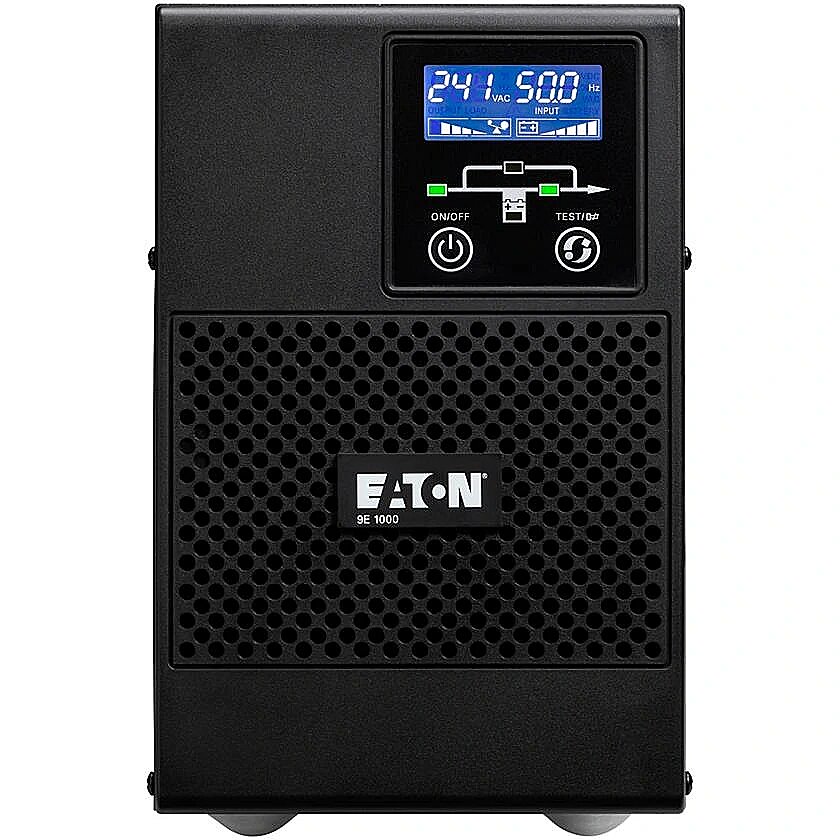

Eaton 9E1000I, 1000VA 800W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Battery capacity (VA): 1000
- Output power (W): 800
Description
This UPS Eaton 9E1000I, 1000VA 800W, IEC with an output capacity of 800 W and a battery capacity of 1000 VA offers a balanced solution for daily use. The battery backup allows for temporary operation of multiple connected devices.
A UPS with a display provides direct access to the device's technical information. This reduces the need for external system solutions and facilitates monitoring during autonomous operation.
The use of a Lead-acid battery in a UPS device ensures stable operation over a wide load range and predictable discharge characteristics. This technology stands out for its high reliability, resistance to temperature fluctuations and well-researched service life, which facilitates technical maintenance and planning for battery replacement.
A UPS with a IEC320 connection type is designed for flexible connection of multiple devices without the need for rigid installation. The use of a standard connector ensures convenient operation, reduces installation requirements, and allows the system to be quickly adapted to changes in equipment configuration.
Warranty
Eaton provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 800
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 4
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included - UPS USB cable Serial cable Quick start guide Safety instructions
ACoutletsquantity - 4 AC outlet(s)
AC outlets quantity Ports & interfaces - 4 AC outlet(s)
ACoutlettypes - IEC 320
AC outlet types Ports & interfaces - IEC 320
Active power - 800 W
Apparent power - 1000 VA
AutomaticVoltageRegulationAVR -
Backup time (100% load) - 5 min
Battery -
Batterycapacity -
Battery capacity - 9 Ah
Batterytechnology -
Batteryvoltage -
Cablesincluded -
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category Code - UPW
Certificates - IEC/EN 62040-1 IEC/EN 62040-2 CE EAC TUV
Certification Certificates - IEC/EN 62040 -2, CE, CB report (TUV)
Chassis type - Tower
Code - 9E1000I
Color - Black
Data Act - Link
Depth - 144 mm
Depth Weight & dimensions - 144 mm
Description - Eaton 9E UPS, 1000 VA, 800 W, input: C14, output: 4 x C13, tower
Description - The Eaton 9E UPS constantly monitors power conditions and regulates voltage and frequency thanks to the double conversion topology. Eaton 9E UPS can power more servers than most similar UPS because of a 0.8 power factor.Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interfaceEasily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-MS). Relay cards or Modbus cards are also availableIntegrate 9E into all software environments. The Eaton 9E is delivered with Eaton’s Intelligent Power™ Software and is compatible with all major OS including advanced integration in VMware vCenter and Microsoft Hyper-VWide input voltage range will minimize the battery usage and help to extend battery lifetimeThe internal bypass allows service continuity in case of an internal faultExtend runtime as you like by adding up to 4 external battery modules (EBM) for 2kVA and above. For extra-long runtime, XL models with internal supercharger are also available at 3kVA
Design -
Design > Form factor - Tower
Designation - CE+WEEE
dimension depth - 440 mm
dimension height - 335 mm
Dimensions - 356 x 228 x 144 mm
dimension weight - 11000 g
dimension width - 240 mm
Displaytype -
EAN - 786689166564
ean - 786689166564
Eans - 786689166564
Efficiency - 91%
Efficiency Features - 91%
Environment requirements - Operating temperature: 0 to 40°C Relative humidity: 0-95%, non-condensing Altitude: 3,000 m
Features -
Filters / protection - Overdischarge
Formfactor -
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 356 mm
Height Weight & dimensions - 356 mm
HighLights -
Hotswapbattery -
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Inputfrequency - 50/60 Hz
Input frequency Features - 50/60 Hz
Input operation voltage (max) Features - 300 V
Input operation voltage (min) Features - 100 V
Inputoperationvoltagemax - 300 V
Inputoperationvoltagemin - 100 V
Input power ports - IEC-C14
Link - https://www.eaton.com/za/en-gb/skuPage.9E1000I.html
LongDesc -
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/9E1000I.pdf
Name - Eaton 9E1000I
Name - Eaton | OnLine UPS | 9E1000I | 1000 VA | 800 W | C14
name - UPS 9E 1000 VA 800 W 9E1000I
Networkcardslot -
No. of batteries - 2
Noiselevel - 37 dB
Noise level Features - 37 dB
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Other features - Slot for optional communication card: Network-M2, ModBus-MS or Relay-MS
Outputfrequency - 50/60 Hz
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 208 V
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 208 V
Outputpower - 800 W
Outputpowercapacity - 1 kVA
Output power capacity Features - 1 kVA
Output power Features - 800 W
Output power ports - 4 x IEC-C13
Overload capacity (1 minute) Features - 130%
Overload capacity (5 minute) Features - 150%
Overload capacity (10 seconds) Features - 150%
Package features > Classification of battery - CL126:PEN:2025-08-18
Package features > Composition of battery - CL127:PB:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 240.00 mm
Package features > Gross height (mm) - 330.00 mm
Package features > Gross width (mm) - 435.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 50 pc(s)
Package features > Paper/Pasteboard - 1000 g
Package features > Plastic (No PET) - 900 g
Package features > Tare weight (kg) - 1.9 kg
Package features > TI weight (kg) - 6 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
PDF - https://www.blobs.lt/products/9/0/4/1/8/3/31ede873171b3bceea52837e04484234/original.pdf
Performance > Capacity - 1000 VA
Performance > UPS topology - On line
Performance > Waveform - Sine wave
Ports & interfaces > Power plug - C14
Portsinterfaces -
Powerfactor -
Powerplug - C13 coupler
Power plug Ports & interfaces - C13 coupler
ProdDesc - Eaton 9E 1000i
producer - Eaton
Producer - Eaton
ProducerCode - 9E1000I
Producer product family - OnLine UPS
Producer product name - 9E1000I
Productcolour -
Productcondition - Original
ProductHighLights -
Product Net Weight ELKO Logistics Data - 9.5 kg
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/9E1000I_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_6.jpg
Quickinstallationguide -
Rackmountkit -
RS-232 ports Ports & interfaces - 1
RS232ports - 1
Safety Safety regulation & standards - IEC/EN 62040-1
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
Shipping Box Depth ELKO Internal Logistics Data - 43 cm
Shipping Box Height ELKO Internal Logistics Data - 32.5 cm
Shipping Box Weight ELKO Internal Logistics Data - 10.7 kg
Shipping Box Width ELKO Internal Logistics Data - 24 cm
ShortDescription - Zasilacz awaryjny 9E1000I UPS Online 1000 VA / 900W
Software - Intelligent Power Editions
Special functions - Double conversion topology Continuously monitors power supply conditions and regulates voltage and frequency Internal bypass ensures continuous operation in the event of a UPS failure LCD display showing status and measurements in real time Compatibility with virtual environments (VMware, Hyper-V, Citrix Xen, Redhat) Automatic battery test
Summary - Eaton 9E. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: IEC 320, Power plug: C13 coupler, AC outlets quantity: 4 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 12 min. Certification: IEC/EN 62040 -2, CE, CB report (TUV). Safety: IEC/EN 62040-1
Technical details > Capacity - 800 W
Technical details > Gross weight - 24 kg
Technical details > Net weight - 22.1 kg
Technical details > Other features - Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-M2). Relay cards or ModBus cards are also available. Output 4xC13
Technical details > Producer - Eaton
The shape of the output voltage - Full sine wave
Typical backup time at full load Battery - 4 min
Typicalbackuptimeathalfload - 12 min
Typical backup time at half load Battery - 12 min
Unit Box Height - 0.325
Unit Box Length - 0.43
Unit Box Width - 0.24
Unit Calculated Volume ELKO Internal Logistics Data - 0.03354 cubm
Unit Calculated Weight ELKO Logistics Data - 10.7 kg
Units per Shipping Box ELKO Logistics Data - 1
UPS Architecture - on-line double conversion
UPStopology - Double-conversion (Online)
UPS topology Features - Double-conversion (Online)
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype -
Vendor Homepage - https://powerquality.eaton.com/Products-services/Backup-Power-UPS/9E-1-3kVA.aspx?cx=41
vendpn - 9E1000I
Video -
Voltage - 12 V
Warranty - 12 months
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Warrantyandmisc -
Waveform -
Weight - 9.5 kg
Weight - 9.5 kg
Weightdimensions -
Weight Weight & dimensions - 9.5 kg
Width - 228 mm
Width Weight & dimensions - 228 mm
ACoutletsquantity - 4 AC outlet(s)
AC outlets quantity Ports & interfaces - 4 AC outlet(s)
ACoutlettypes - IEC 320
AC outlet types Ports & interfaces - IEC 320
Active power - 800 W
Apparent power - 1000 VA
AutomaticVoltageRegulationAVR -
Backup time (100% load) - 5 min
Battery -
Batterycapacity -
Battery capacity - 9 Ah
Batterytechnology -
Batteryvoltage -
Cablesincluded -
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category Code - UPW
Certificates - IEC/EN 62040-1 IEC/EN 62040-2 CE EAC TUV
Certification Certificates - IEC/EN 62040 -2, CE, CB report (TUV)
Chassis type - Tower
Code - 9E1000I
Color - Black
Data Act - Link
Depth - 144 mm
Depth Weight & dimensions - 144 mm
Description - Eaton 9E UPS, 1000 VA, 800 W, input: C14, output: 4 x C13, tower
Description - The Eaton 9E UPS constantly monitors power conditions and regulates voltage and frequency thanks to the double conversion topology. Eaton 9E UPS can power more servers than most similar UPS because of a 0.8 power factor.Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interfaceEasily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-MS). Relay cards or Modbus cards are also availableIntegrate 9E into all software environments. The Eaton 9E is delivered with Eaton’s Intelligent Power™ Software and is compatible with all major OS including advanced integration in VMware vCenter and Microsoft Hyper-VWide input voltage range will minimize the battery usage and help to extend battery lifetimeThe internal bypass allows service continuity in case of an internal faultExtend runtime as you like by adding up to 4 external battery modules (EBM) for 2kVA and above. For extra-long runtime, XL models with internal supercharger are also available at 3kVA
Design -
Design > Form factor - Tower
Designation - CE+WEEE
dimension depth - 440 mm
dimension height - 335 mm
Dimensions - 356 x 228 x 144 mm
dimension weight - 11000 g
dimension width - 240 mm
Displaytype -
EAN - 786689166564
ean - 786689166564
Eans - 786689166564
Efficiency - 91%
Efficiency Features - 91%
Environment requirements - Operating temperature: 0 to 40°C Relative humidity: 0-95%, non-condensing Altitude: 3,000 m
Features -
Filters / protection - Overdischarge
Formfactor -
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 356 mm
Height Weight & dimensions - 356 mm
HighLights -
Hotswapbattery -
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Inputfrequency - 50/60 Hz
Input frequency Features - 50/60 Hz
Input operation voltage (max) Features - 300 V
Input operation voltage (min) Features - 100 V
Inputoperationvoltagemax - 300 V
Inputoperationvoltagemin - 100 V
Input power ports - IEC-C14
Link - https://www.eaton.com/za/en-gb/skuPage.9E1000I.html
LongDesc -
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/9E1000I.pdf
Name - Eaton 9E1000I
Name - Eaton | OnLine UPS | 9E1000I | 1000 VA | 800 W | C14
name - UPS 9E 1000 VA 800 W 9E1000I
Networkcardslot -
No. of batteries - 2
Noiselevel - 37 dB
Noise level Features - 37 dB
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Other features - Slot for optional communication card: Network-M2, ModBus-MS or Relay-MS
Outputfrequency - 50/60 Hz
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 208 V
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 208 V
Outputpower - 800 W
Outputpowercapacity - 1 kVA
Output power capacity Features - 1 kVA
Output power Features - 800 W
Output power ports - 4 x IEC-C13
Overload capacity (1 minute) Features - 130%
Overload capacity (5 minute) Features - 150%
Overload capacity (10 seconds) Features - 150%
Package features > Classification of battery - CL126:PEN:2025-08-18
Package features > Composition of battery - CL127:PB:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 240.00 mm
Package features > Gross height (mm) - 330.00 mm
Package features > Gross width (mm) - 435.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 50 pc(s)
Package features > Paper/Pasteboard - 1000 g
Package features > Plastic (No PET) - 900 g
Package features > Tare weight (kg) - 1.9 kg
Package features > TI weight (kg) - 6 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
PDF - https://www.blobs.lt/products/9/0/4/1/8/3/31ede873171b3bceea52837e04484234/original.pdf
Performance > Capacity - 1000 VA
Performance > UPS topology - On line
Performance > Waveform - Sine wave
Ports & interfaces > Power plug - C14
Portsinterfaces -
Powerfactor -
Powerplug - C13 coupler
Power plug Ports & interfaces - C13 coupler
ProdDesc - Eaton 9E 1000i
producer - Eaton
Producer - Eaton
ProducerCode - 9E1000I
Producer product family - OnLine UPS
Producer product name - 9E1000I
Productcolour -
Productcondition - Original
ProductHighLights -
- Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface
Product Net Weight ELKO Logistics Data - 9.5 kg
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/9E1000I_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/EATON/9E1000I_6.jpg
Quickinstallationguide -
Rackmountkit -
RS-232 ports Ports & interfaces - 1
RS232ports - 1
Safety Safety regulation & standards - IEC/EN 62040-1
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
Shipping Box Depth ELKO Internal Logistics Data - 43 cm
Shipping Box Height ELKO Internal Logistics Data - 32.5 cm
Shipping Box Weight ELKO Internal Logistics Data - 10.7 kg
Shipping Box Width ELKO Internal Logistics Data - 24 cm
ShortDescription - Zasilacz awaryjny 9E1000I UPS Online 1000 VA / 900W
Software - Intelligent Power Editions
Special functions - Double conversion topology Continuously monitors power supply conditions and regulates voltage and frequency Internal bypass ensures continuous operation in the event of a UPS failure LCD display showing status and measurements in real time Compatibility with virtual environments (VMware, Hyper-V, Citrix Xen, Redhat) Automatic battery test
Summary - Eaton 9E. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: IEC 320, Power plug: C13 coupler, AC outlets quantity: 4 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 12 min. Certification: IEC/EN 62040 -2, CE, CB report (TUV). Safety: IEC/EN 62040-1
Technical details > Capacity - 800 W
Technical details > Gross weight - 24 kg
Technical details > Net weight - 22.1 kg
Technical details > Other features - Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-M2). Relay cards or ModBus cards are also available. Output 4xC13
Technical details > Producer - Eaton
The shape of the output voltage - Full sine wave
Typical backup time at full load Battery - 4 min
Typicalbackuptimeathalfload - 12 min
Typical backup time at half load Battery - 12 min
Unit Box Height - 0.325
Unit Box Length - 0.43
Unit Box Width - 0.24
Unit Calculated Volume ELKO Internal Logistics Data - 0.03354 cubm
Unit Calculated Weight ELKO Logistics Data - 10.7 kg
Units per Shipping Box ELKO Logistics Data - 1
UPS Architecture - on-line double conversion
UPStopology - Double-conversion (Online)
UPS topology Features - Double-conversion (Online)
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype -
Vendor Homepage - https://powerquality.eaton.com/Products-services/Backup-Power-UPS/9E-1-3kVA.aspx?cx=41
vendpn - 9E1000I
Video -
Voltage - 12 V
Warranty - 12 months
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Warrantyandmisc -
Waveform -
Weight - 9.5 kg
Weight - 9.5 kg
Weightdimensions -
Weight Weight & dimensions - 9.5 kg
Width - 228 mm
Width Weight & dimensions - 228 mm
