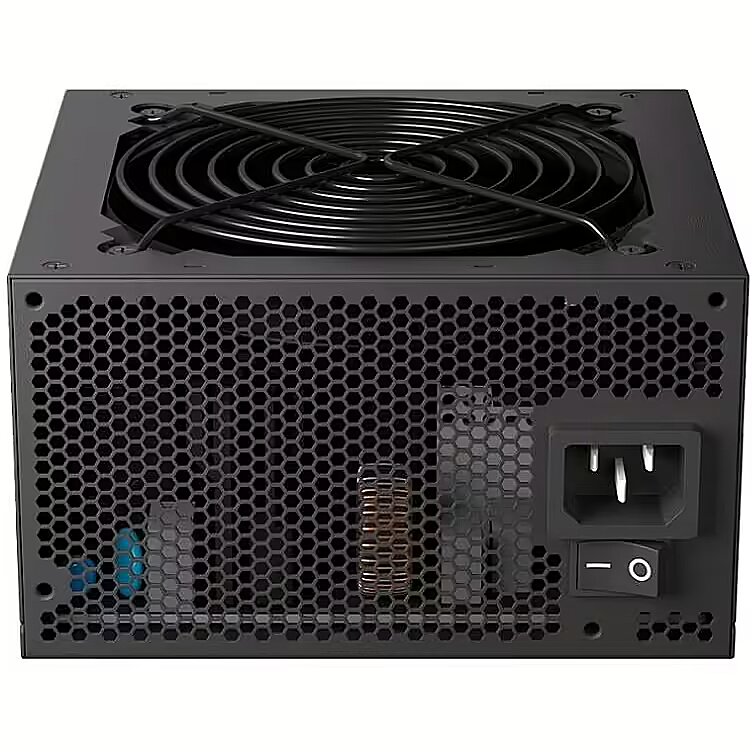

Endorfy Supremo FM5 Gold, 750W, 80PLUS Gold

Name: Endorfy Supremo FM5 Gold, 750W, 80PLUS Gold
Brand: Endorfy
SKU: 936090
Price: 118.75 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 936090 Product code: EY7A008

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years

Compare

Main product parameters All parameters

Producer: Endorfy
Power output: 750W
80 PLUS certification: 80 PLUS Gold
Fan size: 120 mm
Modular cables: Fully-Modular
Processor plug-in: 2 x 8-pin(4+4) EPS
PCI-E: 3 x 6+2pin

Similar Products

Basic information
	This product Endorfy Supremo FM5 Gold, 750W, 80PLUS Gold	Endorfy Supremo FM5 Gold, 650W, 80PLUS Gold	Endorfy Supremo FM6, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1	FSP VITA GM, 850W, ATX 3.1, 80PLUS Gold, PCIe 5.1	ASRock PG-750G, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Show similar specs. Hide similar specs.	118.75 €	99.74 €	110.88 €	107.53 €	142.86 €
Cybenetics Efficiency certification	There isn't	There isn't	There isn't	Cybenetics Gold	Cybenetics Platinum
Cybenetics Noise level certification	There isn't	There isn't	There isn't	Cybenetics A	Cybenetics A
Power supply type	ATX	ATX	ATX	ATX	ATX
Power output	750W	650W	750W	850W	750W
80 PLUS certification	80 PLUS Gold	80 PLUS Gold	80 PLUS Gold	80 PLUS Gold	80 PLUS Gold
Total amperage (+12V)	62A	54A	62A	70.83A	62.5A
Fan size	120 mm	120 mm	120 mm	120 mm	135 mm
Functionality
Cable colour	Black	Black	Black	Black	Black
Lighting	None	None	None	None	None
Color	Black	Black	Black	Black	Black
Modular cables	Fully-Modular	Fully-Modular	Fully-Modular	Fully-Modular	Fully-Modular
Ports and equipment
PCI-E 5.0/5.1	There is no	There is no	1 x 450W 12V-2X6 (5.1)	1 x 600W 12V-2X6 (5.1)	1 x 600W 12V-2X6 (5.1)
Processor plug-in	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS
Motherboard power	24-pin	24-pin	24-pin	20+4-pin	24-pin
PCI-E	3 x 6+2pin	2 X 6+2pin	3 x 6+2pin	4 X 6+2pin	3 x 6+2pin
SATA cconnectors	8	5	8	8	9
4pin Molex	1	1	1	4	3

Description

We offer to purchase a Endorfy power supply unit with a power capacity of 750W, which has received the 80 PLUS Gold energy efficiency certification.

To ensure a good mid-range gaming experience, 750W of power will be sufficient. With this power supply unit, you will be able to run a computer with a high-end processor, multiple SSD/HDD drives, and a powerful mid-range graphics card (for example, RTX 4070).

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information

Cybenetics Efficiency certification : There isn't

Cybenetics Noise level certification : There isn't

Power supply type : ATX

Power output 750W

The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.

80 PLUS certification : 80 PLUS Gold

Total amperage (+12V) : 62A

Fan size : 120 mm

Functionality

Cable colour : Black

Lighting : None

Color : Black

Modular cables : Fully-Modular

Ports and equipment

PCI-E 5.0/5.1 : There is no

Processor plug-in : 2 x 8-pin(4+4) EPS

Motherboard power : 24-pin

PCI-E : 3 x 6+2pin

SATA cconnectors : 8

4pin Molex : 1

More detailed specification

80 PLUS certification Performance - 80 PLUS Gold
AC input voltage Power - 115 - 230 V
Cables included Packaging content - AC
Cabling type Ports & interfaces - Fully-Modular
Category Code - PSU
Category_1 - Power
Category_2 - PSU - Accessories
Certification Certificates - CCC, CE, FCC, UKCA, RoHS
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 840 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA
Depth Weight & dimensions - 150 mm
Description - The Supremo FM5 Gold 750 W is a mighty power supply unafraid of components’ demanding requirements. No wonder, because it’s packed with all the best for stable operation – say goodbye to unexpected coffee break resets. It’s a DC-DC power supply for tight voltage regulation, stable operation, and a continuous power delivery of 750 W. The Supremo FM5 Gold 750 W has a 12 cm 120 mm Fluctus fan, so it’ll maintain the right temperature like there’s no tomorrow. No wonder this bad boy has been certified 80 PLUS® Gold. And the cherry on top – our Supremo is only 14 cm long. That’s enough to fit even into smaller cases (and thanks to its fully modular build, you can plug in only the necessary cables). Blue screen? What’s that?
With the Supremo FM5 Gold 750 W, you can forget about unexpected resets – even during intense skirmishes with your virtual enemies. We just know how annoying the blue screen at the end of the quest can be. And that's why we designed our power supply to give you your components a stable voltage on each line separately. Pssst, do you hear it?
If you like white noise, we have bad news – with the Supremo FM5 Gold 750 W you work click in silence. After a few hours at full speed, you can hit an all-night raid, and your computer will still be quiet. So quiet that you’ll hear your thoughts. Japanese capacitors only
The Supremo FM5 Gold 750 W is a power supply that can easily handle the most hardcore temperatures. Where the water starts to boil, this PSU keeps it cool – it can work even at 105° Celsius. 7-year warranty
The Supremo FM5 Gold 750 W is covered by an extended 7-year warranty. You probably won’t need to use it anyway (hello, it’s ENDORFY!), but it’s still nice to have it.
EAN_code - 5903018666174
Fan diameter Design - 12 cm
Fan speed Design - 250 - 1400 RPM
Height Weight & dimensions - 87 mm
Manufacturer - ENDORFY
Manufacturer_code - EY7A008
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - EY7A008
Motherboard power connector Ports & interfaces - 18+10 pin ATX
Name - ENDORFY Supremo FM5 Gold 750W, PC power supply (black, 750 watts)
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 3
PCI Express power connectors (8-pin) Ports & interfaces - 6
Power protection features Power - Over current, Over power, Over voltage, Short circuit, Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Summary - ENDORFY Supremo FM5 Gold 750 W. Total power: 750 W, AC input voltage: 115 - 230 V, Combined power (+3.3V): 100 W. Motherboard power connector: 18+10 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: AC
Supported motherboard form factors Performance - ATX
Total power Power - 750 W
Unit Box Height - 0.22
Unit Box Length - 0.095
Unit Box Width - 0.27
Unit Calculated Volume - 0.005643 cubm
Unit Calculated Weight - 2.57 kg
Units per Shipping Box - 1
Vendor Homepage - https://endorfy.com/en/product/supremo-fm5-gold-750-w/
Warranty - 24 months
Weight - 2,55
Width Weight & dimensions - 140 mm
