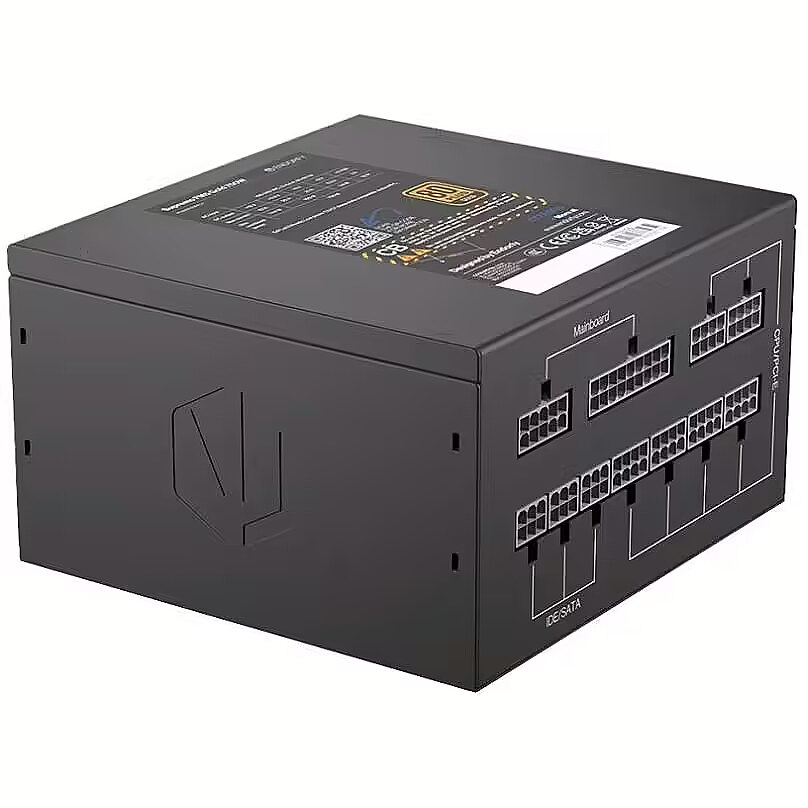

Endorfy Supremo FM5 Gold, 750W, 80PLUS Gold

80 PLUS certification Performance - 80 PLUS Gold
AC input voltage Power - 115 - 230 V
Cables included Packaging content - AC
Cabling type Ports & interfaces - Fully-Modular
Category Code - PSU
Category_1 - Power
Category_2 - PSU - Accessories
Certification Certificates - CCC, CE, FCC, UKCA, RoHS
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 840 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA
Depth Weight & dimensions - 150 mm
Description - The Supremo FM5 Gold 750 W is a mighty power supply unafraid of components’ demanding requirements. No wonder, because it’s packed with all the best for stable operation – say goodbye to unexpected coffee break resets. It’s a DC-DC power supply for tight voltage regulation, stable operation, and a continuous power delivery of 750 W. The Supremo FM5 Gold 750 W has a 12 cm 120 mm Fluctus fan, so it’ll maintain the right temperature like there’s no tomorrow. No wonder this bad boy has been certified 80 PLUS® Gold. And the cherry on top – our Supremo is only 14 cm long. That’s enough to fit even into smaller cases (and thanks to its fully modular build, you can plug in only the necessary cables). Blue screen? What’s that?
With the Supremo FM5 Gold 750 W, you can forget about unexpected resets – even during intense skirmishes with your virtual enemies. We just know how annoying the blue screen at the end of the quest can be. And that's why we designed our power supply to give you your components a stable voltage on each line separately. Pssst, do you hear it?
If you like white noise, we have bad news – with the Supremo FM5 Gold 750 W you work click in silence. After a few hours at full speed, you can hit an all-night raid, and your computer will still be quiet. So quiet that you’ll hear your thoughts. Japanese capacitors only
The Supremo FM5 Gold 750 W is a power supply that can easily handle the most hardcore temperatures. Where the water starts to boil, this PSU keeps it cool – it can work even at 105° Celsius. 7-year warranty
The Supremo FM5 Gold 750 W is covered by an extended 7-year warranty. You probably won’t need to use it anyway (hello, it’s ENDORFY!), but it’s still nice to have it.
EAN_code - 5903018666174
Fan diameter Design - 12 cm
Fan speed Design - 250 - 1400 RPM
Height Weight & dimensions - 87 mm
Manufacturer - ENDORFY
Manufacturer_code - EY7A008
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - EY7A008
Motherboard power connector Ports & interfaces - 18+10 pin ATX
Name - ENDORFY Supremo FM5 Gold 750W, PC power supply (black, 750 watts)
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 3
PCI Express power connectors (8-pin) Ports & interfaces - 6
Power protection features Power - Over current, Over power, Over voltage, Short circuit, Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Summary - ENDORFY Supremo FM5 Gold 750 W. Total power: 750 W, AC input voltage: 115 - 230 V, Combined power (+3.3V): 100 W. Motherboard power connector: 18+10 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: AC
Supported motherboard form factors Performance - ATX
Total power Power - 750 W
Unit Box Height - 0.22
Unit Box Length - 0.095
Unit Box Width - 0.27
Unit Calculated Volume - 0.005643 cubm
Unit Calculated Weight - 2.57 kg
Units per Shipping Box - 1
Vendor Homepage - https://endorfy.com/en/product/supremo-fm5-gold-750-w/
Warranty - 24 months
Weight - 2,55
Width Weight & dimensions - 140 mm
