Endorfy Supremo FM6, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1
-
Omniva parcel machineWithin 1-2 working days1.99 €
-
SmartPosti parcel terminalWithin 1-2 working days1.99 €
-
Unisend parcel terminalWithin 1-2 working days1.99 €
-
Delivery by courier to the addressWithin 1-2 working days5.99 €
- Producer: Endorfy
- Power output: 750W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Available for purchase is a power supply produced by Endorfy with a power output of 750W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.
With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
ATX version - 3.1
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Gold
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Dodatkowe informacje - Zgodność z wytycznymi ATX 3.1 Certyfikat 80 PLUS® Gold Cicha praca 100% japońskie kondensatory W pełni modularne okablowanie 10 lat gwarancji Kabel zasilający 12V-2x6
Dane techniczne: Grupa produktowa - Zasilacze do komputera Endorfy
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 150 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 750 W
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Endorfy
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 140 mm
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 87 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 140 mm
Description - Supremo FM6 750W is a modern, fully modular ATX 3.1 power supply, delivering stable performance and support for the latest PCIe 5.1 graphics cards. The 80 PLUS Gold certification confirms its high energy efficiency, while a 120mm Fluctus fan ensures quiet operation. Equipped with premium Japanese capacitors and backed by a 10-year warranty, its a reliable solution for gamers and professionals. Ready for the latest standards with ATX 3.1
The Supremo FM6 750W is compliant with the ATX 3.1 standard. This unit offers improved efficiency, stability, and resilience to short-term power spikes compared to previous ATX standards. It includes a 12V-2x6 cable for full compatibility with PCIe 5.1 cards. Traditional PCIe 6+2 PIN cables are also provided to power legacy GPUs. The Supremo FM6 750W ensures long-lasting, trouble-free performance in high-end gaming and workstation builds and is ready for future component upgrades, including upcoming technologies. 80 PLUS Gold high efficiency and reliability
The Supremo FM6 750W power supplys high energy efficiency is confirmed by the 80 PLUS Gold certification. Thanks to premium components and a refined design, the unit operates quietly with minimal heat generation, resulting in extended lifespan. Quiet operation
The Supremo FM6 750W is designed for maximum user comfort. Its optimized component layout enhances airflow, and the efficient cooling system ensures exceptionally quiet operation and low temperatures, even under full load. Premium Japanese capacitors
All capacitors used in the Supremo FM6 750W are reliable premium Japanese components. They maintain their specifications even at high temperatures (105°C), ensuring stable and trouble-free operation under demanding conditions. Reliable 120mm Fluctus fan

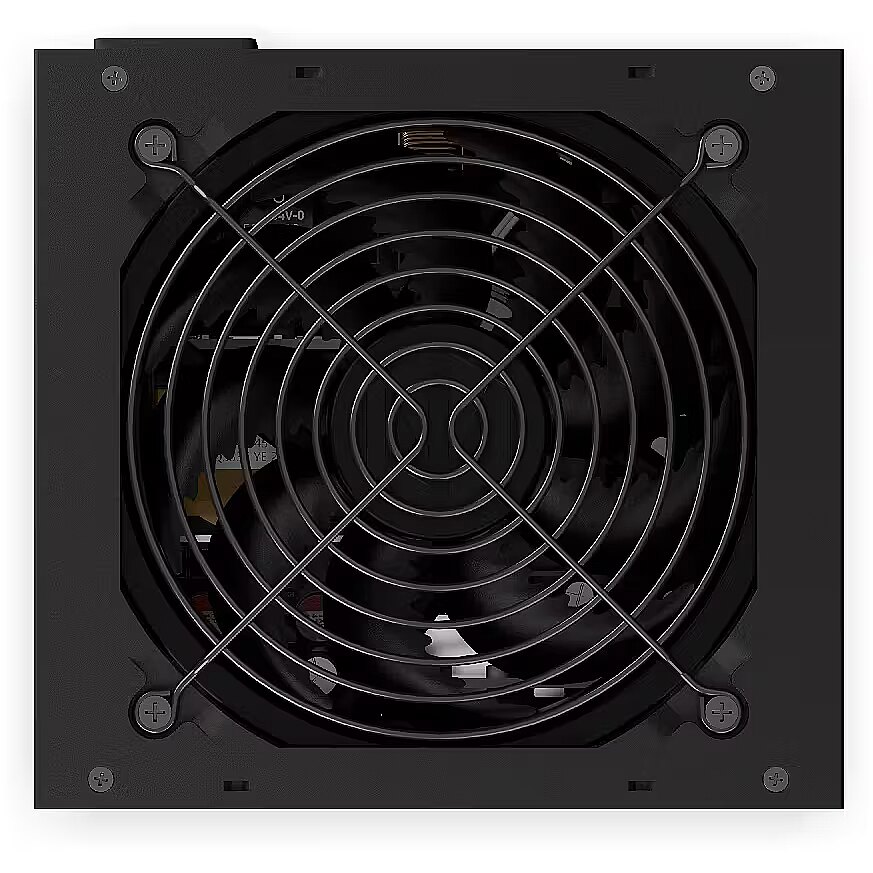

Co-designed with Synergy Cooling, the award-winning Fluctus series fan features an FDB bearing to maintain low temperatures in the PSU. Psychoacoustic optimization reduces fan noise, providing comfortable operation even in non-soundproofed cases. Fully modular cabling
You only connect the cables you need. Fully modular cabling simplifies cable management, improves airflow, and reduces internal temperatures. 10-year warranty
We are confident in the quality and reliability of ENDORFY-branded hardware. Thats why the Supremo FM6 750W comes with a 10-year warranty, ensuring long-lasting, trouble-free performance. Comprehensive protection package
The Supremo FM6 750W includes a full set of electrical and thermal protections, safeguarding your PC from overloads, voltage spikes, short circuits, and overheating, ensuring stability and safety even in the most demanding conditions.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Fan speed - 1260 - 1540 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1180
dimension depth - 100 mm
dimension height - 270 mm
Dimensions - 87 × 140 × 150 mm
dimension weight - 2700 g
dimension width - 220 mm
ean - 5903018668499
Eans - 5903018668499
Fan - 12 cm
Fan speed (max) - 1400 rpm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Form Factor - ATX
guarantee - 120
guarantee_type - normal
Logistics data - Warranty period - 10 year(s)
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 1
Name - ENDORFY Supremo FM6 Gold 750 W
name - Supremo FM6 Gold 750W EY7A013
Number of power connectors 12VHPWR - 1
Number of power supply connector 4+4-pin 12V - 2
Packaging content - Cables included - AC
Packaging content - DFU / User manual - Yes
Packaging content - Quantity per pack - 1 pc(s)
PCI-E 8-pin power connectors - 3
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - None
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 560 mm
Power - AC input voltage - 100 - 240 V
Power - Power protection features - OCP
Power - Power protection features - OPP
Power - Power protection features - OTP
Power - Power protection features - OVP
Power - Power protection features - SCP
Power - Power protection features - SIP
Power - Power protection features - UVP
Power - Total power - 750 W
Power supply - 750 W
Producent: Nazwa producenta / importera - Endorfy
COOLING sp. z o.o
Sokołowska 24
05-806 Sokołów
producer - Endorfy
Producer - Endorfy
producerCode - EY7A013
ProducerCode - EY7A013
productName - ENDORFY Supremo FM6 750W power supply unit
productSize - Normal
SATA power connectors - 8
ShortDescription - 750 | ATX 3.1 | 120 mm | 87 mm 140mm 150 mm | 80PLUS GOLD | modularny |
sizeX - 270
sizeY - 223
sizeZ - 98
vendpn - EY7A013
warrantyLength - 120
warrantyType - F
Weight - 1.48 kg
weight - 2700
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 140 mm
