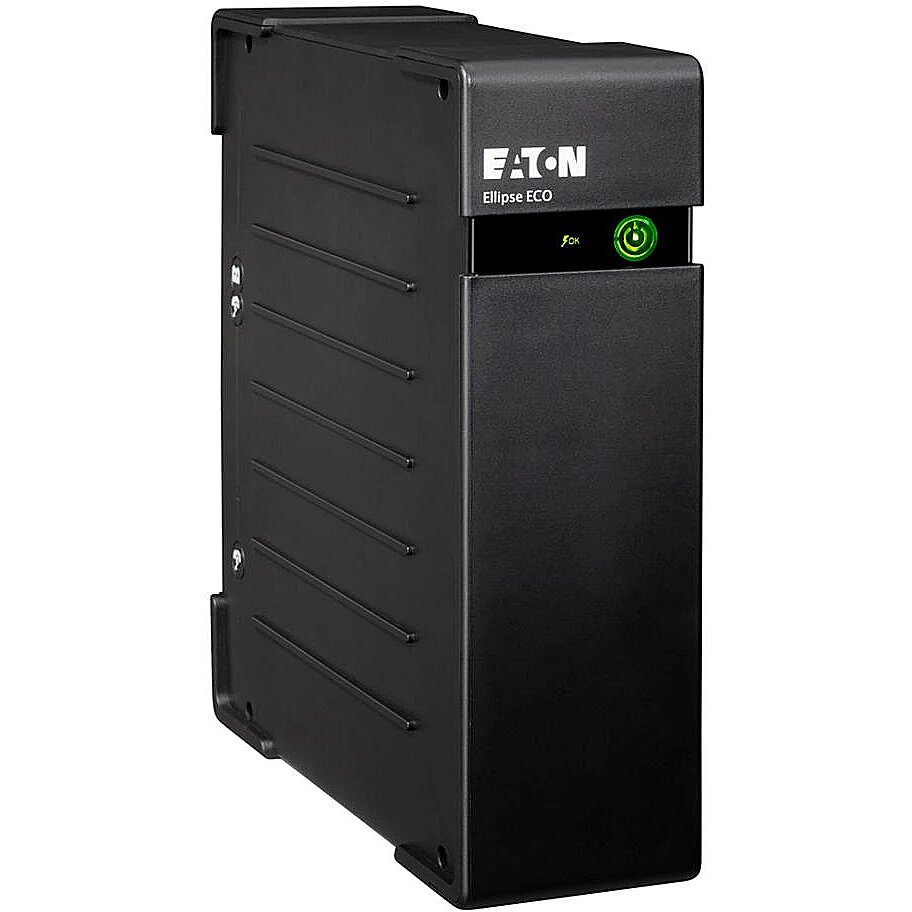

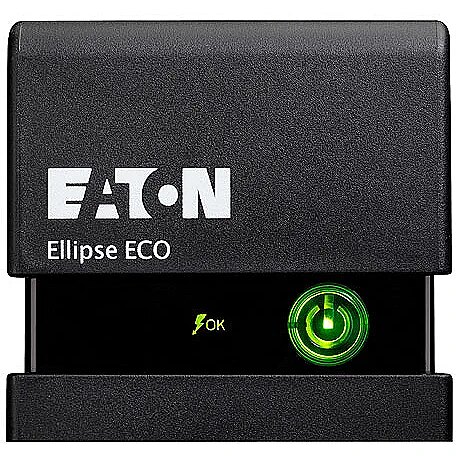

Eaton EL650FR, 650VA 400W

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 209330 Product code: EL650FR
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Battery capacity (VA): 650 VA
  • Output power (W): 400 W
Similar Products
This product Eaton EL650FR, 650VA 400W
Eaton 3S700 FR, 700VA 420W
Eaton ELP850IEC, 850VA 510W, IEC
Eaton ELP650FR, 650VA 400W
Eaton EL800USBIEC, 800VA 500W, IEC
Show similar specs. Hide similar specs.
132.22 €
123.28 €
261.86 €
202.58 €
196.31 €
Model 3S700FR ELP850IEC ELP650FR EL800USBIEC
Display characteristics
Display Nav Nav Ir Ir Nav
Basic information
Battery capacity (VA) 650 VA 700 VA 850 VA 650 VA 800 VA
Battery type Lead acid Lead acid Lead acid Lead acid Lead acid
Charging time (hours) Not specified 6h Not specified Not specified Not specified
Output power (W) 400 W 420 W 510 W 400 W 500 W
Ports and equipment
Number of nests (total) 4 6 4 4 4
Number of sockets (Battery Backup) 3 3 3 3 3
RJ-45 2 2 2 2 2
Socket type Schuko Schuko IEC320 Schuko IEC320
USB 0 2 0 0 0
Description

A UPS with a Lead-acid battery provides a time-tested technical solution for backup power. The battery ensures stable electrical parameters, resistance to cyclic loads, and a simple charging scheme, which reduces the overall complexity of the system and increases operational reliability.

A UPS with a Schuko connection type ensures a secure connection with European standard grounded sockets. Such a connector supports reliable contact, resistance to overvoltages and mechanical shocks, simplifies the installation and replacement of connected devices, ensuring stable power supply in home and office networks.

Warranty

Eaton provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.

Display characteristics
Display : Nav
Basic information
Battery capacity (VA) 650 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type : Lead acid
Charging time (hours) : Not specified
Output power (W) : 400 W
Ports and equipment
Number of nests (total) : 4
Number of sockets (Battery Backup) : 3
RJ-45 : 2
Socket type : Schuko
USB : 0
More detailed specification
Accessories included -
Active power - 400 W
Apparent power - 650 VA
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Chassis type - Rack
Chassis type - Tower
Color - Black
Connectors - RJ-11
Description - Eaton Ellipse ECO 650 FRThe Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Full specification: http://powerquality.eaton.com/EL650FR.aspx?CX=101
Designation - CE+WEEE
dimension depth - 140 mm
dimension height - 325 mm
Dimensions - - Height: 263 mm
- Width: 81 mm
- Depth: 235 mm
dimension weight - 4170 g
dimension width - 285 mm
ean - 3553340620614
Eans - 3553340620614
Environment requirements -
Filters / protection - Data line
Filters / protection - Overdischarge
Filters / protection - Surge
guarantee - 24
guarantee_type - external
Input power ports - IEC-C14
Name - Eaton Ellipse ECO 650 FR
name - Ellipse ECO 650 FR EL650FR
Number of phases input - 1 (230V)
Other features - - Input voltage range: 184 - 264V
- 3 output sockets with backup and protection + 1 with protection
- Replaceable sealed lead-acid batteries
- Energy-efficient build
- Time: 50% (9 min), 70% (6 minutes)
Output power ports - 4 x C/E type
producer - Eaton
Producer - Eaton
ProducerCode - EL650FR
ShortDescription - 650 VA / 400 W
Software -
Special functions - - Easy installation in an office environment
- Protecting data line
- Automatic switch
- Indicators LED + audible alarm
- Battery test
- Cold start
UPS Architecture - off-line (standby)
vendpn - EL650FR
Video -
Weight - 3.6 kg
