ID: 167306
Product code: 3S700FR
Can be ordered 6 units Availability: 14 days after order approval
Warranty: 2 years

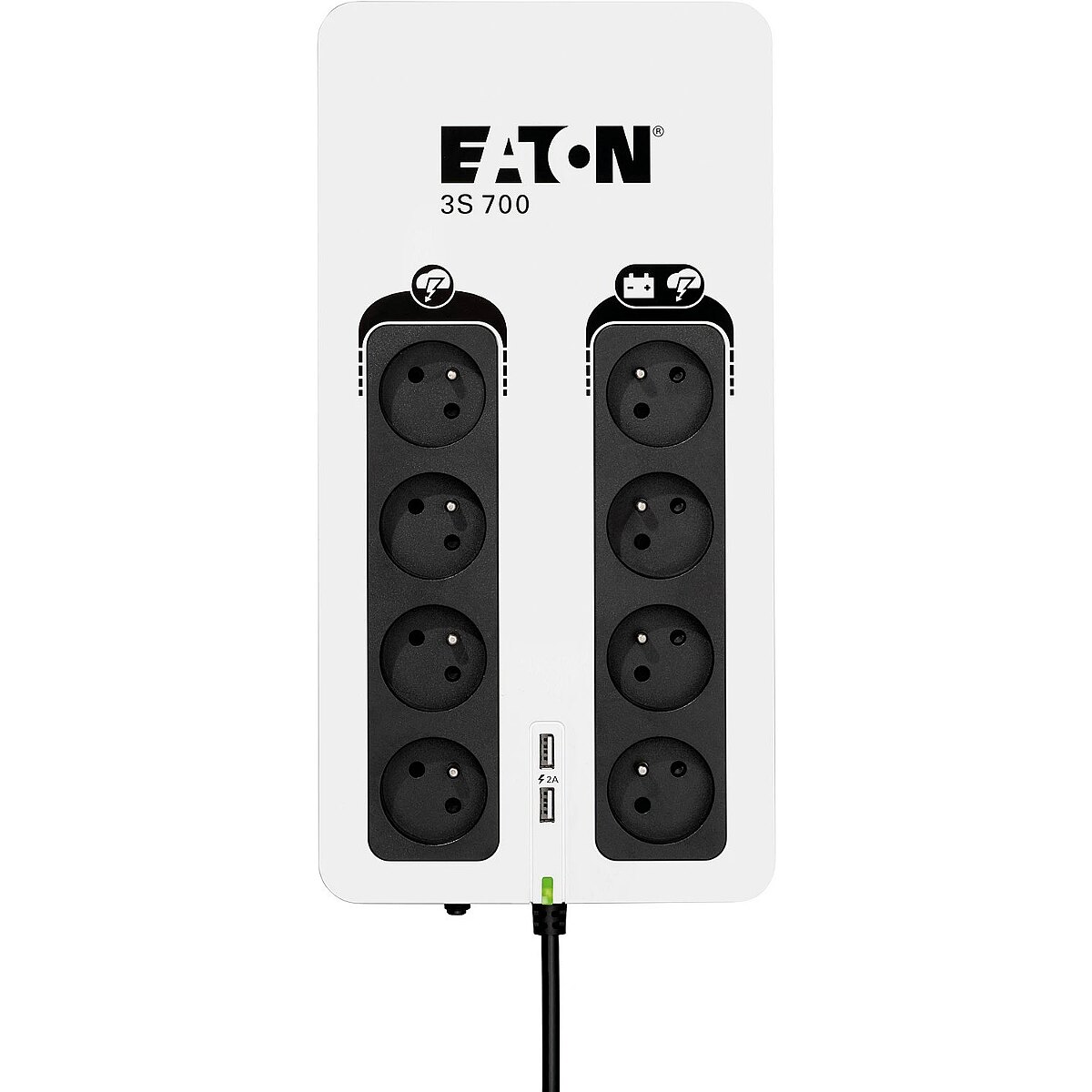

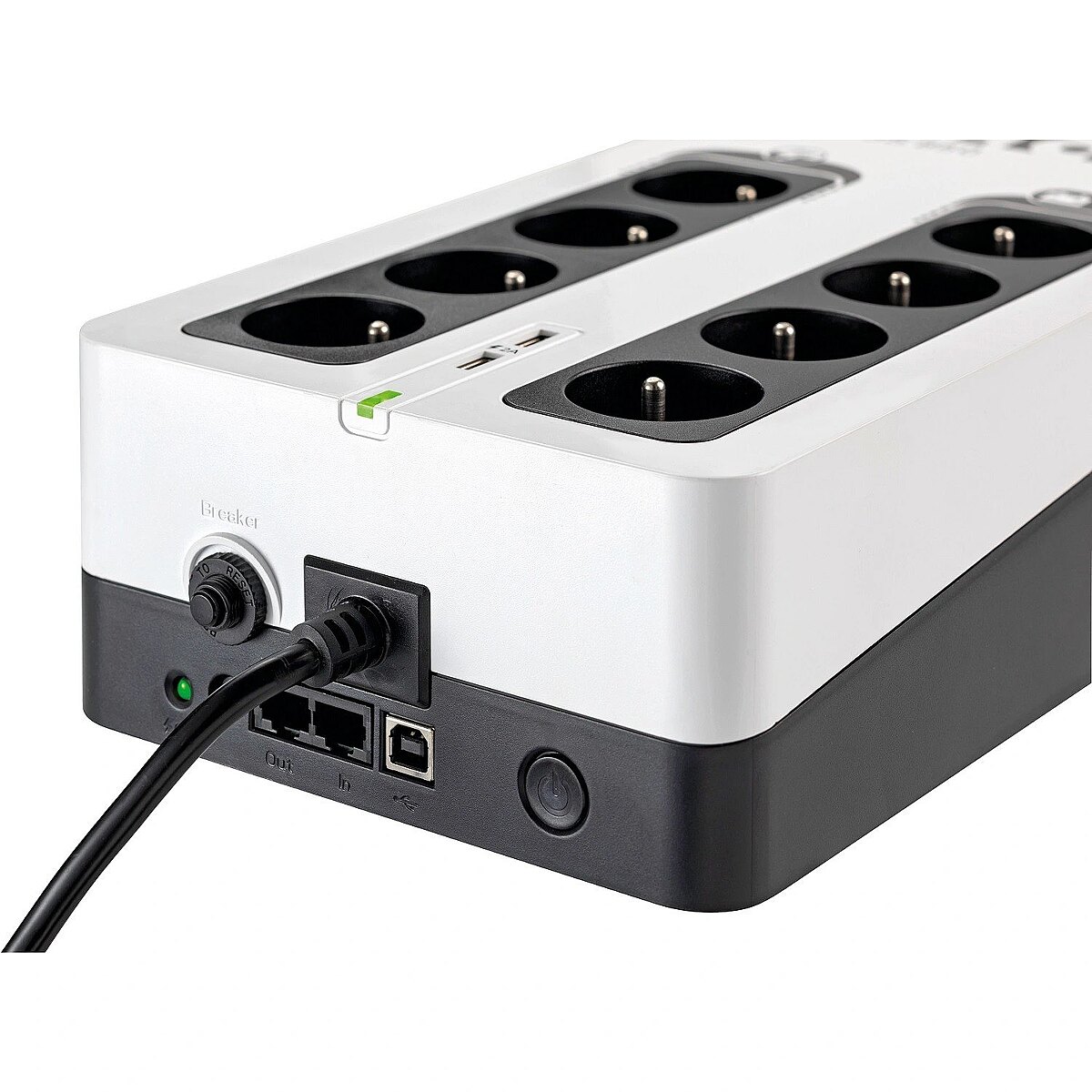

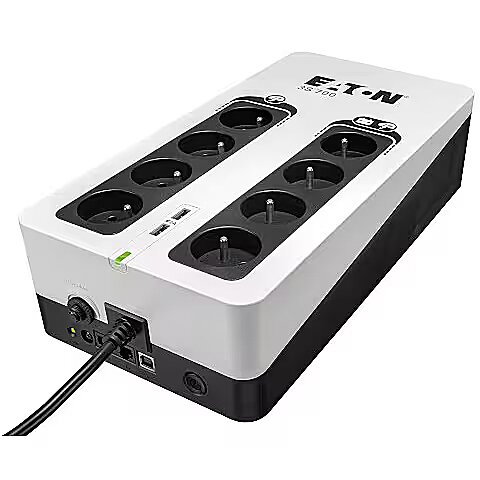

Eaton 3S700 FR, 700VA 420W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Battery capacity (VA): 700
- Output power (W): 420
Description
This UPS Eaton 3S700 FR, 700VA 420W with an output power of 420 W and a battery capacity of 700 VA is designed for home and office systems. It provides stable power supply to computers and monitors, reducing the risk of data loss during power interruptions.
The use of a lead-acid battery in a UPS device ensures predictable operation during both short-term and prolonged power outages. This battery technology is characterized by stable output parameters, good compatibility with classic UPS schemes, and clear operating conditions in standard working environments.
The use of Schuko connection type in a UPS device ensures a stable electrical connection and grounding protection for the connected equipment. This standard simplifies cable attachment and replacement, reduces the risk of accidental disconnection, and maintains reliable device performance under typical load.
Warranty
Eaton provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.
Display characteristics
Display
: There isn't
Basic information
Battery capacity (VA)
700
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 6
Output power (W)
: 420
Ports and equipment
Number of nests (total)
: 6
Number of sockets (Battery Backup)
: 3
RJ-45
: 2
Socket type
: Schuko
USB
: 2
More detailed specification
Accessories included -
Active power - 420 W
Apparent power - 700 VA
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Brand - Eaton
BrandPartCode - 3S700F
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE/EAC/Ukr/Cm/CB report
Chassis type - Desktop
Chassis type - Mini Tower
Color - Black
Data Act - Link
Description - Attractive design and glossy finish make the 3S a perfect fit for the modern office environment The 3S comes with either 6 Schuko (DIN) or 6 French (FR) outlets for easy connection of typical computer configurations with peripherals (IEC model also available with 8 outlets) The 3S features a HID-compliant USB port (cable supplied), for automatic integration with common operating systems (Windows/Mac OS/Linux) Protects Telephone, Internet and Ethernet line from "back door" power surges Compact unit fits on or under your desk or can be mounted on a wall Easy-to-replace battery helps to extend UPS service life
Design - Cable length - 1.5 m
Design - LED indicators - Yes
Design - Product colour - Black, White
Designation - CE+WEEE
dimension depth - 240 mm
dimension height - 155 mm
Dimensions - 86 x 170 x 335 mm
dimension weight - 4700 g
dimension width - 395 mm
ean - 743172101822
Eans - 743172101822
Environment requirements -
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Maximum current - 10 A
Features - Output frequency - 50 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 420 W
Features - Output power capacity - 0.7 kVA
Features - Power protection features - Overdischarge
Features - Surge protection - Yes
Features - UPS topology - Standby (Offline)
Filters / protection - Data line
Filters / protection - Overdischarge
Filters / protection - Overload
Filters / protection - Surge
GTIN - 743172101822
GTIN - 0743172101822
GTIN - 7431721018228
guarantee - 24
guarantee_type - external
I/O connectors - 1 x USB (Type B)
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongProductName - 3S Gen2 UPS IEC, 700 VA, 420 W, Input: C14, Outputs: (4) C13, (4) C13 surge only, USB Communication, USB charge (2), Tower
LongSummaryDescription - Eaton 3S700F. UPS topology: Standby (Offline), Output power capacity: 0.7 kVA, Output power: 420 W. AC outlet types: Type E, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA). Product colour: Black, White, Cable length: 1.5 m. Certification: CE/EAC/Ukr/Cm/CB report
Name - Eaton 3S 700 FR
name - UPS 3S 700 FR 3S700F
No. of batteries - 1
Number of phases input - 1 (230V)
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Back-up time 50% load: 9 min. Back-up time 70% load: 6 min.
Other features - Nominal input voltage - 230 V
Output power ports - 8 x C/F type (Schuko)
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - Type E
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB port - Yes
producer - Eaton
Producer - Eaton
ProducerCode - 3S700F
ProductName - 3S700F
Safety regulation & standards - Safety - IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11
ShortDescription - 700 VA / 420 W
ShortSummaryDescription - Eaton 3S700F, Standby (Offline), 0.7 kVA, 420 W, 161 V, 284 V, 50/60 Hz
Software -
Special functions -
Title - Eaton 3S700F uninterruptible power supply (UPS) Standby (Offline) 0.7 kVA 420 W 8 AC outlet(s)
UPS Architecture - off-line (standby)
URL - https://www.eaton.com/gb/en-gb/skuPage.3S700I.html
vendpn - 3S700F
Video -
Voltage - 230 V
WarrantyInfo - 2 year
Weight - 3.8 kg
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 4 kg
Weight & dimensions - Width - 335 mm
