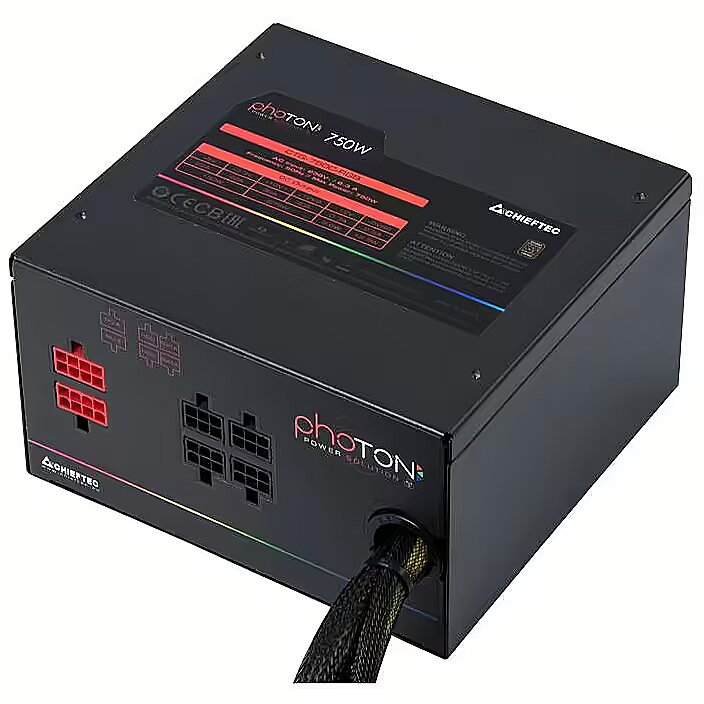

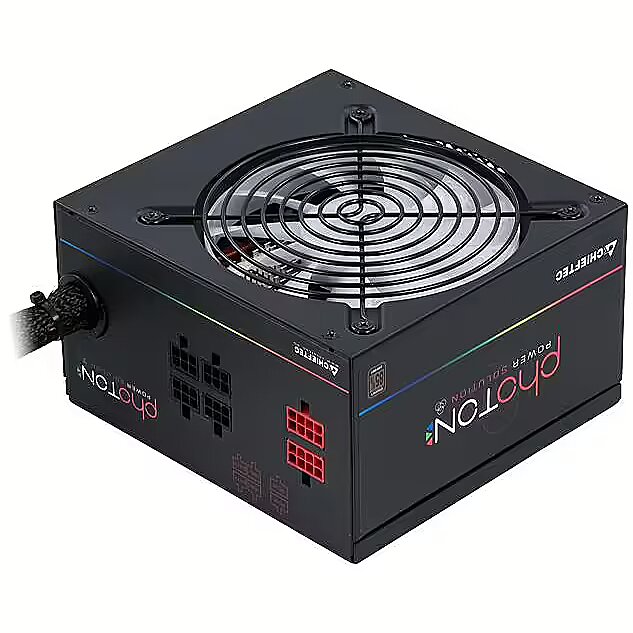

Chieftec Photon Series RGB, 750W

Brand - Chieftec
BrandPartCode - CTG-750C-RGB
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
EAN - 0753263075925
Eans - 753263075925
EAN_code - 0753263075925
GTIN - 753263075925
GTIN - 0753263075925
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The highly innovative Photon series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS AURA SYNC, MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC and GIGABYTE RGB FUSION.Photon series in addition provide a vast number of predefined and MB-independent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its modular cables and related vast amount of connectors, an efficiency of 85% @230V, coupled with its highly competitive price positioning, the models of the Photon series stand out as perfect RGB Gaming solutions.
LongProductName - 750W, 230V, 6.3A, 50 Hz, ATX, PS II, 24-pin, 4+4-pin, 4x 6+2-pin, 6x SATA, 4x Molex, 2x Floppy, RGB
LongSummaryDescription - Chieftec Photon. Total power: 750 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, Supported motherboard form factors: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
Manufacturer - Chieftec
Manufacturer_code - CTG-750C-RGB
MPN - CTG-750C-RGB
Name - 750W Chieftec Photon Serie CTG-750C-RGB
Name - Chieftec CTG-750C-RGB
Name - Chieftec Photon CTG-750C-RGB 750W ATX23 - Photon bronze
Other features - Illumination colour - Blue, Green, Red
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
Ports & interfaces - ATX Power connector (24-pin) - Yes

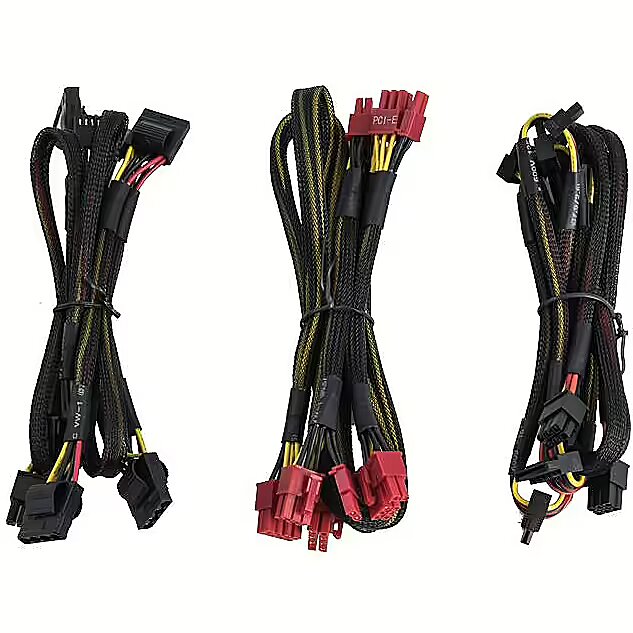

Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 2
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 55 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 150,450 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 150,450 mm
Power - AC input frequency - 50 Hz
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Input current - 6.3 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+12V1) - 30 A
Power - Max output current (+12V2) - 30 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Total power - 750 W
Producer - Chieftec
ProducerCode - CTG-750C-RGB
ProductName - Photon
ShortDescription - 750 | ATX | 120 mmRGB| 20 + 4 pin | 150mm x 87mm x 140mm | 80| standard |
ShortSummaryDescription - Chieftec Photon, 750 W, 230 V, 50 Hz, 6.3 A, 130 W, 130 W
Title - Chieftec Photon power supply unit 750 W 24-pin ATX PS/2 Black
URL - https://www.chieftec.eu/en/psus/ps-2/photon-series/ctg-750c-rgb.html
WarrantyInfo - 24 Month
Weight - 2,45
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 2.15 kg
Weight & dimensions - Width - 150 mm
