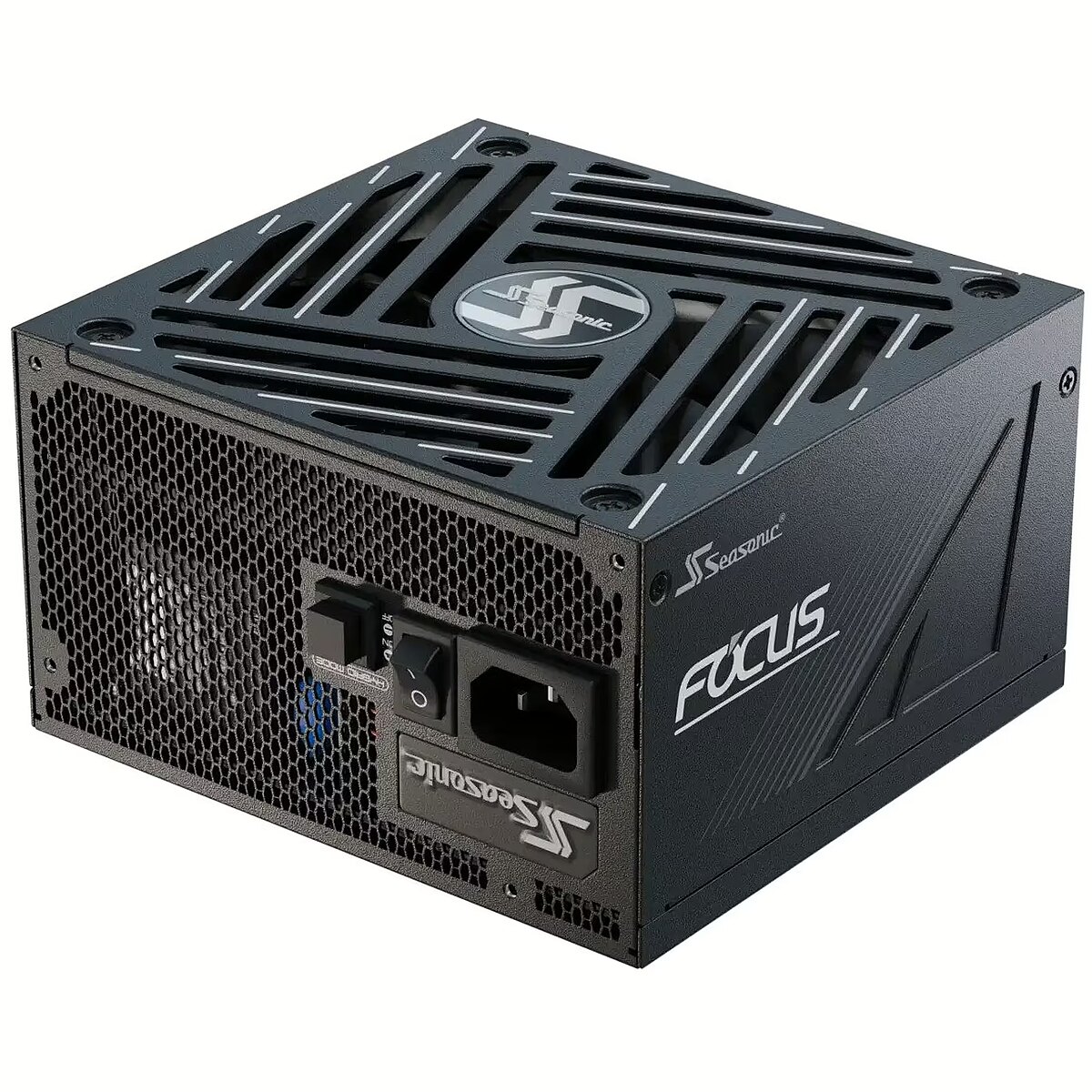

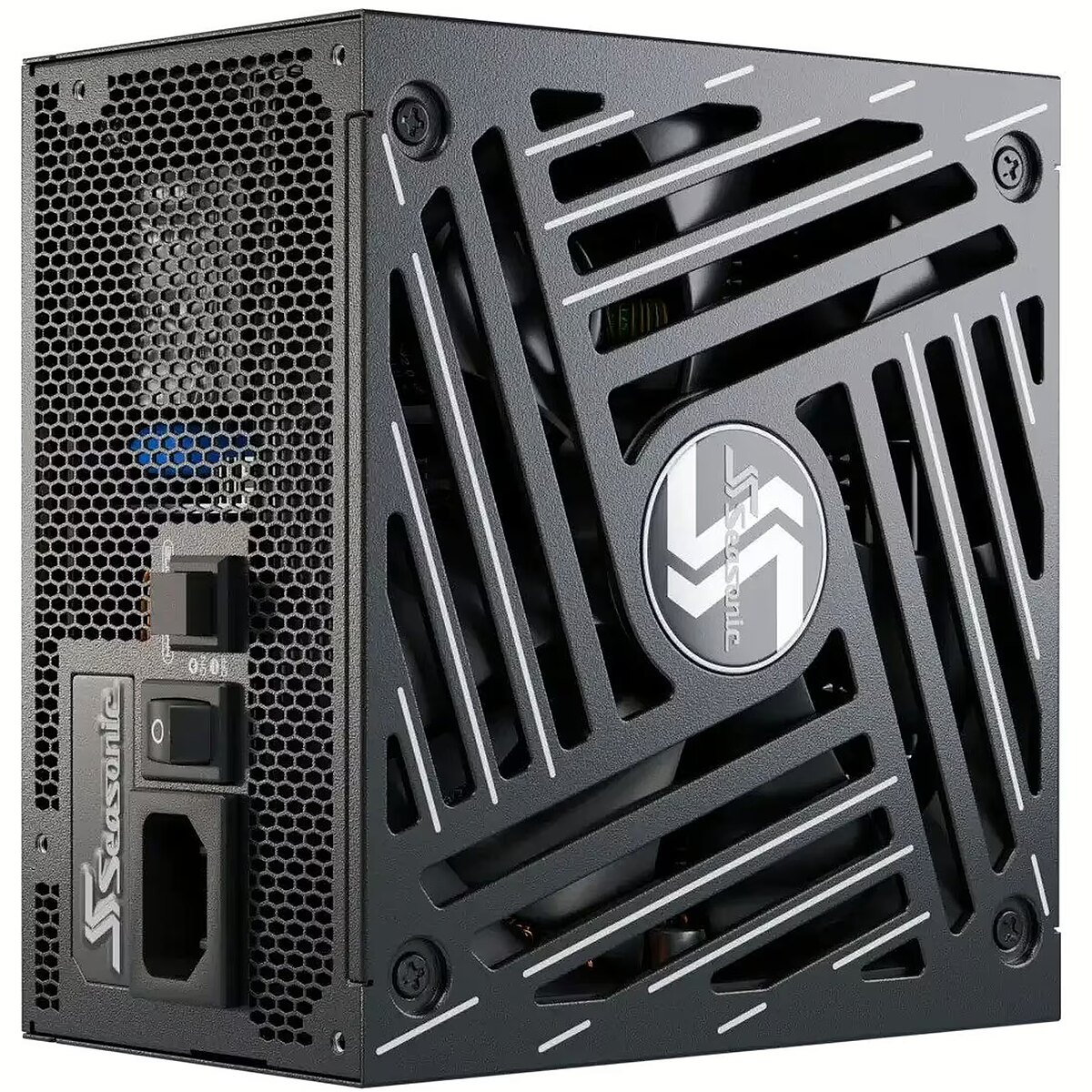

Seasonic Focus GX (2024), 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1

80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Bearing technology Performance - FDB

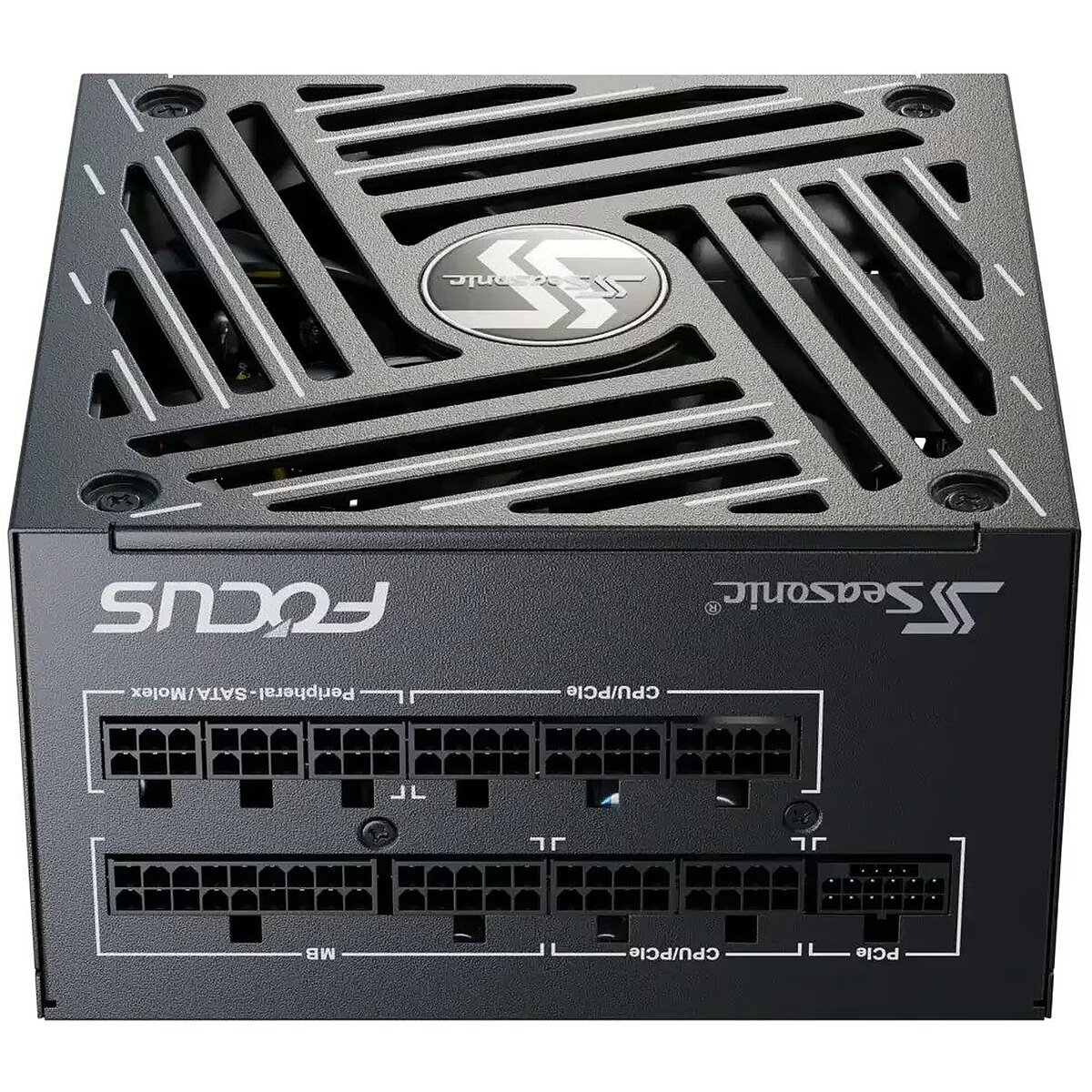

Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PSUs above 800 Watts
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
code - FOCUS-GX-1000-V4
Combined power (+3.3V) Power - 125 W
Combined power (+5V) Power - 125 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 996 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - CB/CE/cTUVus/EAC/REACH/RoHS/WEEE
Cooling type Design - Active
CPU power cable length Ports & interfaces - 700 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 140 mm
Description - FOCUS GX ATX 3.0 Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market. Digital Hybrid Fan Control
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode. Reduced noise without increase in temperature Extended fan life due to the reduced number of fan rotations Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan. When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
80 PLUS® GOLDFully ModularATX 3.0 & PCIe 5.0
ean - 4711173878421
EAN - 4711173878421
EAN_code - 4711173878421

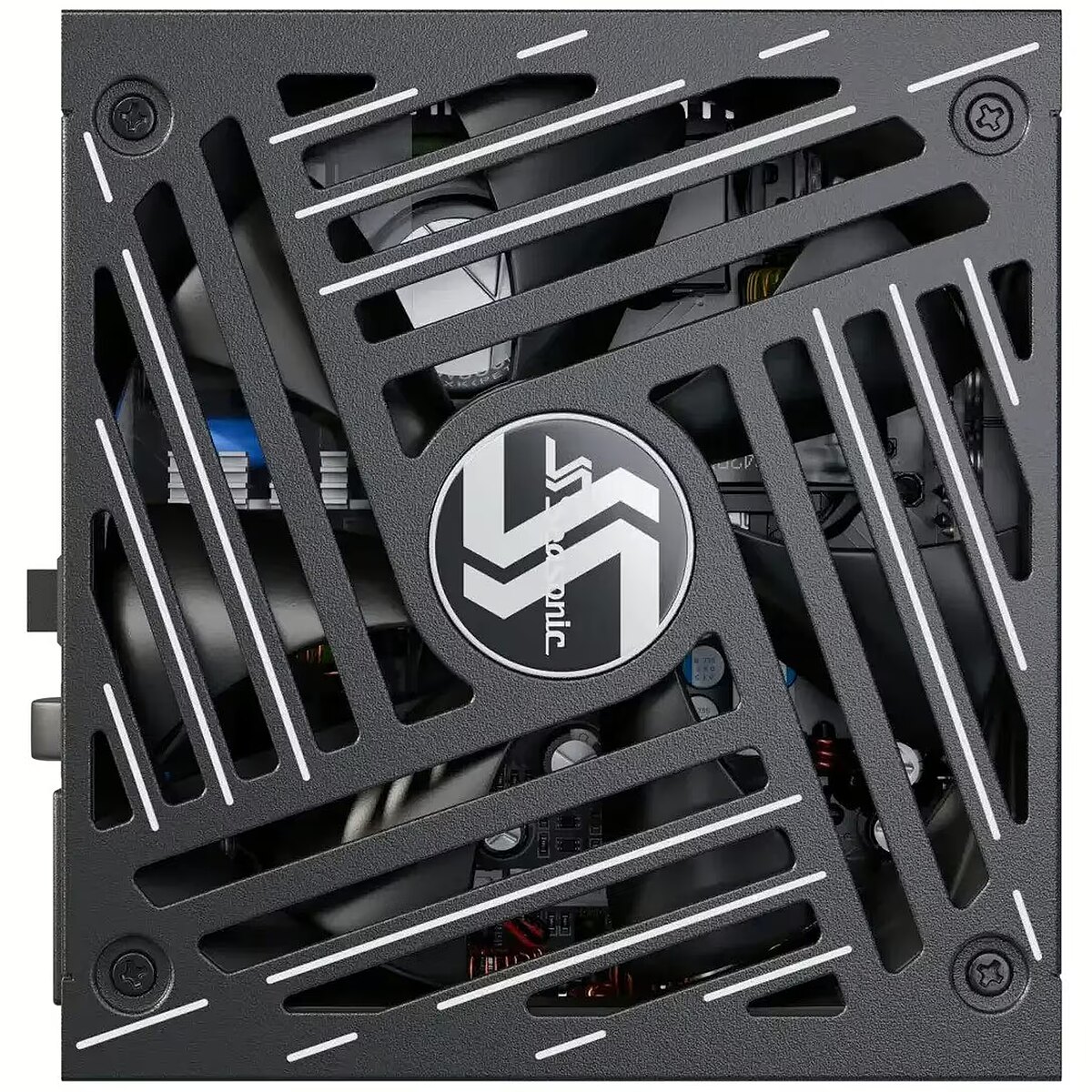

Fan diameter Design - 135 mm
Height Weight & dimensions - 86 mm
Input current Power - 13 - 6.5 A
Manufacturer - Seasonic
Manufacturer - Sea Sonic
Manufacturer_code - FOCUS-GX-1000-V4
Maximum input current (@110V) Power - 13 A
Maximum input current (@220V) Power - 6.5 A
Max output current (+3.3V) Power - 25 A
Max output current (+5V) Power - 25 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 83 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - FOCUS GX ATX 3.0
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - FOCUS-GX-1000-V4
Name - 1000W Seasonic Focus-GX-1000 ATX 3.1 80+ Gold
Name - Seasonic FOCUS GX-1000-V4 1000W ATX3.1, PC power supply (black, 1x 12-pin high power GPU, 3x PCIe, cable management, 1000 watts)
name - Seasonic Focus GX 80 PLUS Gold Netzteil, modular - 1000 Watt, schwarz
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 2
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 50 °C

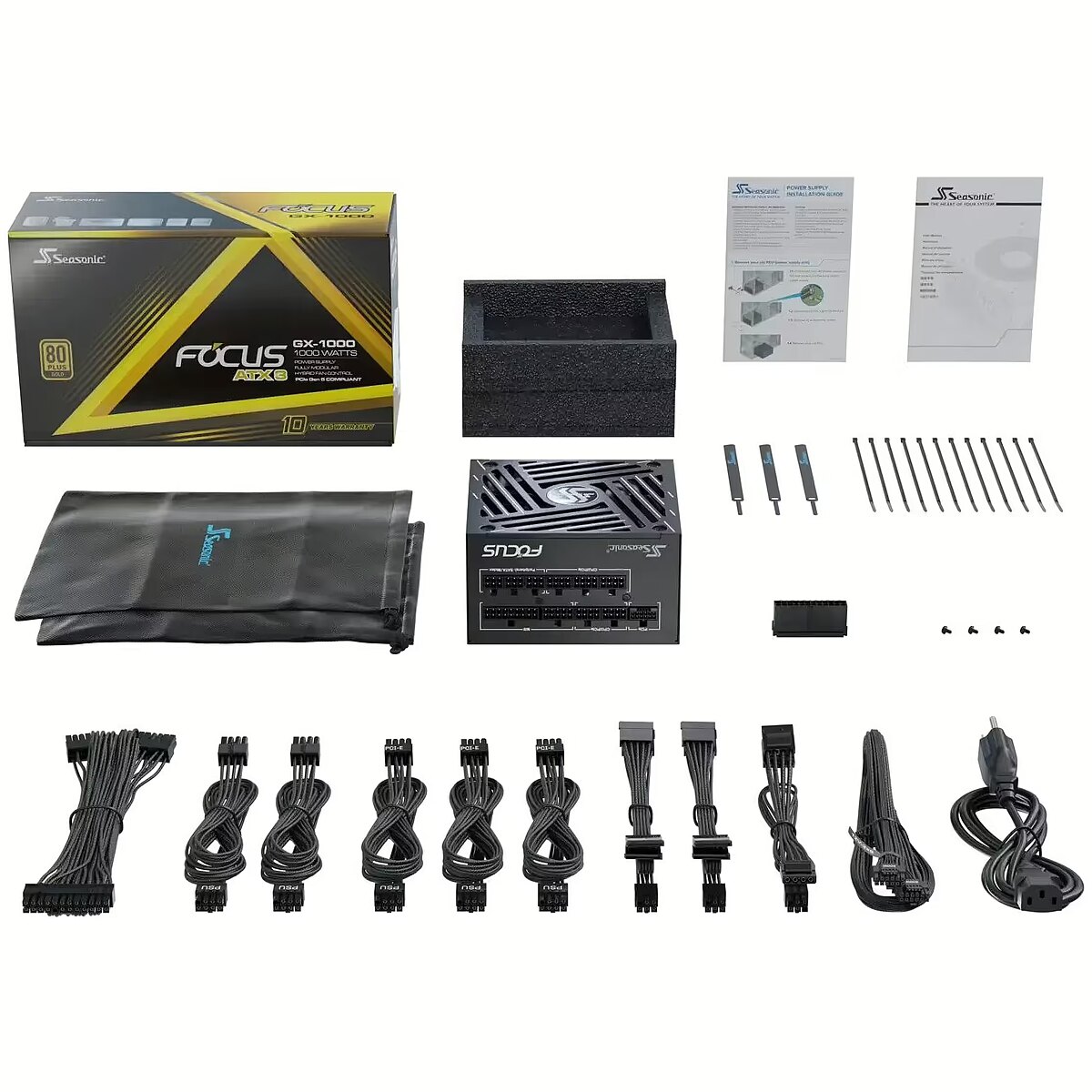

Package type Packaging data - Box
PCI Express power connectors (6+2 pin) Ports & interfaces - 3
PCI Express power connectors (12+4 pin) Ports & interfaces - 1
Peripheral (Molex) power cable length Ports & interfaces - 690 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Safety Safety regulation & standards - cTUVus, TUV, CB, CCC, BSMI, EAC, CE
SATA power cable length Ports & interfaces - 550 mm
Summary - Seasonic Focus GX ATX 3.0. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 550 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, CE, EAC, REACH, RoHS, WEEE, cTUVus
Sustainability certificates Technical details - ENERGY STAR
Total power Power - 1000 W
Unit Box Height - 0.335
Unit Box Length - 0.6
Unit Box Width - 0.04
Unit Calculated Volume - 0.00804 cubm
Unit Calculated Weight - 3.62 kg
Units per Shipping Box - 5
Vendor Homepage - https://seasonic.com/atx3-focus-gx/
Warranty - 120 months
Warranty period Logistics data - 10 year(s)
Weight - 3,40
Weight - 3.438
Width Weight & dimensions - 150 mm
