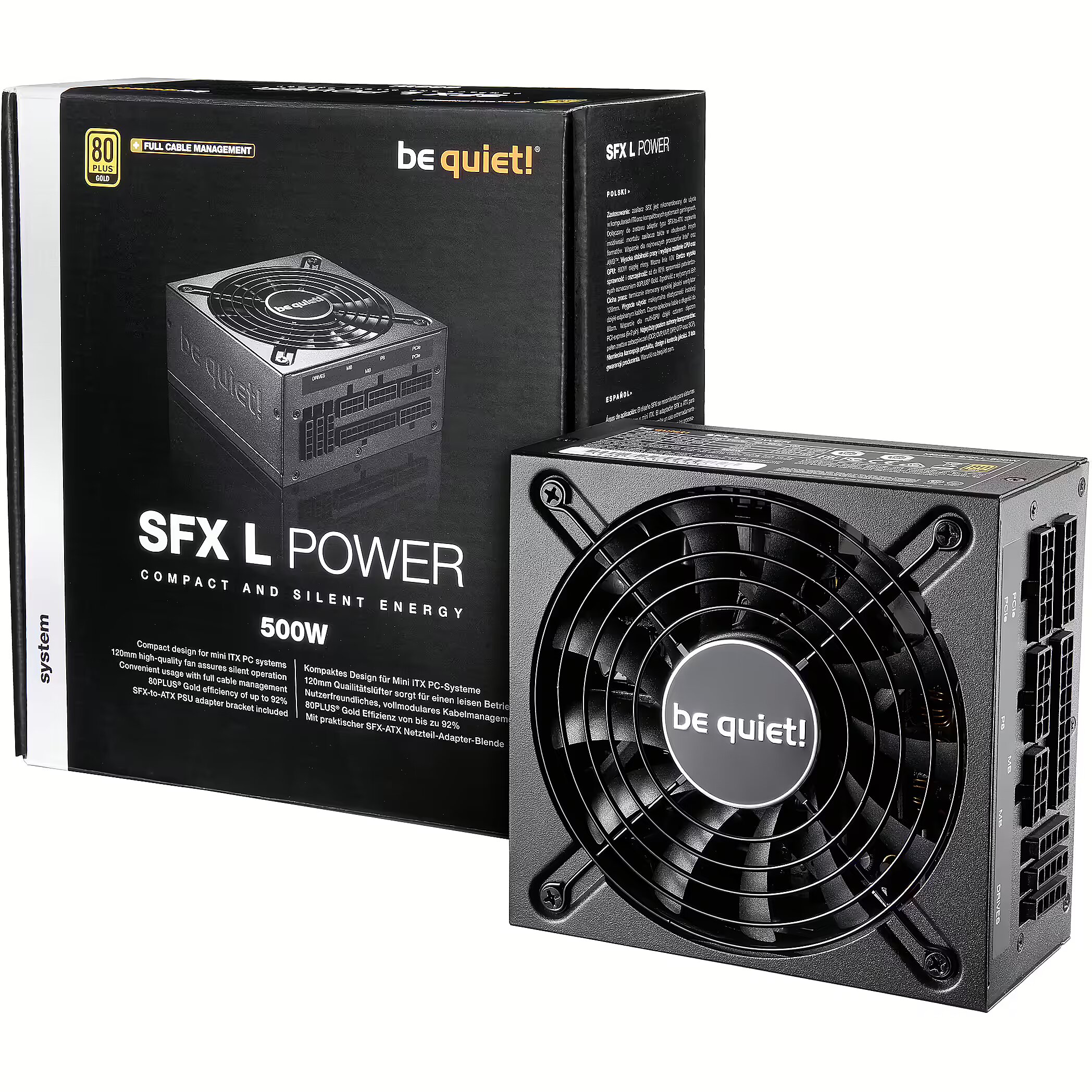

Be Quiet SFX L Power, 500W, 80PLUS Gold

Brand - be quiet!
BrandPartCode - BN238
Category - Power Supply Units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Certification - CE, CB, TÜV, FCC, cTUVus, RCM
Certificates - Compliance certificates - RoHS
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 4260052187128
EAN_code - 4260052187128
GTIN - 4260052187128
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Master (outer) case gross weight - 21.4 kg
Logistics data - Master (outer) case height - 240 mm
Logistics data - Master (outer) case length - 430 mm
Logistics data - Master (outer) case width - 430 mm
Logistics data - Products per master (outer) case - 10 pc(s)
LongDesc - Compact and Silent Energybe quiet! SFX L Power 500W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.POWERFUL, RELIABLE AND STABLEA strong partner for Mini ITX and compact gaming PCsThe SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. 4 PCIe connectors to support multi-GPU setups.QUIET OPERATION FOR COMPACT SYSTEMSOptimized for low-noise operationThis PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.80 PLUS® GOLD CERTIFICATIONVery high operating efficiencySFX L Power 500W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.MODULAR AND FLAT CABLESHighly compatible and convenientEntirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.SUPER VERSATILE INSTALLATIONAdapts to your individual requirementsThis power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.
LongProductName - 500 W, SFX 12V 3.3/ATX 2.4, 120mm fan, 28.5dB max., ATX 20+4-pin, 4x PCI-E 6+2-pin, 1x P4+4, 6x SATA, 3x PATA
LongSummaryDescription - be quiet! SFX L Power. Total power: 500 W, AC input voltage: 100 - 240 V, Peak power: 550 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 30 cm, PCI Express power cable length: 40 cm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: CE, CB, TÜV, FCC, cTUVus, RCM
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BN238
MPN - BN238
Name - be quiet! SFX-L Power 500W - 80Plus Gold
Name - SFX 500W be quiet! SFX L Power
Other features - Cable ties included - Yes
Other features - Noise level (full-load mode, 100%) - 28.5 dB
Other features - Noise level (quiet mode, 50%) - 14 dB
Other features - Noise level (silent mode, Other features - Screws included - Yes
Packaging data - Manual - Yes
Packaging data - Package depth - 220 mm
Packaging data - Package height - 80 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.02 kg
Packaging data - Package width - 205 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.4
Performance - Bearing technology - Sleeve
Performance - Power supply unit (PSU) form factor - SFX
Performance - Purpose - PC
Performance - Silent mode - Yes
Performance - Supported motherboard form factors - Mini-ITX
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 40 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 30 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 40 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 105 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 500 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Hold time - 16.7 ms
Power - Input current - 10 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 41.7 A
Power - Max output current (-12V) - 0.3 A
Power - Peak power - 550 W
Power - Power factor - 0.99
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 500 W
ProductName - SFX L Power
ShortSummaryDescription - be quiet! SFX L Power, 500 W, 100 - 240 V, 550 W, 50 - 60 Hz, 10 A, Active
Technical details - Sustainability certificates - ENERGY STAR
Title - be quiet! SFX L Power power supply unit 500 W 20+4 pin ATX Black
URL - https://www.bequiet.com/en/download/powersupply/1552?utm_source=newsletter
WarrantyInfo - 3 years
Weight - 2,02
Weight - 2.01
Weight & dimensions - Depth - 130 mm
Weight & dimensions - Height - 64 mm
Weight & dimensions - Weight - 1.14 kg
Weight & dimensions - Width - 125 mm
