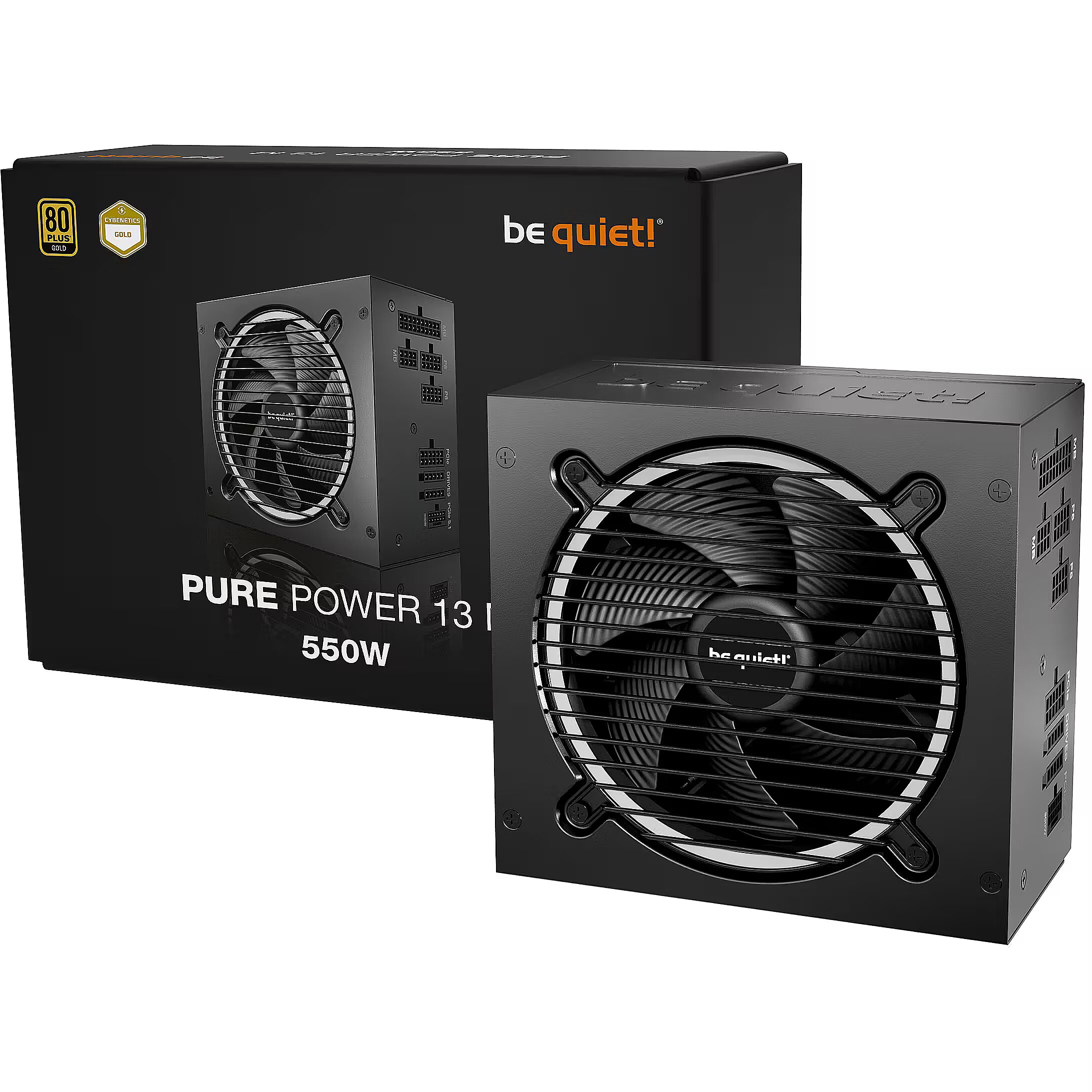

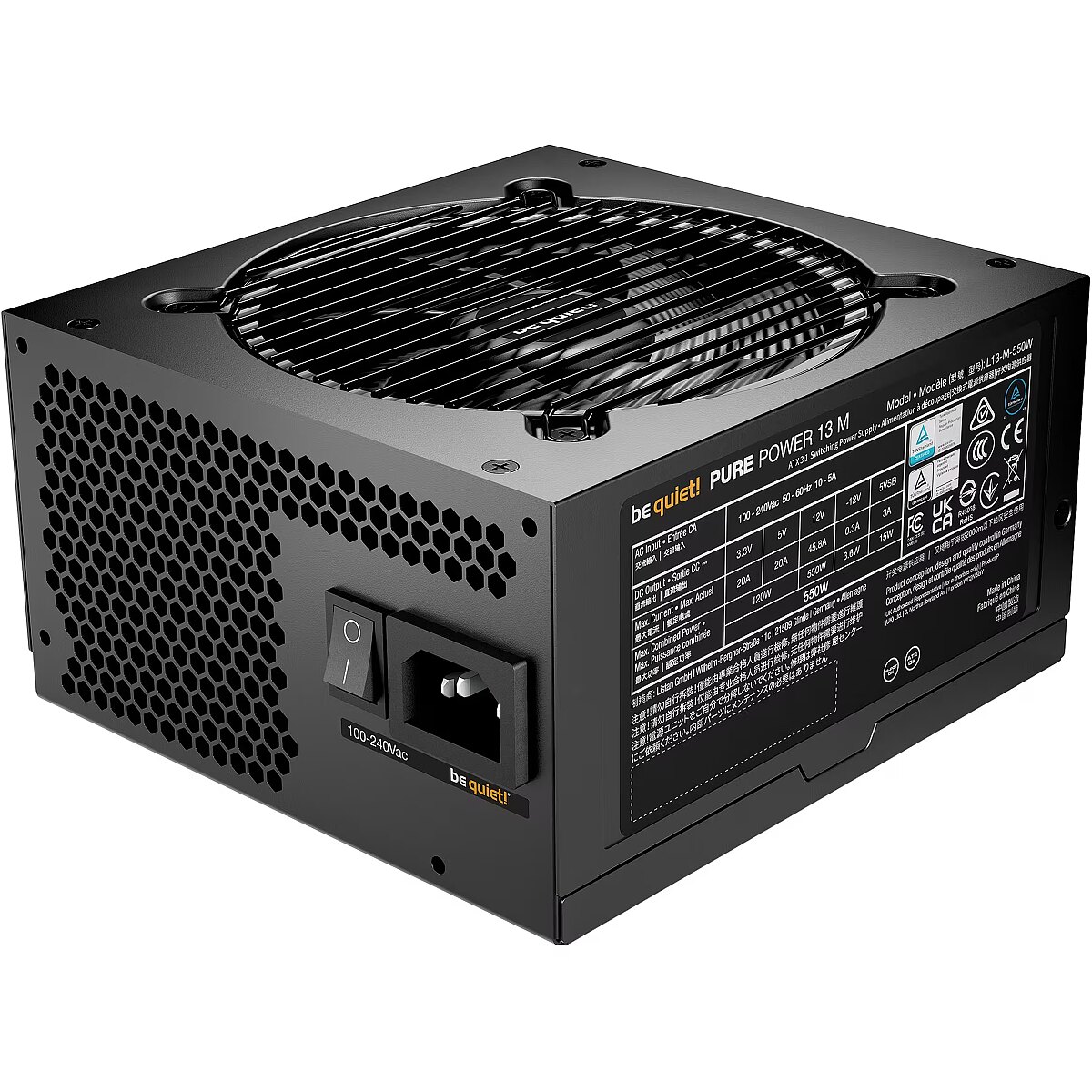

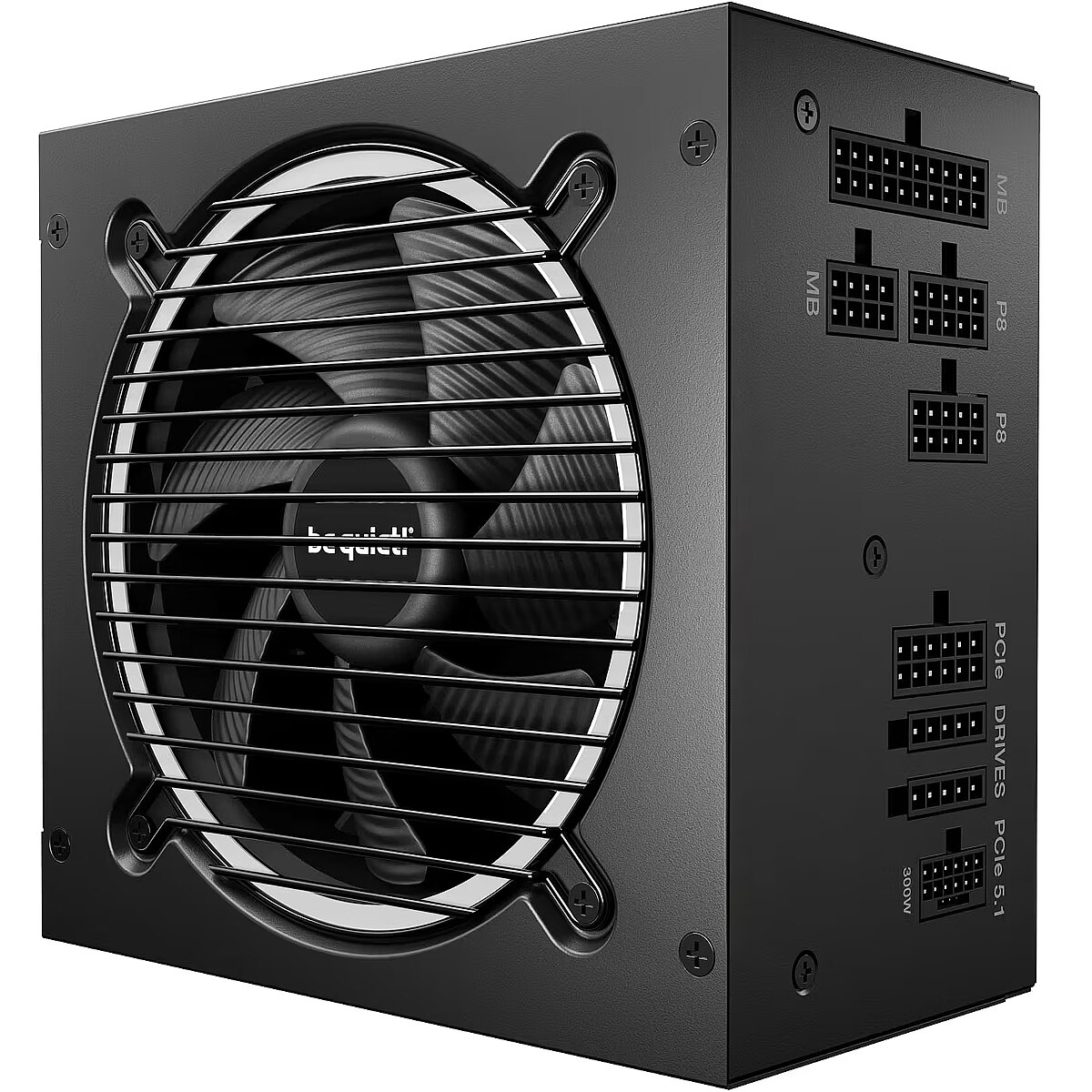

Be Quiet PURE POWER 13 M, 550W, 80PLUS Gold, ATX 3.1, PCIe 5.1

8-pin 12V power connectors - 0
80 PLUS certification Performance - 80 PLUS Gold
Accessories included - Screws Cable ties User manual
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX version - 3.1
ATX version Performance - 3.1
Bearing technology Performance - Rifle
Brand - be quiet!
BrandPartCode - BP024EU

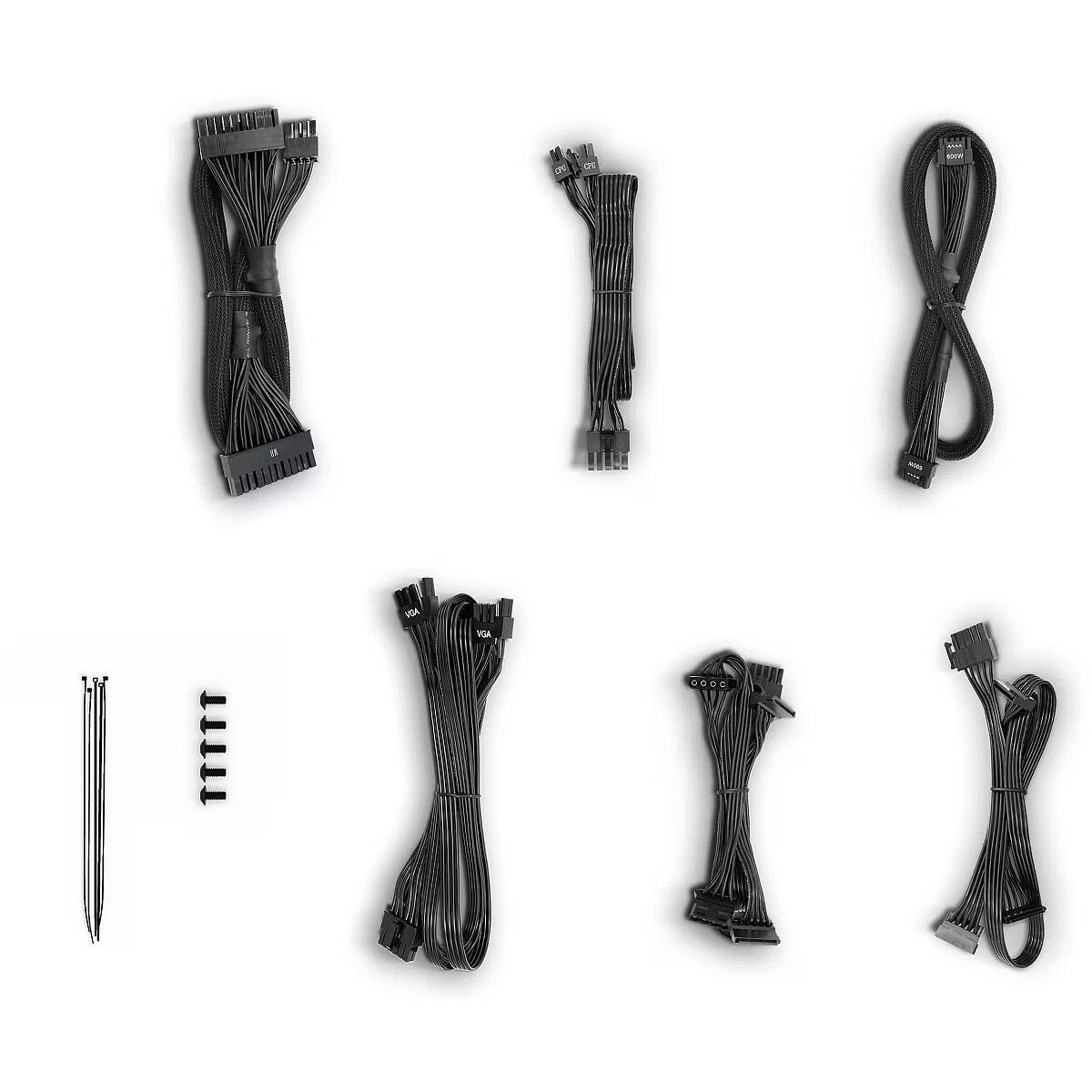

Cables included Packaging content - AC, CPU, PCIe, Peripheral (Molex), SATA
Cable ties included Other features - Yes
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Compliance certificates - BSMI
Certificates - Compliance certificates - BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
Certificates - Compliance certificates - CB
Certificates - Compliance certificates - CCC
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - cTUVus
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - IRAM
Certificates - Compliance certificates - RCM
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - TÜV mark
Certificates - Compliance certificates - UKCA
Certificates - Compliance certificates - WEEE
Certificates 80+ - 80 PLUS Gold
code - BP024EU
Combined power (+3.3V) Power - 120 W
Combined power (+5V) Power - 120 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 550 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
Cooling type Design - Active
CPU P4 connector (4-pin) Ports & interfaces - 2
CPU power cable length Ports & interfaces - 65 cm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Filtry - dodatkowa stabilizacja napięcia
Dane techniczne: Filtry - przeciwprzeciążeniowy
Dane techniczne: Filtry - przeciwprzepięciowy
Dane techniczne: Filtry - przeciwzwarciowy
Dane techniczne: Filtry - zabezpieczenie termiczne
Dane techniczne: Grupa produktowa - Zasilacze do komputera be quiet!
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 150 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Maks. głośność - 20.8 dB
Dane techniczne: Moc - 550 W
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 45.8 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - be quiet!
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 160 mm
Dane techniczne: Waga - 2.23 kg
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Depth Weight & dimensions - 160 mm
Description - Exceptional quiet, superior features
Pure Power 13 M 550W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 550W offers the best combination of features with outstanding compatibility.80 PLUS® Gold efficiency (up to 93.8%)ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectorsHandles massive power excursionsExceptionally silent semi-passive 120mm be quiet! fanSemi-passive construction for quiet and energy-saving operationLLC technology for advanced stability and voltage regulationOne massive high-performance 12V-railOne PCIe 5.1 12V-2x6 300W and 2 PCIe 6+2 connectors for powerful GPUsFull suite of safety featuresMeets latest requirements for modern standby
Description - Exceptional Silence, Outstanding Features The Pure Power 13 M 550W is an ATX 3.1 and PCIe 5.1 compliant power supply with semi-passive cooling. It delivers unmatched reliability and class-leading features. The Pure Power 13 M 550W combines exceptional functionality with broad compatibility. 80 PLUS Gold Efficiency (up to 93.8%) ATX 3.1 power supply with full support for PCIe 5.1 graphics cards and 6+2 pin GPU connectors Exceptionally quiet 120 mm be quiet! semi-passive fan Semi-passive design ensures silent and energy-efficient operation Advanced voltage regulation and stability with LLC technology Single massive, high-performance 12V rail One PCIe 5.1 12V-2x6 300W connector and two PCIe 6+2 connectors for high-end GPUs 80 PLUS GOLD Certified Highly Efficient Performance The Pure Power 13 M 550W carries an 80 PLUS Gold certification, achieving efficiency up to 93.8%. Key benefits include lower energy consumption (and thus lower costs), cooler operation, and quieter performance. The Pure Power 13 M 550W is the perfect choice for silent PC builds and gaming rigs. Future-Ready Configuration Fully Compliant with ATX 3.1 Specifications
The Pure Power 13 M 550W is an ATX 3.1 power supply featuring native 12V-2x6 integration for next-generation PCIe 5.1 graphics cards and two 6+2 pin PCIe connectors for current-gen GPUs. This versatility makes it an excellent choice for both current and future high-end PC builds. New Power Standard Handles Massive Transient Loads
The Pure Power 13 M provides 550W of continuous power on a single powerful 12V rail. Even if a graphics card demands excessive power for a short burst, the Pure Power 13 M 550W easily handles spikes up to twice the rated wattage, ensuring reliable operation with next-generation CPUs and GPUs. Zero-RPM Semi-Passive Cooling Enjoy Silence
At low load, the fan stops completely until higher performance is required. Combined with the reliable be quiet! fan and optimized fan blades, this makes the Pure Power 13 M 550W exceptionally quiet under all load conditions. High-End Technologies Incredible Stability
Thanks to LLC topology, the Pure Power 13 M 550W provides industry-leading voltage regulation and efficiency, making it ideal for building or upgrading silent PCs, gaming systems, or multimedia editing setups. Modular Cables Maximum Convenience and Compatibility
The fully modular design allows you to remove all unnecessary cables from your build. Pure Power 13 M 550W simplifies cable management, creating a tidy system that improves airflow, lowers internal temperatures, and reduces noise levels.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan speed - 0 - 1800 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 9820
dimension depth - 100 mm
dimension height - 200 mm
Dimensions - 160 x 150 x 86 mm
dimension weight - 2712 g
dimension width - 290 mm
ean - 4260052192160
EAN - 4260052192160
Eans - 4260052192160
EAN_code - 4260052192160
Efficiency Power - 92.1%
EPS version Performance - 2.92
Fan - 12 cm
Fan diameter Design - 12 cm
Fan speed (max) - 1800 rpm
Fan speed Design - 0 - 1800 RPM
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
GTIN - 4260052192160
guarantee - 120
guarantee_type - normal
Height Weight & dimensions - 86 mm
Hold time Power - 21.68 ms
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case gross weight - 17.9 kg
Logistics data - Shipping (inner) case height - 23.3 cm
Logistics data - Shipping (inner) case length - 58 cm
Logistics data - Shipping (inner) case width - 32.5 cm
LongDesc - Exceptional quiet, superior featuresPure Power 13 M 550W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 550W offers the best combination of features with outstanding compatibility.
LongProductName - 550W, 80 PLUS Gold, ATX 3.1, EPS 12V 2.92, 160 x 150 x 86 mm
LongSummaryDescription - be quiet! Pure Power 13 M | 550W. Total power: 550 W, AC input voltage: 100 - 240 V, Peak power: 600 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BP024EU
Maximum input current (@110V) Power - 10 A
Maximum input current (@220V) Power - 5 A
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V1) Power - 45.8 A
Max output current (-12V) Power - 0.3 A
MB power connector - 20 + 4 pin
Mean time between failures (MTBF) Performance - 100000 h
Model name - Pure Power 13M
Modular power supply - Yes
MOLEX power connectors - 0

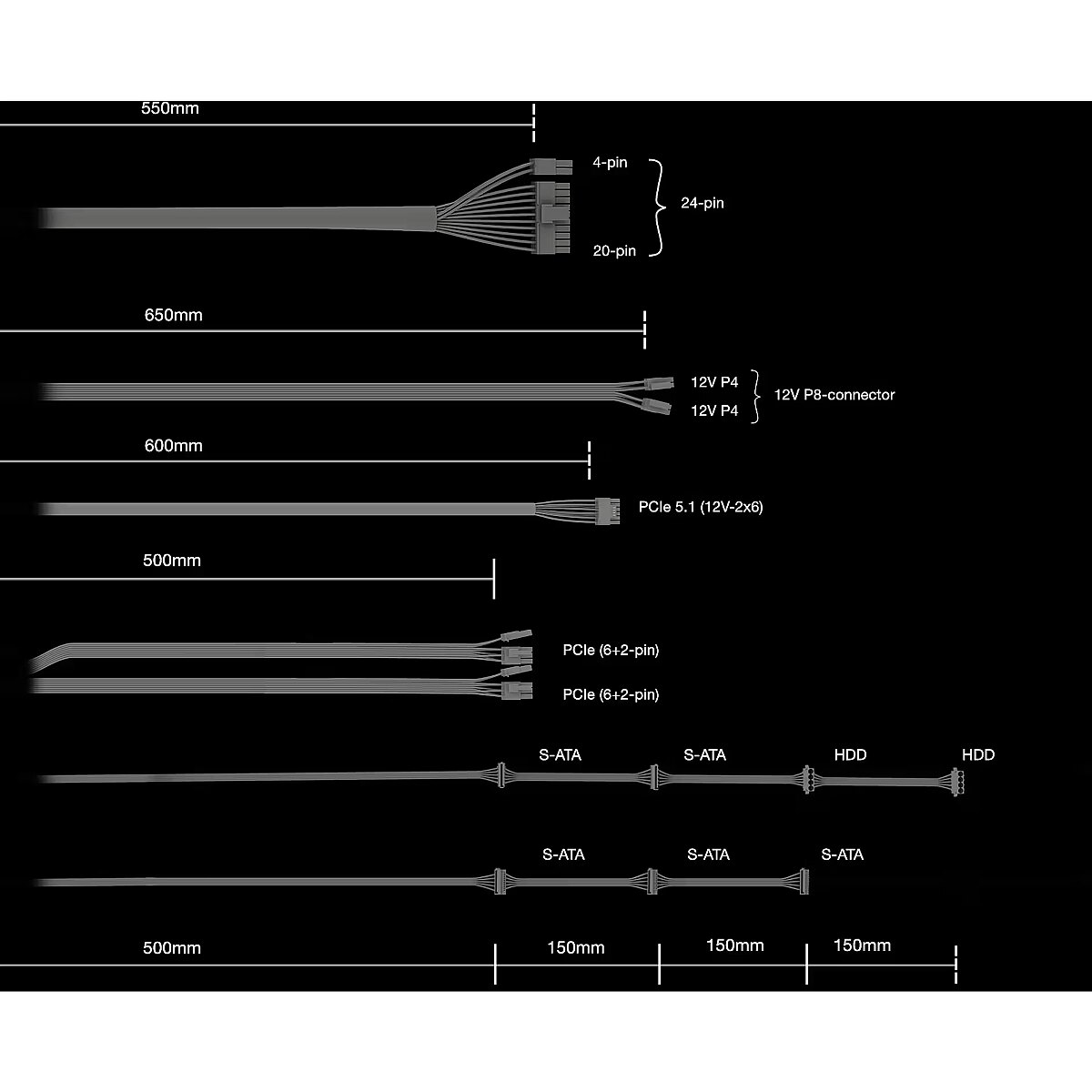

Motherboard power cable length Ports & interfaces - 55 cm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - BP024EU
Name - 550W be quiet! PURE POWER 13 M
Name - be quiet! Pure Power 13 M 550W
Name - be quiet! Pure Power 13 M 550W, PC power supply black, 1x 12-pin high power GPU, 2x PCIe, cable management, 650 watts
name - be quiet! Pure Power 13M 80 PLUS Gold Netzteil, ATX 3.1, PCIe 5.1 - 550 Watt, schwarz
name - Power Supply: Pure Power 13 M 550W ATX 3.1 80+ GOLD

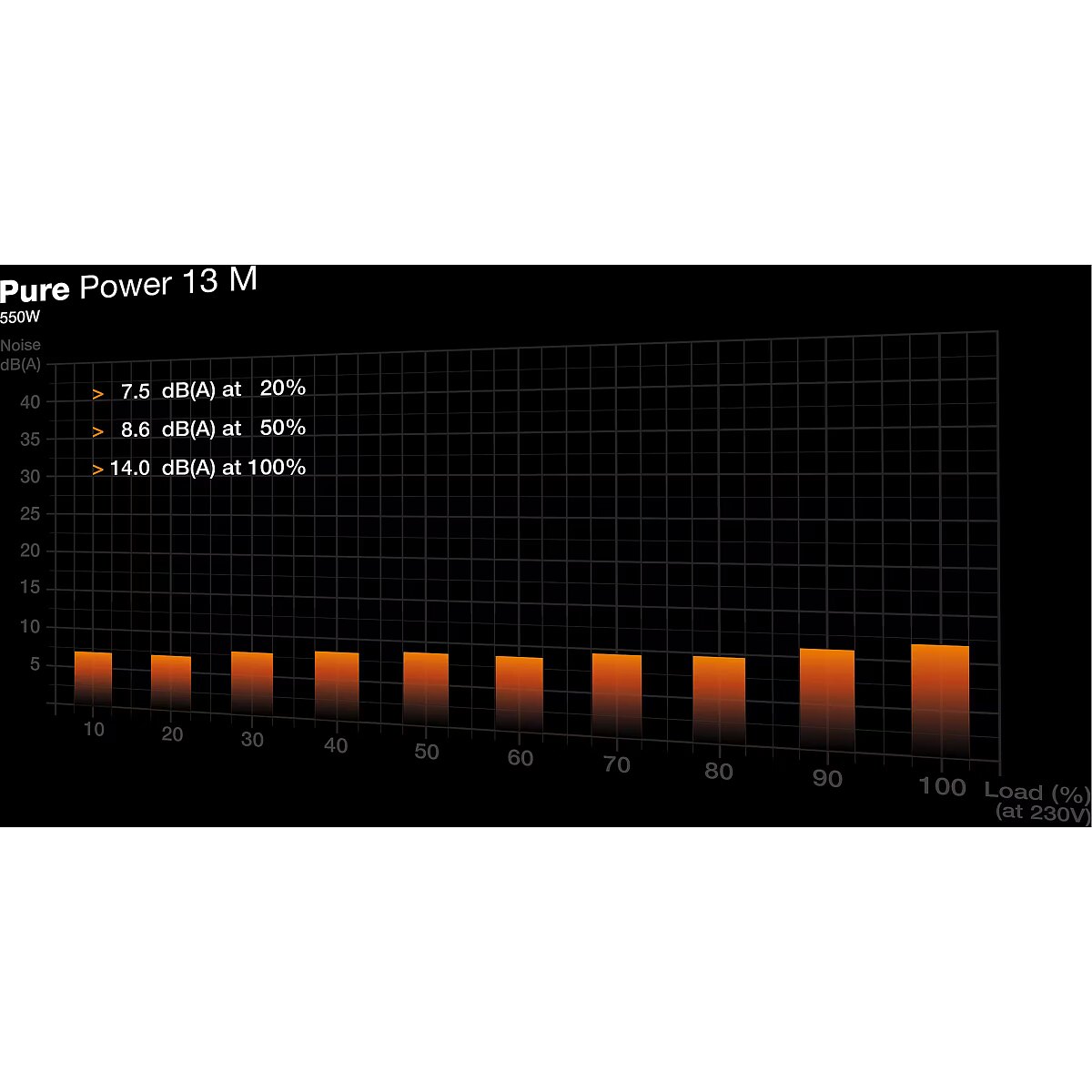

Noise level Performance - 20.8 dB
Number of +12V rail(s) Power - 1
Number of connectors PATA - 2
Number of fans Design - 1 fan(s)
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Number of SATA power connectors Ports & interfaces - 5
Number of USB 10p connectors - 0
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Cable ties included - Yes
Other features - Screws included - Yes
Package depth Packaging data - 320 mm
Package height Packaging data - 133 mm
Package weight Packaging data - 3 kg
Package width Packaging data - 210 mm
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package depth - 320 mm
Packaging data - Package height - 133 mm
Packaging data - Package weight - 3 kg
Packaging data - Package width - 210 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
PCI Express power connectors (12-pin) Ports & interfaces - 1
Peak power Power - 600 W
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 20.8 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power cable length Ports & interfaces - 800,950 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 2
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - PCI Express power connectors (12-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 800
Ports & interfaces - Peripheral (Molex) power cable length - 800,950 mm
Ports & interfaces - Peripheral (Molex) power cable length - 950 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 500
Ports & interfaces - SATA power cable length - 500,650,800 mm
Ports & interfaces - SATA power cable length - 650 mm
Ports & interfaces - SATA power cable length - 800
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 550 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92.1%
Power - Hold time - 21.68 ms
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 45.8 A
Power - Max output current (-12V) - 0.3 A
Power - Number of +12V rail(s) - 1
Power - Peak power - 600 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Under voltage
Power - Total power - 550 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.98
Power protection features Power - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Power supply - 550 W
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - be quiet!
Listan GmbH
Wilhelm-Bergner-Str 11C
21509 Glinde / Hamburg

producer - Be quiet!
Producer - be quiet!
producerCode - BP024EU
ProducerCode - BP024EU
Product colour Design - Black
productName - be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
ProductName - Pure Power 13 M | 550W
productSize - Normal
Products per shipping (inner) case Logistics data - 6 pc(s)
Purpose Performance - PC
SATA power cable length Ports & interfaces - 500,650,800 mm
SATA power connectors - 5
Screws included Other features - Yes
Shipping (inner) case gross weight Logistics data - 17.9 kg
Shipping (inner) case height Logistics data - 23.3 cm
Shipping (inner) case length Logistics data - 58 cm
Shipping (inner) case width Logistics data - 32.5 cm
ShortDescription - 550 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 150mm | 80 PLUS Gold
ShortSummaryDescription - be quiet! Pure Power 13 M | 550W, 550 W, 100 - 240 V, 600 W, 50/60 Hz, 10 A, 5 A
sizeX - 620
sizeY - 330
sizeZ - 240
Summary - be quiet! Pure Power 13 M | 550W. Total power: 550 W, AC input voltage: 100 - 240 V, Peak power: 600 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Sustainability certificates Technical details - ENERGY STAR, ErP
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP
Technical details - Sustainability certificates - ErP
Title - be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
Total power Power - 550 W
Unit Box Height - 0.1
Unit Box Length - 0.29
Unit Box Width - 0.2
Unit Calculated Volume - 0.008211 cubm
Unit Calculated Weight - 2.92 kg
Units per Pallet - 0
Units per Shipping Box - 6
URL - https://www.bequiet.com/en/download/powersupply/5931?utm_source=newsletter
Vendor Homepage - https://www.bequiet.com/en/download/powersupply/5931?utm_source=newsletter
vendpn - BP024EU
Warranty - 24 months
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 120
warrantyType - G
Weight - 2,70
Weight - 2.23 kg
Weight - 2.74
weight - 17510
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.23 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 2.23 kg
Width Weight & dimensions - 150 mm
