Accessories included - 4 x SATA Data Cable ASRock WiFi 2.4/5/6 GHz Antenna ARGB Splitter Cable 3 x Thermistor Cable 2 x M.2 Screws 2 x M.2 Spacers
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
category - PC Components|Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset manufacturer - Intel
Chipset type - Intel Z890
code - 90-MXBPQ0-A0UAYZ
COM connector / port - No
CPU socket - LGA1851

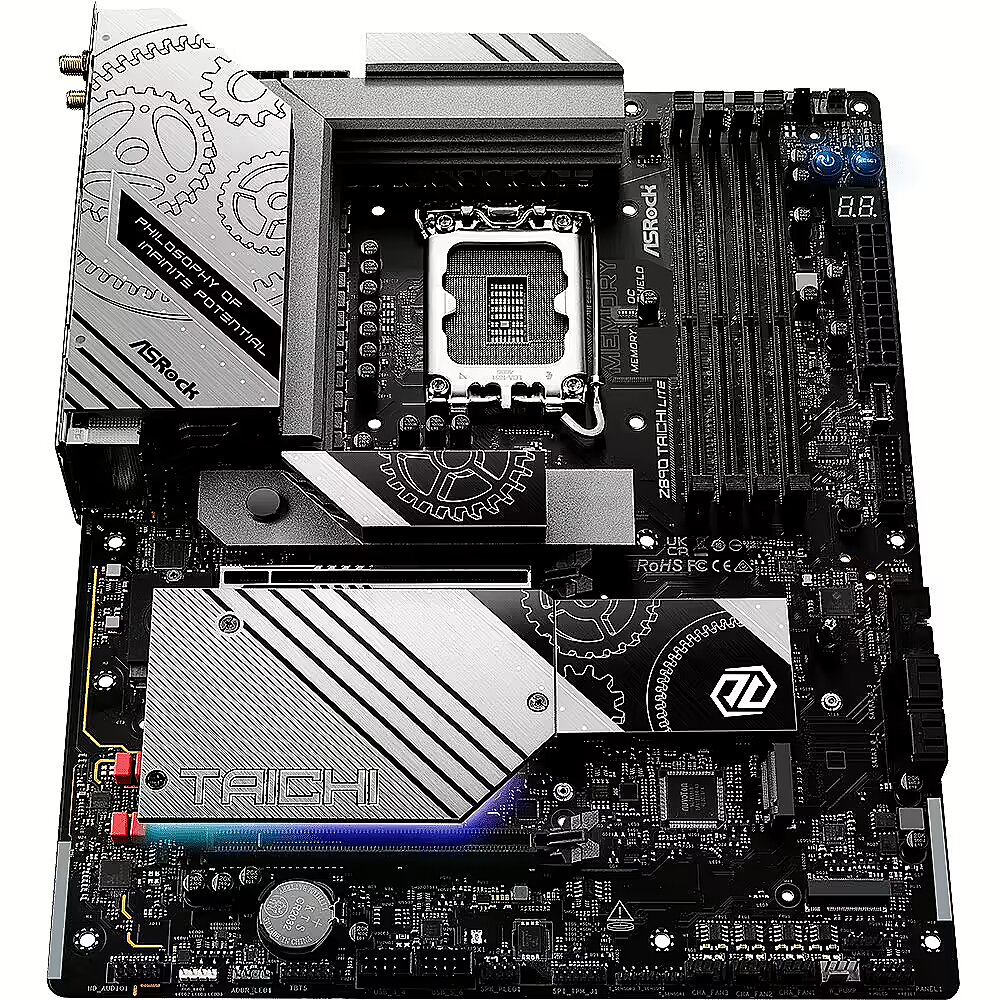

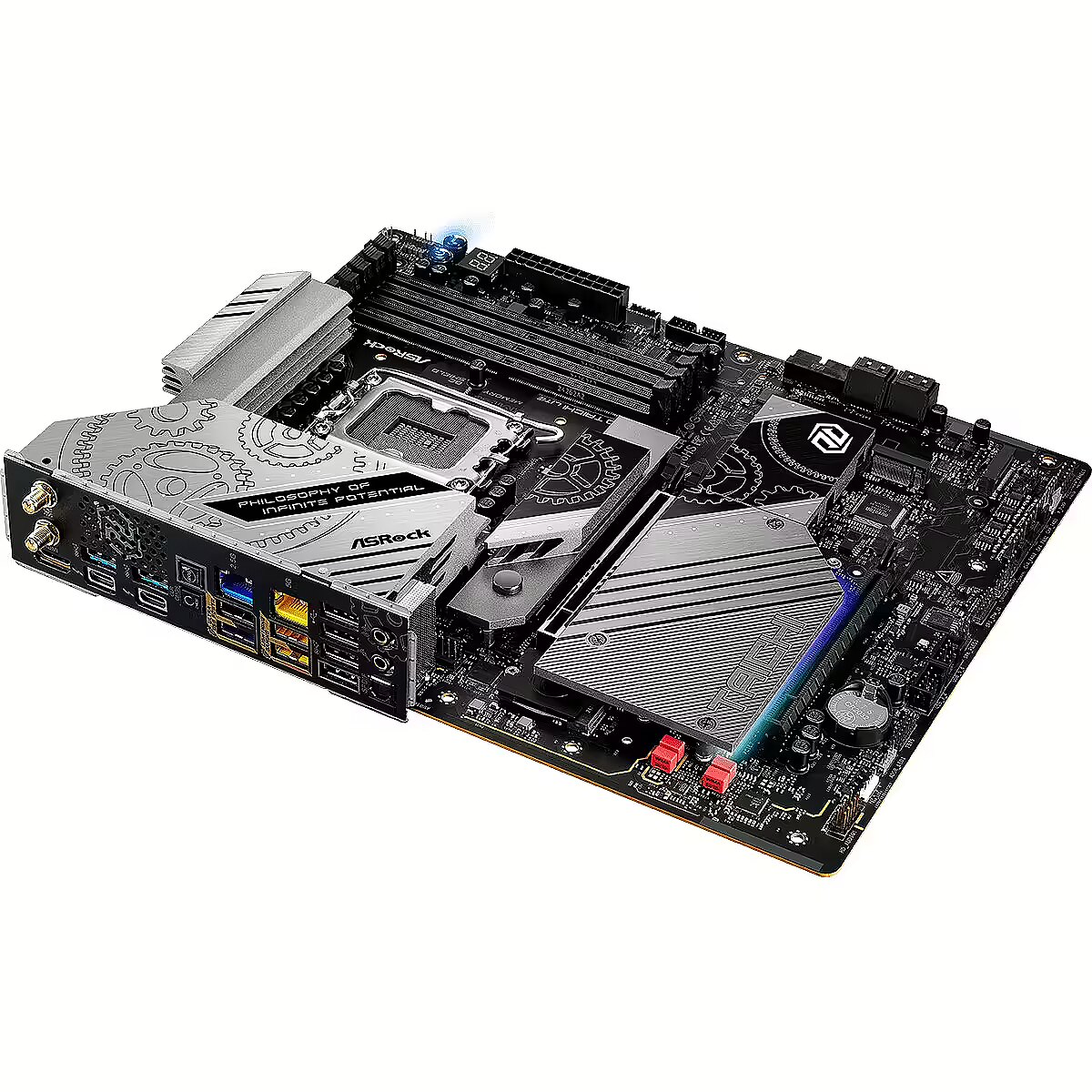

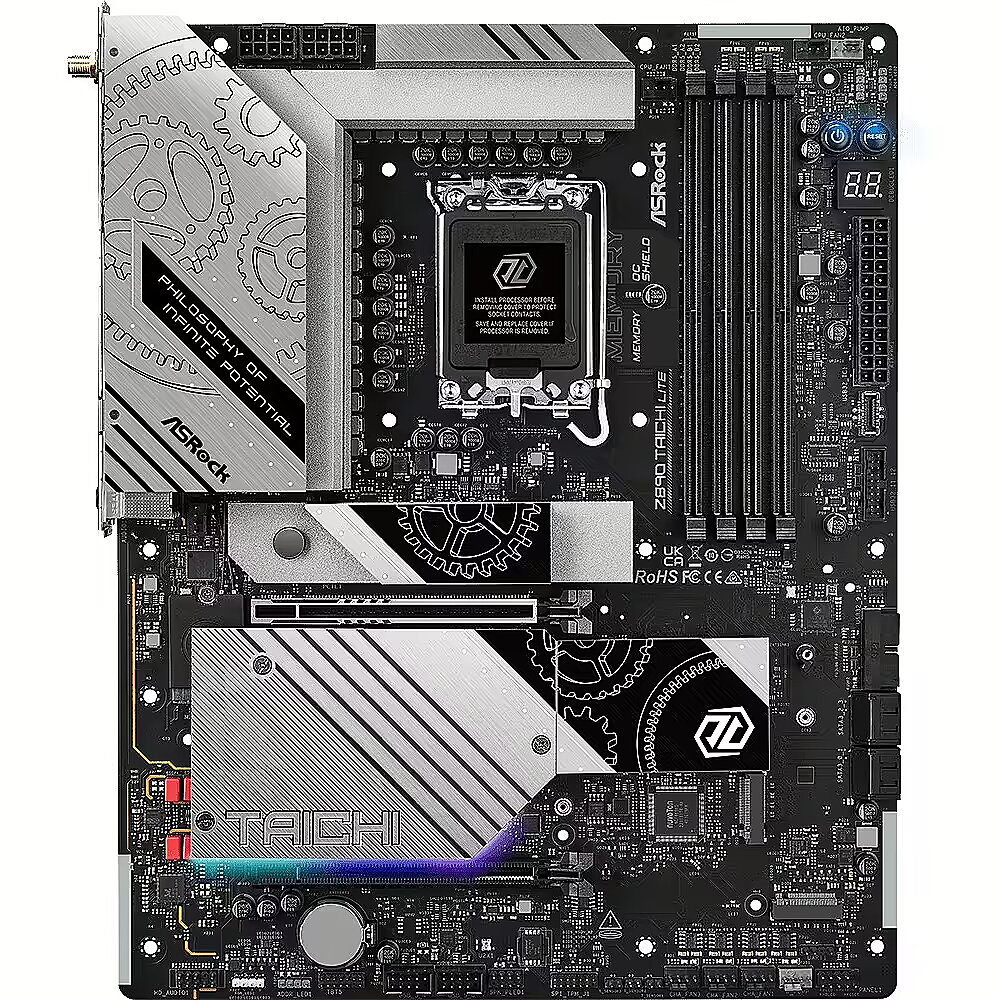

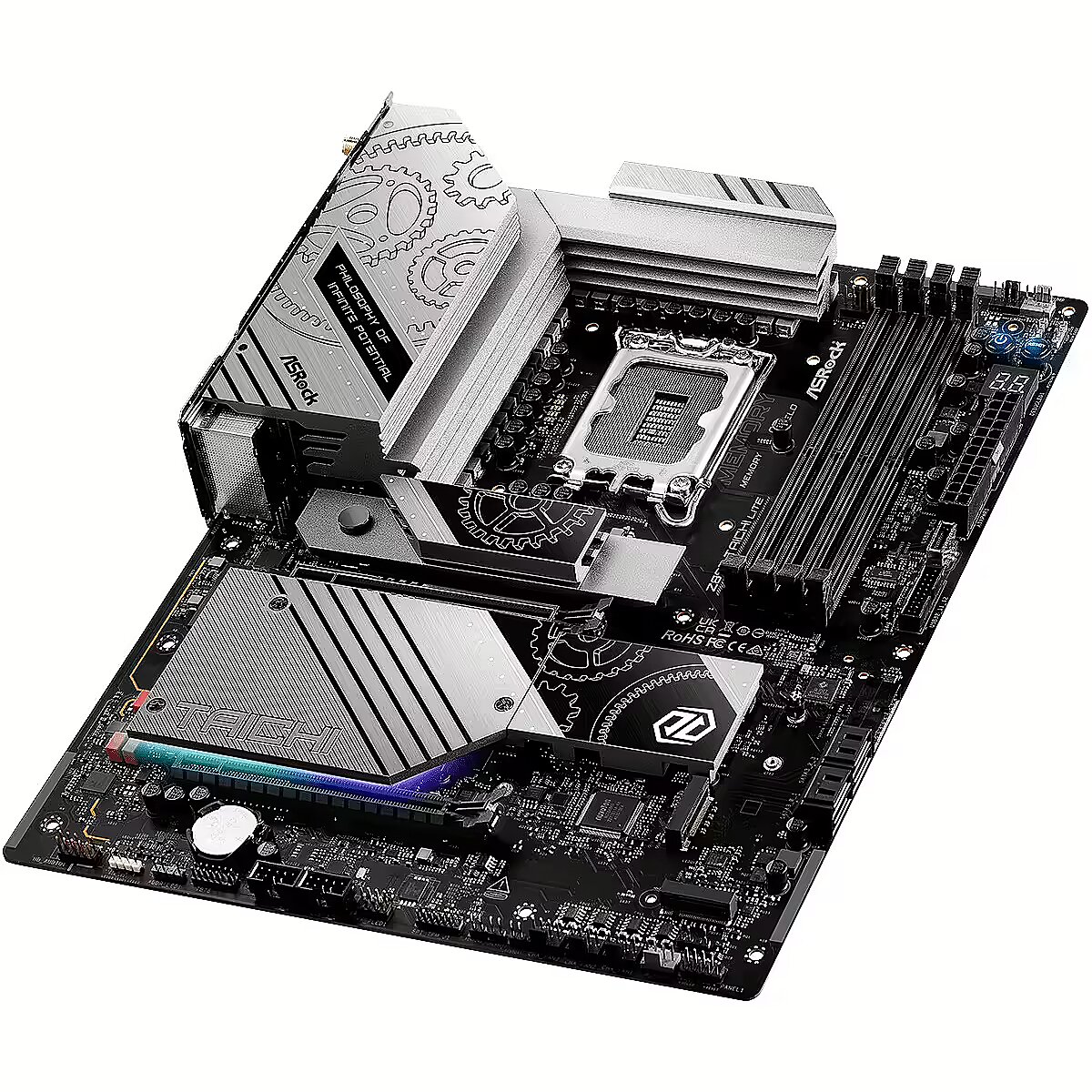

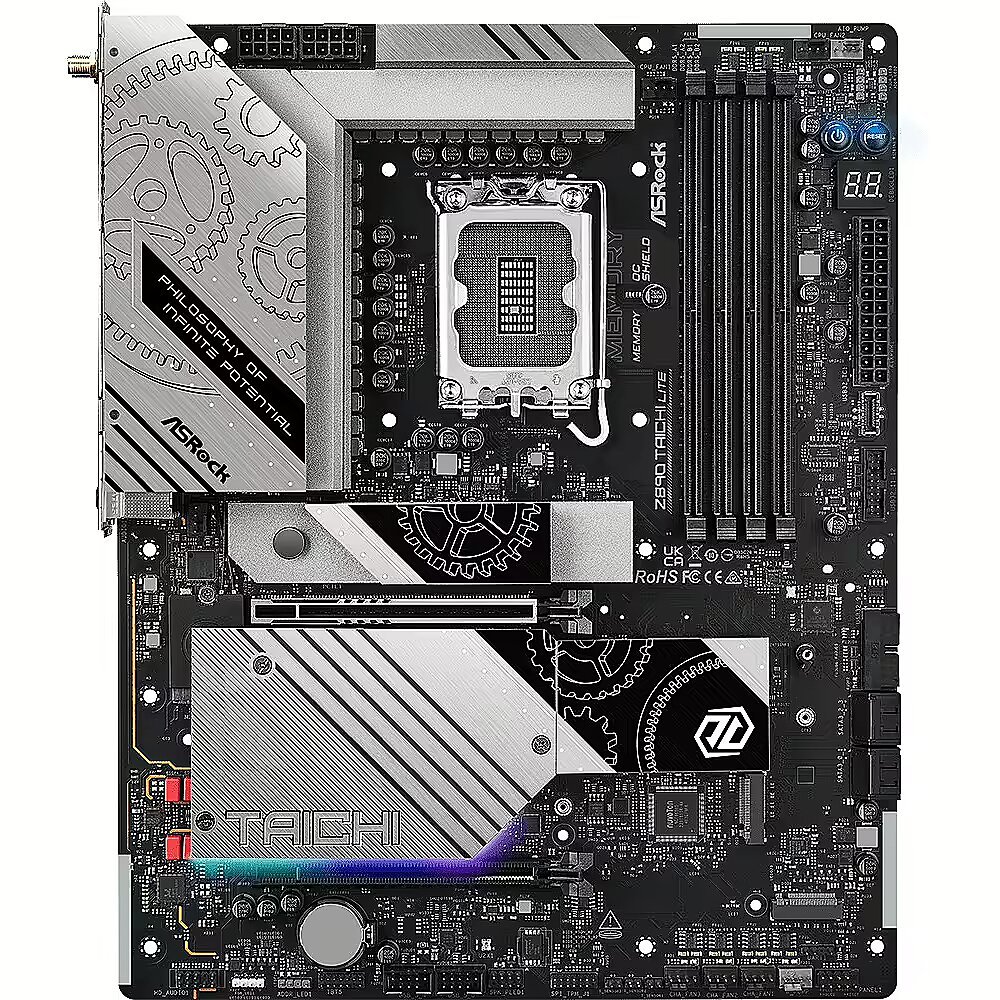

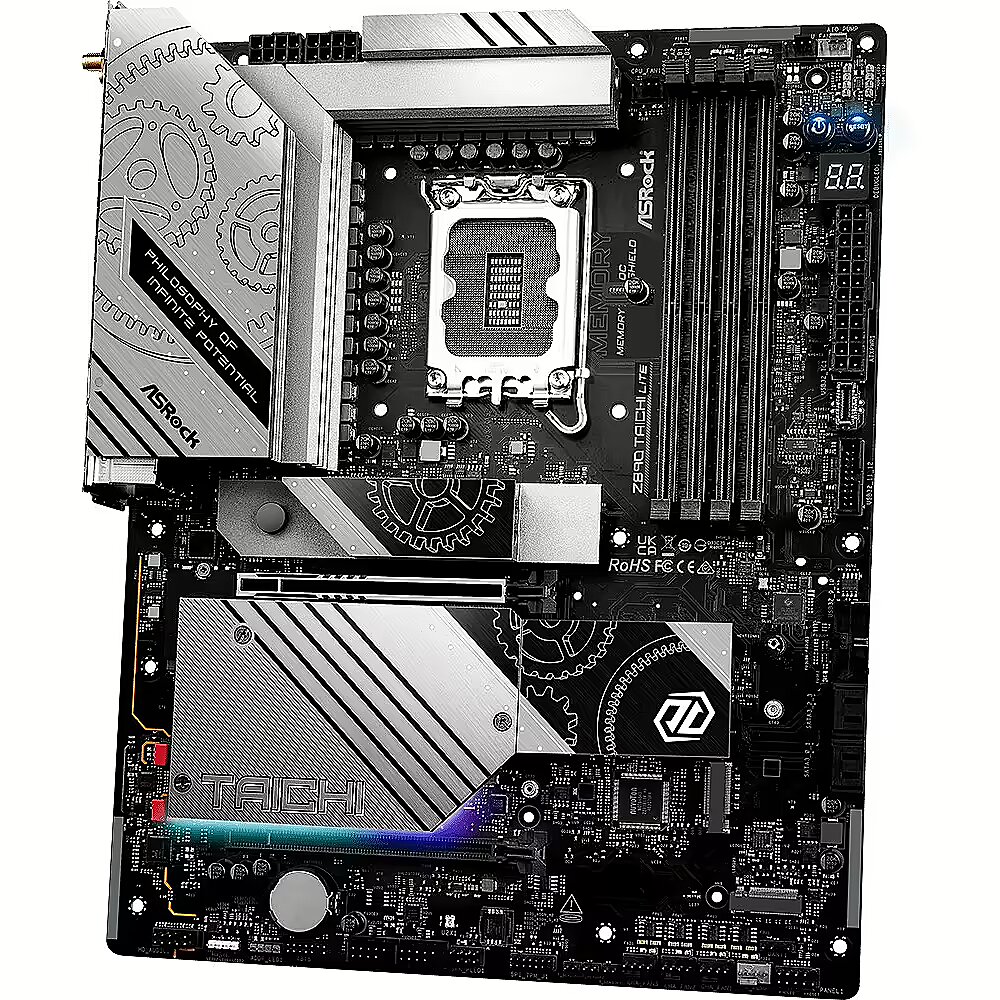

Description - Z890 Taichi Lite
The Taichi Lite series is simply brilliant, offering top-notch performance in a streamlined, functionality-oriented design.
Philosophy of Infinite Potential
Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that meets every task with style! Become like water. Shapeless, amorphous, versatile in every situation.
Aluminum Heatsink
The first thing that catches your eye is the optimized aluminum heatsink design. Heatsinks are crucial for efficient heat dissipation, especially during heavy loads such as gaming or productivity tasks. A motherboard built with heatsinks can effectively manage thermal performance, thus ensuring system stability and durability without any effort.
Thunderbolt 4 Type-C
Thunderbolt 4 technology brings speed and versatility to the most advanced USB Type-C, offering a quick and easy level of connection at work or at home. It supports lightning-fast data transmission up to 40Gbps and connects external monitors, Thunderbolt and USB devices with a single Thunderbolt 4 cable.
Optimized 5Gbps LAN
ASRock's 5Gbps LAN features an exclusive patented design that features excellent resistance to electromagnetic interference, ensuring stable high-speed operation and a better network experience.
Supports Intel Core Ultra (Series 2) Processors (LGA1851) 20+1+2+1+1 Power Phases, 110A SPS for VCore 4 x DDR5 DIMM Supports Dual Channel, up to 9200+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16 Graphics Output Options: 1 HDMI, 2 Thunderbolt 4 Type-C Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Cap, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 4 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 and SATA3) 2 Thunderbolt 4 Type-C (back) 1 USB 3.2 Gen2x2 Type-C (front) 4 USB 3.2 Gen2 Type-A (back) 8 USB 3.2 Gen1 (4 back, 4 front) 6 USB 2.0 (2 back, 4 front) 5Gbps LAN, 2.5G LAN 802.11be Wi-Fi 7 + Bluetooth Supports Memory OC Shield, BIOS Flashback, 20K Caps with 1000uF capacity
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2330 g
dimension width - 350 mm
ean - 4710483949692
EAN - 4710483949692
EAN_code - 4710483949692
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16

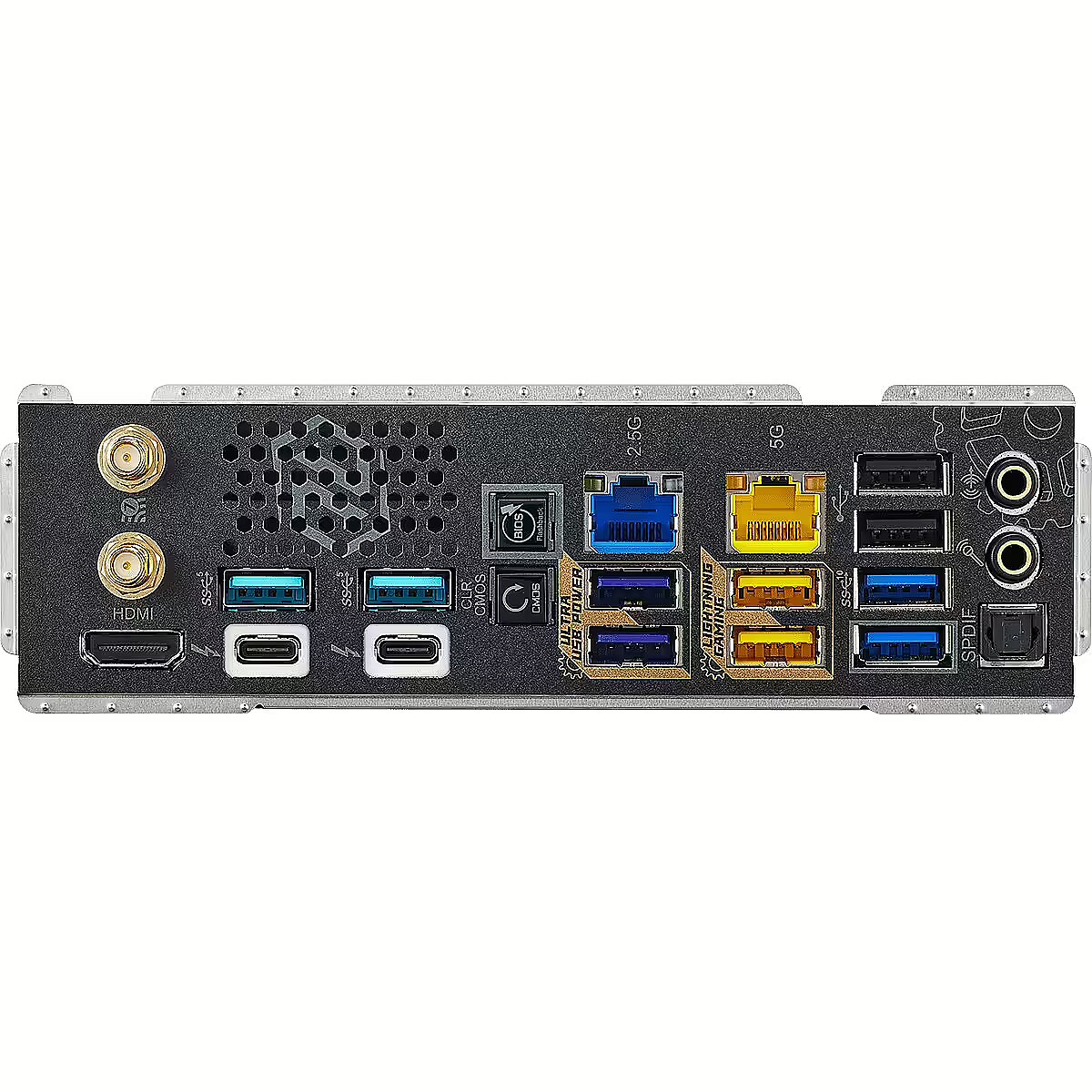

External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x S/PDIF
External connectors - 2 x RJ-45
External connectors - 2 x SMA
External connectors - 2 x Thunderbolt 4
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 3.2 Gen 2 Type-A
FireWire (IEEE 1394) - No
Form factor - ATX
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
Integrated CPU - No
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBPQ0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory bus frequency - 5800 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 9200 MHz
Memory type - DDR5
Model - Z890 TAICHI LITE
MPN - 90-MXBPQ0-A0UAYZ
name - ASRock Z890 Taichi Lite, Intel Z890 Mainboard - Sockel 1851 - DDR5
Name - ASRock Z890 Taichi Lite - Socekt 1851 - motherboard (black)
name - Motherboard Z890 TAICHI LITE ATX
Name - Z890 TAICHI Lite 1851 ATX HDMI/USB-C DDR5 retail
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - LAN 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126) 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 7
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Debug card header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x Thermistor Cable Header
Onboard connectors - 4 x 4pin Chassis fan
Other information - Certifications FCC, CE ErP/EuP Ready (ErP/EuP ready power supply required) CEC Tier II Ready
Processor family - Intel Core Ultra
producer - ASRock
RAID - Yes
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock Dragon 2.5G LAN Software UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio
Special functions -
Supported operating systems - Windows 11
USB ports at back panel - 12
USB ports on motherboard - 9
vendpn - Z890 TAICHI LITE
Weight - 2,31
Weight - 2.32
