Accessories included - 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x Przewód Termistora
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1851
Chipset manufacturer - Intel
Chipset type - Intel B860
COM connector / port - No
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel B860
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX

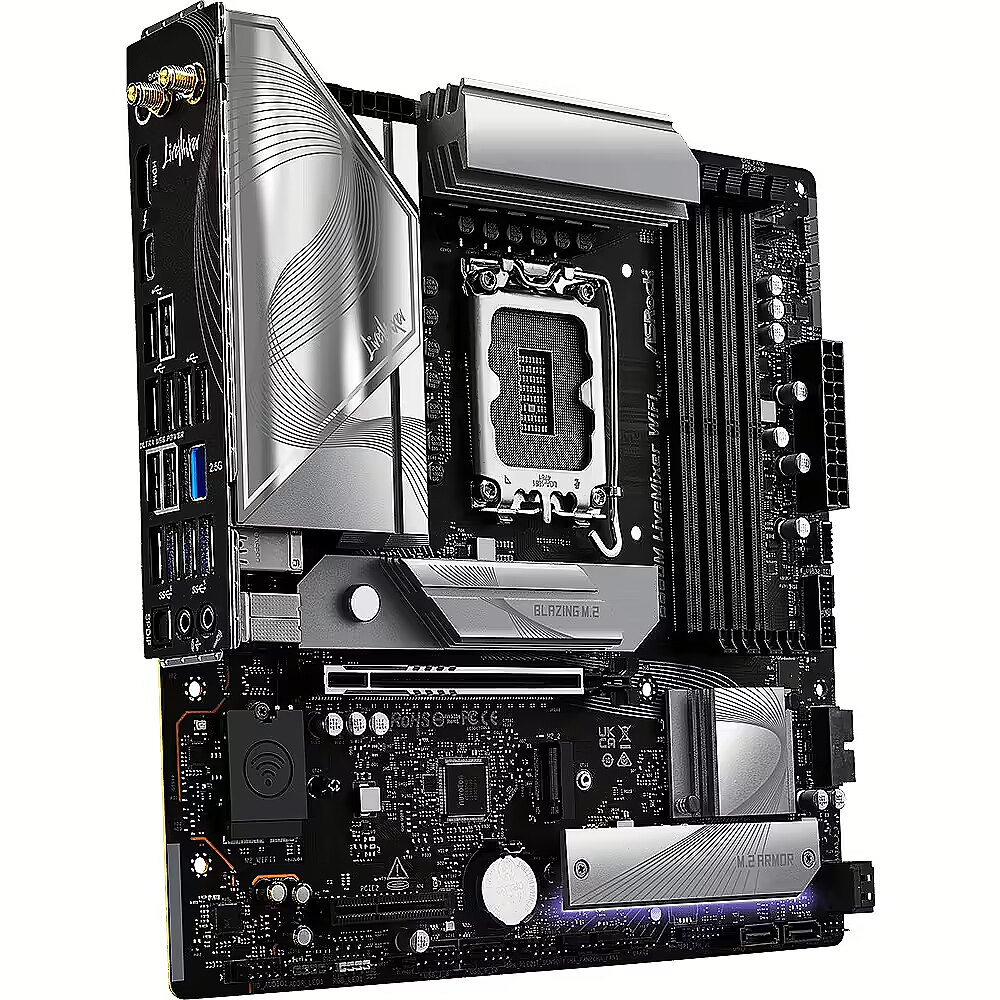

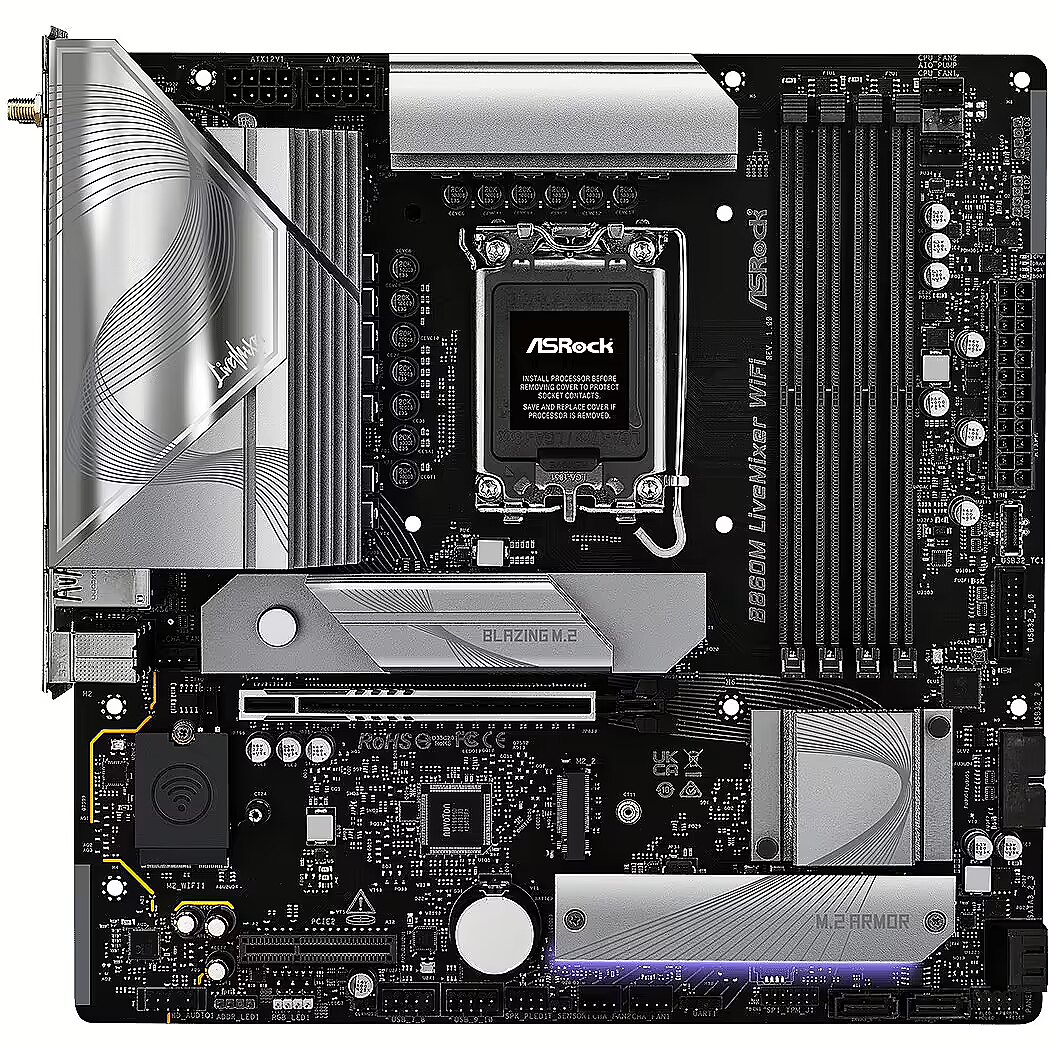

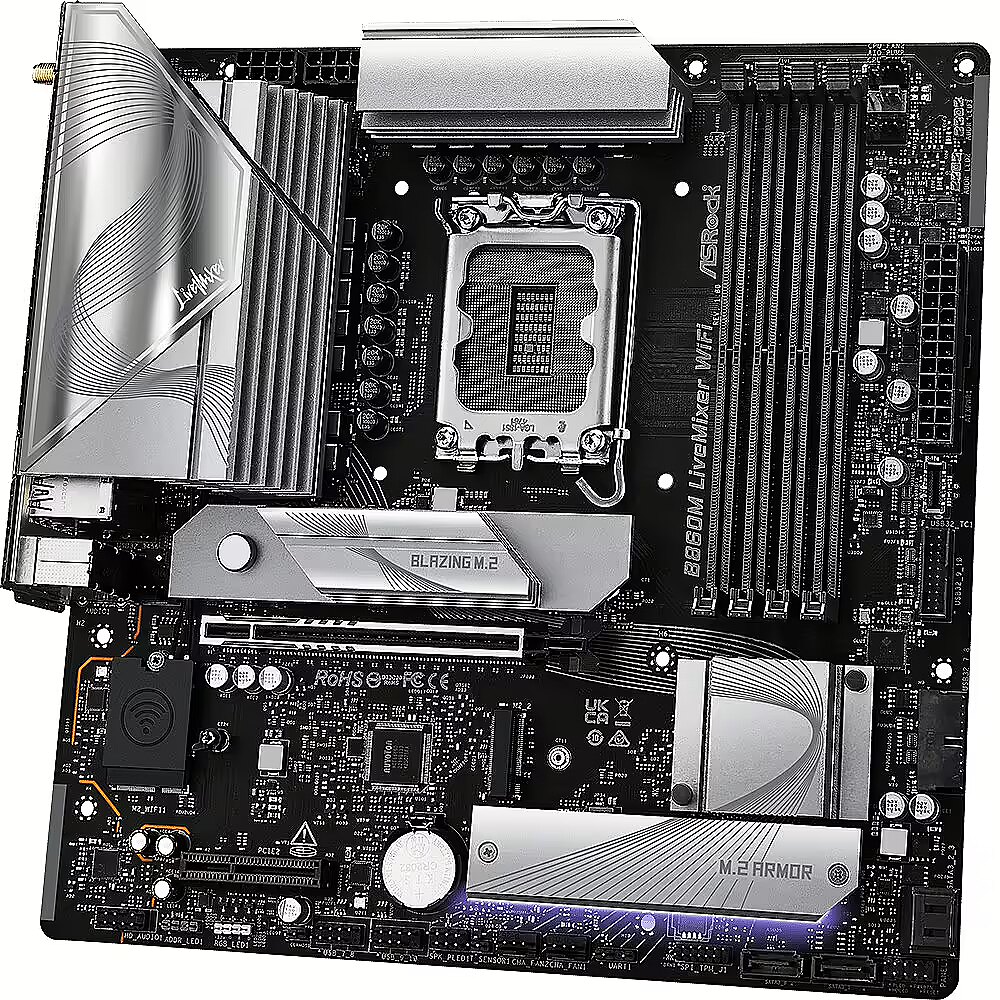

Description - B860M LiveMixer WiFi
The LiveMixer Series is designed to meet the needs of modern content creators, offering outstanding connectivity for streaming and simultaneous support for multiple peripheral devices. Its reliable performance ensures seamless content creation and efficient workflow management.
LIVE MIX. LIFE MAX.
The LiveMixer platform is built for the next generation of content creators who need motherboards with exceptional connectivity for streaming and peripheral devices. Its dependable performance enables high-quality content creation while helping users maximize productivity and make the most of their time.
DDR5 XMP & EXPO Support
Built around a design philosophy focused on stability and reliability, ASRock leaves no detail to chance. These motherboards are constructed using high-quality materials, allowing enthusiasts to unlock enhanced DDR5 memory overclocking performance by enabling pre-tested profiles. Simply ensure your memory modules support Intel XMP or AMD EXPO technology, and enjoy affordable, hassle-free, and reliable memory overclocking.
Wi-Fi 6E (802.11ax)
Wi-Fi 6E expands wireless networking into the 6 GHz band, providing additional Wi-Fi capacity and faster internet connectivity. In addition to higher bandwidth, Wi-Fi 6E also delivers lower latency and performance comparable to 5G networks.
Thunderbolt(TM) 4 Type-C
Thunderbolt(TM) 4 technology brings speed and versatility to the most advanced USB Type-C connection, providing a fast and simple connectivity solution for both work and home. It supports ultra-fast data transfer speeds of up to 40 Gbps and allows you to connect external displays, Thunderbolt devices, and USB peripherals through a single Thunderbolt 4 cable.
Dragon 2.5 Gb/s LAN
The intelligent 2.5 Gb/s LAN controller delivers maximum networking performance to meet the demands of home networking enthusiasts, content creators, online gamers, and high-quality streamers. Enjoy network speeds up to 2.5× faster than standard Gigabit Ethernet for smoother gaming, faster file transfers, and quicker backups.
POLYCHROME RGB
This motherboard features built-in RGB headers and Addressable RGB headers, allowing you to connect compatible LED devices such as LED strips, CPU coolers, cooling systems, chassis fans, and more. Users can also synchronize RGB lighting with Polychrome RGB Sync-certified accessories to create unique and personalized lighting effects.
SignalRGB
SignalRGB unifies all your RGB devices in a single platform, offering seamless customization, game-reactive lighting effects, macro automation, and real-time system monitoring. Through its official partnership, ASRock motherboards provide advanced lighting control, expanded compatibility with a wide range of RGB devices, and greater flexibility for personalized lighting customization.
Personalized Thermal Management
The thermistor cable and thermistor header provide an additional source of temperature monitoring, enabling customized thermal management solutions tailored to your system's cooling needs.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Sloty CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) * Obsługa bootowania z dysków NVMe SSD Magazynowanie CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors * Obsługa Urządzenia do Zarządzania Woluminami Intel (VMD) Obsługa bootowania z dysków NVMe SSD RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Dyski
dimensionalWeight - 920
dimension depth - 60 mm
dimension height - 265 mm
Dimensions - 24.4 cm x 24.4 cm
dimension weight - 1490 g
dimension width - 300 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC1220 7.1)
ean - 4711581490314
Eans - 4711581490314
EAN_code - 4711581490314
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

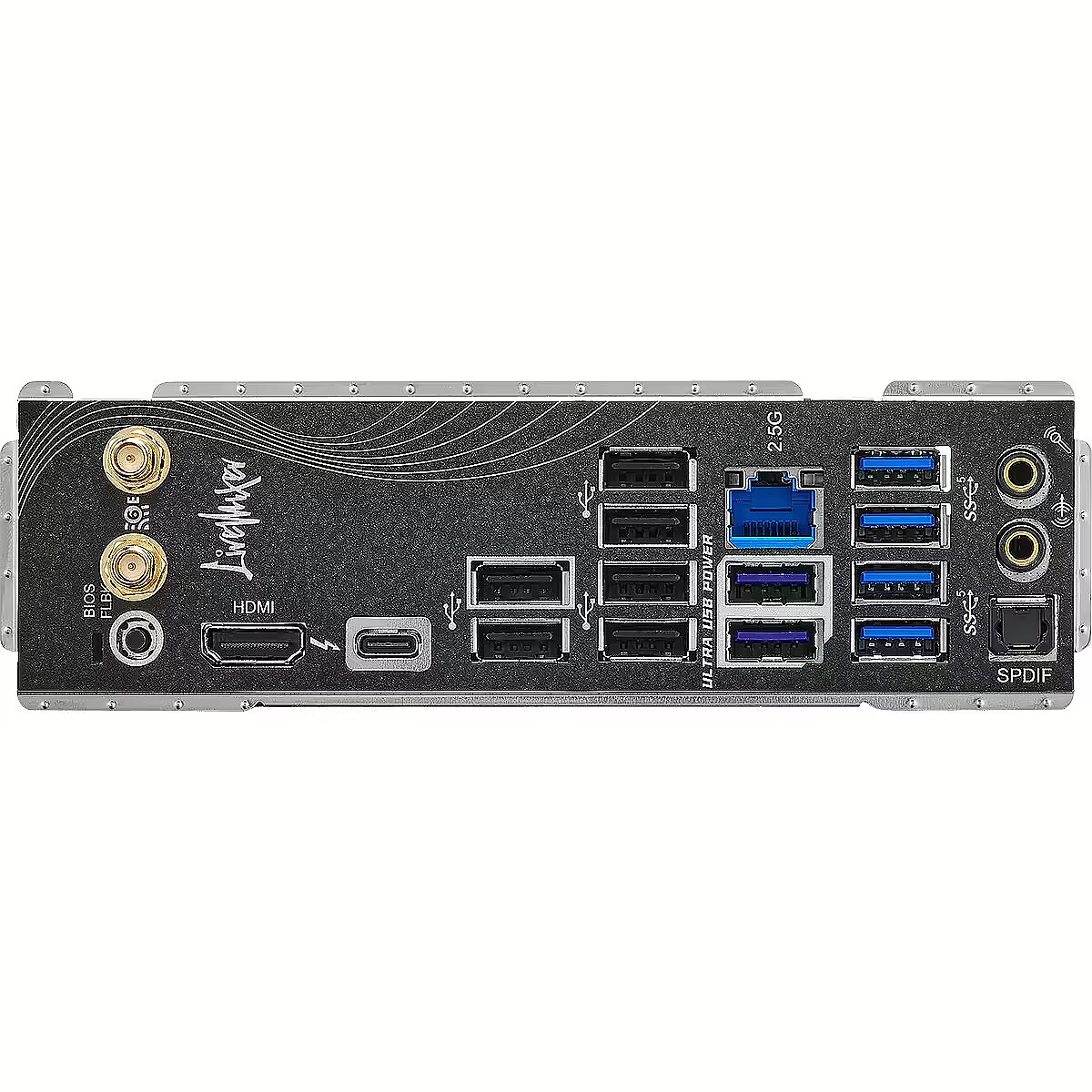

External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x Thunderbolt 4
External connectors - 1 x USB BIOS Flashback button
External connectors - 2 x SMA
External connectors - 6 x USB 2.0
External connectors - 6 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - Intel Xe LPG Architektura Graficzna 1 x HDMI 2.1 TMDS/FRL Kompatybilny z 8G, supports HDR, HDCP 2.3 and max. Rozdzielczośćup to 4K 120Hz 1 x Intel Thunderbolt 4, obsługa HDCP 2.3 o maks. rozdzielczości do 8K 60Hz / 5K 120Hz
Graphics - Graphics card family - Intel
Graphics - On-board graphics card - Yes
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - Number of RGB LED pin headers - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 6E | Bluetooth 5.3
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Dragon 2.5G LAN)
LPT connector / port - No
Manufacturer - Asrock
Manufacturer_code - 90-MXBRT-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8666 MHz
Memory type - DDR5
Model - B860M LIVEMIXER WIFI
Name - Asro B860M LiveMixer WiFi - Socket 1851 - motherboard
Name - ASRock B860M LiveMixer WiFi
name - Motherboard B860M LIVEMIXER WIFI s1 851 4DDR5 mATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/axe
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 11
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Other information -
Packaging content - Cables included - SATA
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7200 (PC5-57600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8800 (PC5-70400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-9000 (PC5-72000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-9066 (PC5-72500)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-9200 (PC5-73600)
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor family - Intel Core Ultra
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
producer - ASRock
Producer - ASRock
producerCode - B860M LiveMixer WiFi
ProducerCode - B860M LiveMixer WiFi
productName - Asrock B860M LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) micro ATX
productSize - Normal
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 6
Safety warning - Warnings - Do not open or modify the motherboard to prevent damage.
Safety warning - Warnings - In case of installation problems, contact a qualified service technician.
Safety warning - Warnings - When disposing of the product, follow local regulations for the recycling of electronics.
ShortDescription - Socket 1851 | Chipset Intel B860 | DDR5
sizeX - 295
sizeY - 60
sizeZ - 260
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI Automatyczny Instalator Sterowników ASRock ASRock Funkcja Instant Flash
Sound card - 7.1 CH HD Audio with Ochrona Treści (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Special functions -
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Supported operating systems - Windows 11
USB ports at back panel - 13
USB ports on motherboard - 9
vendpn - B860M LIVEMIXER WIFI
warrantyLength - 36
warrantyType - G
Weight - 1,49
weight - 1490
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x Thunderbolt 4
Złącza: Złącza na tylnym panelu - 6 x USB
Złącza: Złącza na tylnym panelu - 6 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x4
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
