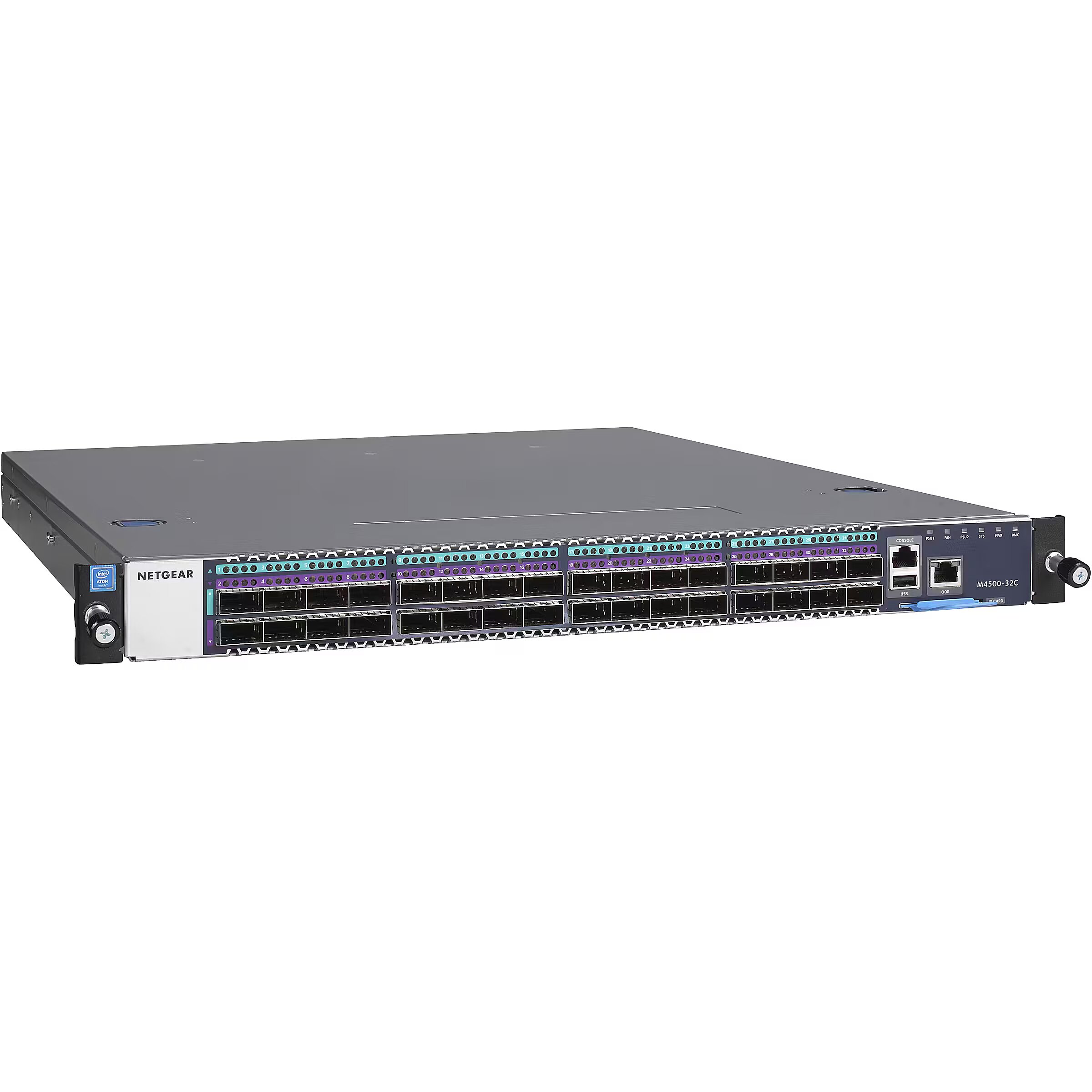

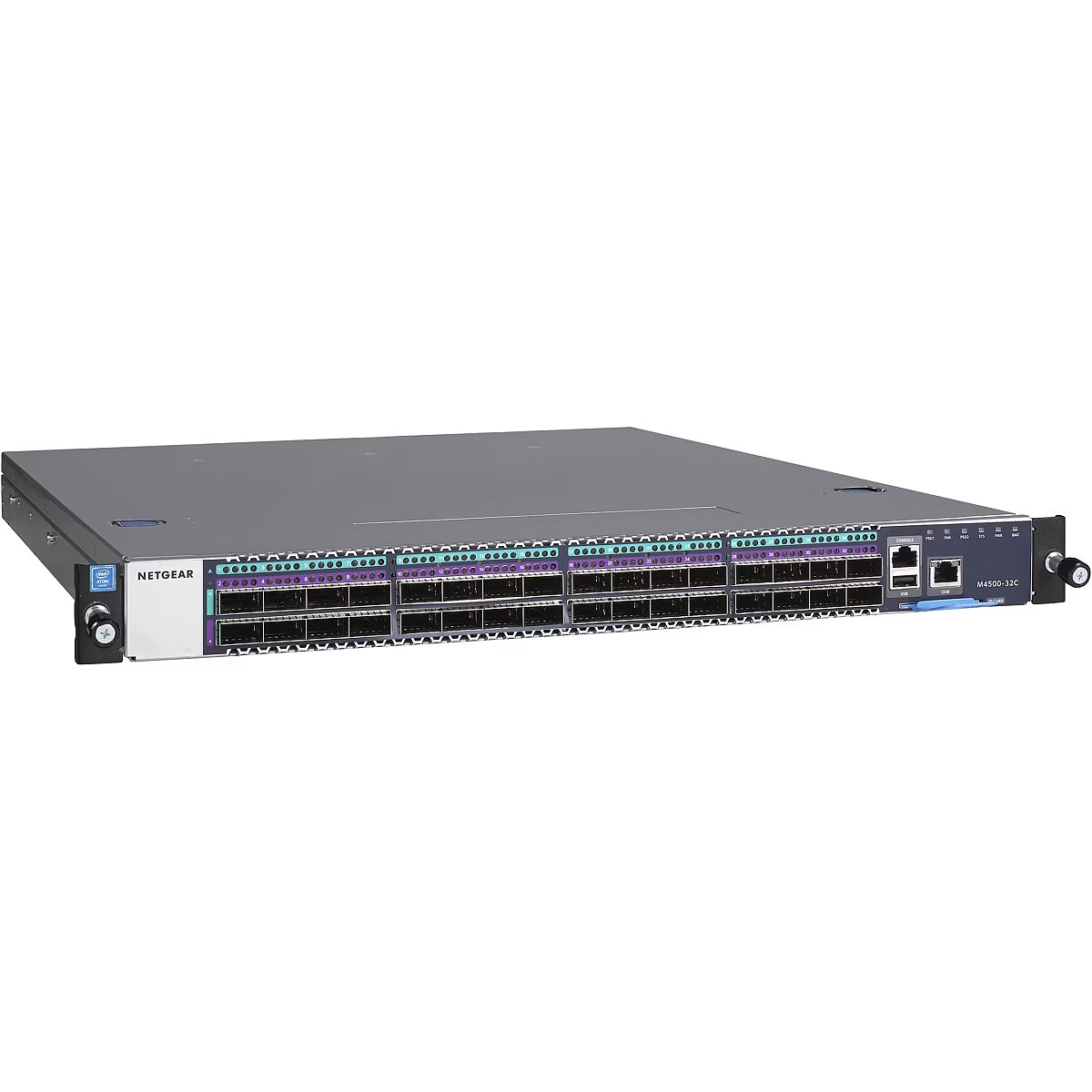

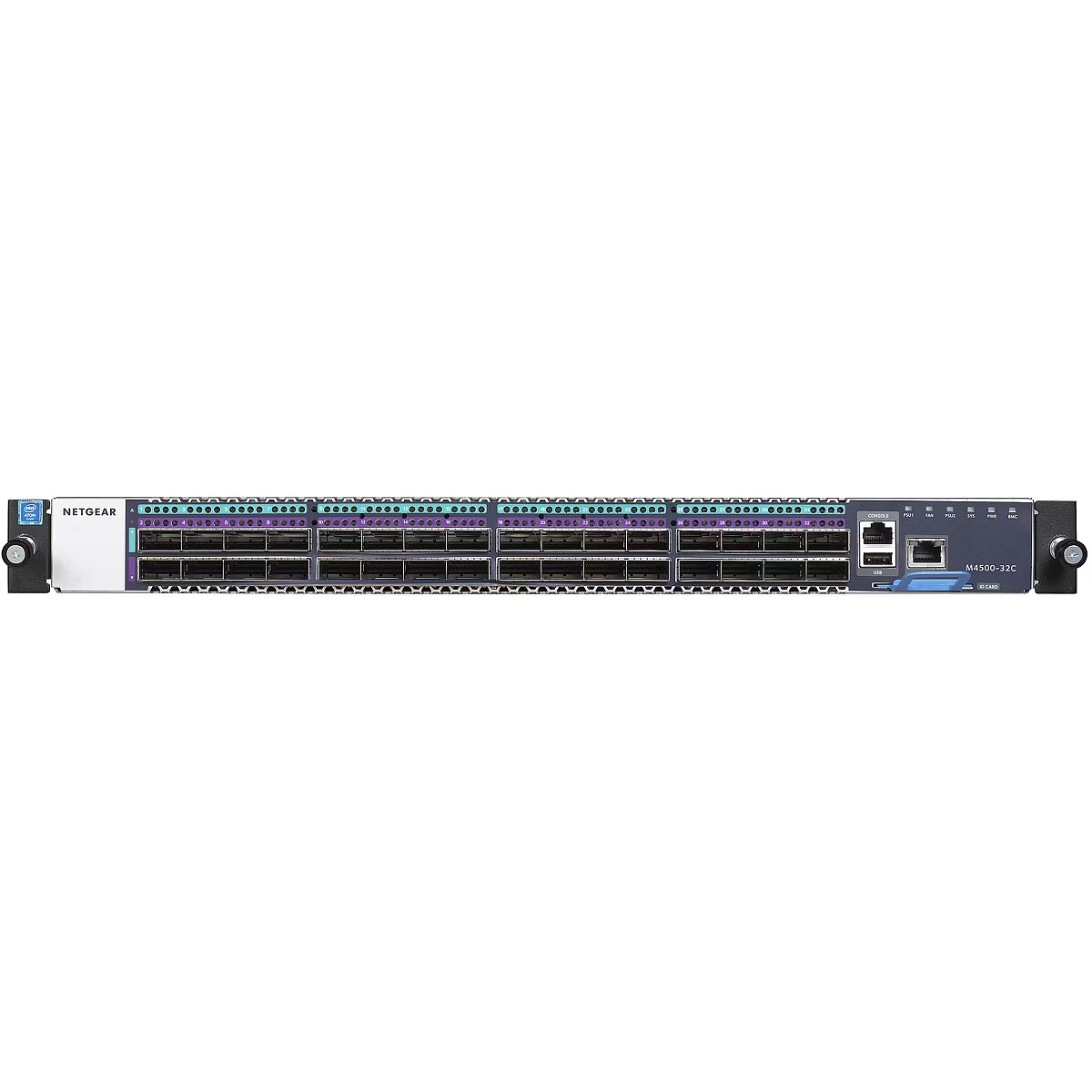

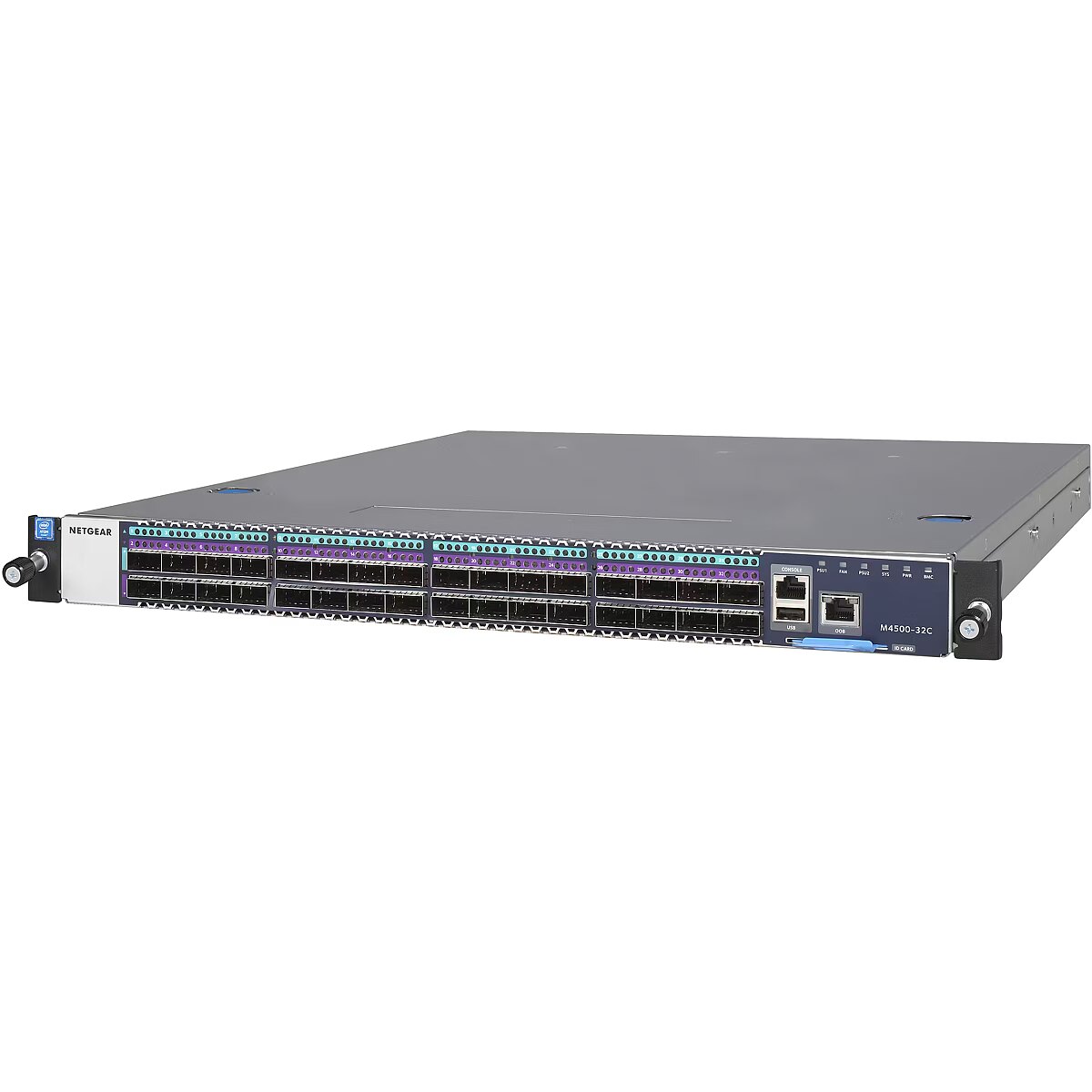

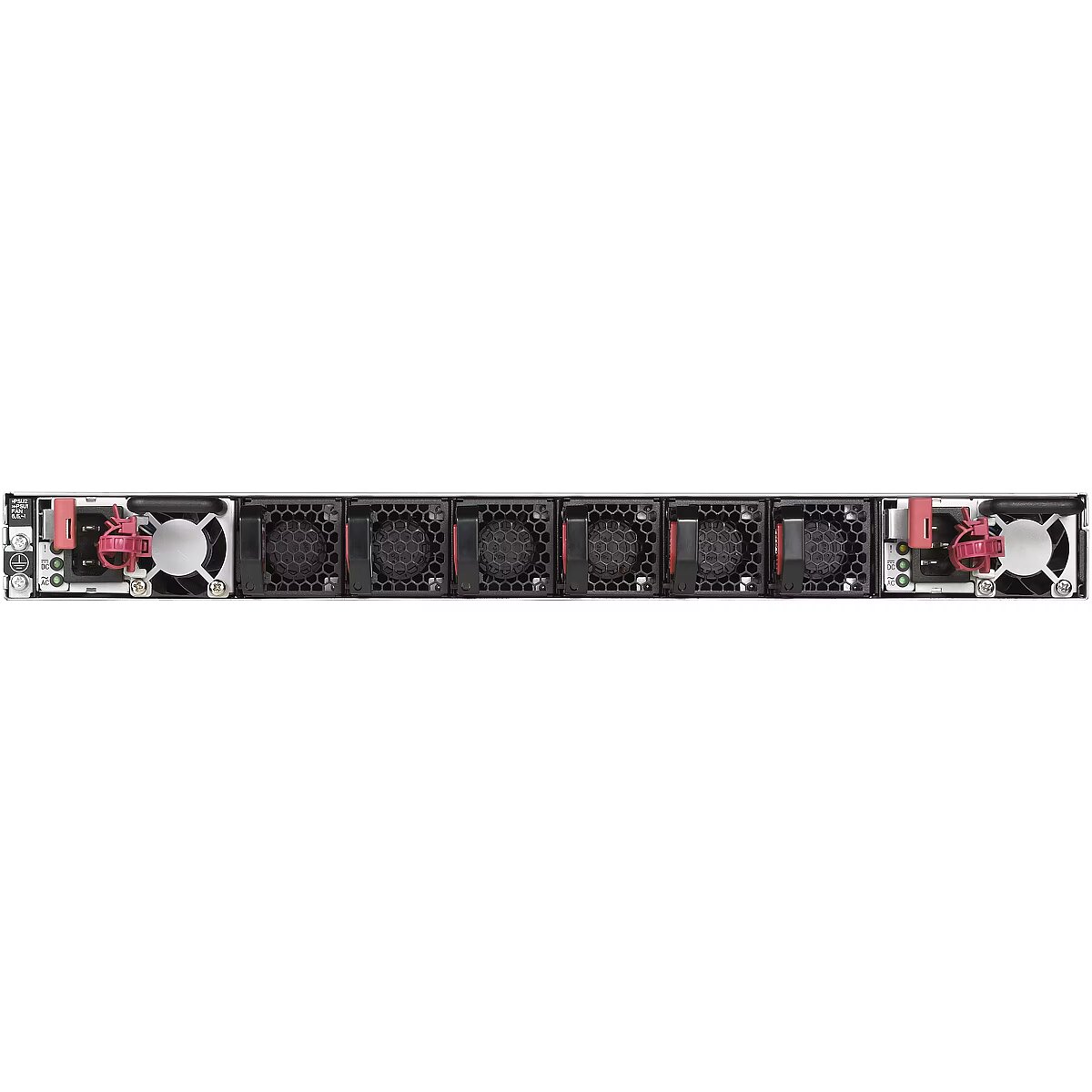

ARTIKEL1 - M4500-32C 40/50/100G MNG SWITCH
ARTIKEL2 - .
Brand - NETGEAR
BrandPartCode - CSM4532-100EUS
Breite - 0.6
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Data transmission - MAC address table - 32000 entries
Data transmission - Switching capacity - 6400 Gbit/s
Design - Electromagnetic compatibility - CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Design - Form factor - 1U
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Reset button - Yes
EAN - 0606449145731
EANCode - 0606449145731
Gewicht - 17.06
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 0606449145731
GTIN - 606449145731
HERSTELLER - NETGEAR
Hoehe - 0.21
HSTNUMMER - CSM4532-100EUS
Laenge - 0.9
Logistics data - Harmonized System (HS) code - 85176990
Logistics data - Products per master (outer) case - 1 pc(s)
LongDesc - The trend of moving matrix switching into the Ethernet network is inevitable and SDVoE already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch using Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 Multicast Routing techniques, adding complexity and cost to the Ethernet infrastructure. As SDVoE systems become ever larger, a new class of switches has come to market. The M4500 switches combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known IGMP techniques across the entire AV over IP network.
LongProductName - M4500-32C, 32 ports 1x100G; 1x50G; 1x40G; 4x25G; 4x10G, RJ45 RS232, USB
LongSummaryDescription - NETGEAR M4500-32C. Switch type: Managed, Switch layer: L2/L3/L4. USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 6400 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.3ad. Power connector: DC-in jack. Rack mounting, Form factor: 1U
Management features - ARP inspection - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2/L3/L4
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Manufacturer - NETGEAR
MPN - CSM4532-100EUS
Multicast features - Multicast support - Yes
Name - M4500-32C 40/50/100G MNG SWITCH
Network - 10G support - Yes
Network - Auto-negotiation - Yes
Network - Auto-sensing - Yes
Network - Auto MDI/MDI-X - Yes
Network - Flow control support - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1AX, IEEE 802.3ad
Network - Number of VLANs - 4000
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Private VLAN, Tagged VLAN, Voice VLAN
Network - VLAN support - Yes
Optical fiber - Fiber ethernet cabling technology - 100BASE-X
Packaging content - Manual - Yes
Packaging content - User guide - Yes
Packaging data - Package depth - 888 mm
Packaging data - Package height - 186 mm
Packaging data - Package type - Box
Packaging data - Package weight - 20.5 kg
Packaging data - Package width - 593 mm
Performance - Built-in processor - Yes
Performance - Flash memory - 256 MB
Performance - Internal memory - 8000 MB
Performance - Memory type - DDR3-SDRAM
Performance - Noise level - 64 dB
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Fiber optic connector - QSFP+
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces - QSFP28 ports quantity - 32
Ports & interfaces - USB 2.0 ports quantity - 1
Power - Power consumption (max) - 426 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
ProductName - M4500-32C
Protocols - Management protocols - Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+
Security - Access Control List (ACL) - Yes
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP client, DHCP relay, DHCP server
Security - IGMP snooping - Yes
Security - Security algorithms - HTTPS, SNMP, SSH
Security - SSH/SSL support - Yes
ShortSummaryDescription - NETGEAR M4500-32C, Managed, L2/L3/L4, Rack mounting, 1U
Stck_Kart - 1
Stck_Pal - 2
Storno - N
Title - NETGEAR M4500-32C Managed L2/L3/L4 1U Black
URL - https://www.netgear.com.au/business/products/switches/managed/m4500-32c.aspx#tab-techspecs
WarrantyInfo -
Weight & dimensions - Weight - 9.78 kg
