ID: 887403
Product code: R-PK550D-FA0B-EU
Can be ordered 82 units Availability: 14 days after order approval
Warranty: 2 years

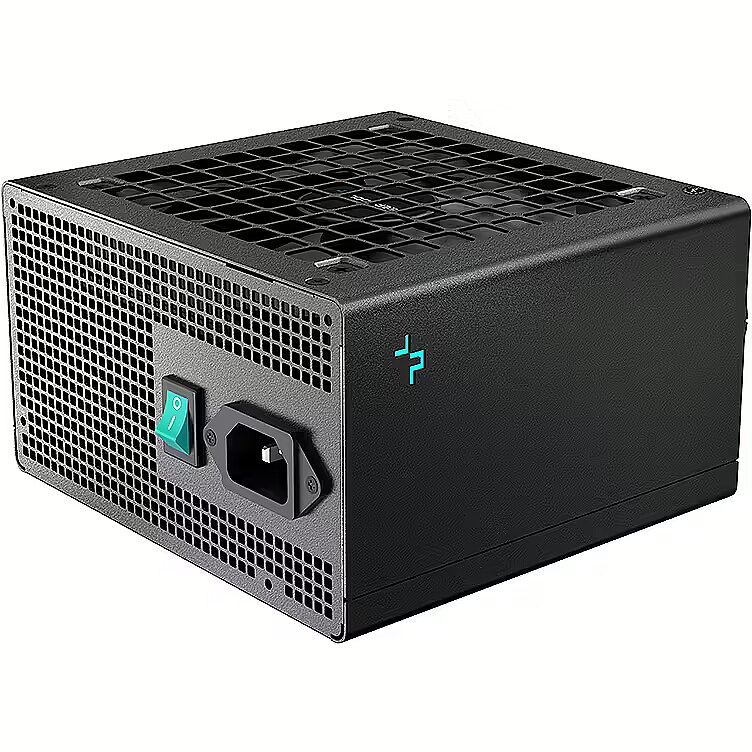

Deepcool PK550D, 550W, 80 PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Producer: Deepcool
- Power output: 550W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
We offer to purchase a Deepcool power supply unit with a power capacity of 550W, which has received the 80 PLUS Bronze energy efficiency certification.
The power of 550W is sufficient for basic computer gaming, web browsing, and Office applications use. The unit is designed for a computer with a budget processor, integrated graphics card, small SSD or hard drive. If you decide to upgrade your computer in the future, you should definitely consider purchasing a more powerful power supply.

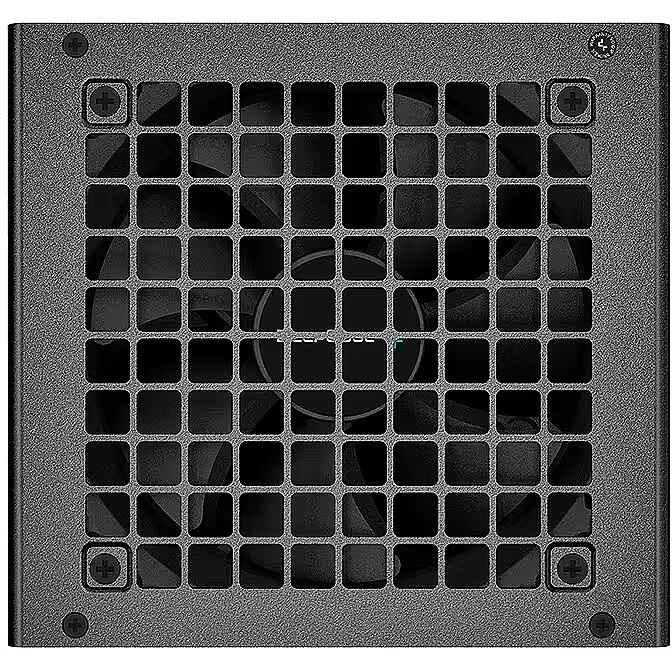

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

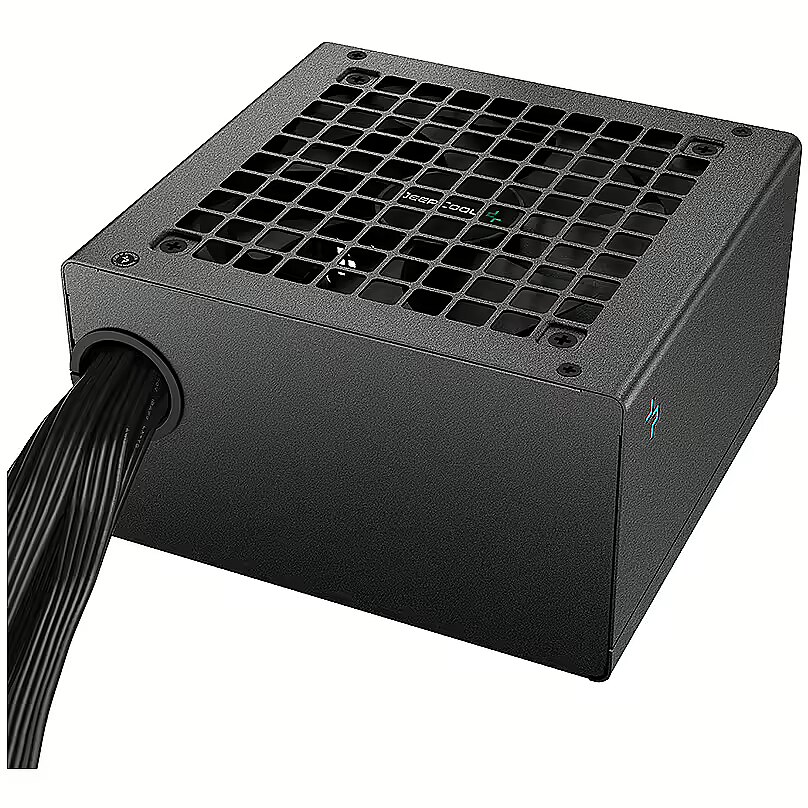

This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
The power supply manufacturer is Deepcool. All power supplies produced by Deepcool can be viewed here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 45.5A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0/5.1
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 3
More detailed specification
Brand - Gamer Storm
BrandPartCode - R-PK550D-FA0B-JGEU
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Certification - CAN ICES-003(B)/NMB-003(B)
Certificates - Certification - CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Certificates - Compliance certificates - BIS, CB, CCC, CE, EAC, Federal Communications Commission (FCC), RCM, TÜV mark, UKCA
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - WEEE
Certificates > Certification - 80 PLUS Bronze Certified
Code - R-PK550D-FA0B-EU
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design > Colour of product - Black
dimensionalWeight - 1265
EAN - 6933412711957
EAN_code - 6933412711957
GTIN - 6933412739999
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PK550D-80-PLUS-Bronze-Power-Supply/2022/15621.shtml
Logistics data - Warranty period - 5 year(s)
LongDesc - Beautiful in BronzeThe PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.DC-DC ConversionA highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.Tough and DurableDesigned to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.ErP Lot 6 CompliantDesigned to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.Stealth BlackBlack direct power cables help blend in with other components.
LongProductName - 550W, ATX12V V2.4, 120 mm, Active PFC, 80 PLUS Bronze, 150 x 140 x 86 mm, Black
LongSummaryDescription - Gamer Storm PK550D. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 400,500,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Manufacturer - Deepcool
Manufacturer_code - R-PK550D-FA0B-EU
Name - DeepCool PK550D 550W, PC power supply (black, 2x PCIe, 550 Watt)
Name - Deepcool | PK550D | 550 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C

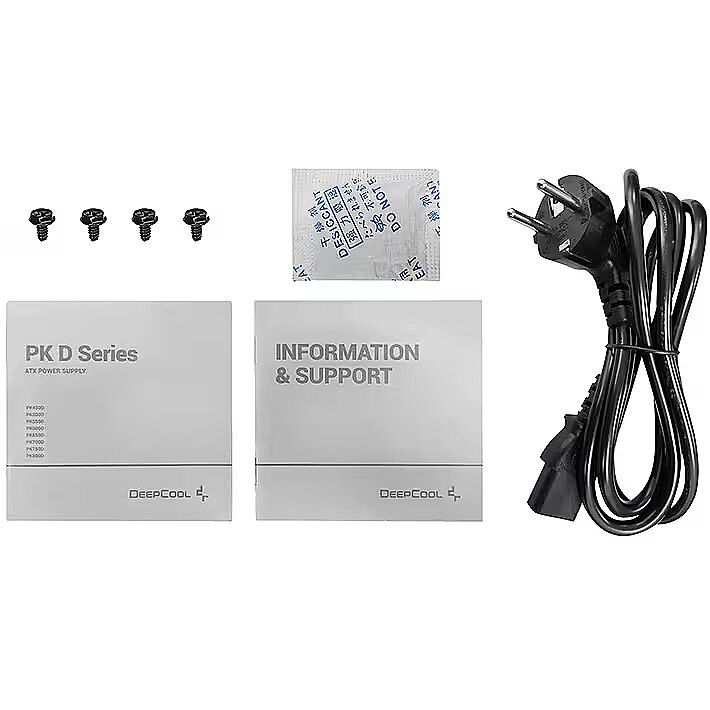

Other features - Cable ties included - Yes
Other features - Screws included - Yes
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 302.00 mm
Package features > Gross depth master carton - 587 mm
Package features > Gross height (mm) - 129.00 mm
Package features > Gross height master carton - 223 mm
Package features > Gross width (mm) - 214.00 mm
Package features > Gross width master carton - 332 mm
Package features > Net weight master carton - 13.6 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 207 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Tare weight master carton - 0.739 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.4
Performance - Bearing technology - HDB
Performance - Bearing technology - Hypro Bearing
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Bearing technology - Hypro Bearing
Performance > Form factor - ATX12V V2.4
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 62 cm
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power cables - 2
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 50 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 400,500,600 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 400,500,600 mm

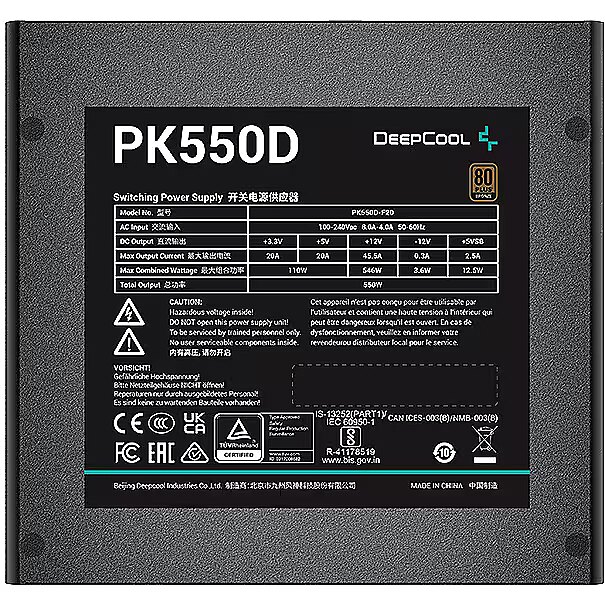

Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 546 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 16 ms
Power - Input current - 8.0 - 4.0 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 45,5 A
Power - Max output current (+12V) - 45.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - No load operation
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Surge protection
Power - Power protection features - Under voltage
Power - Total power - 550 W
Power > Nominal power - 550 W
producerCode - R-PK550D-FA0B-JGEU
Producer product name - PK550D
ProductName - PK550D
productName - Power Supply Deepcool PK550D 550W Bronze
productSize - Normal
ShortSummaryDescription - Gamer Storm PK550D, 550 W, 100 - 240 V, 50/60 Hz, 8.0 - 4.0 A, Active, 110 W
sizeX - 276
sizeY - 196
sizeZ - 117
Technical details - Sustainability certificates - ErP
Technical details > Gross weight - 2.30 kg
Technical details > Net weight - 1.80 kg
Technical details > Other features - 120mm Fan Size; Protection: SCP, OPP, OTP, OVP, OCP, UVP
Technical details > Producer - Deepcool
Technical details > Warranty - 60 month(s)
Technical_details - Type: PC power supply Color: Black EAN: 6933412711957 Manufacturer No.: R-PK550D-FA0B-EU Series: PK-D Power: 550W : 546W : 110W : Up to 85% : 100-240 volts Default: ATX12V 2.4 Design: ATX Certification: 80 PLUS Bronze Current: 20A : 20A : 2.5A : 0.3A : 45.5A : 45.5A Power Factor Correction: Active PFC Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 3x 4-pin 5.25", 2x 6+2-pin graphics, 6x 15-pin SATA Cable: 24-pin mainboard main connection: 1x 50 cm, 8-pin additional mainboard connections: 1x 62 cm, 1x 74 cm, 5.25-inch drive connections: 1x 40 cm, 1x 50 cm, 1x 60 cm, SATA drive connections: 2x 40 cm , 2x 50 cm, 2x 60 cm, 6-/8-pin graphics connectors: 1x 50 cm, 1x 62 cm Cooling: 1x 120mm fan Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Title - Gamer Storm PK550D power supply unit 550 W 20+4 pin ATX ATX Black
URL - https://www.gamerstorm.com/
Warranty - 60
WarrantyInfo - 5-year
warrantyLength - 24
warrantyType - G
Weight - 2,05
weight - 2052
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
