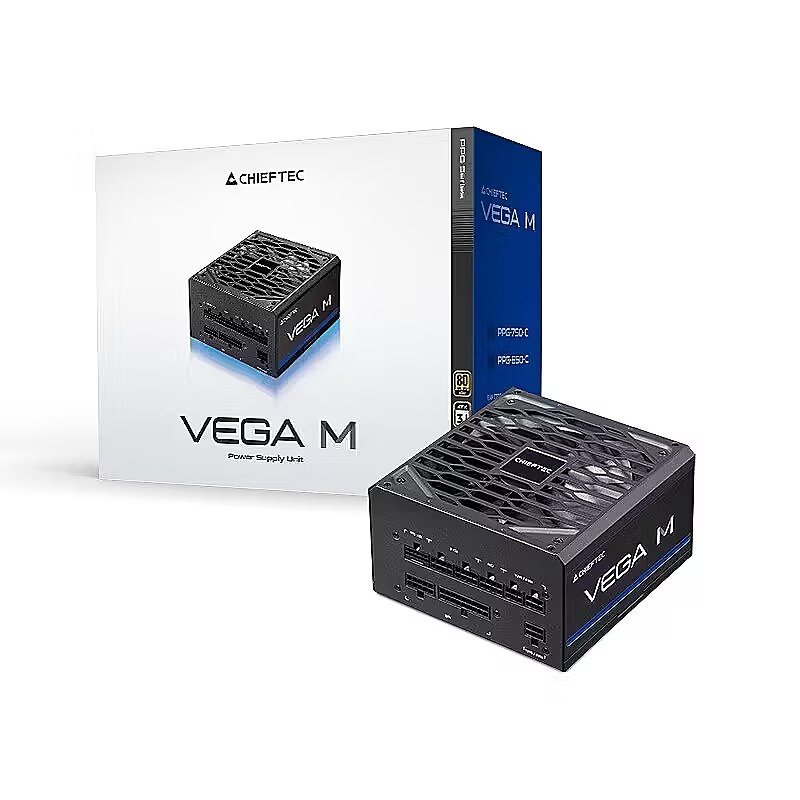

Chieftec VEGA M, 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1

-
Omniva parcel machineWithin 1-2 working days1.99 €
-
SmartPosti parcel terminalWithin 1-2 working days1.99 €
-
Delivery by courier to the addressWithin 1-2 working days5.99 €
- Producer: Chieftec
- Power output: 1000W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
We offer to purchase a Chieftec power supply unit with a power capacity of 1000W, which has received the 80 PLUS Gold energy efficiency certification.
Even the best gaming computer will be able to operate safely with this 1000W power supply unit. The power will be sufficient for both a substantial water cooling system and multiple high-end graphics cards, an overclocked high-end processor, and several hard drives.
This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
ATX version - 3.1
Brand - Chieftec
BrandPartCode - PPG-1000-C
Category - Power Supply Units
Certificates - Certification - 80PLUS Gold
Certificates 80+ - 80 PLUS Gold
Description - Zasilacz PPG-1000-C VEGA M 1000W 80+GOLD Zasilacze serii CHIEFTEC Vega M są zgodne ze standardem Intel ATX 12V 3.1 i wspierają PCIe GEN5 z certyfikowaną efektywnością 80PLUS Gold. Przekonują konkurencyjnym stosunkiem ceny do wydajności, pozostając wiernymi sprawdzonej jakości Chieftec. Seria Vega M wyposażona jest w konwerter LLC Half-Bridge z technologią DC-to DC, zapewniającą lepszą efektywność energetyczną i stabilność. W pełni modułowa konstrukcja z wyjątkowo długimi czarnymi kablami sprawia, że jest to idealne rozwiązanie dla graczy, którzy chcą zbudować swój system, nawet w większych obudowach komputerowych. Dodatkowo, 135-mm wentylator FDB optymalizuje równowagę między wydajnością chłodzenia a poziomem hałasu. Seria Vega M to Twoje zaufane, niezawodne rozwiązanie dla wszystkich potrzeb komputerowych, wyposażone we wszystkie niezbędne, nowoczesne funkcje ochrony i bezpieczeństwa.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Illumination - No
Design - Product colour - White
Designation - CE+WEEE
dimension depth - 110 mm
dimension height - 215 mm
Dimensions - 85 x 150 x 150 mm
dimension weight - 2802 g
dimension width - 280 mm
ean - 753263079091
Fan - 13.5 cm
Filters / protection - Automatic fan speed control
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
GTIN - 0753263079091
GTIN - 753263079091
guarantee - 60
guarantee_type - normal
LongSummaryDescription - Chieftec Vega PPG-1000-C. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 3
name - Power supply PPG-1000-C VEGA M 1000W 80+GOLD
Number of connectors PATA - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of USB 10p connectors - 0
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150,400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150,400 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 12 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.33 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current, Over voltage, Overload, Short circuit, Surge and inrush
Power - Total power - 1000 W
Power supply - 1000 W
producer - Chieftec
ProductName - PPG-1000-C
SATA power connectors - 6
ShortSummaryDescription - Chieftec Vega PPG-1000-C, 1000 W, 100 - 240 V, 50/60 Hz, 12 A, 100 W, 1000 W
Title - Chieftec Vega PPG-1000-C power supply unit 1000 W 24-pin ATX ATX White
vendpn - PPG-1000-C
Weight - 2.3 kg
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Width - 150 mm
