8-pin 12V power connectors - 0
ATX version - 3.1
Brand - Chieftec
BrandPartCode - PPG-1000-C
Category - Power Supply Units
Certificates - Certification - 80PLUS Gold
Certificates 80+ - 80 PLUS Gold
Description - Zasilacz PPG-1000-C VEGA M 1000W 80+GOLD Zasilacze serii CHIEFTEC Vega M są zgodne ze standardem Intel ATX 12V 3.1 i wspierają PCIe GEN5 z certyfikowaną efektywnością 80PLUS Gold. Przekonują konkurencyjnym stosunkiem ceny do wydajności, pozostając wiernymi sprawdzonej jakości Chieftec. Seria Vega M wyposażona jest w konwerter LLC Half-Bridge z technologią DC-to DC, zapewniającą lepszą efektywność energetyczną i stabilność. W pełni modułowa konstrukcja z wyjątkowo długimi czarnymi kablami sprawia, że jest to idealne rozwiązanie dla graczy, którzy chcą zbudować swój system, nawet w większych obudowach komputerowych. Dodatkowo, 135-mm wentylator FDB optymalizuje równowagę między wydajnością chłodzenia a poziomem hałasu. Seria Vega M to Twoje zaufane, niezawodne rozwiązanie dla wszystkich potrzeb komputerowych, wyposażone we wszystkie niezbędne, nowoczesne funkcje ochrony i bezpieczeństwa.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Illumination - No
Design - Product colour - White
Designation - CE+WEEE
dimension depth - 110 mm
dimension height - 215 mm
Dimensions - 85 x 150 x 150 mm
dimension weight - 2802 g
dimension width - 280 mm
ean - 753263079091

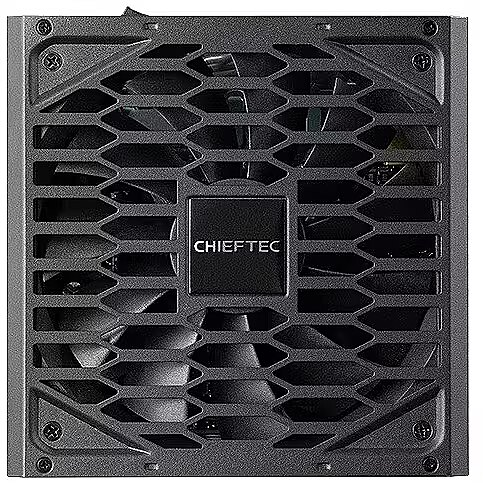

Fan - 13.5 cm
Filters / protection - Automatic fan speed control
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
GTIN - 0753263079091
GTIN - 753263079091
guarantee - 60
guarantee_type - normal
LongSummaryDescription - Chieftec Vega PPG-1000-C. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 3
name - Power supply PPG-1000-C VEGA M 1000W 80+GOLD
Number of connectors PATA - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of USB 10p connectors - 0
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active

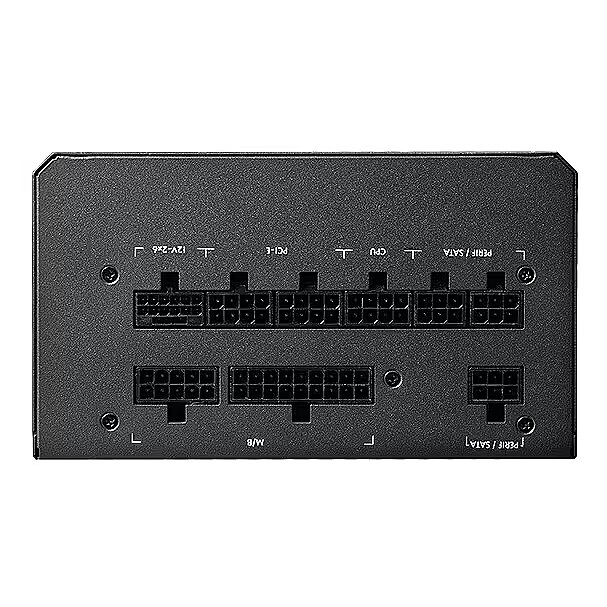

Ports & interfaces - ATX Power connector (24-pin) - Yes

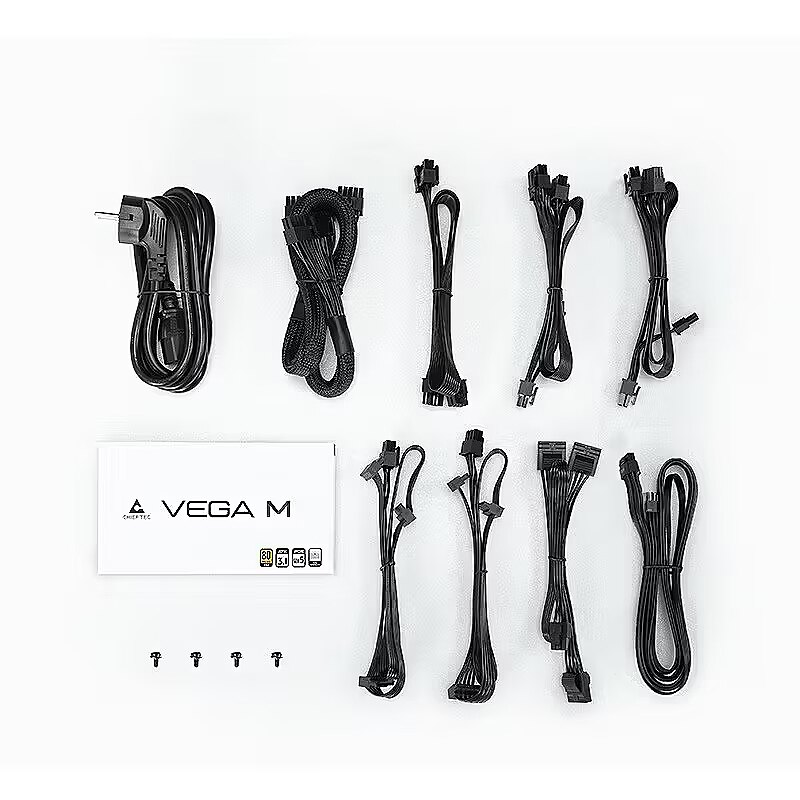

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150,400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150,400 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 12 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.33 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current, Over voltage, Overload, Short circuit, Surge and inrush
Power - Total power - 1000 W
Power supply - 1000 W
producer - Chieftec
ProductName - PPG-1000-C
SATA power connectors - 6
ShortSummaryDescription - Chieftec Vega PPG-1000-C, 1000 W, 100 - 240 V, 50/60 Hz, 12 A, 100 W, 1000 W

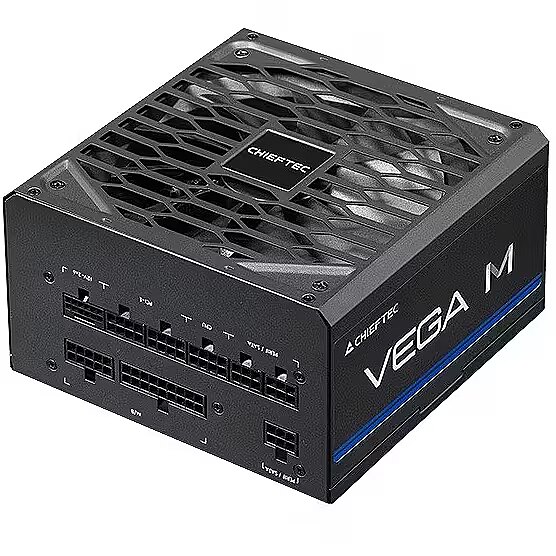

Title - Chieftec Vega PPG-1000-C power supply unit 1000 W 24-pin ATX ATX White
vendpn - PPG-1000-C
Weight - 2.3 kg
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Width - 150 mm
