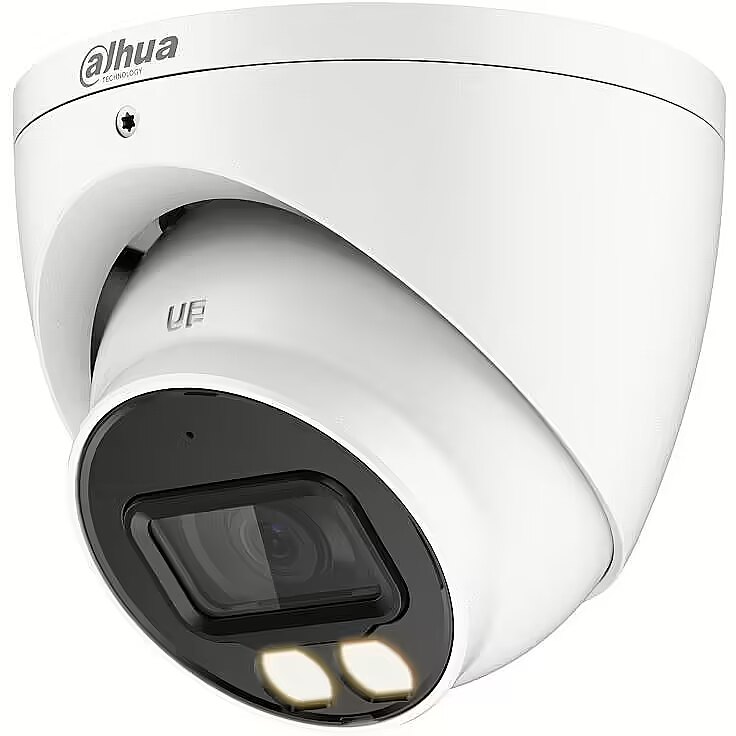

Dahua Dual Light, 1080p Full HD, 2MP, White

Angle of rotation Camera - 360°
Audio input channels Audio - 1.0 channels
Back Light Compensation (BLC) Video - Yes
Bit rate control Video - Constant Bit Rate (CBR)
Bluetooth Network - No
BNC output ports Ports & interfaces - 1
Built-in HDD Storage - No
Built-in light Performance - Yes
Built-in microphone Audio - Yes
Camera shutter speed Camera - 1/30 - 1/100000 s
Camera shutter type Camera - Electronic
Category Code - HSC
Certification Performance - CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Closest focusing distance Lens system - 0.5 m
Connectivity technology Performance - Wired
Day/night mode Performance - Yes
DC output voltage Power - 12
Description - The Lite Series is a great choice for consumers looking for high quality
monitoring products at a reasonable price. Its low cost and high
performance make it ideal for residential areas and SMB solutions. This
series is equipped with a wide range of technologies, such as full-color
and starlight, providing various solutions for different scenarios. Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on
the white light when Perimeter Protection/SMD Plus function of AI XVR
detects a target in the rule area to capture clear, vivid images. When the
target leaves the rule area, the camera automatically switches over from
the white light to the IR light to significantly reduce light pollution. Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI
camera. It adopts a unique audio processing and transmission
technology that restores source audio and eliminates noise, ensuring
the quality and reliability of the audio information that is collected. This
becomes important for video surveillance applications that use audio
information as a type of supplementary evidence. Super Adapt
With its intelligent algorithm, the camera automatically adjusts its
parameters to provide optimal performance and vivid images. Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to
no impact on image sharpness, especially in poor lighting conditions.
It detects the noise, and compares the sequential frames to effectively
reduce the noise. It also makes efficient use of bandwidth, saving on
storage space. Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests.
Its enclosure is both dust-proof and waterproof, and can function
normally while being immersed in 1 m deep water for up to 30 minutes.
Wide voltage: The camera has ±30% input voltage tolerance (for some
power supplies) and a wide voltage range, making it suitable for a variety
of outdoor scenarios. 4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power)
which are simultaneously transmitted over a coaxial cable. Dual-way
data transmission allows the HDCVI camera to interact with the XVR to
perform various actions such as sending control signals and triggering
alarms. HDCVI technology also supports PoC, which makes the camera
easy and quick to install. * Audio input is available for select HDCVI camera models. Long Distance Transmission
HDCVI technology provides long distance transmission in real time
without transmission loss. It supports transmission distances up to 700
m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300
m through UTP cables. The results were obtained and verified through
rigorous testing in Dahua's test laboratory.Max. 30 fps@1080p3D NRSmart Dual Light40 m illumination distanceSuper AdaptBuilt-in mic3.6 mm fixed lens (2.8 mm optional)CVI/CVBS/AHD/TVI switchableIP67, 12 VDC
Detect distance Lens system - 41.1 m
Diameter Weight & dimensions - 10.6 cm
Digital Wide Dynamic Range (DWDR) Video - Yes
Ethernet LAN Network - No
Fixed focal length Lens system - 2.8 mm
Fixed focus Lens system - Yes
Form factor Design - Dome
Frame rate Video - 30 fps
Gain control type Video - Auto
Height Weight & dimensions - 99.2 mm
Highlight Compensation (HLC) Video - Yes
Housing material Design - Metal
Identify distance Lens system - 4.1 m
International Protection (IP) code Design - IP67
LED type Night vision - IR/White
Lens viewing angle, diagonal Camera - 129°
Lens viewing angle, horizontal Camera - 102°
Lens viewing angle, vertical Camera - 60°
Maximum aperture number Lens system - 2
Maximum resolution Video - 1920 x 1080 pixels
Minimum illumination Camera - 0 lx
Mirror Security - Yes
Model - HAC-HDW1200T-IL-A-0280B-S6
Mounting type Design - Ceiling/wall
Night vision distance Night vision - 40 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of effective pixels (H x V) Image sensor - 1920 x 1080 pixels
Number of illumination LEDs Night vision - 4
Number of Privacy masking areas Camera - 8
Number of sensors Image sensor - 2
Observe distance Lens system - 16.5 m
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - -40 - 60 °C
Package weight Packaging data - 580 g
Pan range Camera - 0 - 360°
Placement supported Performance - Indoor & outdoor
Power consumption (max) Power - 4.1 W
Power source type Power - DC
Privacy masking Video - Yes
Product colour Design - White
Progressive scan Image sensor - Yes
Protection features Design - Dust resistant, Waterproof
Recognize distance Lens system - 8.3 m
Sensor type Image sensor - CMOS
Signal-to-Noise Ratio (SNR) Audio - 65 dB
Smart IR Video - Yes
Storage relative humidity (H-H) Operational conditions - 0 - 95%
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Summary - Dahua Technology Lite HAC-HDW1200T-IL-A. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 360°, Lens viewing angle, horizontal: 102°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Number of effective pixels (H x V): 1920 x 1080 pixels. Detect distance: 41.1 m, Observe distance: 16.5 m, Recognize distance: 8.3 m
Supported graphics resolutions Video - 960 x 480, 960 x 576, 1920 x 1080 (HD 1080)
Supported video modes Video - 1080p
Tilt angle range Camera - 0 - 78°
Total megapixels Video - 2 MP
Type Performance - IP security camera
Unit Box Height - 0.137
Unit Box Length - 0.148
Unit Box Width - 0.139
Unit Calculated Volume - 0.002818 cubm
Unit Calculated Weight - 0.65 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.dahuasecurity.com/la/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Smart-Dual-Light/HAC-HDW1200T-IL-A=S6
Warranty - 36 months
Weight Weight & dimensions - 450 g
White balance Camera - Area white balance, Auto
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
