Accessories included -
Audio - Built-in microphone - Yes
Audio - Signal-to-Noise Ratio (SNR) - 65 dB
Camera - Camera shutter speed - 1/25~1/100000, 1/30~1/100000 s
Camera - Lens viewing angle, diagonal - 105°
Camera - Lens viewing angle, horizontal - 83°
Camera - Lens viewing angle, vertical - 48°
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 78°
Camera - White balance - Auto
Camera design - Eyeball
Category Code - HSC
Certificates -
Color - White

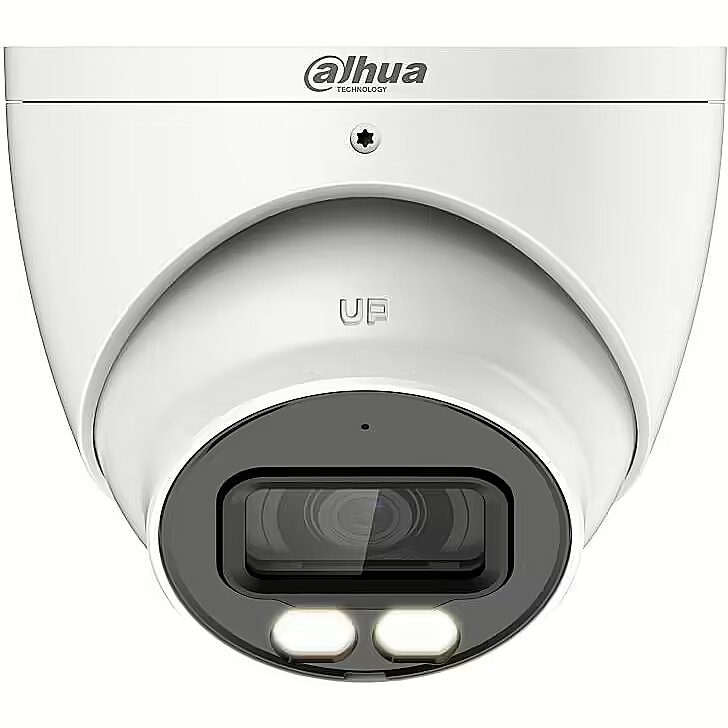

Description - Camera 4in1 HAC-HDW1200T-IL-A-0280B
Description - HAC-HDW1200T-IL-A 2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera > Max. 30 fps@1080p. > 3D NR. > Smart Dual Light. > 40 m illumination distance. > Super Adapt. > Built-in mic. > 3.6 mm fixed lens (2.8 mm optional). > CVI/CVBS/AHD/TVI switchable. > IP67, 12 VDC.
Design - Form factor - Dome
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - White
Designation - CE+WEEE
dimensionalWeight - 1064
dimension depth - 150 mm
dimension height - 140 mm
Dimensions - 106.0 x 106.0 × 99.2 m
Dimensions - φ106.0 mm × 99.2 mm
dimension weight - 650 g
dimension width - 150 mm
ean - 6923172591890
Electronic Shutter Speed - PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s
Environment requirements -
Focal Length - 2.8 mm; 3.6 mm
Focal length - 3.6 - 4mm
Frames per second - 30
Full Description Line - Type Fixed/HDTV/Megapixel|Video interface HDCVI|Sensor size 2 MP CMOS|Focal Length 2.8 mm; 3.6 mm|Lens Mount M12|Min. Illumination 0.01 Lux|Electronic Shutter Speed PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s|Microphone Built-in|Number of channels 1|Power supply requirements 12 VDC ± 30%|Dimensions φ106.0 mm × 99.2 mm
guarantee - 24
guarantee_type - normal
Image sensor - Number of effective pixels (H x V) - 1920 x 1080 pixels
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
IR Illumination - Yes
Lens - 2.8 mm
Lens Mount - M12
Lens system - Closest focusing distance - 0.5 m
Lens system - Detect distance - 50.9 m
Lens system - Focal length range - 2.8 mm
Lens system - Identify distance - 5.1 m
Lens system - Maximum aperture number - 2
Lens system - Number of lenses - 1
Lens system - Observe distance - 20,3 m
Lens system - Recognize distance - 10.2 m
Management, monitoring, configuration -
Management features - Smartphone/tablet remote support - No
Management features - Web browser - No
Memory card reader - No
Microphone - Built-in
Microphone - Yes
Min. illuminance - 0.01 lx
Min. Illumination - 0.01 Lux
Model - HAC-HDW1200T-IL-A-0280B-S6
Motion detection - No data
name - Camera 4in1 HAC-HDW1200T-IL-A-0280B
Net camera resolution - 2 - 4MP
Network - Ethernet LAN - No
Network - Wi-Fi - No
Network Camera Type - Fixed/HDTV/Megapixel
Network protocols -
Night mode - Yes
Night vision - LED type - IR / White light LED
Night vision - Night vision - Yes
Night vision - Night vision distance - 40 m
Night vision - Number of illumination LEDs - 2 / 2
Number of channels - 1
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage temperature (T-T) - -30 - 70 °C
Other features -
Packaging content - Number of cameras - 1
Performance - Certification - CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 2023-08-07
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Type - HDCVI security camera
Performance - Wide Dynamic Range (WDR) - DWDR
Pixel Resolution - 2 Mega Pixel
Ports & interfaces - BNC video output - Yes
Power - DC output voltage - 12
Power - Power consumption (max) - 4.1 W
Power - Power source type - DC
Power consumption - 4.1 Watts
Power supply -
Power supply requirements - 12 VDC ± 30%
producer - Dahua
producerCode - 41676
productName - CAMERA 4w1 DAHUA HAC-HDW1200T-IL-A-0280B-S6
Product Net Weight - 0.45 kg
productSize - Normal
Protection class - IP67
Resolution - Full HD 1080p
Security -
Sensor -
Sensor size - 2 MP CMOS
Shipping Box Depth Shipping/Package Box Dimensions - 14.8 cm
Shipping Box Height Shipping/Package Box Dimensions - 13.7 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.65 kg
Shipping Box Width Shipping/Package Box Dimensions - 13.9 cm
sizeX - 151
sizeY - 261
sizeZ - 135
Speakers built-in - No
Special functions -
System Requirements -
Two-way transmission - No
type - fixed dome camera
Unit Box Height - 0.137
Unit Box Length - 0.148
Unit Box Width - 0.139
Unit Calculated Volume - 0.002818 cubm
Unit Calculated Weight - 0.65 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/la/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Smart-Dual-Light/HAC-HDW1200T-IL-A=S6
vendpn - HAC-HDW1200T-IL-A-0280B-S6
Video - Back Light Compensation (BLC) - Yes
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 25 / 30 fps
Video - Gain control type - Auto
Video - Maximum resolution - 1920 x 1080 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Smart IR - Yes
Video - Supported graphics resolutions - 960 x 480
Video - Supported graphics resolutions - 960 x 576
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported video modes - 1080p
Video - Total megapixels - 2 MP
Video interface - HDCVI
Warranty - 36 months
warrantyLength - 24
warrantyType - F
Weight - 450 g
weight - 656
Weight & dimensions - Depth - 106 mm
Weight & dimensions - Height - 99.2 mm
Weight & dimensions - Weight - 450 g
Weight & dimensions - Width - 106 mm
Wireless communication - No
