ID: 968628
Product code: MBV2155-L
In stock 1 units
Warranty: 3 years

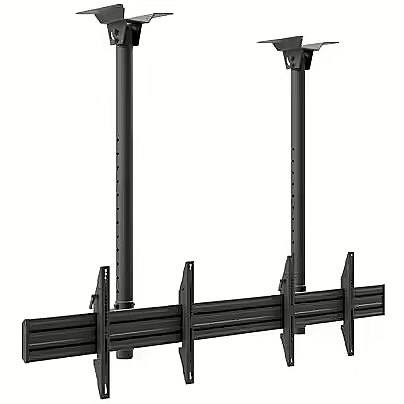

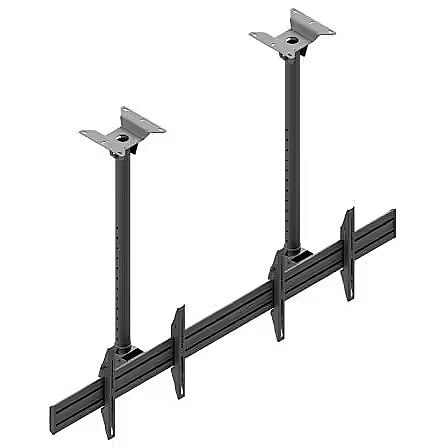

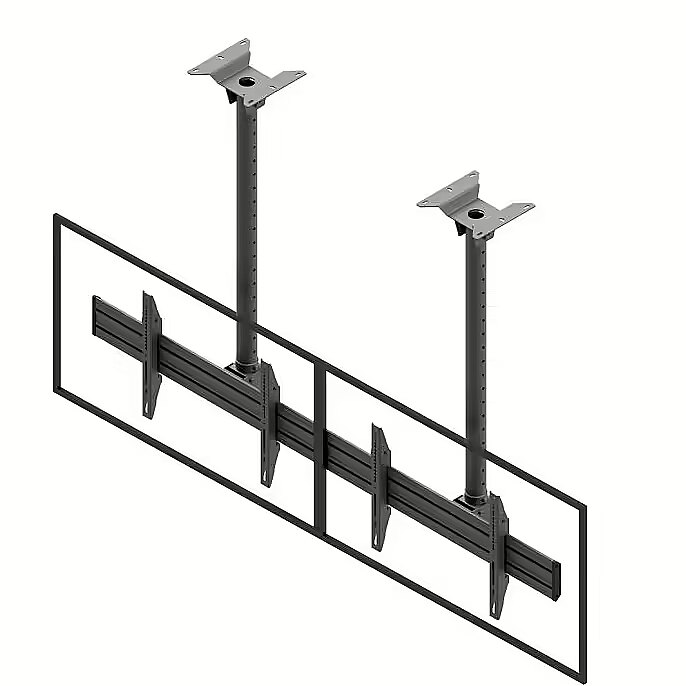

Edbak Menu Board Ceiling Mount for double screens, 50-57"
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Delivery by courier to the addressWithin 1-2 working days19.99 €
Main product parameters All parameters
- Maximum load (1 screen), kg: 140.00
- Maximum screen diagonal, inches: 57
- Minimum screen diagonal, inches: 50
All parameters
Colour
: Black
Maximum load (1 screen), kg
: 140.00
Maximum screen diagonal, inches
: 57
Minimum screen diagonal, inches
: 50
Model
: MBV2155-L
Notebook holder
: There isn't
Number of supported screens
: 2
Rotation
: Not
Swivel
: There isn't
Tilt
: Is
Type of attachment
: Ceiling
VESA support
: 100 x 100, 600 x 400
More detailed specification
Code - MBV2155-L
Design > Colour of product - Black
Design > VESA mounting - Yes
EAN - 5902841112179
Ergonomics > Tilt angle - +18 °
Link - https://edbak.com/en/products/video-wall-menu-board-mounts/menu-board-mounts/menu-board-ceiling-mounts/mbv2155-l/
Mounting > Distance to the wall (max) - 1135 mm
Mounting > Distance to the wall (min) - 535 mm
Mounting > Maximum screen size compatibility - 57 "
Mounting > Maximum weight (capacity) - 140 kg
Mounting > Mounting interface compatibility (max) - 600x400 mm
Mounting > Mounting interface compatibility (min) - 100x100 mm
Mounting > VESA mounting interfaces - 100x100; 600x400 mm
Name - EDBAK | Ceiling mount | MBV2155-L | 50-57 " | Maximum weight (capacity) 140 kg | Black
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 2270.00 mm
Package features > Gross height (mm) - 220.00 mm
Package features > Gross width (mm) - 525.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 26.00 pc(s)
Package features > Paper/Pasteboard - 1.50 g
Package features > Tare weight (kg) - 1.50 kg
Package features > Volume (m3) - 0.26 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Technical details > Gross weight - 32 kg
Technical details > Net weight - 30.5 kg
Technical details > Other features - Telescopic mount; Stepwise height adjustment; Screen load-carrying plate made of aluminum; Quick and simple installation; Integrated cable routing system; Universal VESA-compliant mounting range
Technical details > Placement - Ceiling mount
Technical details > Producer - EDBAK
Technical details > Producer product family - Menu Board Ceiling Mount for Two Screens
Technical details > Product name - MBV2155-L
Technical details > Screen size compatibility - 50-57 "
Warranty - 60
Warranty - 60 month(s)
