ID: 258948
Product code: TWB1
In stock 3 units
Warranty: 3 years

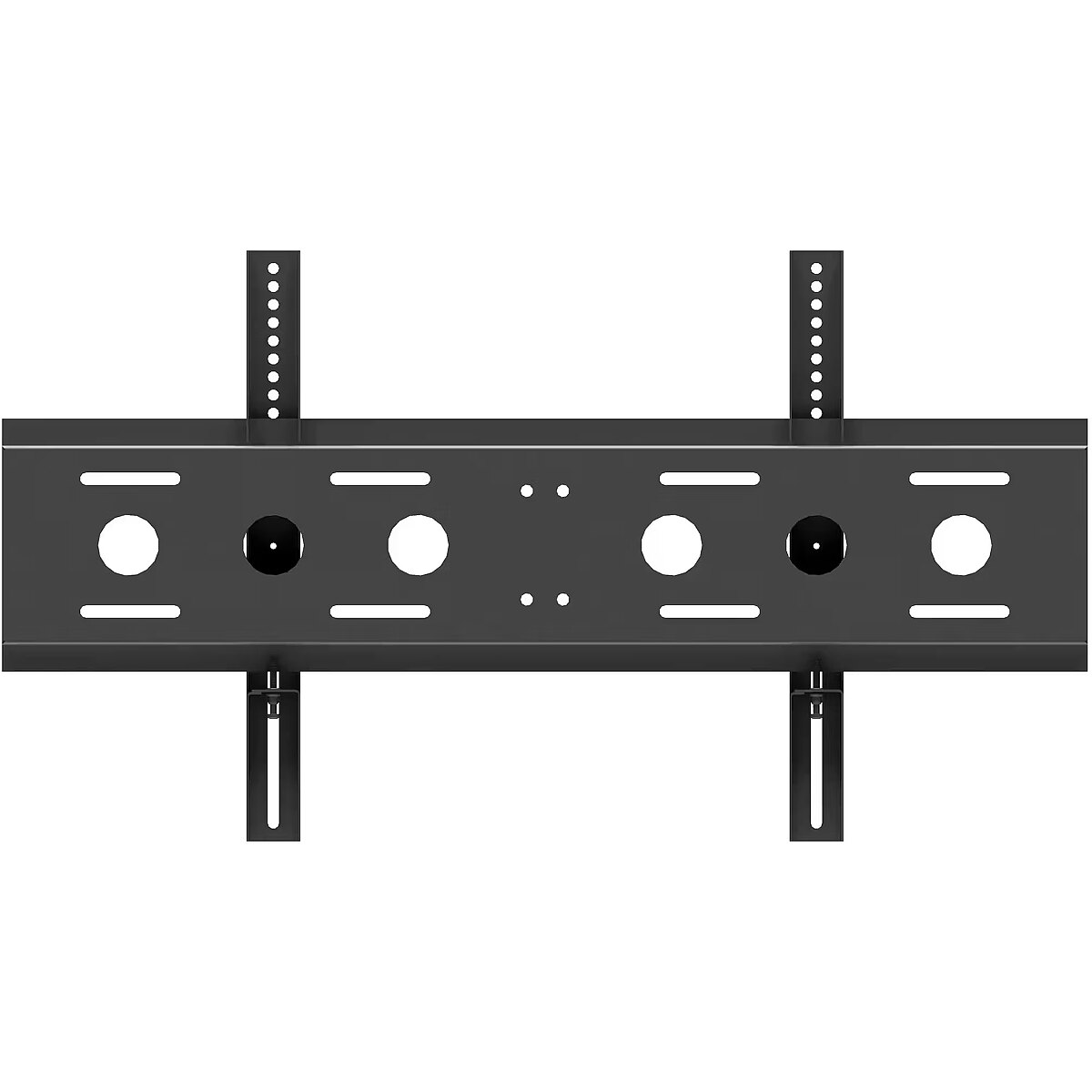

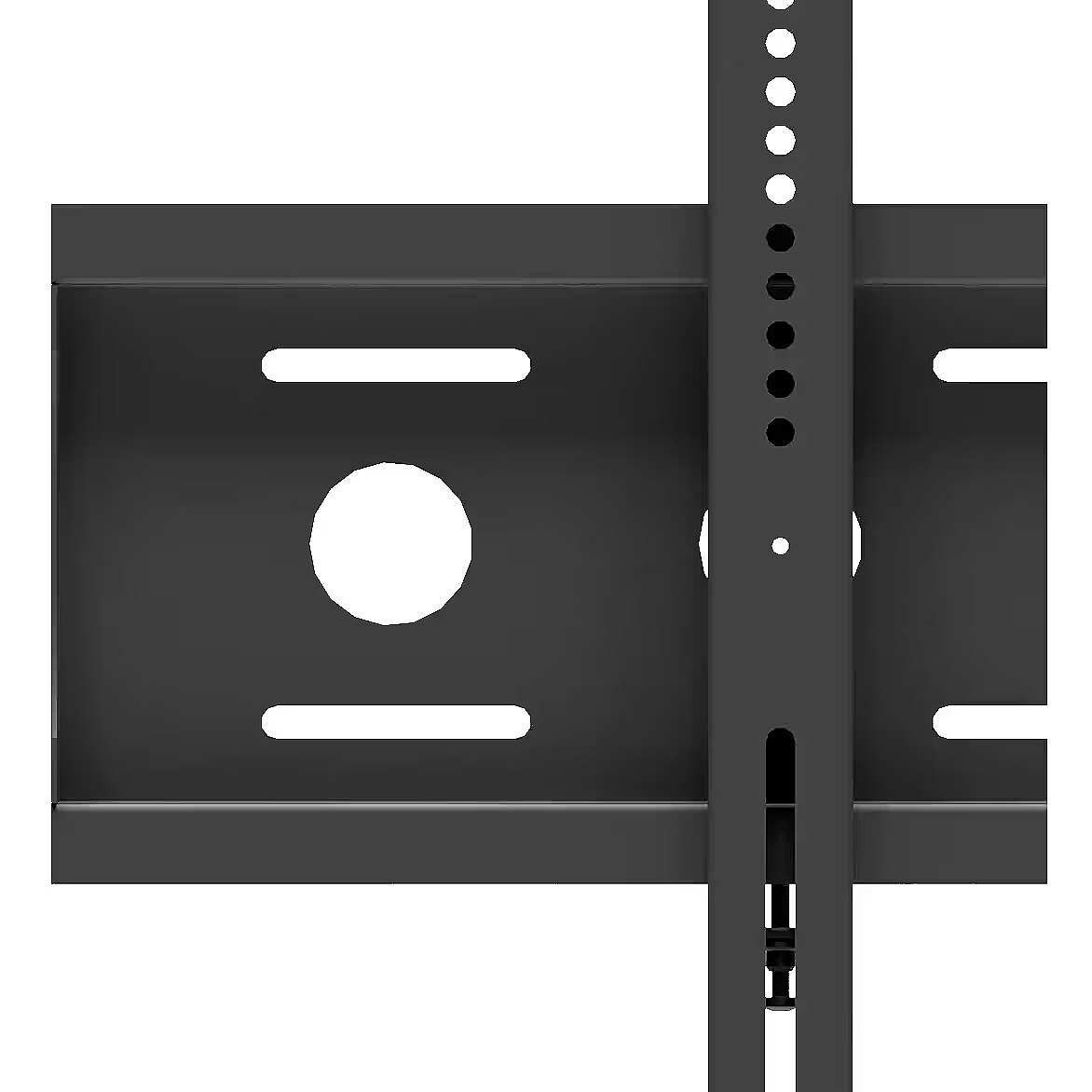

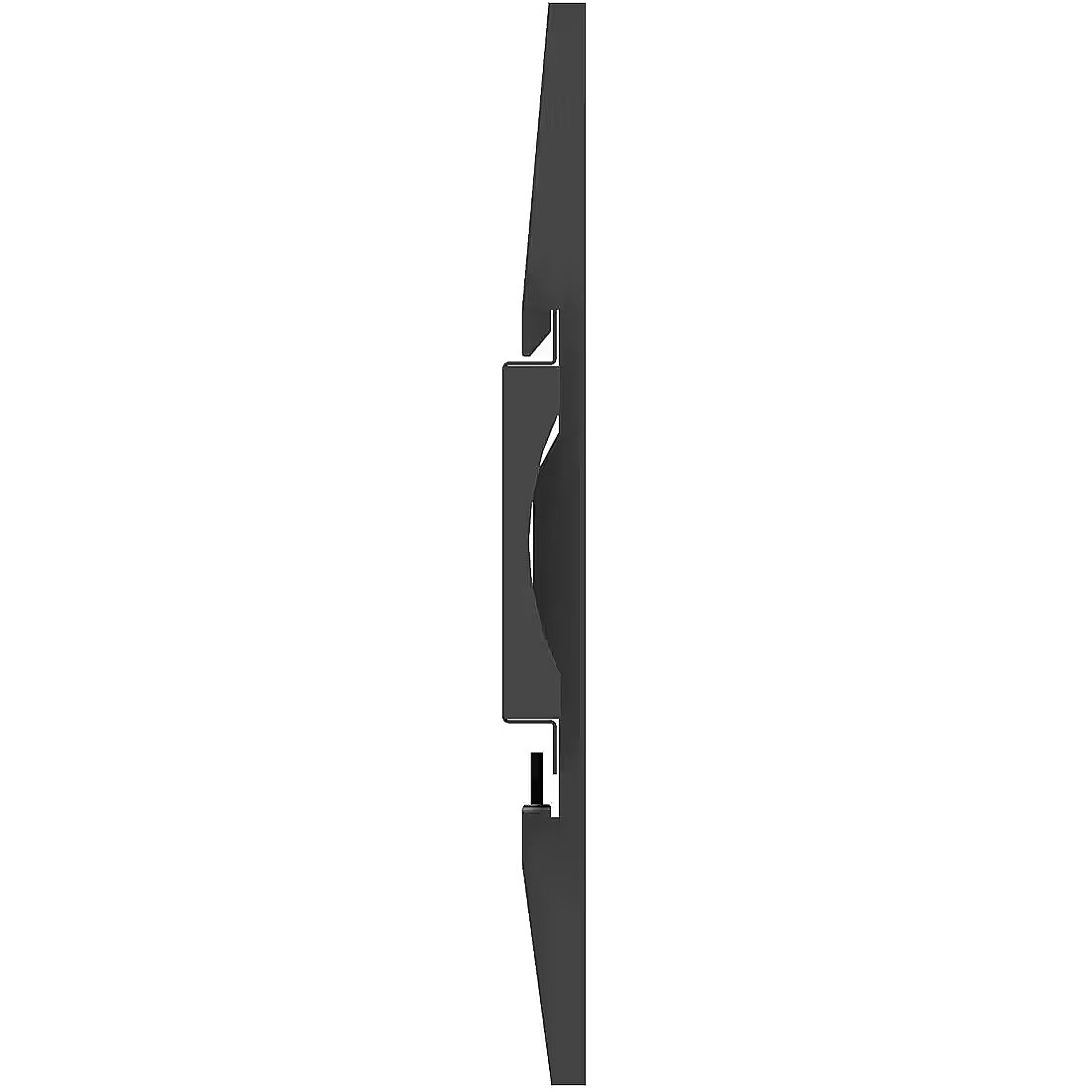

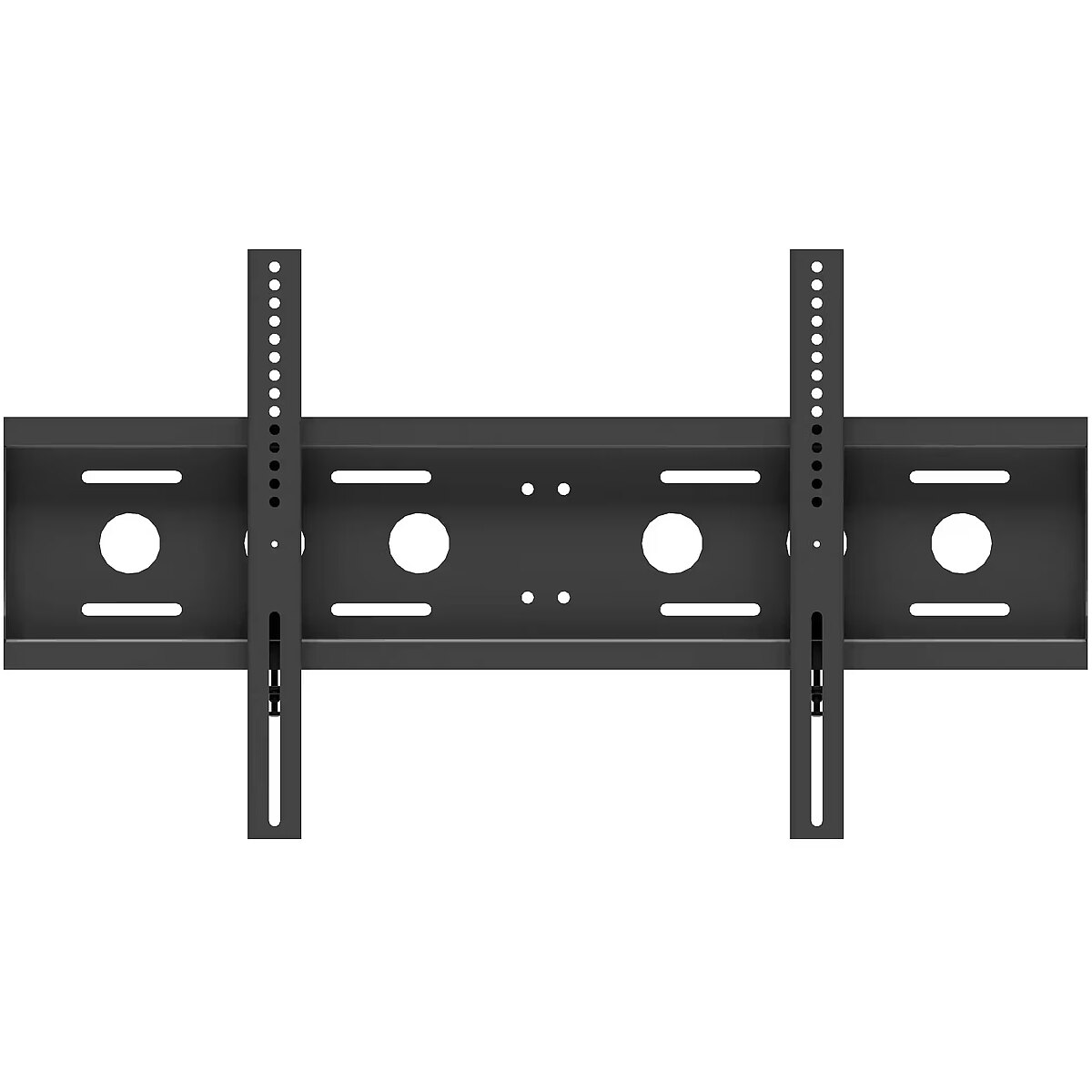

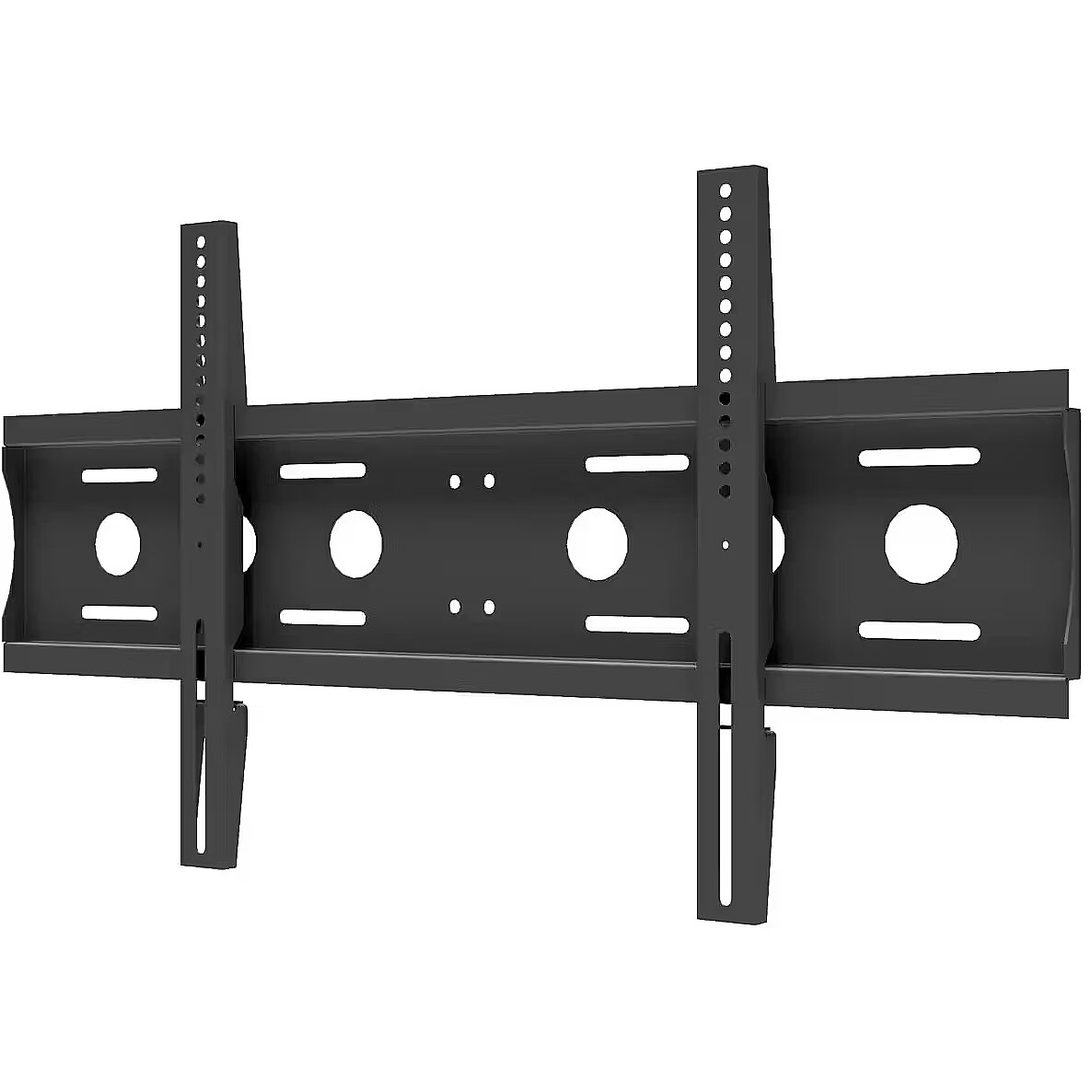

Edbak Universal fixed wall mount, 50-86"
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
This image was created with the help of AI and is for illustrative purposes. The appearance, colours, dimensions, lighting and arrangement of the components may differ from the actual product. The image may include parts and accessories that are not included with the product.
-
Courier delivery to your addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Maximum load (1 screen), kg: 80.00
- Maximum screen diagonal, inches: 86
- Minimum screen diagonal, inches: 50
All parameters
Colour
: Black
Maximum load (1 screen), kg
: 80.00
Maximum screen diagonal, inches
: 86
Minimum screen diagonal, inches
: 50
Model
: TWB1
Notebook holder
: There isn't
Number of supported screens
: 1
Rotation
: Not
Swivel
: There isn't
Tilt
: Not
Type of attachment
: Walls
VESA support
: 100 x 100, 200 x 100, 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400, 800 x 400
More detailed specification
Accessories included -
Code - TWB1C-B
Color - Black
Corner mount - No
Description - 60"-75" Fixed Wall Mount, Max. Load 80 kg, VESA 800x400
- Designed for 60 "-75"
- Wide range of VESA mounting holes max. Up to 800 × 400
- Robust design ensures carrying capacity up to 80 kg
- Protect the screen from falling with screws
- Quick, easy to install screen in 3 steps
- Includes screws for mounting screens
Design > Colour of product - Black
Design > VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 930 mm
dimension height - 220 mm

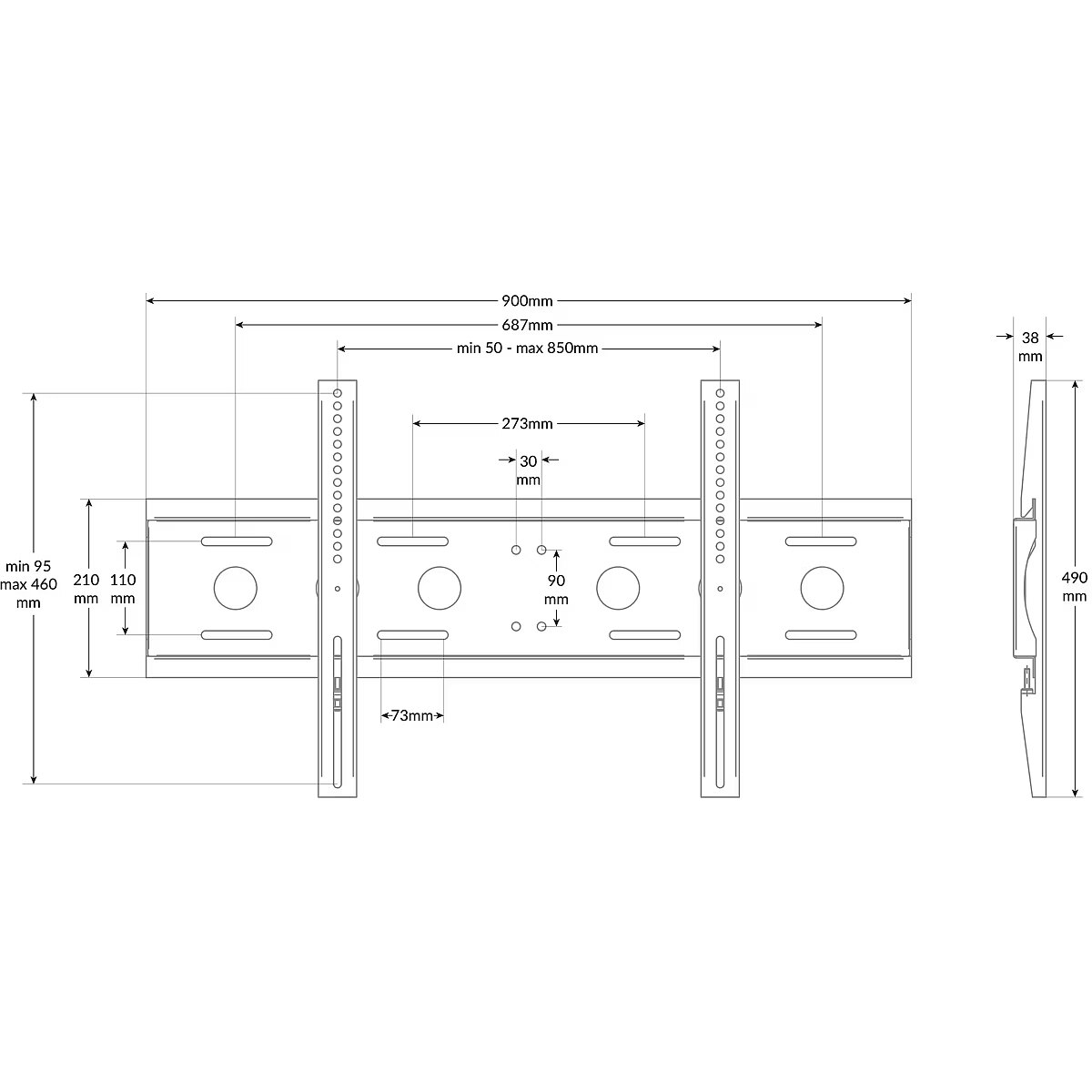

Dimensions - 900 x 38 x 490 mm
dimension weight - 3200 g
dimension width - 40 mm
EAN - 5908252960859
ean - 5908252960859
guarantee - 60
guarantee_type - external
Link - https://edbak.com/en/products/display-mounts/display-wall-mounts/flat-wall-mounts/twb1/
Load (max) - 80 kg
Mounting > Maximum screen size compatibility - 86 "
Mounting > Maximum weight (capacity) - 80 kg
Mounting > Mounting interface compatibility (max) - 800x400 mm
Mounting > Mounting interface compatibility (min) - 100x100 mm
Mounting > VESA mounting interfaces - 100x100; 800x400 mm
Name - EDBAK | Wall mount | TWB1C-B | 50-86 " | Maximum weight (capacity) 80 kg | Black
name - TWB1 MONITOR WALL MOUNT
Number of supported monitors - 1
Other features - - Minimum wall clearance: 41 mm
- Maximum distance from wall: 41 mm
- Minimum mounting interface: 50 x 95 mm
- Maximum mounting interface: 850 x 460 mm.
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 930.00 mm
Package features > Gross height (mm) - 43 mm
Package features > Gross width (mm) - 221 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 196 pc(s)
Package features > Paper/Pasteboard - 900.00 g
Package features > Plastic (No PET) - 84.00 g
Package features > Tare weight (kg) - 0.90 kg
Package features > Volume (m3) - 0.00883779 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/8/2/9/2/6/3/50cdf3507e0327b231a06b23ca9a7090/original.pdf
producer - Edbak
Screen size (max) - 86 ''
Screen size (min) - 50 ''
Technical details > Gross weight - 5.5 kg
Technical details > Net weight - 4.6 kg
Technical details > Other features - Wide range of VESA mounting holes. 3 mm heavy duty steel. Lateral adjustment of the screen once mounted on the wall plate. Suitable for installation on brick, concrete, plaster and wooden walls
Technical details > Placement - Wall mount
Technical details > Producer - EDBAK
Technical details > Producer product family - Universal Flat Wall Mount
Technical details > Producer product name - TWB1c-B
Technical details > Product name - TWB1C-B
Technical details > Screen size compatibility - 50-86 "
Type - Wall
Usage - Monitors
vendpn - TWB1
VESA - 100 x 100
VESA - 800 x 400
Warranty - 60
Warranty - 60 month(s)
Weight - 4.6 kg
