ID: 1231518
Product code: PRIME-RX9060XT-O8G
In office 3 units
Warranty: 3 years

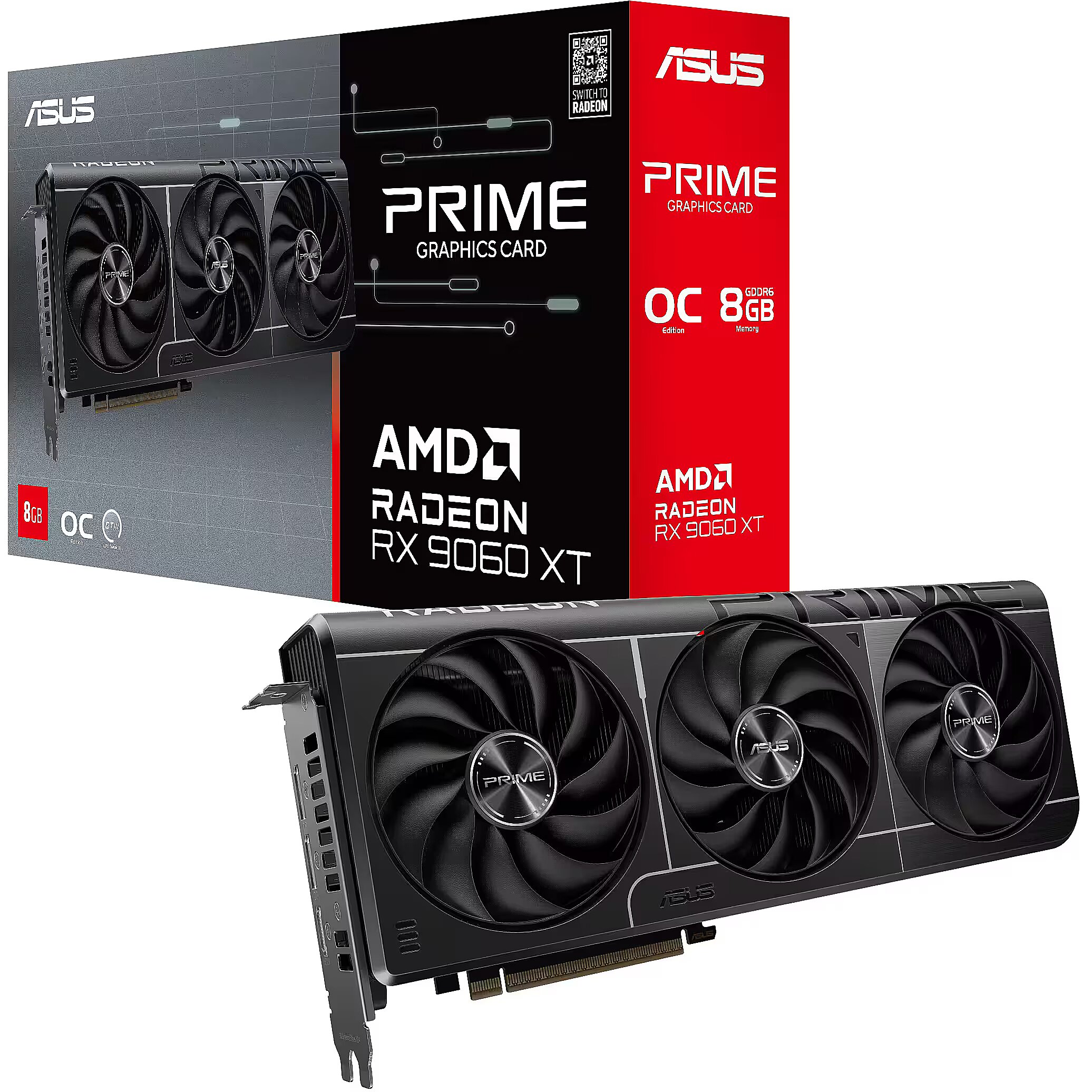

Asus Radeon RX 9060 XT, 8GB GDDR6, Prime OC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPost parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- GPU model: Radeon RX 9060 XT (8GB)
- GPU core frequency: Not indicated
- Power sockets: 1x 8-pin
- RAM: 8 GB
- Memory type: GDDR6
- Cooling: High-End Cooler
Description
We offer to buy the graphics card Asus Radeon RX 9060 XT (8GB) with 8 GB GDDR6 RAM.
Basic information
GPU tips
Radeon
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series
: Asus Prime
GPU model
Radeon RX 9060 XT (8GB)
This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.
The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.
The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.
For making the choice easier for our customers TopPC.ee has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".
GPU core frequency
Not indicated
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans
: 3
Length (mm)
: 304
Stream processors / CUDA Cores
: 2048
PCI-E version
: 5.0 x16
Power consumption (TDP)
: 150 W
Minimum power supply output
: 550 W
Power sockets
: 1x 8-pin
Random-access memory (RAM)
RAM
8 GB
The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.
Currently 1GB is the optimum capacity of the video memory.
Memory type
GDDR6
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type
: 20000 MHz
Bus width
128 bit
The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.
Functionality
Cooling
High-End Cooler
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting
: Nav
NVIDIA SLI (NVLink) support
: Not
VR (Virtual Reality) Ready
: Is
Low Profile support
: No
Ports and equipment
HDMI port
1
HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.
DisplayPort
2
DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.
DVI-D port
: 0
DVI-I port
: 0
D-SUB
0
D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.
Maximum number of screens
: 3
More detailed specification
Brand - ASUS
BrandPartCode - 90YV0MI0-M0NA00
Card's length - > 280 mm
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category Code - VGP
Chipset - AMD Radeon RX 9060 XT
Cooling system - Triple slot Fansink
Description - ASUS Prime Radeon™ RX 9060 XT 8GB GDDR6 OC Edition Primed for Power Experience Primal performance with the Prime Radeon™ RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling.
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Number of fans - 3 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Black
dimensionalWeight - 1814
Dimensions - 304 x 126 x 50mm
DisplayPort Input/Output connectors - 2
Eans - 4711387994184
Full Description Line - AMD Radeon RX 9060 XT|Graphics memory size 8 GB|GDDR6|128 bit|PCIE 5.0 16x|Memory CLK 20 Gbps|GPU clock 2740 MHz|GPU boost clock 3010 MHz|7680x4320|Cooling Triple slot Fansink|1xHDMI|2xDisplayPort|Included Accessories 1 x Thank you card1 x Speedsetup Manual
GPU boost clock - 3010 MHz
GPU clock - 2740 MHz
Graphic card features - Gaming/HDCP/Overclock Edition
Graphics connector - PCIE 5.0 16x
Graphics memory size - 8 GB
Graphics memory type - GDDR6
GTIN - 4711387994184
HDMI Input/Output connectors - 1
Included Accessories - 1 x Thank you card
1 x Speedsetup Manual
LongDesc - Primed for PowerExperience Primal performance with the Prime Radeon™ RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling.Cooling2.5-slot DesignThe Prime Radeon™ RX 9060 XT features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.Axial-tech UpgradesThree tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.0dB TechnologyAll three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.Dual Ball Fan BearingsDifferent bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.Vented BackplateLarge backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.MaxContact DesignMaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
LongProductName - Prime Radeon RX 9060 XT OC Edition 8GB GDDR6
LongSummaryDescription - ASUS Prime -RX9060XT-O8G. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s)
Max resolution - 7680x4320
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory bus - 128 bit
Memory CLK - 20 Gbps
Model - PRIME-RX9060XT-O8G
Name - ASUS Radeon RX 9060 XT PRIME 8GB OC
Packaging content - Manual - Yes
Packaging data - Package depth - 233 mm
Packaging data - Package height - 88.5 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.49 kg
Packaging data - Package width - 405 mm
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 2.1a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express 5.0
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 9060 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 3
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Stream processors - 2048
Producer - Asus
producerCode - 90YV0MI0-M0NA00
ProducerCode - PRIME-RX9060XT-O8G
productName - ASUS Prime -RX9060XT-O8G AMD Radeon RX 9060 XT 8 GB GDDR6
ProductName - PRIME-RX9060XT-O8G
Product Net Weight - 0.7 kg
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 47 cm
Shipping Box Height Shipping/Package Box Dimensions - 43 cm
Shipping Box Weight Shipping/Package Box Dimensions - 8.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 25 cm
ShortDescription - Chipset AMD 9060 XT | 8GB
ShortSummaryDescription - ASUS Prime -RX9060XT-O8G, Radeon RX 9060 XT, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 5.0
sizeX - 420
sizeY - 90
sizeZ - 240
Title - ASUS Prime -RX9060XT-O8G AMD Radeon RX 9060 XT 8 GB GDDR6
Unit Calculated Volume - 0.0101 cubm
Unit Calculated Weight - 1.64 kg
Units per Shipping Box - 5
URL - https://www.asus.com/motherboards-components/graphics-cards/prime/prime-rx9060xt-o8g/
Vendor Homepage - www.asus.com/motherboards-components/graphics-cards/prime/prime-rx9060xt-o8g/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1500
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 126 mm
Weight & dimensions - Length - 304 mm
Weight & dimensions - Weight - 871 g
