ID: 1231518
Tootekood: PRIME-RX9060XT-O8G
Ametis 3 üksused
Garantii: 3 aastat
Asus Radeon RX 9060 XT, 8GB GDDR6, Prime OC
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
-
Omniva pakiautomaat1-2 tööpäeva jooksul1,99 € -
SmartPosti pakiautomaat1-2 tööpäeva jooksul1,99 € -
Kulleri kohaletoimetamine aadressile1-2 tööpäeva jooksul5,99 €
Peamised tooteparameetrid Kõik parameetrid
- GPU mudel: Radeon RX 9060 XT (8GB)
- Mootori Kiirus (GPU speed): Nav norādīts
- Pistikupesad: 1x 8-pin
- Operatiivmälu: 8 GB
- Mälutehnoloogia: GDDR6
- Jahutus: High-End Cooler
Kirjeldus
Pakume osta graafikakaarti Asus Radeon RX 9060 XT (8GB) koos 8 GB GDDR6 RAMiga.
Põhiteave
GPU näpunäited
Radeon
GPU, ehk videokaardi mootor. See parameeter määrab ära, kas videokaart on ATI Radeon, Nvidia GeForce või Quadro mudeli videokaart.
GPU-seeria
: Asus Prime
GPU mudel
Radeon RX 9060 XT (8GB)
See on peamine graafikakaardi jõudluse näitaja, see näitab ära, milline on selle kaardi mudel. Ühe mudeli kaardid on väga lähedase jõudlusega ja tavaliselt oluliselt erinevad teise mudeli kaartidest.
Peamine erinevus on tootjas. NVidia toodab GeForce seeria kaarte ja AMD toodab Radeon seeria kaarte. Mõlemal neil seeriatel on oluline erinevus, GeForce kaartidel on edukamad (stabiilsemad) draiverid, mis parandavad kaartide sobivust mängude mängimiseks ja tarkvaraga, vähendades kujutises defektide (artefaktide) ja "rippumise" juhud kuni miinimumini. Radeon kaardid tavaliselt on odavamad ja tarbivad vähem energiat (on tehnoloogiliselt paremad), see-eest draiverite ja mängude toega võivad olla probleemid.
Radeon või GeForce seeriate valik on maitseasi, sarnaselt sellele, nagu AMD või Intel protsessori valik, ja mitte alati pole 100% ratsionaalselt põhjendatav, seetõttu soovitame oma valikukriteeriumites lihtsalt juhinduda mängudest, mida soovite mängida lähemal ajal, ning vaadata YouTube (graafikakaardi mudel + mängu nimetus) mingi videot, kus on täpselt näidatud, kuidas vastav kaart suudab toime tulla vastava mänguga. Tulemus on silmaga nähtav ja tavaliselt väga lähedane sellele, mis te saate, soetades konkreetse või sarnase mudeli kaardi.
Selleks, et kergendada oma ostjate jaoks valiku tegemist, TopPC.ee on nende graafikakaartide (mudelite) juures, mis on parimaks valikuvariandiks kõigi uuemate mängude mängimiseks korraliku kvaliteediga hea hinna eest, märgistanud rohelise märgistusega "soovitatav".
Mootori Kiirus (GPU speed)
Nav norādīts
GPU speed, ehk graafikamootori kiirus (MHz) näitab, millise taktisagedusega töötab videokaardi tähtsaim komponent - videoprotsessor. Mida suurem mootori kiirus, seda võimsam on videokaart. Videokaardi jõudluse määrab lisaks ära mälu suurus, tüüp, biti ja mootori mudel, seetõttu, soetades videokaardi võimsa mootoriga veenduge ülejäänud komponentide võimsuse vastavuses.
Ventilaatorite arv
: 3
Pikkus (mm)
: 304
Voogprotsessorid / CUDA tuumad
: 2048
PCI-E versioon
: 5.0 x16
Energiatarve (TDP)
: 150 W
Minimaalne väljundvõimsus
: 550 W
Pistikupesad
: 1x 8-pin
Juhusliku juurdepääsu mälu (RAM)
Operatiivmälu
8 GB
Videokaardi operatiivmälu maht. Tähtis parameeter juhul, kui soovite mängida suurt eristusvõimet nõudvaid mänge või töötada kõrge eristusvõimega monitoriga. Suurem mälu maht tähendab paremat jõudlust ja suurema eristusvõime toetust.
Praegusel hetkel on optimaalne videomälu maht 1 GB.
Mälutehnoloogia
GDDR6
Videokaardi operatiivmälu tüüp määrab määrab ära videokaardi töökiiruse. Praegu kättesaadavad videokaardid komplekteeritakse DDRII, GDDRIII, või GDDR4 mäluga. GDDR4 mälu on kiireim mälu tüüp.
Mälutüüp
: 20000 MHz
Bitti
128 bit
Video kaardi operatiivmälu bitid määravad ära, millise informatsiooni hulgaga suudab ühe taktisageduse tsükli vältel töötada videokaardi mälu. Suurem bittide arv osutab suuremale videokaardi suutlikkusele.
Funktsionaalsus
Jahutus
High-End Cooler
Kasutusel on kaks kaks jahutamise moodust, radiaator ja ventilaator. Radiaatoriga jahutus teostatakse ilma liikuvate osadeta (ventilaatorita), seetõttu videokaart ei tekita müra. Ventilaatoriga jahutus on tõhusam, see-eest tekitab videokaart teataval tasemel müra arvuti töötamise ajal.
Valgustus
: Ei ole
NVIDIA SLI (NVLink) tugi
: Ei ole
VR (Virtual Reality) Ready
: On
Madala profiili toetus
: Alates
Sadamad ja seadmed

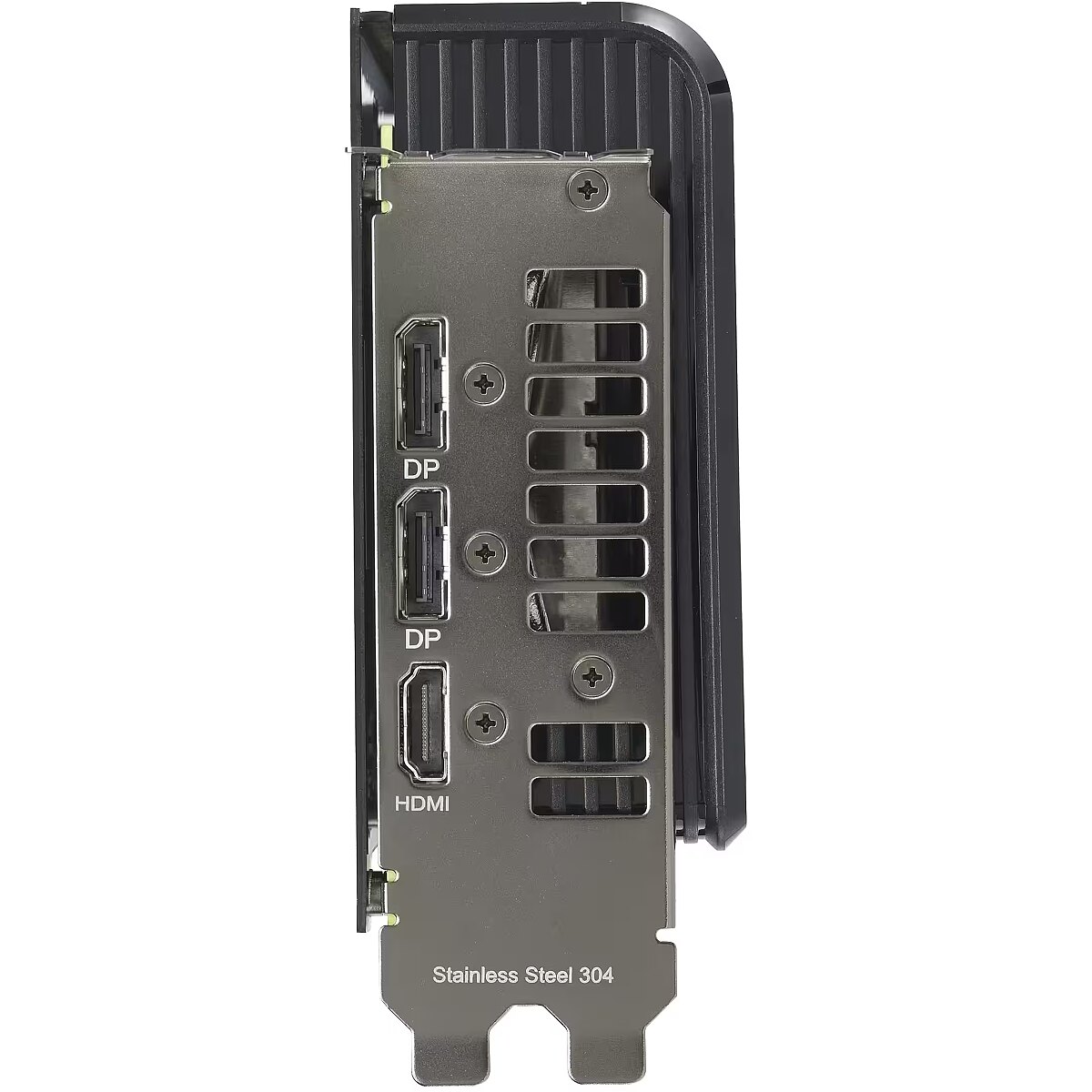

Ühenduskoht HDMI
1
HDMI on digitaalne kujutise ja heli ülekandmise standard, mis võimaldab arvutiga ühendada televiisori, monitori või projektori, mis toetavad HDMI, kasutades HDMI kaablit.
Ühenduskoht DisplayPort
2
DisplayPort on digitaalne liides kujutise ja heli ülekandmiseks ühe juhtme kaudu kõrge kvaliteediga. Erinevalt HDMI liidesest, see võimaldab ühendada arvutiga suuremat osa väliseid monitore, kasutades ühte liidest.
DVI-D port
: 0
DVI-I port
: 0
Ühenduskoht D-Sub
0
D-SUB on klassikaline (analoog) monitoride, projektorite ja muude väliste videoseadmete ühendamise pistik. See standard vähehaaval on turult kadumas, andes ruumi palju kvaliteetsematele HDMI või DisplayPort (digitaalsetele) pistikutele.
Maksimaalne ekraanide arv
: 3
Täpsem spetsifikatsioon
Brand - ASUS
BrandPartCode - 90YV0MI0-M0NA00
Card's length - > 280 mm
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category Code - VGP
Chipset - AMD Radeon RX 9060 XT
Cooling system - Triple slot Fansink
Description - ASUS Prime Radeon™ RX 9060 XT 8GB GDDR6 OC Edition Primed for Power Experience Primal performance with the Prime Radeon™ RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling.
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Number of fans - 3 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Black
dimensionalWeight - 1814
Dimensions - 304 x 126 x 50mm
DisplayPort Input/Output connectors - 2
Eans - 4711387994184
Full Description Line - AMD Radeon RX 9060 XT|Graphics memory size 8 GB|GDDR6|128 bit|PCIE 5.0 16x|Memory CLK 20 Gbps|GPU clock 2740 MHz|GPU boost clock 3010 MHz|7680x4320|Cooling Triple slot Fansink|1xHDMI|2xDisplayPort|Included Accessories 1 x Thank you card1 x Speedsetup Manual
GPU boost clock - 3010 MHz
GPU clock - 2740 MHz
Graphic card features - Gaming/HDCP/Overclock Edition
Graphics connector - PCIE 5.0 16x
Graphics memory size - 8 GB
Graphics memory type - GDDR6
GTIN - 4711387994184
HDMI Input/Output connectors - 1
Included Accessories - 1 x Thank you card
1 x Speedsetup Manual
LongDesc - Primed for PowerExperience Primal performance with the Prime Radeon™ RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling.Cooling2.5-slot DesignThe Prime Radeon™ RX 9060 XT features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.Axial-tech UpgradesThree tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.0dB TechnologyAll three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.Dual Ball Fan BearingsDifferent bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.Vented BackplateLarge backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.MaxContact DesignMaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
LongProductName - Prime Radeon RX 9060 XT OC Edition 8GB GDDR6
LongSummaryDescription - ASUS Prime -RX9060XT-O8G. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s)
Max resolution - 7680x4320
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory bus - 128 bit
Memory CLK - 20 Gbps
Model - PRIME-RX9060XT-O8G
Name - ASUS Radeon RX 9060 XT PRIME 8GB OC
Packaging content - Manual - Yes
Packaging data - Package depth - 233 mm
Packaging data - Package height - 88.5 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.49 kg
Packaging data - Package width - 405 mm
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 2.1a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express 5.0
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 9060 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 3
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Stream processors - 2048
Producer - Asus
producerCode - 90YV0MI0-M0NA00
ProducerCode - PRIME-RX9060XT-O8G
productName - ASUS Prime -RX9060XT-O8G AMD Radeon RX 9060 XT 8 GB GDDR6
ProductName - PRIME-RX9060XT-O8G
Product Net Weight - 0.7 kg
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 47 cm
Shipping Box Height Shipping/Package Box Dimensions - 43 cm
Shipping Box Weight Shipping/Package Box Dimensions - 8.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 25 cm
ShortDescription - Chipset AMD 9060 XT | 8GB
ShortSummaryDescription - ASUS Prime -RX9060XT-O8G, Radeon RX 9060 XT, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 5.0
sizeX - 420
sizeY - 90
sizeZ - 240
Title - ASUS Prime -RX9060XT-O8G AMD Radeon RX 9060 XT 8 GB GDDR6
Unit Calculated Volume - 0.0101 cubm
Unit Calculated Weight - 1.64 kg
Units per Shipping Box - 5
URL - https://www.asus.com/motherboards-components/graphics-cards/prime/prime-rx9060xt-o8g/
Vendor Homepage - www.asus.com/motherboards-components/graphics-cards/prime/prime-rx9060xt-o8g/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1500
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 126 mm
Weight & dimensions - Length - 304 mm
Weight & dimensions - Weight - 871 g
