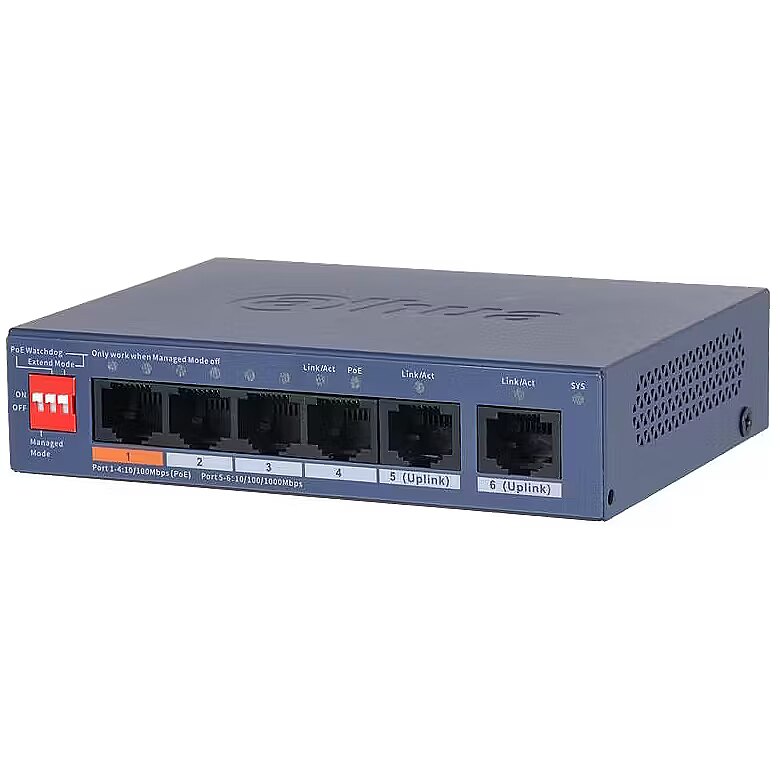

Dahua CS4006-4ET-60

10G support Network - No
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 6
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Brand - Dahua Technology
BrandPartCode - DH-CS4006-4ET-60
Category - Network Switches
Category Code - SWI
Data transmission - Forwarding rate - 3.57 Mpps
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 4 MB
Data transmission - Switching capacity - 4.8 Gbit/s
Depth Weight & dimensions - 90 mm
Description - Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart
Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels. Cloud Management
Devices can be managed through the DoLynk Care app and performs real-time monitoring of the network. The app also displays the status of devices, triggers alarms for errors in real time and sends
notifications. Network Topology Management
Supports the LLDP protocol and is able to generate and display the network topology, so that you can quickly identify issues, and perform operation and maintenance remotely on devices that are in the
topology. Long Distance PoE
The transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps). PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing/turning on the WEB page switch. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs. Loop Protection
When a loop is detected, the loop alarm will be triggered and the elimination mechanism will activate to prevent broadcast storms from occurring. Hi-PoE 60W (Orange Port)
In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering highpower devices.Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standardsMeets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standardsManages PoE power consumption and PoE power on/off. Supports Intelligent PoEA wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
Design - Housing material - Metal
Design - LED indicators - Uplink
Design - Product colour - Black
Design - Rack mounting - No
Design - Wall mountable - Yes
DHCP features Security - DHCP client
Ethernet interface type Other features - Fast Ethernet, Gigabit Ethernet
Fast Ethernet (copper) ports quantity Ports & interfaces - 4
Forwarding rate Data transmission - 3.57 Mpps
Gigabit Ethernet (copper) ports quantity Ports & interfaces - 2
GTIN - 6923172571175
Height Weight & dimensions - 26 mm
Housing material Design - Metal
Jumbo frames Data transmission - 9216
Jumbo frames support Data transmission - Yes
LED indicators Design - Uplink
LongDesc - Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series SmartManaged Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensurethe network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.Cloud ManagementDevices can be managed through the DoLynk Care app and performs real-time monitoring of the network. The app also displays the status of devices, triggers alarms for errors in real time and sendsnotifications.Network Topology ManagementSupports the LLDP protocol and is able to generate and display the network topology, so that you can quickly identify issues, and perform operation and maintenance remotely on devices that are in thetopology.Long Distance PoEThe transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).PoE WatchdogAdopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing/turning on the WEB page switch. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.Loop ProtectionWhen a loop is detected, the loop alarm will be triggered and the elimination mechanism will activate to prevent broadcast storms from occurring.Hi-PoE 60W (Orange Port)In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering highpower devices.
LongProductName - 6-Port Cloud Managed Desktop Switch with 4-Port PoE
LongSummaryDescription - Dahua Technology DH-CS4006-4ET-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 8000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
MAC address table Data transmission - 8000 entries
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Mean time between failures (MTBF) Performance - 2039105 h
Model name - CS4006-4ET-60
Network - 10G support - No
Network - Networking standards - IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
Network - Number of VLANs - 32
Network - VLAN support - Yes
Networking standards Network - IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
Number of VLANs Network - 32
Operating relative humidity (H-H) Operational conditions - 5 - 95%
Operating temperature (T-T) Operational conditions - -10 - 55 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Ethernet interface type - Fast Ethernet, Gigabit Ethernet
Package depth Packaging data - 265 mm
Package height Packaging data - 76 mm
Package weight Packaging data - 920 g
Package width Packaging data - 238 mm
Packaging data - Package depth - 265 mm
Packaging data - Package height - 76 mm
Packaging data - Package weight - 920 g
Packaging data - Package width - 238 mm
Packet buffer memory Data transmission - 4 MB
Performance - Mean time between failures (MTBF) - 2039105 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 6
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Fast Ethernet (copper) ports quantity - 4
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 2
Power - Power consumption (max) - 65 W
Power - Power source - AC
Power - Power supply included - Yes
Power consumption (max) Power - 65 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 60 W
Power over Ethernet (PoE) ports quantity Power over Ethernet (PoE) - 4
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) power per port Power over Ethernet (PoE) - 30 W
Power source Power - AC
Power supply included Power - Yes
Product colour Design - Black
ProductName - DH-CS4006-4ET-60
Rack mounting Design - No
Security - DHCP features - DHCP client
ShortSummaryDescription - Dahua Technology DH-CS4006-4ET-60, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Summary - Dahua Technology DH-CS4006-4ET-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 8000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
Switching capacity Data transmission - 4.8 Gbit/s
Switch layer Management features - L2
Switch type Management features - Managed
Title - Dahua Technology DH-CS4006-4ET-60 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Total Power over Ethernet (PoE) budget Power over Ethernet (PoE) - 60 W
Unit Box Height - 0.08
Unit Box Length - 0.265
Unit Box Width - 0.24
Unit Calculated Volume - 0.005088 cubm
Unit Calculated Weight - 0.96 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4006-4ET-60
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4006-4ET-60
VLAN support Network - Yes
Wall mountable Design - Yes
Warranty - 36 months
WarrantyInfo -
Web-based management Management features - Yes
Weight & dimensions - Depth - 90 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Weight - 280 g
Weight & dimensions - Width - 130 mm
Weight Weight & dimensions - 280 g
Width Weight & dimensions - 130 mm
