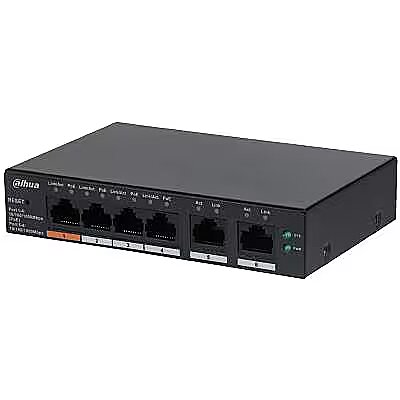

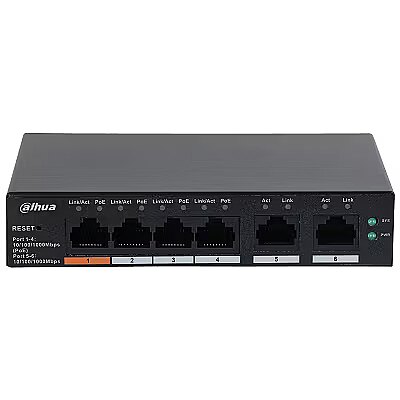

Dahua CS4006-4GT-60 PoE ports 4

10G support Network - No
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 6
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Brand - Dahua Technology
BrandPartCode - DH-CS4006-4GT-60
Category - Network Switches
Category Code - SWI
Cloud-managed Management features - Yes
Copper ethernet cabling technology Network - 10BASE-T, 100BASE-TX, 1000BASE-T
Data transmission - Forwarding rate - 8.93 Mpps
Data transmission - Jumbo frames - 15000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Switching capacity - 12 Gbit/s
DC input voltage Power - 53 V
Depth Weight & dimensions - 90 mm
Description - Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standardsMeets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standardsManages PoE power consumption and PoE power on/off. Supports Intelligent PoEA wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Black
Design - Reset button - Yes
Design - Wall mountable - Yes
DHCP features Security - DHCP client
Ethernet LAN data rates Network - 10,100,1000 Mbit/s
Flow control support Network - Yes
Forwarding rate Data transmission - 8.93 Mpps
Full duplex Network - Yes
Gigabit Ethernet (copper) ports quantity Ports & interfaces - 6
GTIN - 6923172571144
Height Weight & dimensions - 26 mm
Housing material Design - Metal
Input current Power - 1.226 A
Jumbo frames Data transmission - 15000
Jumbo frames support Data transmission - Yes
LED indicators Design - Yes
Link aggregation Network - Yes
LongDesc - Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensurethe network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
LongProductName - 6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE
LongSummaryDescription - Dahua Technology DH-CS4006-4GT-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53 V. Power over Ethernet (PoE). Wall mountable
MAC address table Data transmission - 8000 entries
Management features - Cloud-managed - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Model name - CS4006-4GT-60
Network - 10G support - No
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Network - Number of VLANs - 32
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Port-based VLAN
Network - VLAN support - Yes
Networking standards Network - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Number of VLANs Network - 32
Operating relative humidity (H-H) Operational conditions - 5 - 95%
Operating temperature (T-T) Operational conditions - -10 - 55 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Package depth Packaging data - 238 mm
Package height Packaging data - 76 mm
Package weight Packaging data - 940 g
Package width Packaging data - 265 mm
Packaging data - Package depth - 238 mm
Packaging data - Package height - 76 mm
Packaging data - Package weight - 940 g
Packaging data - Package width - 265 mm
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 6
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 6
Power - DC input voltage - 53 V
Power - Input current - 1.226 A
Power - Power consumption (max) - 65 W
Power - Power source - DC
Power consumption (max) Power - 65 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) ports quantity Power over Ethernet (PoE) - 4
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power source Power - DC
Product colour Design - Black
ProductName - DH-CS4006-4GT-60
Quality of Service (QoS) support Management features - Yes
Reset button Design - Yes
Security - DHCP features - DHCP client
ShortSummaryDescription - Dahua Technology DH-CS4006-4GT-60, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Spanning tree protocol Network - Yes
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Summary - Dahua Technology DH-CS4006-4GT-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53 V. Power over Ethernet (PoE). Wall mountable
Switching capacity Data transmission - 12 Gbit/s
Switch layer Management features - L2
Switch type Management features - Managed
Title - Dahua Technology DH-CS4006-4GT-60 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Unit Box Height - 0.08
Unit Box Length - 0.265
Unit Box Width - 0.235
Unit Calculated Volume - 0.004982 cubm
Unit Calculated Weight - 0.97 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4006-4GT-60
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4006-4GT-60
Virtual LAN features Network - Port-based VLAN
VLAN support Network - Yes
Wall mountable Design - Yes
Warranty - 36 months
WarrantyInfo -
Web-based management Management features - Yes
Weight & dimensions - Depth - 90 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Weight - 290 g
Weight & dimensions - Width - 130 mm
Weight Weight & dimensions - 290 g
Width Weight & dimensions - 130 mm
