ID: 128345
Product code: EL650DIN
In stock 1 units
Warranty: 2 years

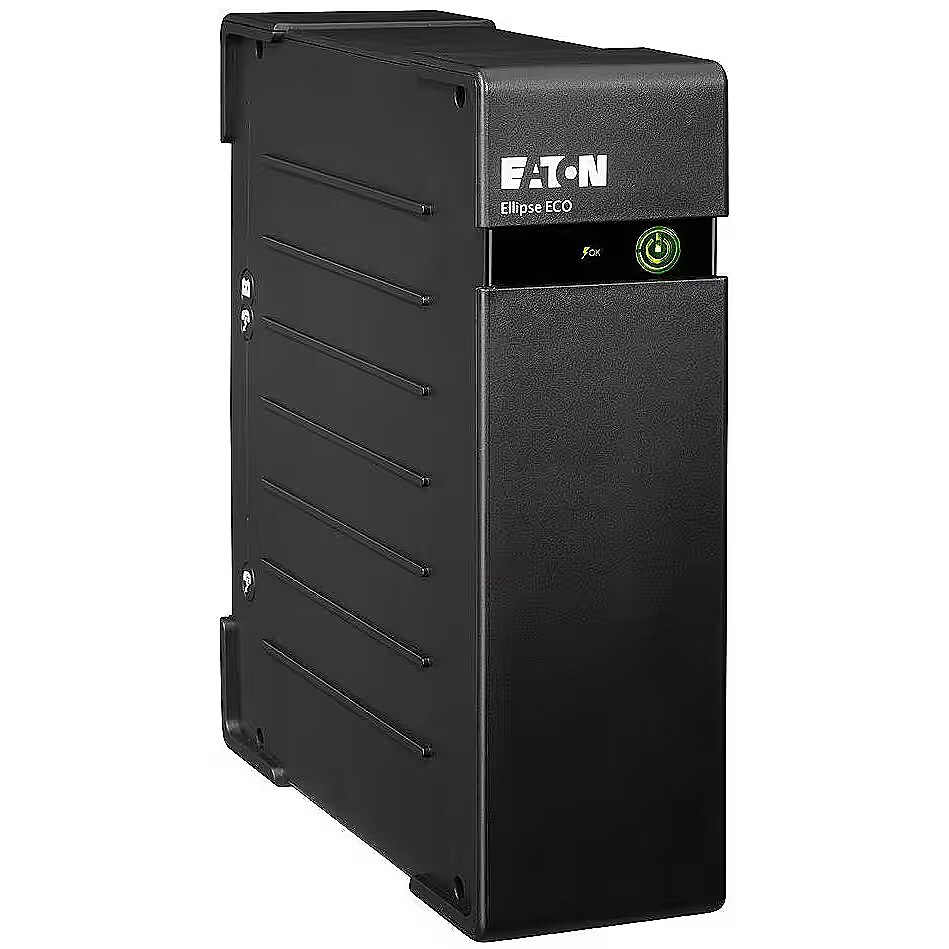

Eaton EL650DIN, 650VA 400W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Battery capacity (VA): 650 VA
- Output power (W): 400 W
Display characteristics
Display
: Nav
Basic information
Battery capacity (VA)
650 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 400 W

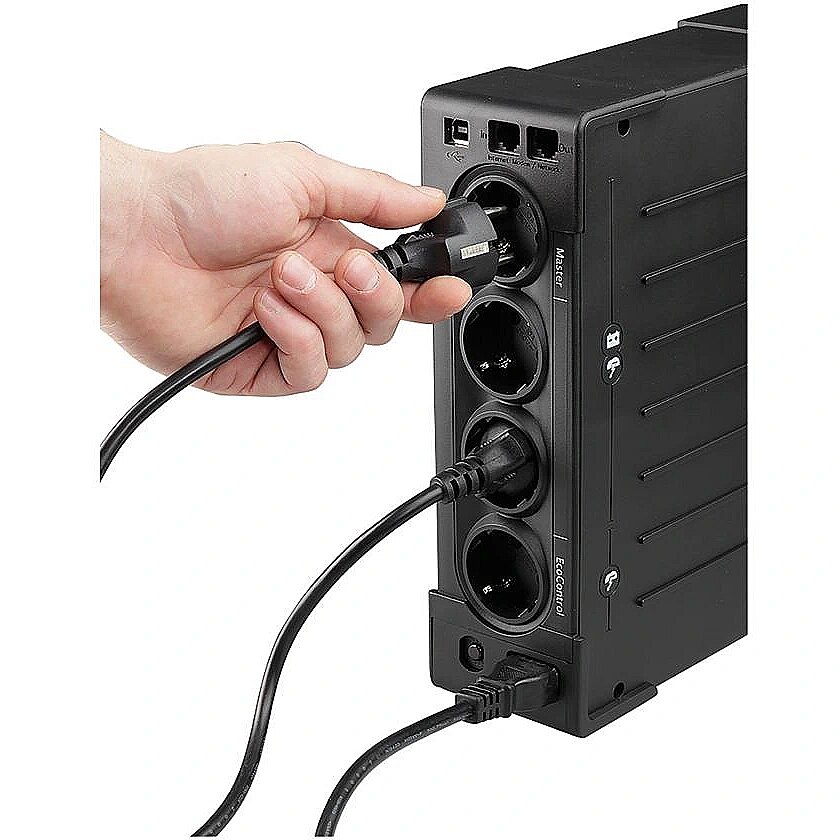

Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 3
RJ-45
: 2
Socket type
: Schuko
USB
: 0
More detailed specification
Alarm - -
BatteryType - Replaceable sealed lead acid
Category Code - UPW
Color - -
Colour - Black
ControlPanel - -
Depth - 235 mm
Description - Eaton Ellipse ECO 650 DIN The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Desktop/pedestal Mounting Type - Yes
Dimensions - 263 x 81 x 235mm
FormFactor - Tower
GrossWeight - 4.100 kg
Height - 263 mm
InputConnections - -
InputFrequency - 50-60 Hz autoselect
Input ports - Single, IEC320 C14
InputVoltage - 184 V - 264 V (adjustable to 161 V - 284 V)
InterfacePorts - -
LongDesc - With an efficient electrical design and the EcoControl function (USB models), which automatically disables peripherals when the master device is turned off, the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
MANUFDATASHEET - http://www.google.ee/url?sa=t&rct=j&q=&esrc=s&frm=1&source=web&cd=1&cad=rja&ved=0CCgQFjAA&url=http%3A%2F%2Flit.powerware.com%2Fll_download.asp%3Ffile%3DEaton-Ellipse-ECO-datasheet-rev-B-low-pdf.pdf&ei=RuKAUpzhBsPNhAf2mYHIDg&usg=AFQjCNHHroTtcgPB-33mgzDEb-J4xFyDpg&bvm=bv.56146854,d.bGE
OutputConnections - 4
OutputFrequency - -
Output power capacity, VA - 650 VA
Output power capacity, W - 400 Watts
OutputVoltage - 230 V (adjustable to 220 V, 230 V, 240 V
PackageContents - -
PowerVAW - 650 VA
PowerW - 400 W
ProdDesc - 650VA/400W UPS, offline, DIN 3+1
Product Net Weight - 4 kg
ProductPicture - http://www.tdbaltic.ee/images/ds4/EL800USBIEC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
Rack Mounting Type - Yes
RechargeTime - -
RJ45 - -
Runtime - 9/6
SmartSlot - -
Topology - Offline
Unit Box Height - 0.285
Unit Box Length - 0.33
Unit Box Width - 0.14
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 4 kg
Units per Shipping Box - 1
USB - -
Vendor Homepage - powerquality.eaton.com/EL650DIN.aspx?cx=13
Warranty - 2 years
Warranty - 24 months
WaveformType - -
Weight - 3.600 Kg
Width - 81 mm
