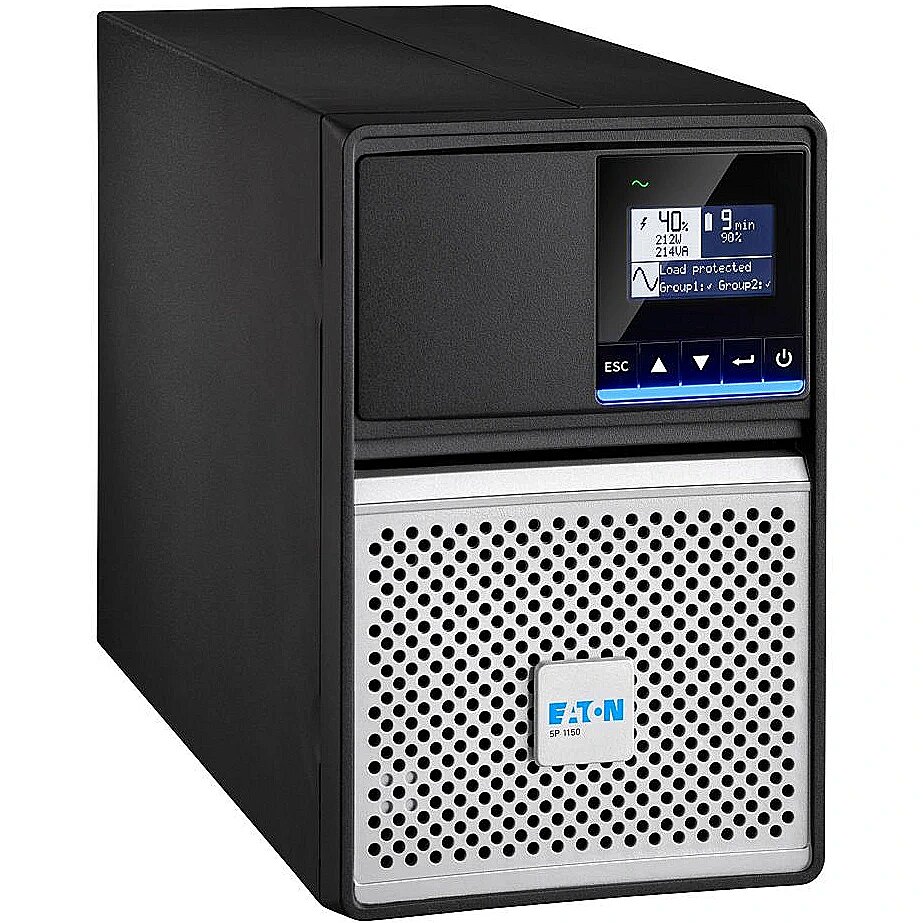

Eaton 5P1150IG2, 1150VA 920W, IEC

Accessories included - Kabel USB 2 x Przewód IEC-IEC Szybki start Instrukcje dotyczące bezpieczeństwa
ACoutletsquantity - 8 AC outlet(s)
ACoutlettypes - C13 coupler
Active power - 920 W
Apparent power - 1150 VA
ARTIKEL1 - EATON 5P 1150I G2
ARTIKEL2 -
AutomaticVoltageRegulationAVR -
Backup time (100% load) - 3 min
Battery -
Batterycapacity - 9 Ah
Battery capacity - 9 Ah
Batterytechnology - Lead-Acid
Batteryvoltage - 12 V
Breite - 0
Cablesincluded -
Category Code - UPW
Chassis type - Tower
Code - 5P1150IG2
Color - Black
Color - Silver
Colour - Black / Silver
Depth - 345 mm
Description - 5P1150IG2  UPS Eaton 5P, 1150 VA, 920 W, wejście: C14, wyjścia: (8) C13, Tower System automatycznej regulacji napięcia (AVR) Energooszczędność, redukcja kosztów energii i chłodzenia Czysta sinusoida na wyjściu 1 slot na opcjonalną kartę komunikacyjną (karta sieciowa, karta przekaźnikowa lub karta sieciowa obsługująca protokoły przemysłowe) Kompatybilność ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) Pełna integracja z oprogramowaniem Eaton Brightlayer Software suite 1 port USB + 1 port szeregowy Technologia zaawansowanego zarządzania bateriami (ABM+) zwiększająca żywotność baterii oraz poprawiająca dokładność przewidywania żywotności Wyświetlacz graficzny LCD nowej generacji Baterie wymienialne podczas pracy urządzenia Zdalny restart i optymalizacja czasu podtrzymania dzięki 2 zarządzanym grupom gniazd Złącza zdalnego wł./wył. oraz zdalnego wyłączania zasilania
Description - Eaton 5P Gen2 UPS, 1150 VA, 920 W, Input: C14, Outputs: (8) C13, Tower.
Design -
Designation - CE+WEEE
Desktop/pedestal Mounting Type - Yes
dimension depth - 435 mm
dimension height - 328 mm
Dimensions - 150 x 233 x 345mm
Dimensions - 345 x 233 x 150 mm
dimension weight - 12000 g
dimension width - 235 mm
Displaytype - LCD
EAN - 3553340710278
ean - 3553340710278
EANCode - 3553340710278
Efficiency - 98.2%
Environment requirements - Wilgotność względna: 0-90%, bez kondensacji
Features -
Filters / protection - Automatic Voltage Regulation (AVR)
Filters / protection - Overdischarge
Formfactor - Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 233 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0
Hotswapbattery -
HSTNUMMER - 5P1150IG2
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x Terminal
I/O connectors - 1 x USB (Type B)
Inputfrequency - 50/60 Hz
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 160 V
Input ports - Single, IEC320 C14
Input power ports - IEC-C14
Laenge - 0
Link - https://www.eaton.com/lt/lt-lt/skuPage.5P1150IG2.html
LongDesc -
ManufDatasheet -
Model - 5P Gen2
Name - Eaton 5P Gen2 UPS | 5P1150IG2 | 1150 VA | 920 W
name - UPS 5P 1150i G2 1150VA / 920W ABM+
Networkcardslot -
No. of batteries - 2
Noiselevel - 35 dB
Numberofbatterycells -
Numberofinputphases - 1
Numberofoutputphases - 1
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
OperatingrelativehumidityHH - 0 - 90%
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Other features -
Other features > Dimensions (WxDxH) - 150 x 345 x 233 mm
Other features > Special features - Input: C14, Outputs: (8) C13
Outputfrequency - 50/60 Hz
Outputoperationvoltagemax - 230 V
Outputoperationvoltagemin -
Outputpower - 920 W
Outputpowercapacity -
Output power capacity, VA - 1150 VA
Output power capacity, W - 920 Watts
Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 235.00 mm
Package features > Gross height (mm) - 325.00 mm
Package features > Gross width (mm) - 435.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 26 pc(s)
Package features > Paper/Pasteboard - 1000.00 g
Package features > Plastic (No PET) - 400.00 g
Package features > Tare weight (kg) - 1.40 kg
Package features > TI weight (kg) - 10.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 1150 VA
Performance > UPS topology - Line-Interactive
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - Eaton 5P 1150i G2
producer - Eaton
Productcolour - Black, Silver
Productcondition - Original
ProductHighLights -

• Line-Interactive
• 920 W
• Waveform: Sine
• 8 AC outlet(s)
• Lead-Acid 12 V 9 Ah
• Tower Black, Silver

Product Net Weight - 11 kg
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5P1150IG2_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/5P1150IG2_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/5P1150IG2_3.jpg
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide - Yes
Rackmountkit -
RS232 Communication ports - 1
RS232ports -
Serialinterface - Yes
Serialinterfacetype - RS-232
Serialportsquantity - 1
Software - Eaton Brightlayer Software suite
Special functions - Automatyczny test baterii
Stck_Kart - 1
Stck_Pal - 3
Storno - Y
Technical details > Capacity - 920 W
Technical details > Gross weight - 12.40 kg
Technical details > Net weight - 11.00 kg
Technical details > Producer - Eaton
Technical details > Producer product family - 5P Gen2 UPS
Technical details > Producer product name - 5P1150IG2
The shape of the output voltage - Full sine wave
Topology - LineInteractive
Typicalbackuptimeathalfload -
Unit Box Height - 0.325
Unit Box Length - 0.235
Unit Box Width - 0.435
Unit Calculated Volume - 0.03322 cubm
Unit Calculated Weight - 12.4 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology - Line-Interactive
USB Communication ports - 1
USBport - Yes
USBporttype -
Vendor Homepage - www.eaton.com/bg/en-gb/skuPage.5P1150IG2.html
vendpn - 5P1150IG2
Voltage - 12 V
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Warrantyandmisc -
Waveform - Sine
Weight - 11 kg
Weight - 11 kg
Weightdimensions -
Width - 150 mm
