ACinputfrequency -
ACinputvoltage -
Adjustableheightmax -
AMDFreeSync - No
Antiglarescreen -
ARTIKEL1 - TF2415MC-B2 23.8IN VA LED
ARTIKEL2 - 1920X1080 350 CD 3000:1 CONTRAST
Aspectratio - 16:9
Audioinput -
Audiooutput - 1
Backlighttype -
Brand - iiyama
BrandPartCode - TF2415MC-B2
Breite - 0.46
Builtincamera - No
BuiltinKVMswitch -
Builtinmicrophone - No
Builtinspeakers -
BuiltinUSBhub -
Bundledsoftware -
Cablelockslot -
Cablesincluded - AC, USB, HDMI, DisplayPort
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitory reklamowe (Digital Signage)
Category 1 - Displays
Category 2 - Monitore
Category_1 - Monitors and TV
Category_2 - LED Monitors up to 24 inches
Colourdepth -
Colourgamut -
Colourgamutstandard -
Contrastratiodynamic -
Contrastratiotypical - 3000:1
Dane fizyczne: Głębokość - 42.5 mm
Dane fizyczne: Kolor obudowy - czarny
Dane fizyczne: Standard VESA - 100 x 100
Dane fizyczne: Szerokość - 575 mm
Dane fizyczne: Waga - 5.8 kg
Dane fizyczne: Wysokość - 347 mm
Dane techniczne: Czas reakcji - 16 ms
Dane techniczne: Częstotliwość odświeżania - 75 Hz
Dane techniczne: Gwarancja - 3 lata w serwisie zewnętrznym
Dane techniczne: Jasność - 350 cd/m²
Dane techniczne: Obszar aktywny - 527 x 297 mm
Dane techniczne: Producent - iiyama
Dane techniczne: Przekątna - 24 cali
Dane techniczne: Rodzaj podświetlenia - LED
Dane techniczne: Rozdzielczość ekranu - 1920 x 1080 (Full HD) piksele
Dane techniczne: Rozmiar plamki - 0.274 mm
Dane techniczne: Standard portów wideo - D-Sub
Dane techniczne: Standard portów wideo - DisplayPort
Dane techniczne: Standard portów wideo - HDMI
Dane techniczne: Typ - reklamowy
Dane techniczne: Typ ekranu - dotykowy
Dane techniczne: Typ matrycy - VA
Depthwithoutstand - 42.5 mm
Depthwithstand - 42.5 mm
Design -
Design - Front bezel colour - Black
Design - Product colour - Black
Detachablestand -
Display -
Display - Aspect ratio - 16:9
Display - Contrast ratio (typical) - 3000:1
Display - Display brightness - 315 cd/m²
Display - Display brightness (typical) - 350 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display diagonal (metric) - 60.5 cm
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - HD type - Full HD
Display - Horizontal scan range - 31.4 - 82 kHz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - VA
Display - Pixel pitch - 0.2745 x 0.2745 mm
Display - Response time - 16 ms
Display - Screen shape - Flat
Display - Separate H/V sync - Yes
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touchscreen type - Multi-user
Display - Touch technology - Multi-touch
Display - Vertical scan range - 56 - 75 Hz
Display - Viewable size, horizontal - 52.7 cm
Display - Viewable size, vertical - 29.6 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Displaybezeltechnology -
Displaybrightnesstypical - 350 cd/m²
Displaydiagonal - 60.5 cm (23.8")
Displaydiagonalmetric - 60.5 cm
Displaynumberofcolours - 16.78 million colours
DisplayPortoutquantity -
DisplayPortoutversion -
DisplayPortsquantity - 1
DisplayPortversion -
Displayresolution - 1920 x 1080 pixels
Displaysurface -
Displaytechnology - LED
Dodatkowe informacje o matrycy: Format obrazu - 16:9
Dodatkowe informacje o matrycy: Kontrast - 3000:1
Dodatkowe informacje o matrycy: Kąt widzenia w pionie - 178 °
Dodatkowe informacje o matrycy: Kąt widzenia w poziomie - 178 °
EAN - 4948570116775
EANCode - 4948570116775
Eans - 4948570116775
EAN_code - 4948570116775
Efektywność energetyczna: Klasa energetyczna - F
Efektywność energetyczna: Zużycie energii w trybie czuwania - 1.2 W
Efektywność energetyczna: Zużycie energii w trybie pracy - 25 W
EnergyconsumptionSDRper1000hou - 22 kWh
EnergyefficiencyclassHDR -
EnergyefficiencyclassSDR - F
Energyefficiencyscale - A to G
Ergonomics -
Ergonomics - Number of OSD languages - 7
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Plug and Play - Yes
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
EthernetLAN -
Fastcharging -
Feetcolour -
Flickerfreetechnology -
Gewicht - 8.12
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570116775
Hazerate -
HDCP - Yes
HDMI - Yes
HDMIportsquantity - 1
HDMIversion -
HDtype - Full HD
Headphoneconnectivity -
Headphoneout -
Headphoneoutputs -
Heightadjustment -
Heightwithoutstand - 347 mm
Heightwithstand - 347 mm
HERSTELLER - IIYAMA CONSIGNMENT
HighLights -
Hoehe - 0.16
Horizontalscanrange - 31.4 - 82 kHz
HSTNUMMER - TF2415MC-B2
InfraredIRsensor -
Laenge - 0.69
LEDbacklight -
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - 03-12 (143)
LongDesc - The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
LongProductName - Open Frame PCAP 10 point touch screen equipped with touch through glass function
LongSummaryDescription - iiyama ProLite TF2415MC-B2. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 16 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
LowBlueLighttechnology -
Manufacturer - Iiyama
Manufacturer - iiyama
Manufacturer_code - TF2415MC-B2
ManufDatasheet - https://www.tdbaltic.ee/leaflets/IIYAMA/TF2415MC-B2.pdf
Marketpositioning -
Maximumrefreshrate -
Megapixelapprox -
MPN - TF2415MC-B2
Multimedia -
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Name - IIYAMA 60.5cm (23.8") TF2415MC-B2 16:9 M-Touch HDMI+DP
Name - iiyama ProLite TF2415MC-B2
Name - Iiyama TF2415MC-B2 - 23.8 - LED (Black, Full HD, Touch, HDMI, DisplayPort)
Nativeaspectratio - 16:9
Network -
Numberofspeakers -
NumberofUSBTypeBupstreamportsq -
NVIDIAGSYNC - No
OnScreenDisplayOSD - Yes
OperatingrelativehumidityHH - 20 - 80%
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - AC adapter included - Yes
Other features - Active display area (W x H) - 527.04 x 296.46 mm
Other features - Brightness - 315 cd/m²
Other features - Certification - CB, CE, TÜV-Bauart, CU, cULus
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Compliance certificates - CB, CE, cULus, REACH, RoHS, WEEE
Other features - Control panel - Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Other features - Depth - 42.5 mm
Other features - Display viewable area (HxV) - 527.04 x 296.46 mm
Other features - Full HD - Yes
Other features - Glass protection - Yes
Other features - Height - 347 mm
Other features - International Protection (IP) code - IP65
Other features - Packaging content - AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Other features - Placement supported - Horizontal/Vertical
Other features - Touch method - stylus, finger, glove (latex)
Other features - User controls - picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position, touch switch), option (reset, language, source select, display mode, factory)
Other features - Weight - 5.8 kg
Other features - Width - 575 mm
Packagedepth -
Packageheight -
Packagetype -
Packageweight -
Packagewidth -
Packagingcontent -
Packaging content - Cables included - AC, USB, HDMI, DisplayPort
Packaging content - Quick start guide - Yes
Packagingdata -
Panelmountinginterface - 100 x 100 mm
Paneltype - VA
Performance -
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Performance - OmniTapps Multitouch compatibility - No
Pivot -
Pivotangle -
Pixeldensity -
Pixelpitch - 0.2745 x 0.2745 mm
Ports & interfaces - Audio output - 1
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Portsinterfaces -
Power -
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 22 kWh
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.32 W
Power - Power consumption (standby) - 1.06 W
Power - Power consumption (typical) - 24.4 W
Power - Power supply type - External
Powerconsumptionmax -
Powerconsumptionoff - 0.32 W
Powerconsumptionstandby - 1.06 W
Powerconsumptiontypical - 24.4 W
Powersupplytype - External
Pozostałe cechy: Akcesoria - instrukcja
Pozostałe cechy: Akcesoria - instrukcja bezpieczeństwa
Pozostałe cechy: Akcesoria - kabel DP
Pozostałe cechy: Akcesoria - kabel HDMI
Pozostałe cechy: Akcesoria - kabel USB
Pozostałe cechy: Akcesoria - kabel zasilający

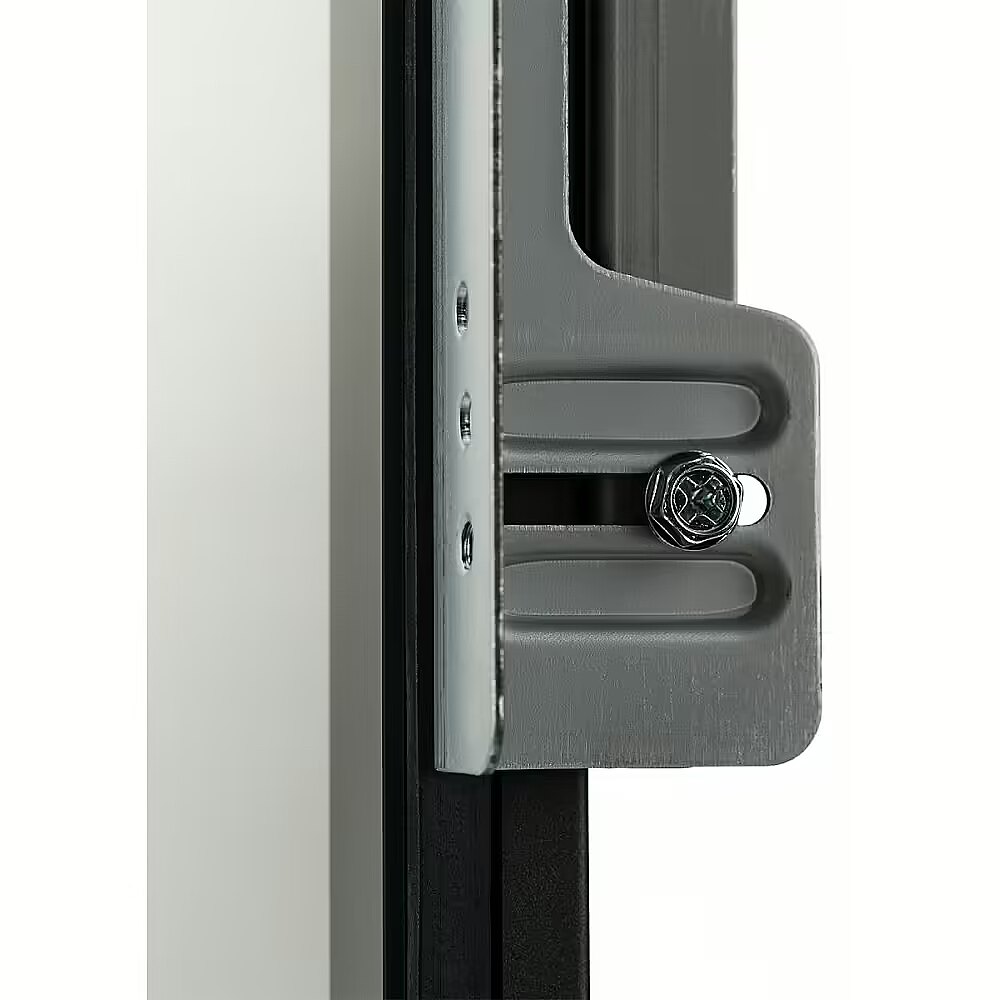

Pozostałe cechy: Akcesoria - listwy montażowe, zewnętrzny panel sterujący
Pozostałe cechy: Akcesoria - zasilacz
Pozostałe cechy: Dodatkowe informacje - orientacja pionowa, pozioma
Pozostałe cechy: Model - Iiyama ProLite TF15MC-B2
ProdDesc - 24" PCAP Bezel Free 10P Touch. 1920x1080. Anti-Fingerprint coating. VA panel. 315cd/m² (with touch). 3000:1. 16ms. USB Interface.
Producent: Nazwa producenta / importera - iiyama
iiyama Corporation
Wijkermeerstraat 8
2131 HA Hoofddrop
Producer - iiyama
ProducerCode - TF2415MC-B2
Productcolour - Black
Productcondition - Original
ProductHighLights -
- Touchscreen 60.5 cm (23.8") LED VA
- Full HD 1920 x 1080 pixels 16:9
- 16 ms 350 cd/m² 3000:1
- F 22 kWh 24.4 W
ProductName - TF2415MC-B2

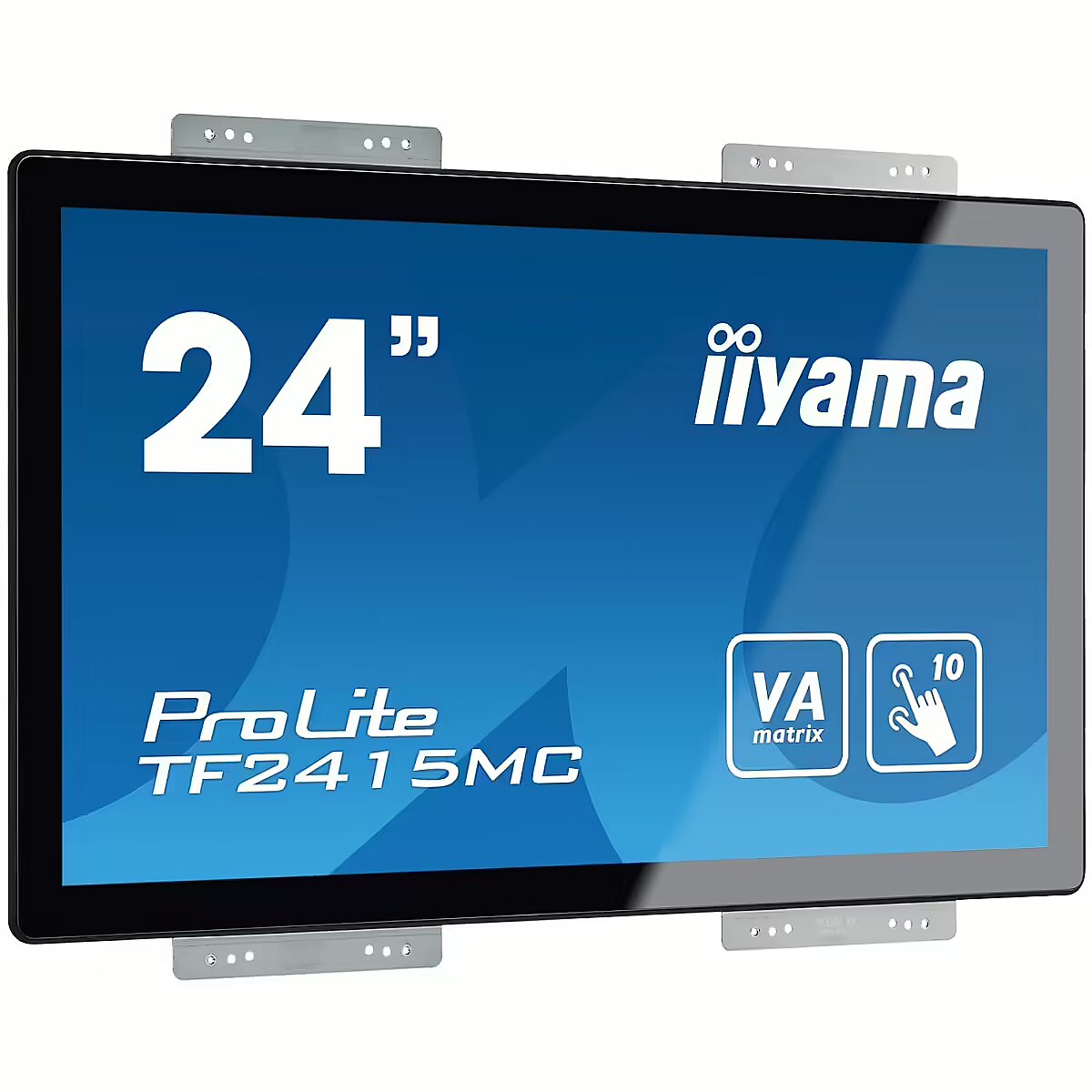

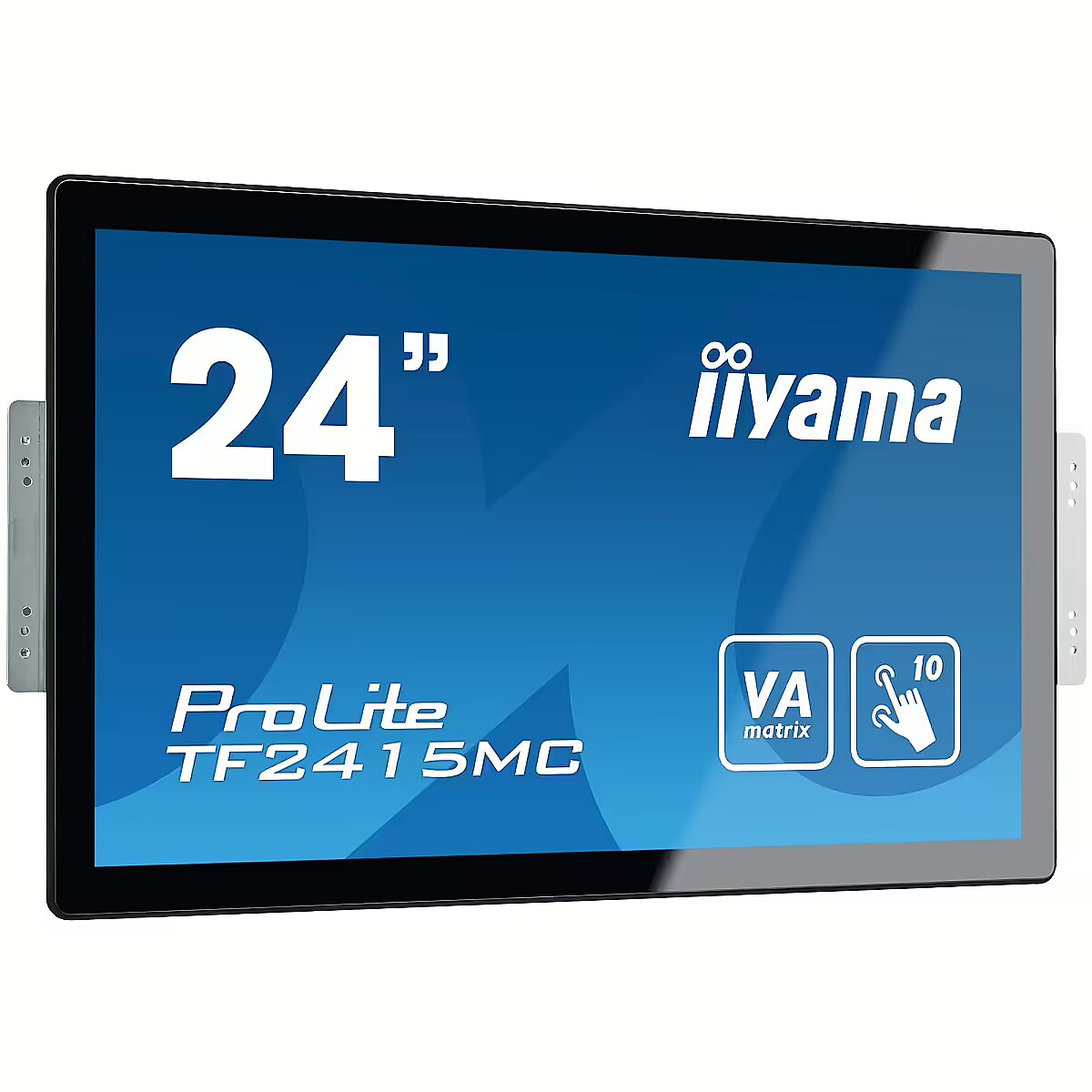

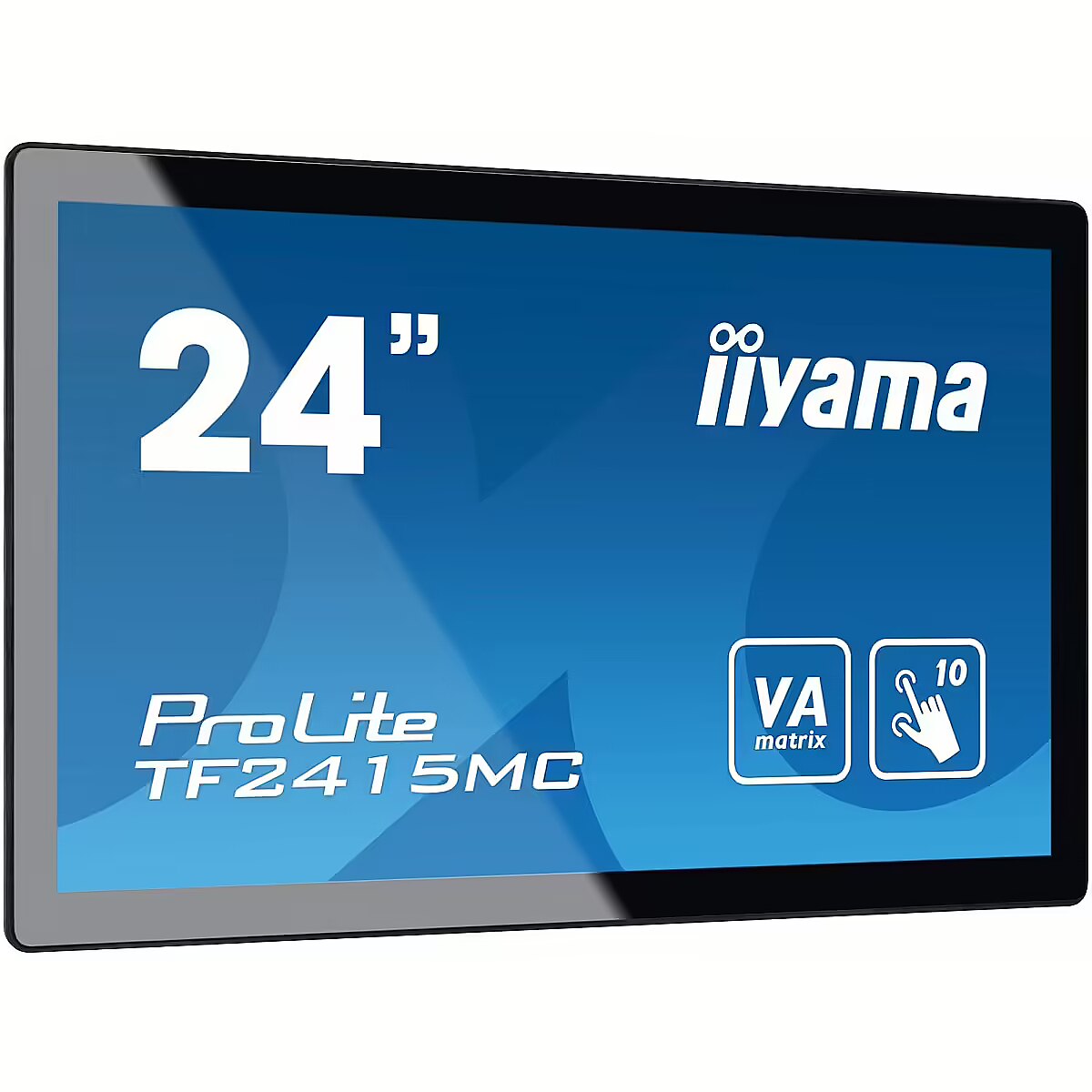

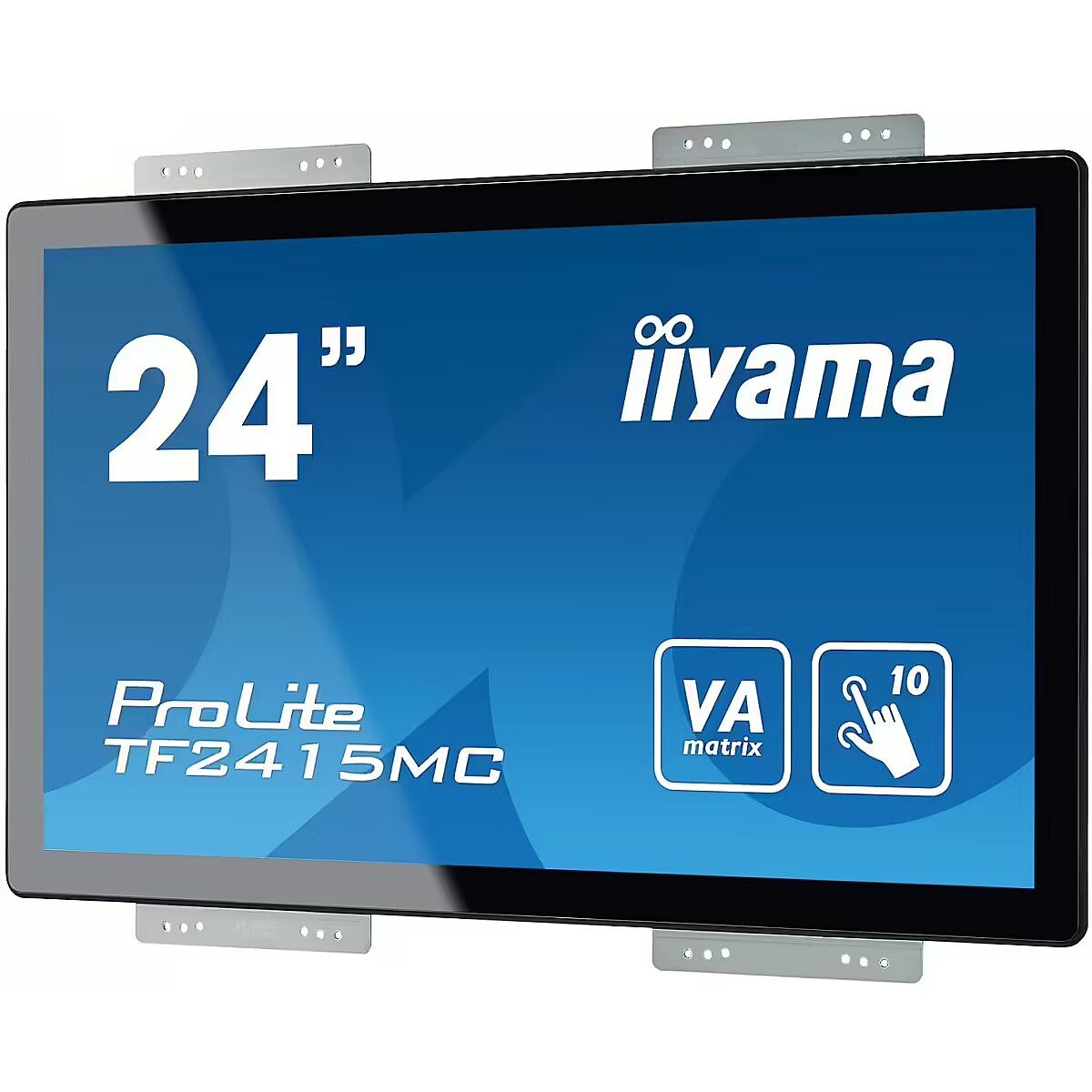

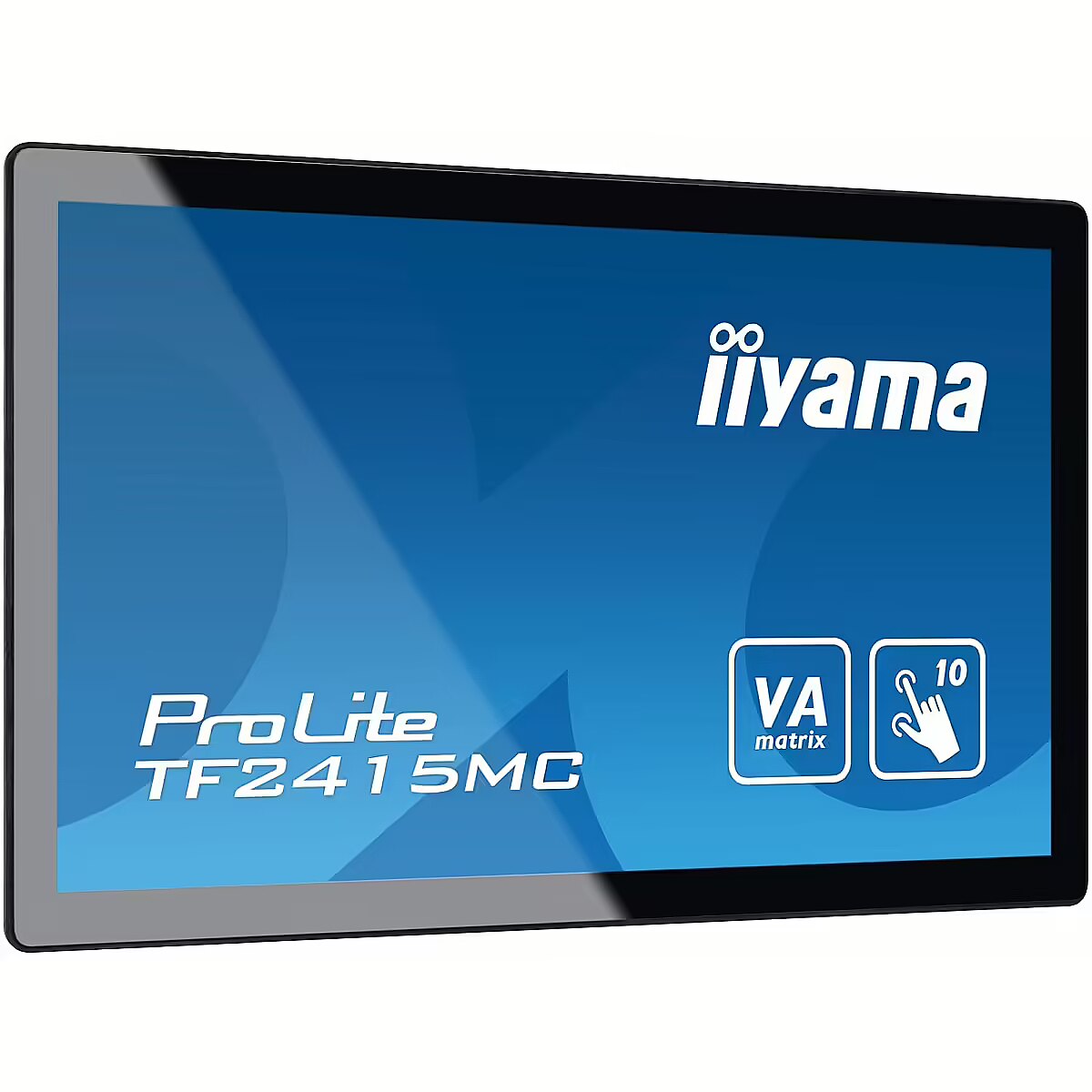

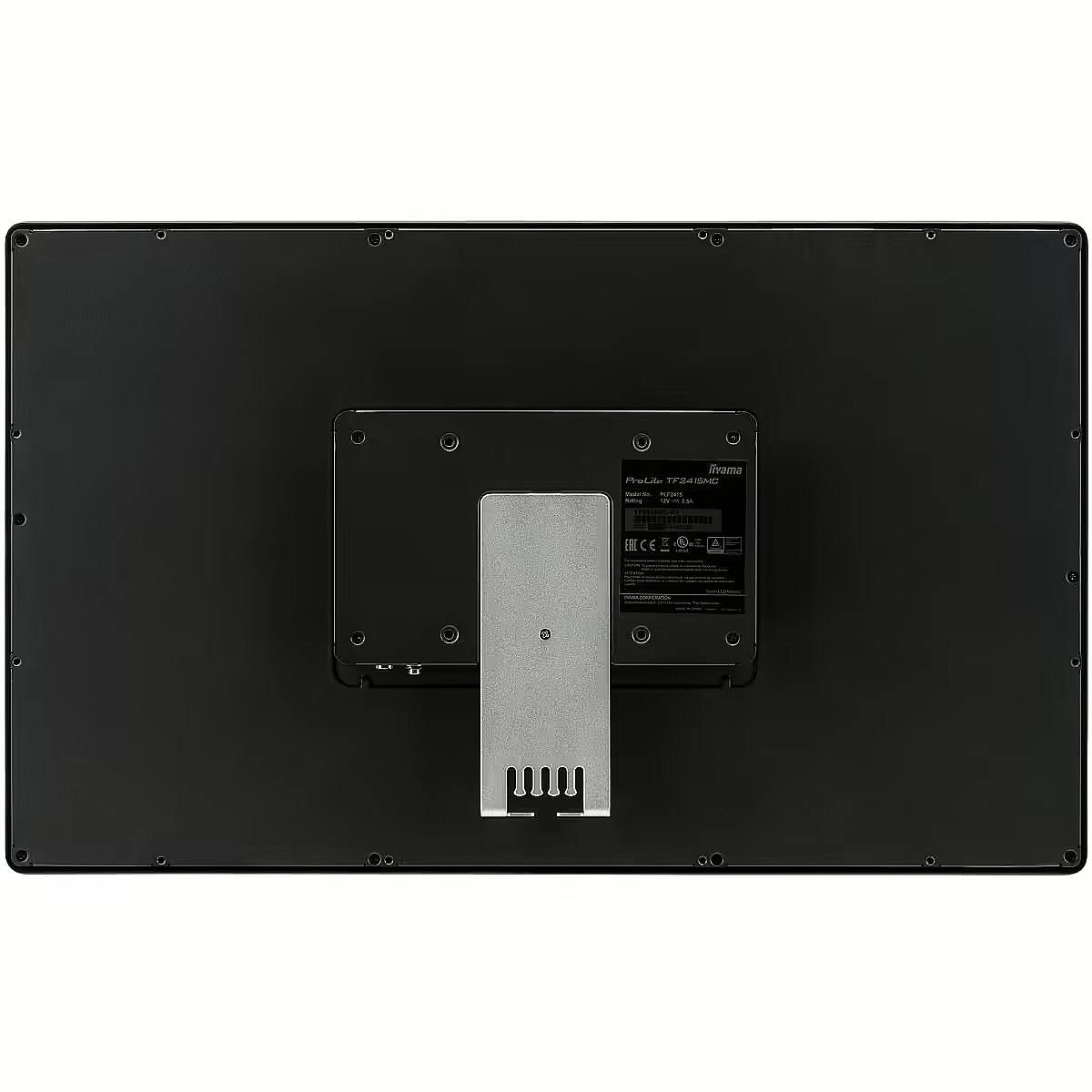

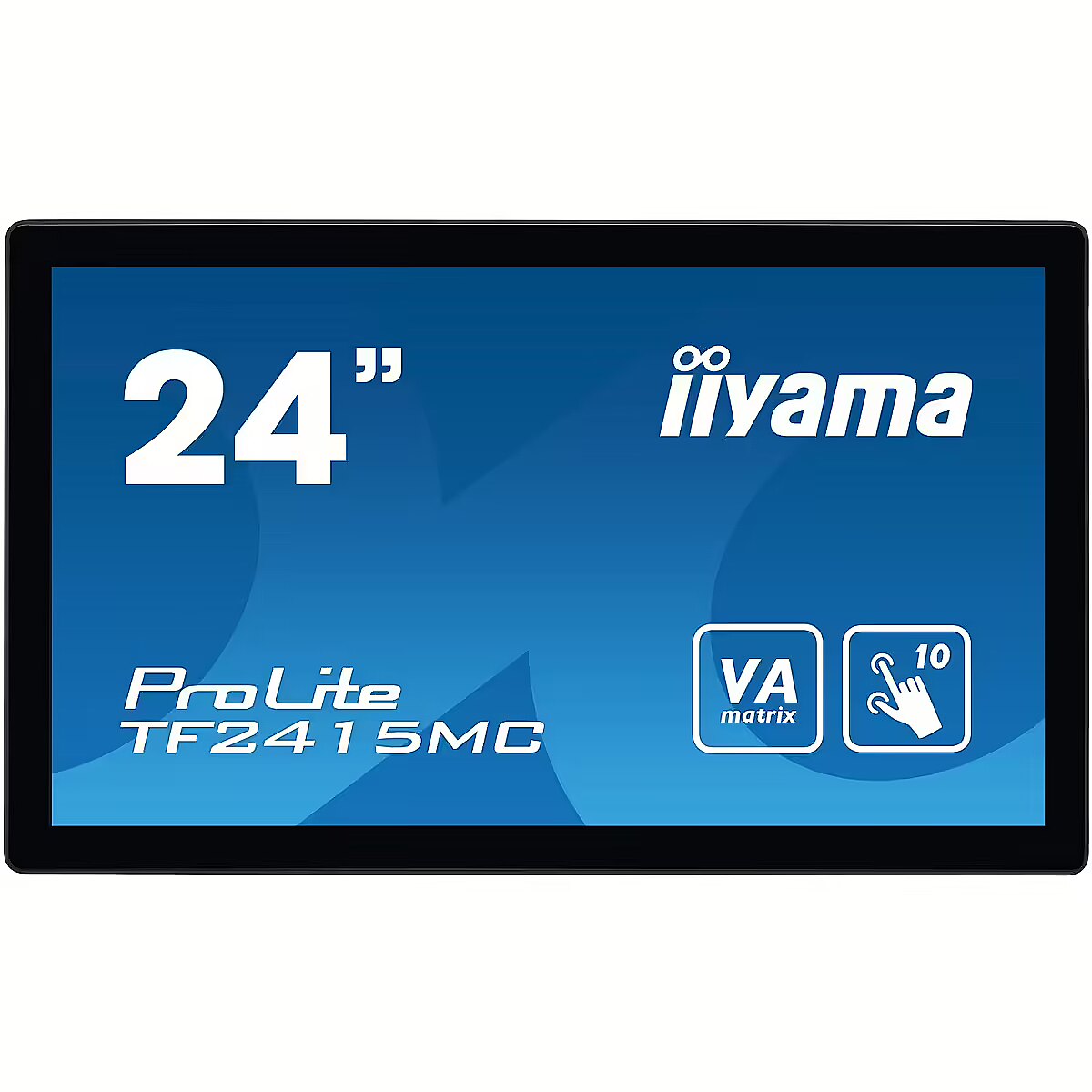

ProductPicture - https://www.tdbaltic.ee/images/products/IIYAMA/TF2415MC-B2_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2415MC-B2_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2415MC-B2_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2415MC-B2_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2415MC-B2_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2415MC-B2_6.jpg
ProductPicture6 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2415MC-B2_7.jpg
ProductPicture7 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2415MC-B2_8.jpg
ProductPicture8 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2415MC-B2_9.jpg
Quickstartguide - Yes
Remotelyoperated -
Responsetime - 16 ms
Responsetimefast -
Responsetimemeasurementtype -
RMSratedpower -
Screenshape - Flat
ShortDescription - 24" | VA |1920 x 1080 | 16ms | 75Hz | 1x HDMI, 1xaudio-out, 1xD-Sub, 1xDP | VESA 100 x 100
ShortSummaryDescription - iiyama ProLite TF2415MC-B2, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LED, 16 ms, Black
SRGBcoveragetypical -
Stck_Kart - 1
Stck_Pal - 15
StoragerelativehumidityHH - 10 - 90%
Storno - Y
Supportedgraphicsresolutions -
Surfacehardness - 7H
Sustainability - Sustainability certificates - ErP
Swivelanglerange -
Swivelling -
Tiltadjustment -
Tiltanglerange -
Title - iiyama ProLite TF2415MC-B2 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Touchscreen - Yes
URL - https://iiyama.com/
USBhubversion -
USBPowerDeliveryUSBPD -
USBTypeAdownstreamportsquantit -
USBTypeCDisplayPortAlternateMo -
Verticalscanrange - 56 - 75 Hz
VESAmounting - Yes
Viewablesizediagonal -
Viewablesizehorizontal - 52.7 cm
Viewablesizevertical - 29.6 cm
Viewinganglehorizontal - 178°
Viewinganglevertical - 178°
Warranty - 36 months
Warrantyandmisc -
WarrantyInfo -
Weight - 8,65
Weight - 8.32
Weight & dimensions - Depth (without stand) - 42.5 mm
Weight & dimensions - Depth (with stand) - 42.5 mm
Weight & dimensions - Height (without stand) - 347 mm
Weight & dimensions - Height (with stand) - 347 mm
Weight & dimensions - Weight (without stand) - 5.8 kg
Weight & dimensions - Weight (with stand) - 5.8 kg
Weight & dimensions - Width (without stand) - 575 mm
Weight & dimensions - Width (with stand) - 575 mm
Weightdimensions -
Weightwithoutstand - 5.8 kg
Weightwithstand - 5.8 kg
Widthwithoutstand - 575 mm
Widthwithstand - 575 mm
Złącza: Złącza - 1 x D-Sub 15-pin
Złącza: Złącza - 1 x DisplayPort
Złącza: Złącza - 1 x HDMI
Złącza: Złącza - 1 x wyjście audio
DVI - это цифровой стандарт и обеспечивает высокое качества изображения, но он понемногу теряет свою актуальность из-за большого размера порта и некоторых технических огарничений, оставляя место более современным стандартам HDMI и DisplayPort.
