Accessories included - 2x batteries Setup manual HDMI cable Power cable Monitor Remote control
ARTIKEL1 - M322 32IN LFD FHD D-LED
ARTIKEL2 - 450CD/QM 24/7 USB MP
Aspect ratio - 16:9
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 10 W
Auto Pivot - No
Bluetooth - No
Brand - Sharp
BrandPartCode - PNM322
Breite - 0.52
Brightness - 450 cd/m²
Category - Signage Displays
Certificates - CE
Certificates - EAC
Certificates - Energy Star
Certificates - ISO 9241-307
Certificates - RoHS
Color - Black
Depth - 66.5 mm
Description - Built for Performance, Designed for Durability
The Sharp MultiSync M2 Series (32" to 98") is a versatile professional display solution, specifically designed for demanding signage and conferencing environments. Native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams enable seamless Bring Your Own Device collaboration and future-proof integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring a class-leading 550 cd/m of brightness, a high-luminance panel to minimize glare, and NEC's proven SpectraView Engine, the M2 Series delivers exceptional visual performance and unparalleled color accuracy.
As part of the new Sharp family of displays, the MultiSync M2 Series builds on NEC's tradition of quality and reliability to enhance performance and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel SDM) and flexible connectivity (e.g., AV-over-IP) and ensures long-term versatility, performance, and sustainability.
Benefits Seamless meeting workflows - a single USB-C cable transmits video, data, and power, enabling quick and clean meeting setups. USB-C, as the standard for modern collaboration spaces, supports seamless BYOD experiences. Impeccable readability - The absence of reflections from windows and other light sources eliminates visibility issues for signage and presentations in conference rooms. Guaranteed security - 802.1x LAN support ensures high levels of security for corporate networks, providing peace of mind for IT teams and business environments. Improved image precision - When brand consistency and corporate identity are important, NEC's SpectraView Engine offers complete control over color, gamut, and uniformity, ensuring accurate and impactful content. Broad AV compatibility - Fully interoperable with major meeting room platforms such as Crestron (XiO Cloud), Cisco Webex, Q-Sys and Microsoft Teams, guarantees seamless integration and future scalability.
Design - Bezel width (bottom) - 1.72 cm
Design - Bezel width (side) - 1.19 cm
Design - Bezel width (top) - 1.18 cm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - Screen shape - Flat
Design - VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 860 mm
dimension height - 520 mm
dimension weight - 900 g
dimension width - 160 mm
Display - Contrast ratio (typical) - 4000:1
Display - Display brightness - 550 cd/m²
Display - Display diagonal - 81.3 cm (32")
Display - Display diagonal (metric) - 80 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - Haze rate - 28%
Display - HD type - Full HD
Display - Horizontal scan range - 26 - 91.1 kHz
Display - LED backlight - Yes
Display - LED backlighting type - Direct-LED
Display - Native aspect ratio - 16:9
Display - Panel type - VA
Display - Response time - 8 ms
Display - Touchscreen - No
Display - Vertical scan range - 23 - 86 Hz
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Matt
ean - 4550556176682
EANCode - 4550556176682
Energy class - G
Energy label - Pobierz
Gewicht - 9
GRUPPE1 - Displays
GRUPPE2 - Led Large Format
GTIN - 0074000705029
GTIN - 074000705029
GTIN - 4550556176682
guarantee - 36
guarantee_type - normal
Height - 425.4 mm
Height adjustment - No
HERSTELLER - SHARP
Hoehe - 0.16
HSTNUMMER - 60006052
HSTNUMMER - PNM322

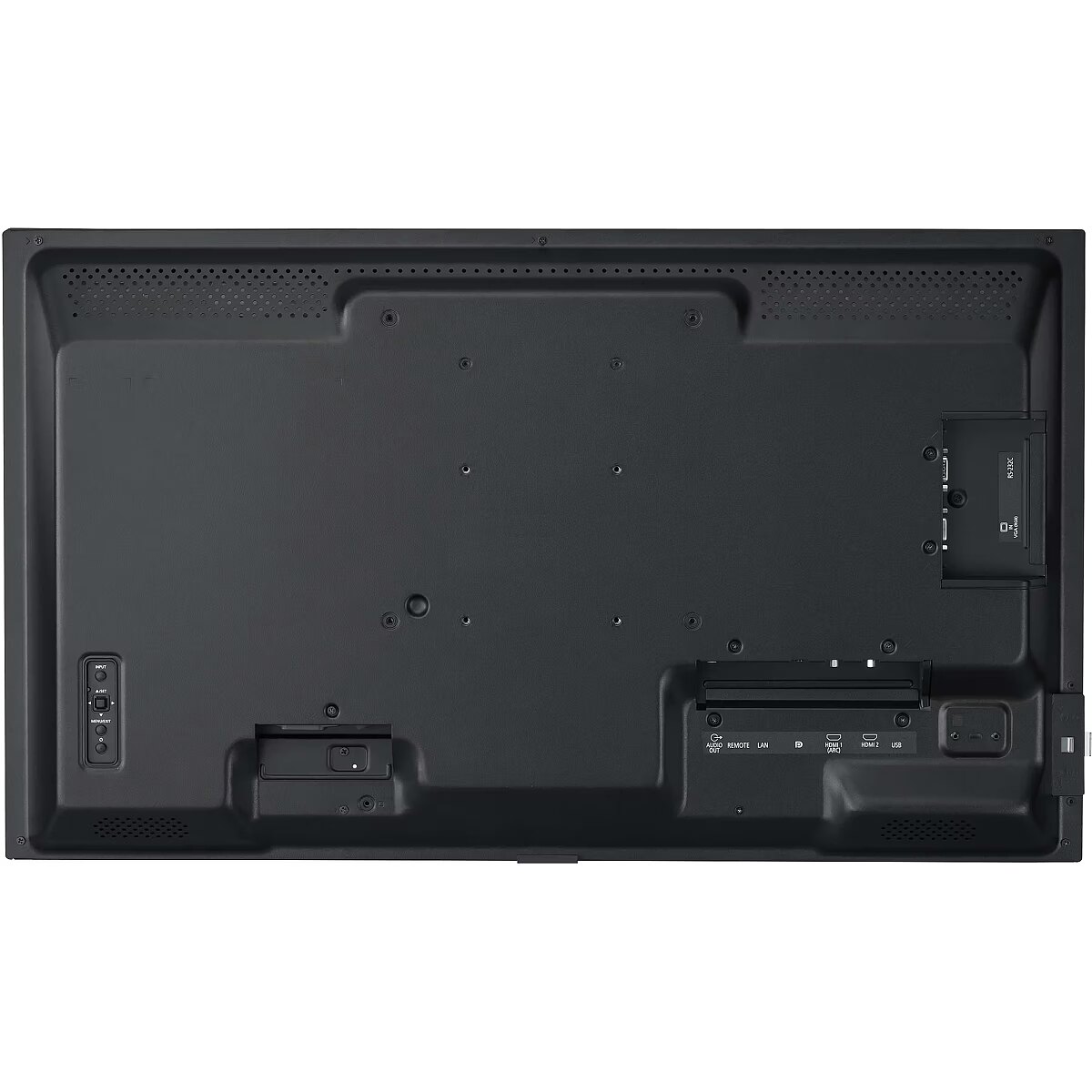

I/O connectors - 1 x 15-pin D-Sub
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
I/O connectors - 2 x 3,5 mm minijack
I/O connectors - 2 x DisplayPort
I/O connectors - 4 x HDMI
Kensington Security Slot - Nie
Laenge - 0.87
LongDesc - Intuitive professional content deliveryFor economical signage in 24/7 commercial environments, the 32” Sharp MultiSync® M322 delivers all the professional performance and features you need, whilst minimising the cost of ownership. With a 450 cd/m2 brightness output and anti-glare panel, the viewer enjoys excellent visual quality unhindered by reflections, with a slim, aesthetic design for unobtrusive integration.Featuring multiple industry standard digital and analogue signal inputs, the M322 is future-proof for flexible integration. It also features full external control support through both RS-232 or LAN connectivity enabling operators to achieve time and cost savings when managing an estate of displays.The full metal chassis, high end componentry and integrated schedule function affords peace of mind for extended runtimes, ideal for retail and transportation applications.
LongProductName - 32", VA, 1920 x 1080, 450 cd/m², 4000:1, 16.7 (8bit), 178°/178°
LongSummaryDescription - Sharp MultiSync M322. Product design: Digital signage flat panel. Display diagonal: 81.3 cm (32"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 550 cd/m², HD type: Full HD. Product colour: Black
Matrix type - VA
Model - MultiSync M322
name - Display MultiSync M322 32-inch 24/7
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100 Mbit/s
Network - Wi-Fi - No
Number of colors - 16,7 mln
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Optional accessory -
Other features -
Packaging content - Cables included - AC
Packaging content - Remote control included - Yes
Packaging data - Package depth - 160 mm
Packaging data - Package height - 527 mm
Packaging data - Package weight - 9.8 kg
Packaging data - Package width - 870 mm
Performance - Purpose - Universal
Ports & interfaces - Audio (L/R) out - 1
Ports & interfaces - DisplayPorts in - 1
Ports & interfaces - DisplayPorts out - 1
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI input ports quantity - 2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - USB connector type - USB Type-A
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 4
Ports & interfaces - VGA (D-Sub) input ports - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 41 kWh
Power - Energy efficiency class (SDR) - G
Power - Input voltage - 100 - 240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 40 W
Power consumption - 40 W
producer - Sharp
ProductName - M322
Refresh rate - 60 Hz
Resolution - 1920 x 1080 (FHD 1080)
Response time - 8 ms
Screen size (diag.) - 32"
ShortSummaryDescription - Sharp MultiSync M322, Digital signage flat panel, 81.3 cm (32"), LCD, 1920 x 1080 pixels
Speakers built-in - No
Static contrast - 4 000:1
Stck_Kart - 0
Stck_Kart - 1
Stck_Pal - 0
Stck_Pal - 6
Storno - N
Storno - Y
Title - Sharp MultiSync M322 Digital signage flat panel 81.3 cm (32") LCD 550 cd/m² Full HD Black
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
URL - https://www.sharpnecdisplays.eu/p/datasheet/en/datasheet/t/large-format-displays/midrange-displays/rp/m322.xhtml
vendpn - 60006052
VESA - 200 x 200
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Warranty -
WarrantyInfo -
Web camera - None
Weight - 6.3 kg
Weight & dimensions - Display depth - 66.5 mm
Weight & dimensions - Display height - 425.4 mm
Weight & dimensions - Display weight - 6.3 kg
Weight & dimensions - Display width - 726.5 mm
Width - 726.5 mm
WiFi - No
