Accessories included -
Auto Pivot - No
Bluetooth - No
Brand - Samsung
BrandPartCode - LH13QBRTMGCXEN
Brightness - 250 cd/m²
Category - Signage Displays
Category 1 - Displays
Category 2 - Monitore
Certificates - CB
Certificates - CE
Certificates - EMC
Certificates - Certification - Class B
60950-1, 62368-160950-1, 62368-1
Color - Black
Computer system - Built-in processor - Yes
Computer system - Computer system - Yes
Computer system - Computer system type - System on Chip (SoC)
Computer system - Operating system installed - Tizen 4.0
Depth - 29.8 mm
Description - Professional 13" QBR series monitor in touch version Compact and slim design allowing for efficient use of space 13" matte FHD matrix providing a clear image Built-in MagicINFO player supporting smooth content playback Greater audience engagement thanks to intuitive interaction The small Samsung QB13R-T touch display guarantees customers a unique experience while in the store. By being able to view content up close on a compact device, it increases their engagement. Designed for professional use, this display enables effective content presentation while ensuring reliable performance for any business application. Fast and efficient touch functions With integrated touch functionality, the QB13R-T provides a user-friendly experience. A 10-point touchscreen and short response time go hand in hand with an intuitive interface that allows recipients to search for content and act independently. It allows you to generate new interactions with customers, which translates into more purchasing decisions. Expressive, perfectly visible content The display supports FHD 1920x1080 resolution, presenting clear and readable content. This is facilitated by the anti-reflective panel, which ensures the sharpness of the displayed image regardless of the lighting. These innovations go hand in hand with reliable 16/7 operation that is perfect for professional applications. Slim, intelligent design The compact and slim design of the QB13R-T enables efficient use of space even in locations with limited dimensions. The smooth back cover is perfect for both wall mounting and standard installation. In turn, the placement of the display's inputs and outputs, the method of content playback and control make it easy to use. Perfect content playback QB13R with a built-in MagicINFO S player, supported by the Tizen system, allows for effective and smooth content playback without the need to use an external media player. The SSSP platform also allows for easy content expansion with improved compatibility with multiple web formats. Comprehensive security configuration The powerful Knox security system provides reliable, three-layer protection at the application, platform and system levels, limiting access to content and hardware. Moreover, remote network and USB port management prevents unauthorized access. Convenient and clear display control Thanks to centralized IR, each display receives IR signals directly through the panel, which allows easy and convenient remote control even in the case of unusual installations. The wall-mounted display does not require any wiring to extend the IR receiver. However, built-in Wi-Fi allows for wireless remote management of both the content and the device itself
Design - Bezel colour - Charcoal Black
Design - Bezel width (bottom) - 1.31 cm
Design - Bezel width (side) - 1.31 cm
Design - Bezel width (top) - 1.31 cm
Design - Panel mounting interface - 100 x 100 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Interactive flat panel
Design - Screen shape - Flat
Design - VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 130 mm
dimension height - 242 mm
dimension weight - 2000 g
dimension width - 375 mm
Display - Colour gamut - 45%
Display - Contrast ratio (dynamic) - 10000:1
Display - Contrast ratio (typical) - 600:1
Display - Display brightness - 500 cd/m²
Display - Display diagonal - 33 cm (13")
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - Haze rate - 25%
Display - HD type - Full HD
Display - Horizontal scan range - 30 - 81 kHz
Display - Multi-touch - Yes
Display - Panel type - ADS
Display - Pixel frequency (max) - 594 MHz
Display - Pixel pitch - 0.153 x 0.153 mm
Display - Response time - 30 ms
Display - Touchscreen - Yes
Display - Vertical scan range - 48 - 75 Hz
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Matt
Dot pitch - 0.153 mm
Dynamic contrast - 10 000:1
ean - 8806094965476
EAN - 8806094965476
Energy class - B
Energy label - Pobierz
Frequency, horizontal max. - 81 kHz
Frequency, horizontal min. - 30 kHz
Frequency, vertical max. - 75 Hz
Frequency, vertical min. - 48 Hz
GTIN - 8806094965476
guarantee - 36
guarantee_type - external
Height - 193.5 mm
Height adjustment - No

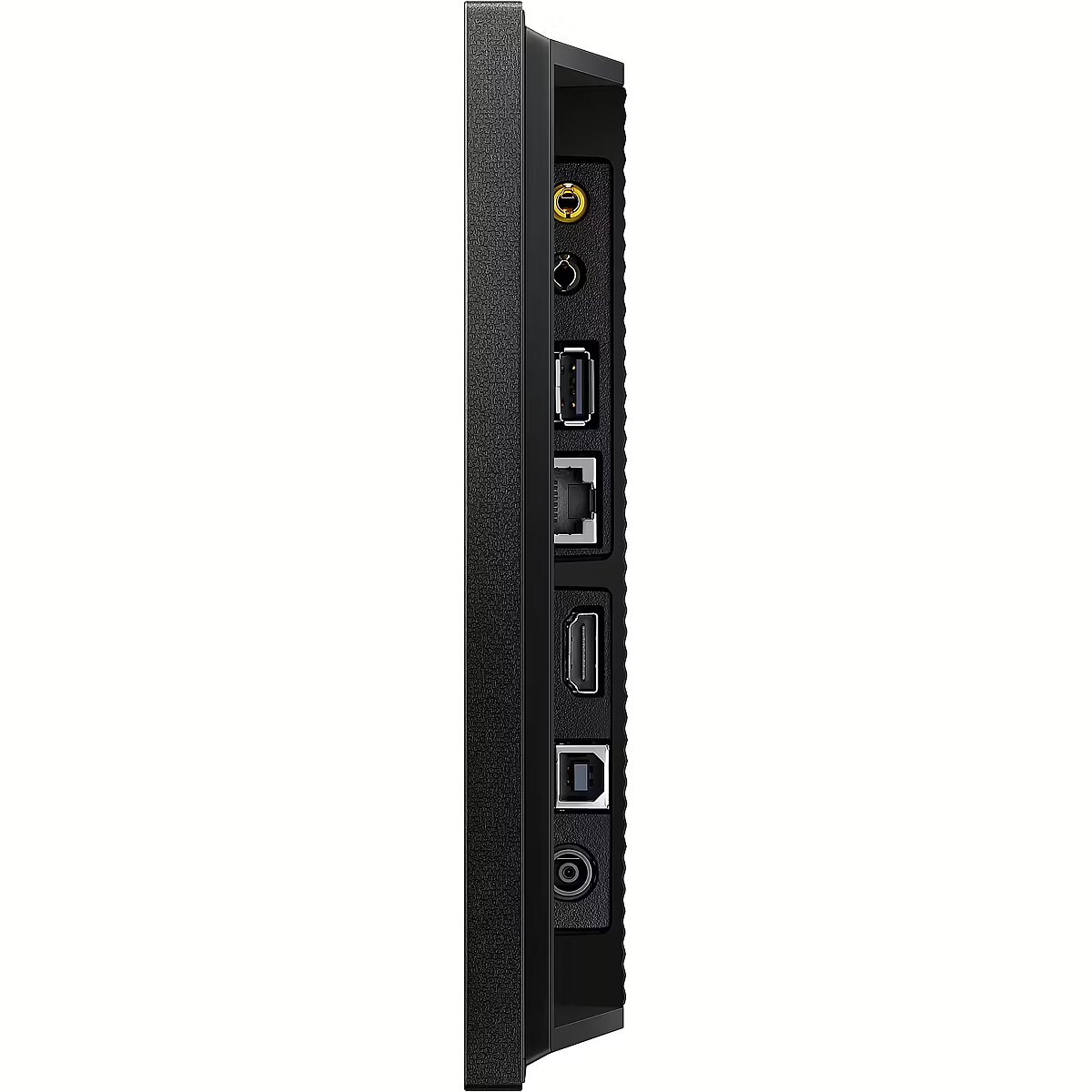

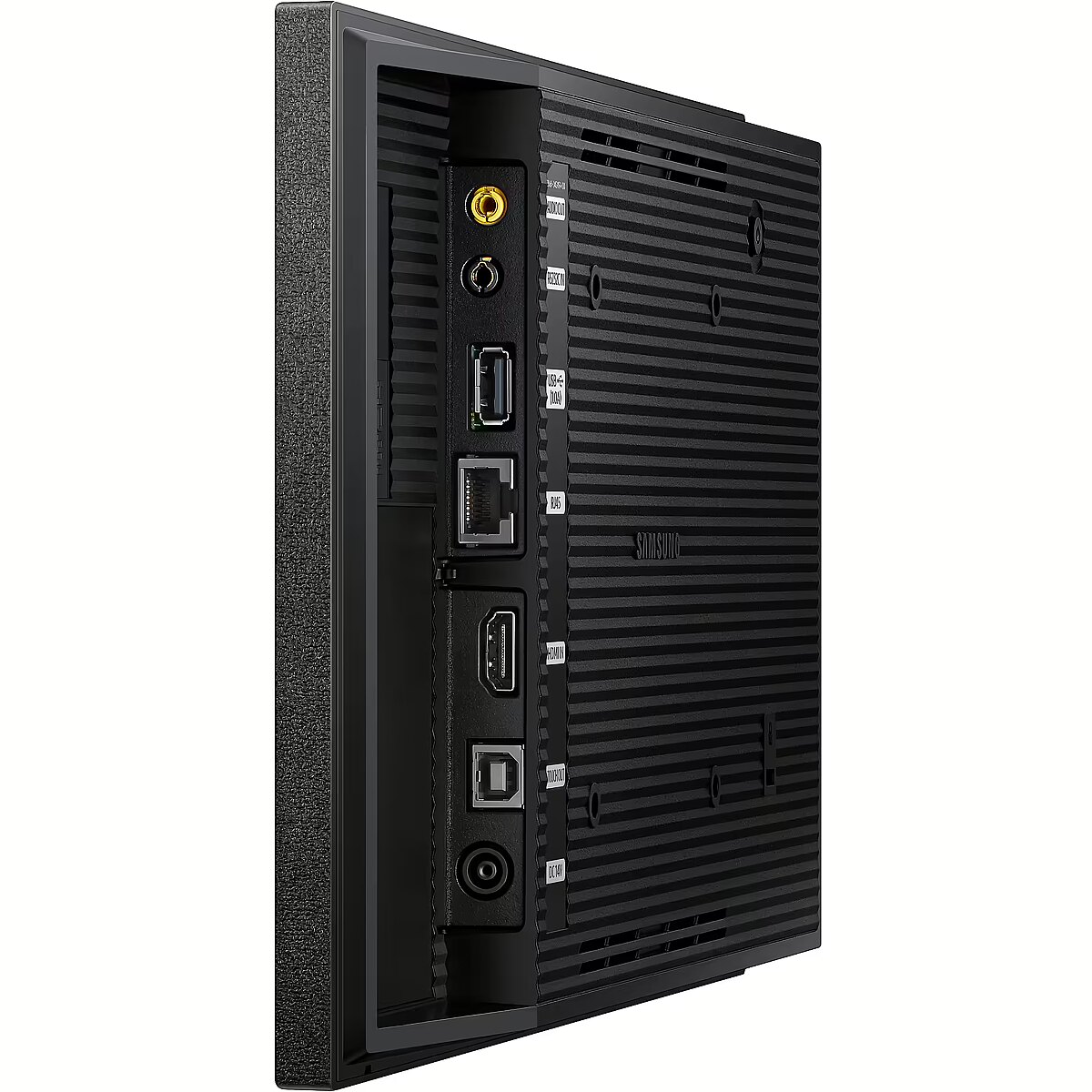

I/O connectors - 1 x Audio out
I/O connectors - 1 x HDMI
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 2 x USB 2.0
LongSummaryDescription - Samsung QB13R-TM. Product design: Interactive flat panel. Display diagonal: 33 cm (13"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 4.0. Product colour: Black
Manufacturer - SAMSUNG
Matrix type - Advanced PLS
Model - LH13QBRTBGCXEN
MPN - LH13QBRTMGCXEN
Name - 33,7cm/13,27" (1920x1080) Samsung QB13R-T 16:9 FHD ADS Touch 16/7 30ms DigitalSignage USB HDMI Spealer WIFI Tizen Black
name - Professional monitor QB13R-T 13 inch Matte, Touch 16h/7 250(cd/m2) 1920x1080 (FHD) S6 Player Wi-Fi 3 years OnSite (LH13QBRTMGCXEN)
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Optional accessory -
Other features -
Other features - Flash memory - 8000 MB
Other features - RJ-45 input ports - 1
Other features - RS-232 input ports - 1
Packaging data - Package depth - 248 mm
Packaging data - Package height - 132 mm
Packaging data - Package weight - 2 kg
Packaging data - Package width - 376 mm
Performance - HDCP - Yes
Performance - HDCP version - 2.2
Performance - Operating hours (hours/days) - 16/7
Performance - Purpose - Universal
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI input ports quantity - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - Wi-Fi - Yes
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (sleep) - 0.5 W
Power - Power consumption (typical) - 27.5 W
Power consumption - 27.5 W
producer - Samsung
ProductName - QB13R-TM
Resolution - 1920 x 1080 (FHD 1080)
Response time - 8 ms
Screen size (diag.) - 13''
ShortSummaryDescription - Samsung QB13R-TM, Interactive flat panel, 33 cm (13"), LED, 1920 x 1080 pixels, Wi-Fi, 16/7
Speakers built-in - No
Static contrast - 600:1
Technical details - Audio out (mini jack) - 1
Title - Samsung QB13R-TM Interactive flat panel 33 cm (13") LED Wi-Fi 500 cd/m² Full HD Black Touchscreen Built-in processor Tizen 4.0 16/7
Touch screen - Yes
Transreflective technology - LED
TV tuner built-in - No
vendpn - LH13QBRTMGCXEN
VESA - 100 x 100
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Warranty -
Web camera - None
Weight - 1.1 kg
Weight & dimensions - Display depth - 29.8 mm
Weight & dimensions - Display height - 193.5 mm
Weight & dimensions - Display weight - 1.1 kg
Weight & dimensions - Display width - 322 mm
Width - 322 mm
WiFi - No
