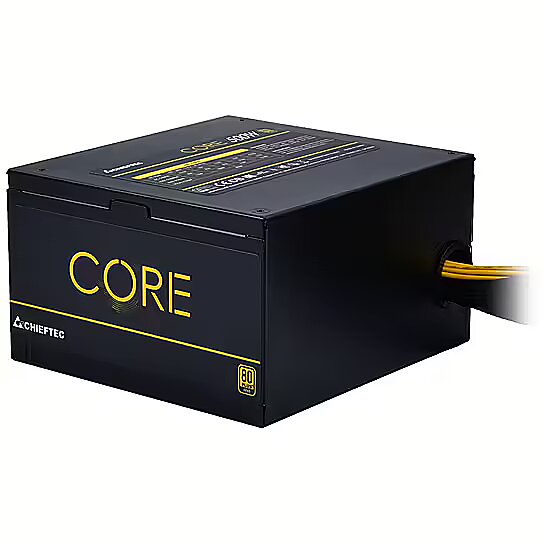

Chieftec Core Series, 500W, 80PLUS Gold

80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 100 - 240 V
ATX version Performance - 2.3
Brand - Chieftec
BrandPartCode - BBS-500S
Cabling type Ports & interfaces - Non-Modular
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Combined power (+5Vsb) Power - 12.5 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU power cable length Ports & interfaces - 65 cm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Grupa produktowa - Zasilacze do komputera Chieftec
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Moc - 500 W
Dane techniczne: Model - Chieftec Core BBS
Dane techniczne: Natężenie przy napięciu +3.3V - 18 A
Dane techniczne: Natężenie przy napięciu +5V - 18 A
Dane techniczne: Natężenie przy napięciu +5VSB - 2.5 A
Dane techniczne: Natężenie przy napięciu +12V1 - 41 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Producent - Chieftec
Dane techniczne: Regulacja obrotów wentylatorów - automatyczna
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Typ PFC - aktywne
Dane techniczne: Waga - 1.65 kg
Dane techniczne: Wersja standardu ATX - ATX 2.3x
Dane techniczne: Wtyczka zasilania [pin] - 1 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 1 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 1 x Floppy
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 87 mm
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Średnica wentylatorów - 120 mm
Depth Weight & dimensions - 150 mm
Description - With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.80 PLUS Gold EfficiencyCompact size with only 140mm depth500-700W power outputMotherboard, CPU and PCI-E cable lengths of 650mm
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 932
Eans - 0753263076120
Fan diameter Design - 12 cm
Floppy disk drive connector Ports & interfaces - Yes
Floppy drive power connector Ports & interfaces - 1
GTIN - 753263076120
GTIN - 0753263076120
Harmonized System (HS) code Logistics data - 84733020
Height Weight & dimensions - 86 mm
Input current Power - 8 A
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.
LongProductName - Chieftec Core Series BBS-500S, ATX, 80PLUS Gold
LongSummaryDescription - Chieftec Core BBS-500S. Total power: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 150,500 mm, Peripheral (Molex) power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Max output current (+3.3V) Power - 18 A
Max output current (+5V) Power - 18 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V1) Power - 41 A
Max output current (-12V) Power - 0.3 A
Model name - BBS-500S
Motherboard power connector Ports & interfaces - 24-pin ATX
Name - Chieftec Core BBS-500S 500W
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 4
Package weight Packaging data - 2.06 kg
Packaging data - Package weight - 2.06 kg
PCI Express power cable length Ports & interfaces - 50 cm
PCI Express power connectors (6+2 pin) Ports & interfaces - 1
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Peripheral (Molex) power cable length Ports & interfaces - 150,500 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power cable length - 50 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,500 mm
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 8 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 41 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Over voltage, Overload, Short circuit
Power - Power protection features - Short circuit
Power - Total power - 500 W
Power Factor Correction (PFC) type Power - Active
Power protection features Power - Over voltage, Overload, Short circuit
Power supply unit (PSU) form factor Performance - PS/2
Producent: Nazwa producenta / importera - ChieftecArena Electronic GmbHKoppersstr. 1840549 DuesseldorfNiemcyEmail: info@chieftec.eu
Producer - Chieftec
producerCode - BBS-500S
ProducerCode - BBS-500S
Product colour Design - Black
ProductName - BBS-500S
productName - Chieftec Core BBS-500S power supply unit 500 W 24-pin ATX PS/2 Black
productSize - Normal
Purpose Performance - PC
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
SATA power cable length Ports & interfaces - 150,500 mm
ShortDescription - 500 | ATX | 120 mm | 20 + 4 pin | 140mm x 150mm x 86mm | 80 PLUS Gold
ShortSummaryDescription - Chieftec Core BBS-500S, 500 W, 100 - 240 V, 47 - 63 Hz, 8 A, Active, 3.6 W
sizeX - 105
sizeY - 185
sizeZ - 240
Summary - Chieftec Core BBS-500S. Total power: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 150,500 mm, Peripheral (Molex) power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Title - Chieftec Core BBS-500S power supply unit 500 W 24-pin ATX PS/2 Black
Total power Power - 500 W
Unit Box Height - 0.105
Unit Box Length - 0.24
Unit Box Width - 0.185
Unit Calculated Volume - 0.004662 cubm
Unit Calculated Weight - 1.96 kg
Units per Shipping Box - 1
URL - https://www.chieftec.eu/products-detail/113/CORE_SERIES
Vendor Homepage - https://www.chieftec.eu/products-detail/113/CORE_SERIES
Warranty - 24 months
WarrantyInfo - 24 Months
warrantyLength - 24
warrantyType - G
weight - 1980
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.65 kg
Weight & dimensions - Width - 140 mm
Weight Weight & dimensions - 1.65 kg
Width Weight & dimensions - 140 mm
