Deepcool PS750G, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1

Brand - Gamer Storm
BrandPartCode - R-PS750G-FE0B-JGEU
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Certification - Cybenetics Platinum/PPLP Gold
ATX3.1
Certificates - Compliance certificates - CCC, CE, TÜV mark, EAC, RCM, RoHS, KC, ICES
Design - Cooling type - Active

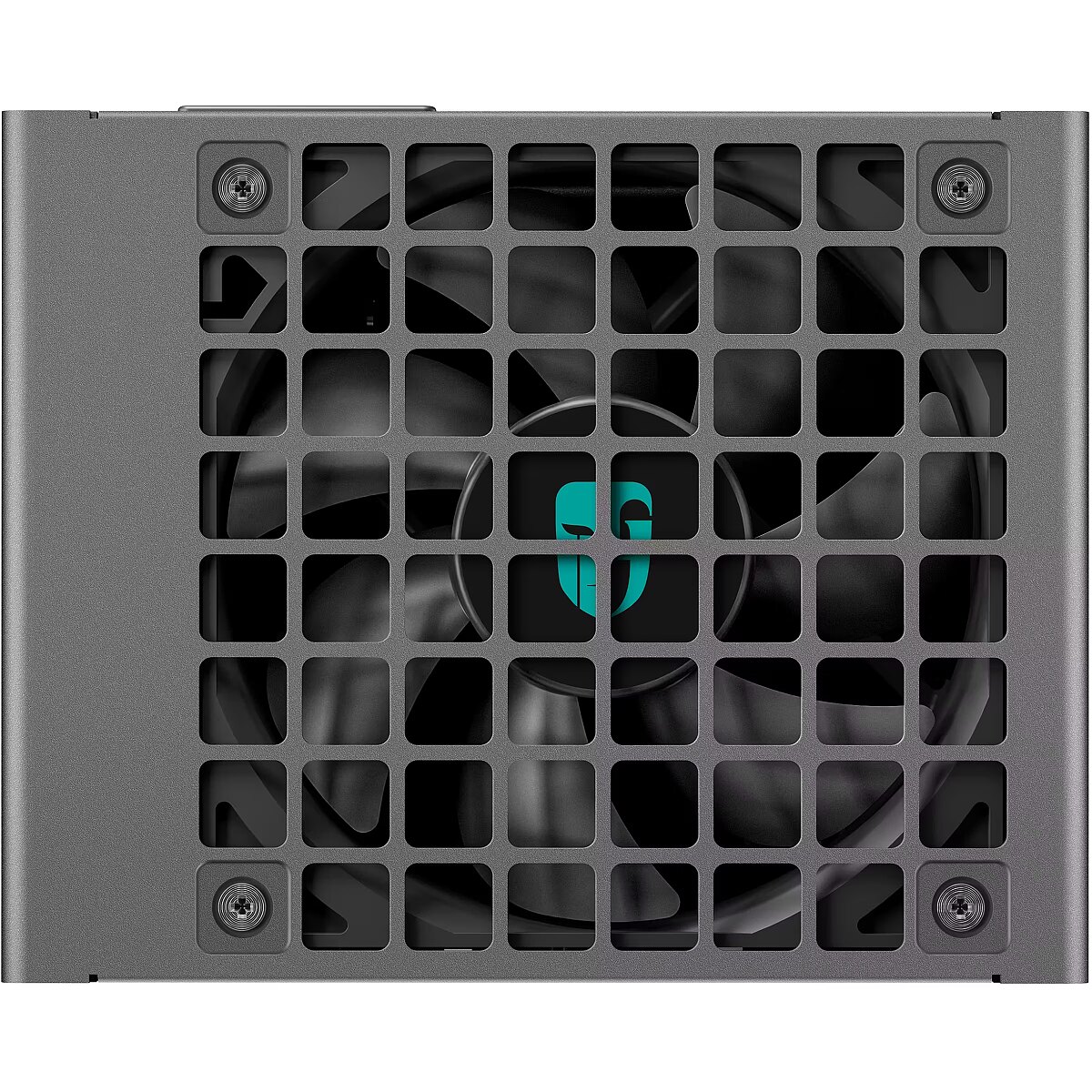

Design - Fan diameter - 9.2 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
EAN_code - 6933412755036
GTIN - 6933412755036
Logistics data - Warranty period - 5 year(s)

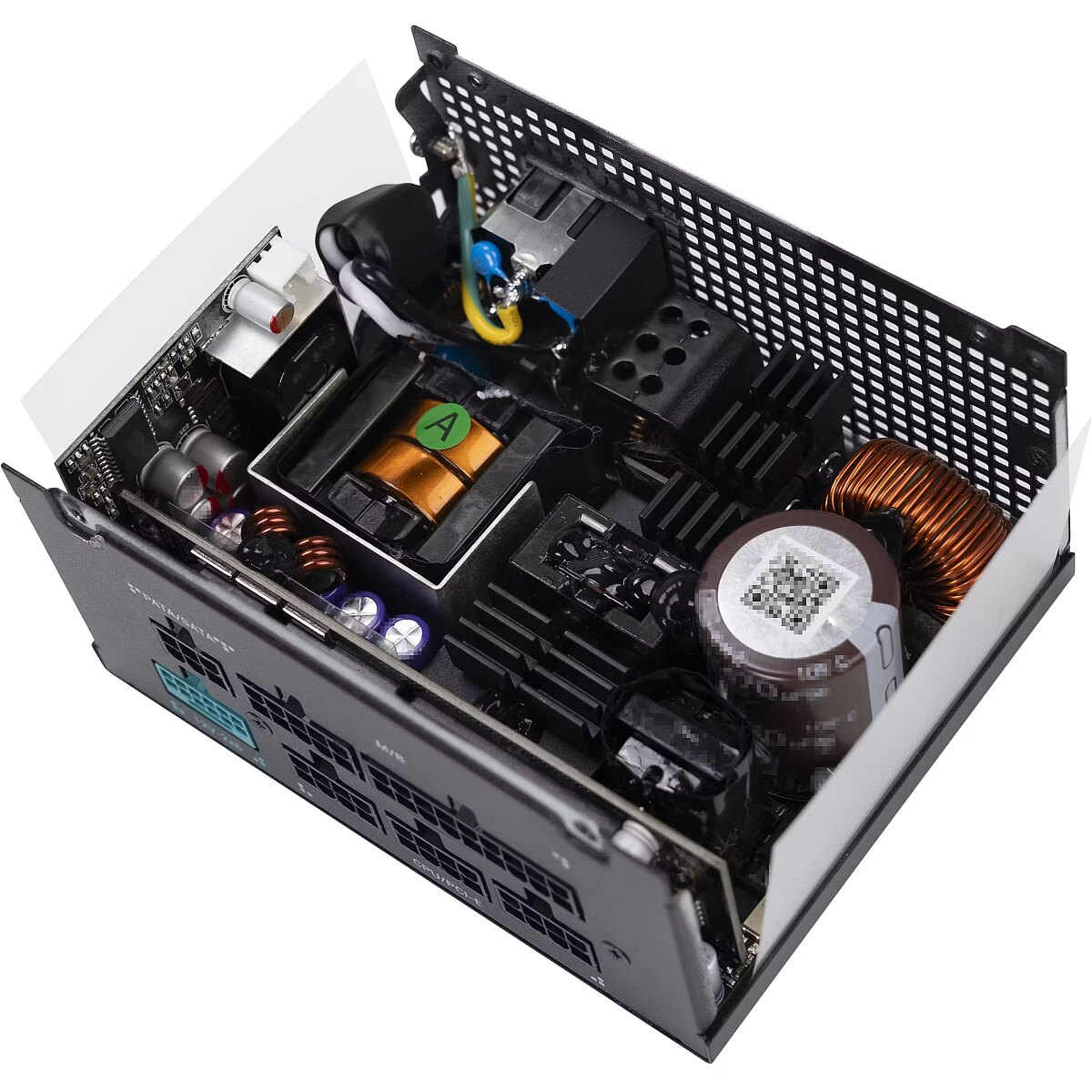

LongDesc - SMALL BUT MIGHTYThe GAMER STORM PS-G is designed for small form factor PCs, fully compliant with the latest Intel ATX 3.1 and PCIe 5.1 standards, and delivers Gold-level power efficiency.NATIVE ATX3.1 CERTIFIEDThe PS-G Series are officially certified for ATX 3.1 compliance by Cybenetics and PPLP. It can supply up to 200% of the total system power and 300% of the rated power on the 12V-2x6 connector for 0.1 ms, following the requirements established by the Intel ATX 3.1 standard.TRUST-WORTHY STABILITYTRUST-WORTHY STABILITYUtilizing full premium Japanese electrolytic capacitors, active PFC, a half-bridge LLC, and DC-to-DC topology, the PS-G maintains a hold-up time ≥ 16 ms under 80% load.THE GOLD STANDARDCertified Gold by Cybenetics and PPLP, it achieves a high power efficiency of 90% at typical 50% load conditions.PERFECTION CABLEThe PS-G features high-quality UL-certified copper-core conductors and custom-molded sleeved cables, providing excellent cable management while adhering to strict safety standards. And the dual-color 12V-2×6 sockets help users confirm proper installation.DYNAMIC FDB FANDYNAMIC FDB FANThe 92×20mm customized thick Fluid Dynamic Bearing fan, combined with an aerodynamic design optimized through PCB layout and airflow resistance analysis, ensures outstanding operational stability and significantly lowers noise levels.EXCEPTIONAL QUALITYFully complying with global safety standards and surpassing competitors, it meets the criteria for high-temperature and high-altitude environments, including conditions of 40℃ and 5000 meters above sea level.PEACE OF MINDKeep your mind at ease, the PS-G includes comprehensive protection features such as OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.WORRY-FREE COVERAGEThe PS-G is engineered and manufactured at such a meticulous level that GAMER STORM is offering a lengthy 5 years of trouble-free limited warranty coverage. Rest assured that if any problems arise during the coverage period, you will be well taken care of.
LongProductName - 750 W, SFX12V V4.1 & ATX12V V3.1, Cybenetics Platinum /PPLP Gold, FDB, Active PFC + Half Bridge SRC LLC + DC to DC, 125x100x63.5mm, Black
LongSummaryDescription - Gamer Storm PS750G. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 300,120 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, Bearing technology: FDB. Product colour: Black, Cooling type: Active, Fan diameter: 9.2 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA, AC
Manufacturer - Deepcool
Manufacturer_code - R-PS750G-FE0B-JGEU
Name - Deepcool GAMER STORM PS750G (black, 1x 12-pin high-power GPU, 3x PCIe, cable management, 750 watts)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C

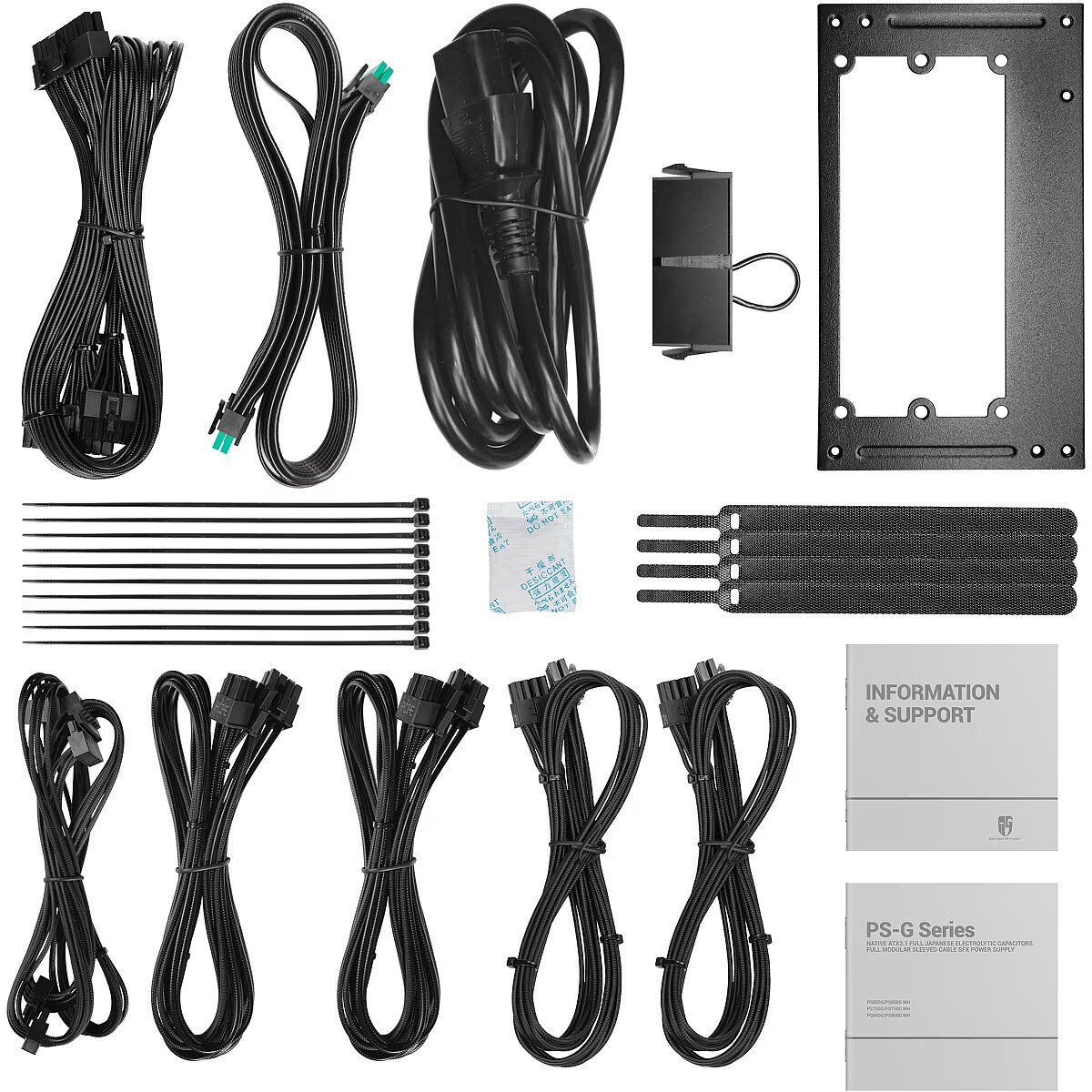

Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA, AC
Packaging content - Cable tie(s) included - Yes
Packaging data - Manual - Yes
Packaging data - Package type - Box
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - SFX
Performance - Purpose - PC

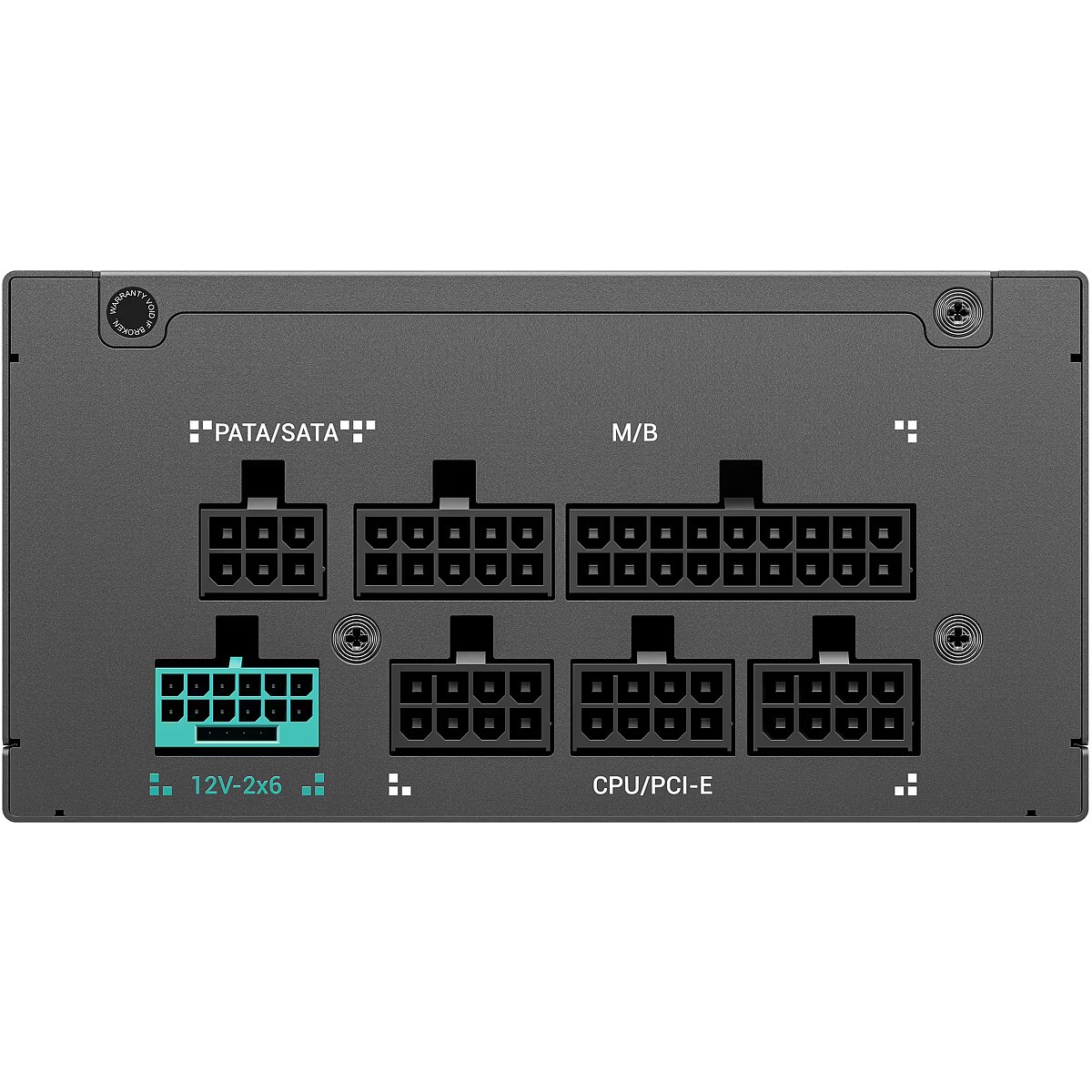

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 50 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 35 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 45 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 120 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 300,120 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 10 - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power, Over voltage, Short circuit, Overheating, Over current, Under voltage, Surge & inrush protection (SIP), No load operation
Power - Total power - 750 W
ProductName - PS750G
ShortSummaryDescription - Gamer Storm PS750G, 750 W, 100 - 240 V, 50/60 Hz, 10 - 5 A, Active, 100 W
Technical details - Sustainability certificates - ErP, Triman
Title - Gamer Storm PS750G power supply unit 750 W 20+4 pin ATX SFX Black
URL - https://www.gamerstorm.com/
WarrantyInfo - 5 years
Weight - 2,05
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 63.5 mm
Weight & dimensions - Width - 125 mm
