Lian Li RS1000G, 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1

80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version Performance - 3.1
Bearing technology Performance - FDB
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PSUs above 800 Watts
Category Code - PSU
code - G9P.RS1000G.B000.EU
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 100 W
Combined power (+12V) Power - 1200 W
CPU power cable length Ports & interfaces - 70 cm
Depth Weight & dimensions - 150 mm
Description - Available in Black and White
6 Configurations to Suit Your Build
Available in Black and White, with both 1200W and 1000W models. Users can choose between the standard version or the upgraded edition with a RS Hub for greater flexibility. MULTIPLE CERTIFICATIONS
Built as a Gold-standard power supply, the RS Series surpasses expectations.
During Cybenetics testing, its real-world efficiency exceeded the Gold range and earned a Platinum rating, proving its exceptional performance and power savings in demanding workloads. TWO INSTALLATION OPTIONS FOR GREATER FLEXIBILITY
The RS Series offers both standard and side installation options, giving users greater flexibility to match different case layouts and achieve cleaner cable management. ROTATABLE AC INLET
Innovative rotatable AC inlet rotates 90°, providing unmatched flexibility to accommodate both standard and vertical installations. Flexible Cable Routing with Dual-Sided 20+4 Pin
The dual-sided 20+4 Pin output design allows cable routing from both sides, making installation cleaner and easier in any configuration. PREMIUM INDUSTRIAL-GRADE CAPACITORS FOR UNMATCHED RELIABILITY
Equipped with German EPCOS capacitors, the RS Series delivers long-lasting stability and trusted performance you can rely on. COMPACT SIZE, POWERFUL COOLING

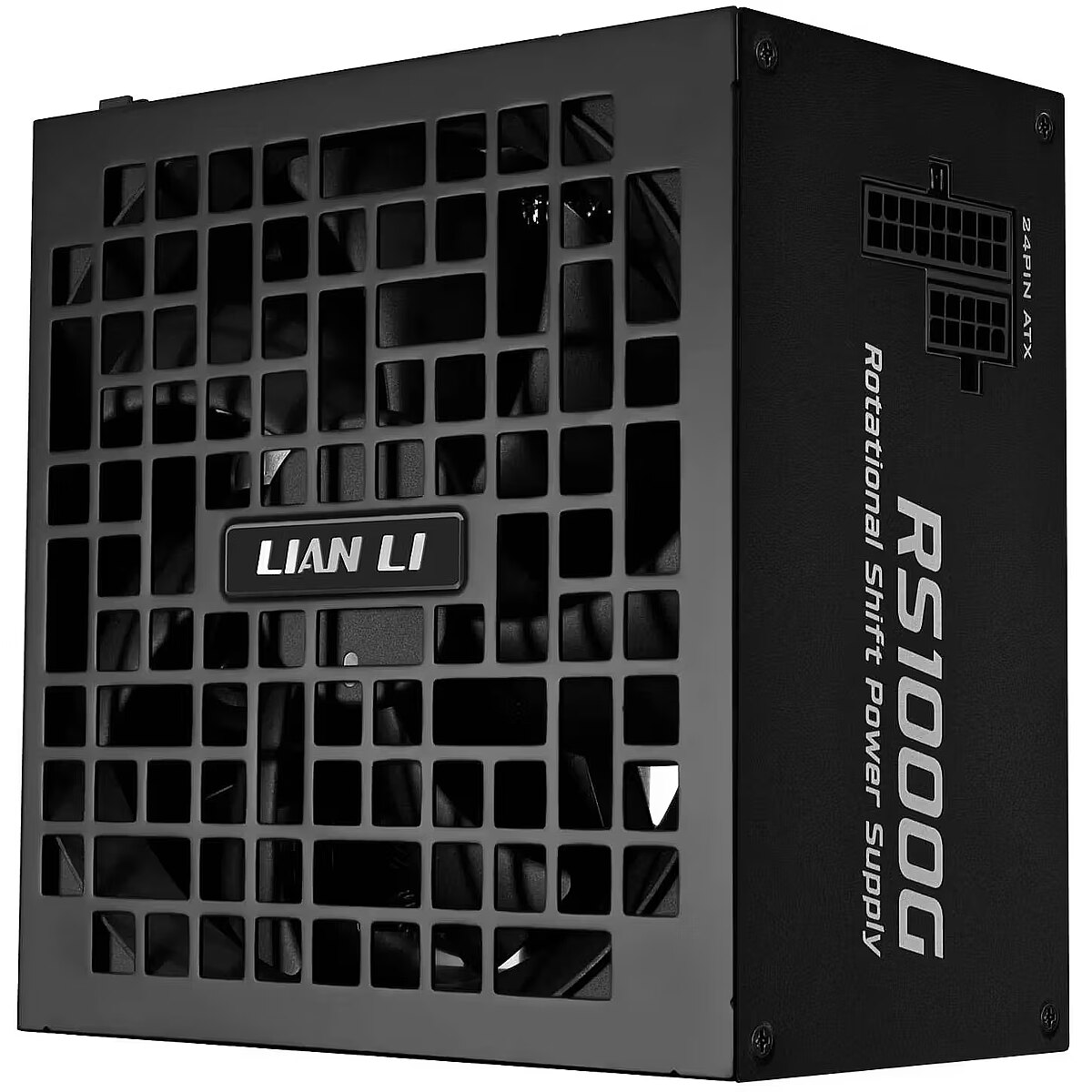

With a 150 × 86 × 150 mm form factor and a built-in 135 mm fan, the RS Series delivers efficient airflow and excellent dual-chamber case compatibility. Rated SSS by PPLP.info, it ensures ultra-low noise across all load levels for a consistently quiet experience. LIAN LI Exclusive Dual-Color 12V-2×6 Cable
Specially designed for next-gen GPUs, LIAN LI’s exclusive dual-color 12V-2×6 cable ensures safer and more reliable power delivery. The dual-color housing makes connections clearer at a glance, while the reinforced structure provides long-lasting durability and stability for every build. Braided-Textured Cable for Aesthetic Appeal
The main 20+4-pin motherboard cable features a braided texture design with an included cable comb, offering durability and a refined look that enhances the overall build aesthetics. SHORTEN YOUR CABLES, PERFECT YOUR BUILD
These ultra-flexible flat cables, combined with magnetic clips that secure the folds, let you manage excess length, making them ideal for builds that require shorter CPU or PCIe cables. Perfect for back-connect motherboards or side-mounted PSU setups, they help keep your layout neat and organized. Protective Dust Cover for 18+10 Pin Output
Equipped with an insulated dust cover on the 18+10 pin output to protect against foreign objects and ensure safe, reliable operation. All Essential Cables Included
The RS Series comes with a complete set of high-quality modular cables right out of the box. Every connection you need for a clean and reliable build is already included, ensuring a hassle-free installation experience.80 Plus Gold certified with Cybenetics Platinum-level efficiency performance90° rotatable AC inlet for standard or vertical PSU installationGerman EPCOS industrial-grade capacitors for long-term reliabilityCompact 150 × 86 × 150 mm ATX design with 135 mm cooling fanUltra-quiet operation with PPLP.info SSS and Cybenetics A noise ratingsATX 3.1 ready with native 12V-2×6 high-current copper alloy terminalsDual-sided 20+4-pin ATX output for easier 24-pin cable routing
ean - 4718466019066
Fan diameter Design - 13.5 cm
Fan speed Design - 0 - 1600 RPM
Height Weight & dimensions - 150 mm
Input current Power - 8 - 15 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - EDGE Platinum 1000
Motherboard power cable length Ports & interfaces - 62 cm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
name - Lian Li RS Series 80 PLUS Gold Netzteil, ATX 3.1, modular - 1.000 Watt, schwarz
Noise level Performance - 36.21 dB
Number of fans Design - 1 fan(s)
Operating temperature (T-T) Operational conditions - 0 - 40 °C
PCI Express power cable length Ports & interfaces - 65 cm
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Peripheral (Molex) power cable length Ports & interfaces - 500 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 4
Power Factor Correction (PFC) type Power - Active
Power protection features Power - No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under temperature, Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Summary - Lian Li RS1000G. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 62 cm, Peripheral (Molex) power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 13.5 cm, Number of fans: 1 fan(s). Width: 86 mm, Depth: 150 mm, Height: 150 mm
Total power Power - 1000 W
Unit Calculated Volume - 0.01099 cubm
Unit Calculated Weight - 4.05 kg
Units per Shipping Box - 1
Vendor Homepage - https://lian-li.com/product/rs/
Warranty - 24 months
Width Weight & dimensions - 86 mm
