8-pin 12V power connectors - 0

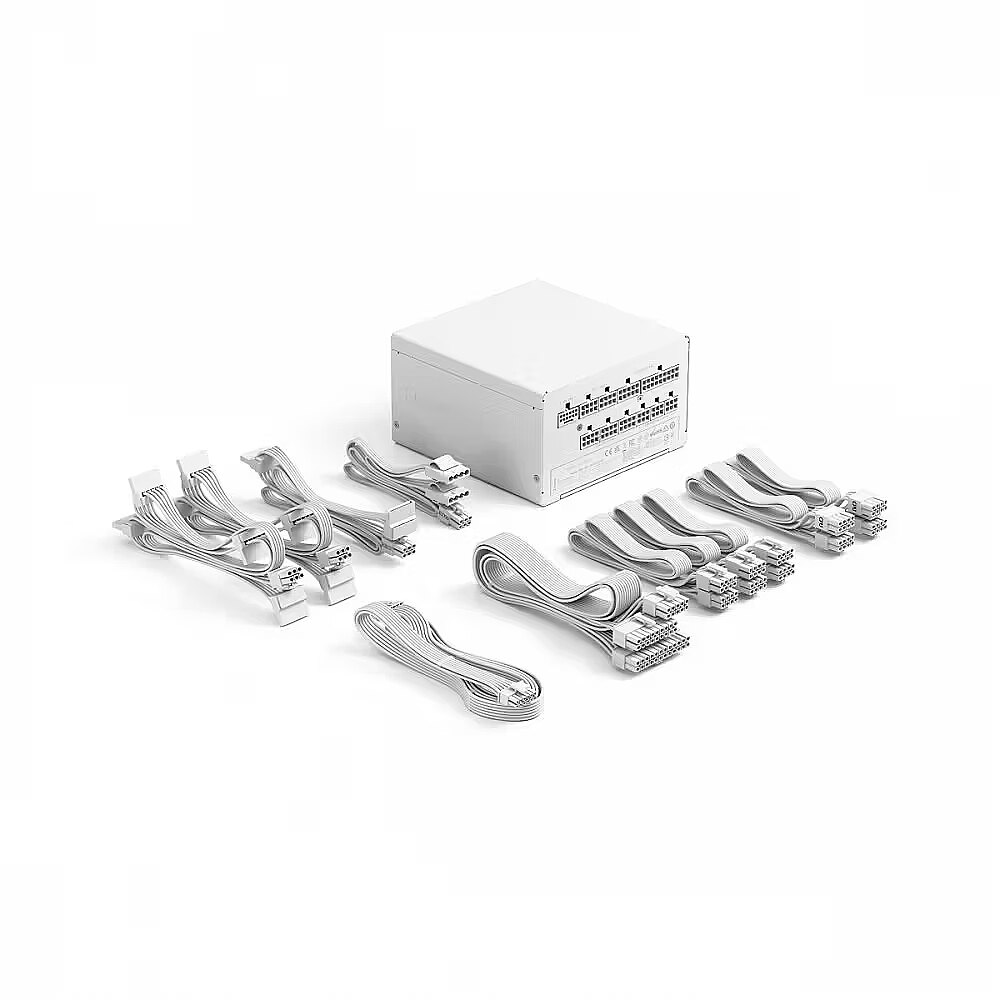

Accessories included - Zasilacz Ion 3 Gold Kable modułowe Zestaw akcesoriów (śrubki, opaski zaciskowe, naklejki z logo) Instrukcja obsługi Przewód zasilający
ATX version - 3.1
Certificates 80+ - 80 PLUS Gold
Description - The Ion 3 Gold delivers efficient and stable power in a compact, fully modular design built for modern gaming PCs. ATX12V 3.1 compatibility meets the latest standards and supports next-generation components with native PCIe Gen 5 (12V2×6) connectivity for reliable GPU operation. The quiet-optimized design utilizes a 140mm Momentum fan with a fluid dynamic bearing (FDB) and optional ZeroRPM mode, which turns the fan off under low load. With 80 PLUS Gold certification and high-quality Japanese 105°C capacitors, the Ion 3 Gold ensures long-lasting performance and peace of mind. ATX12V 3.1 compatibility and GPU power surge support for improved stability with future graphics cards. 16-pin PCIe Gen 5 (12V2×6) native GPU power with shortened sense pins for a secure and reliable connection. 80 PLUS Gold certification for high efficiency and reduced waste heat. Fully modular design simplifies installation and reduces cable clutter. Powerful 140mm Momentum fan with fluid dynamic bearing (FDB) for quieter and cooler operation. ZeroRPM mode (optional) disables the fan under low load, ensuring near-silent operation. Flex flexible cables for easy routing and a clean case interior. High-quality Japanese 105°C electrolytic capacitors for reliability and long life.
Designation - CE+WEEE
dimension depth - 185 mm
dimension height - 125 mm
Dimensions - 150 × 150 × 86 mm
dimension weight - 3500 g
dimension width - 355 mm
ean - 7340172710288
Fan - 14 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
guarantee - 84
guarantee_type - normal
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 2

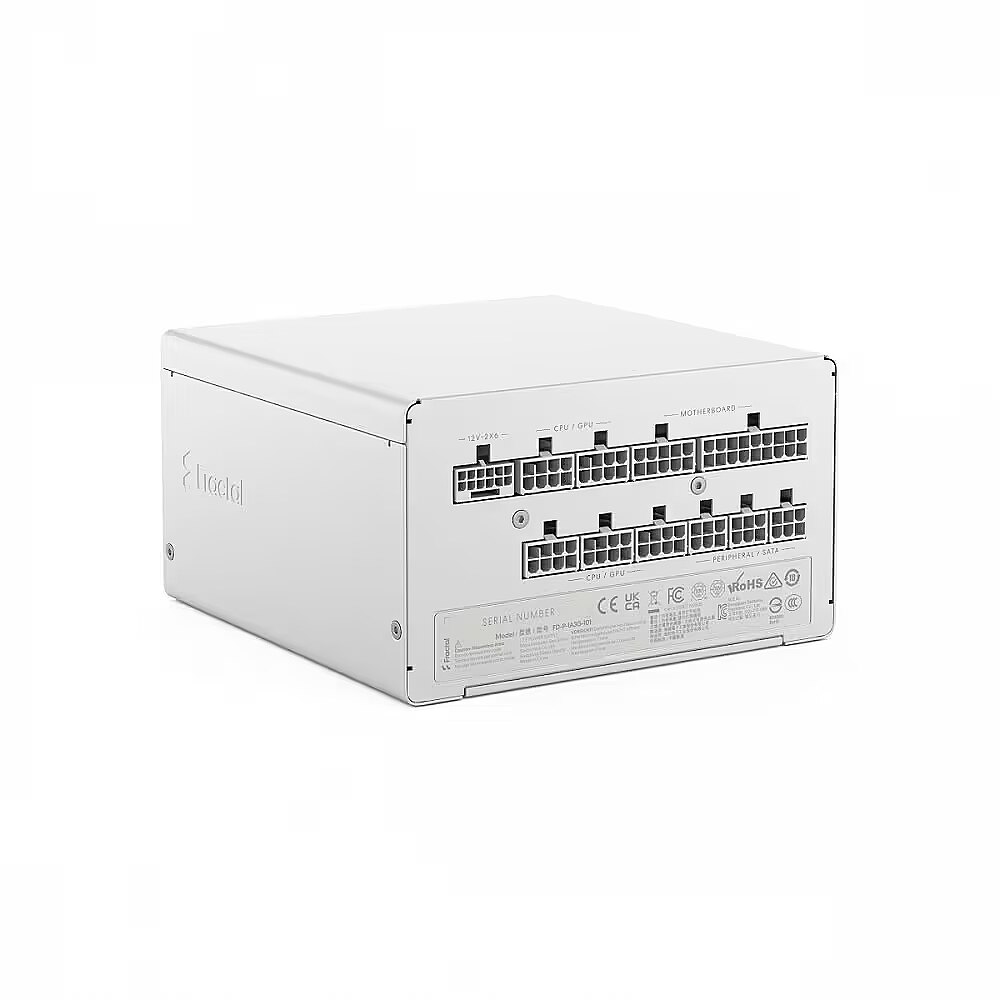

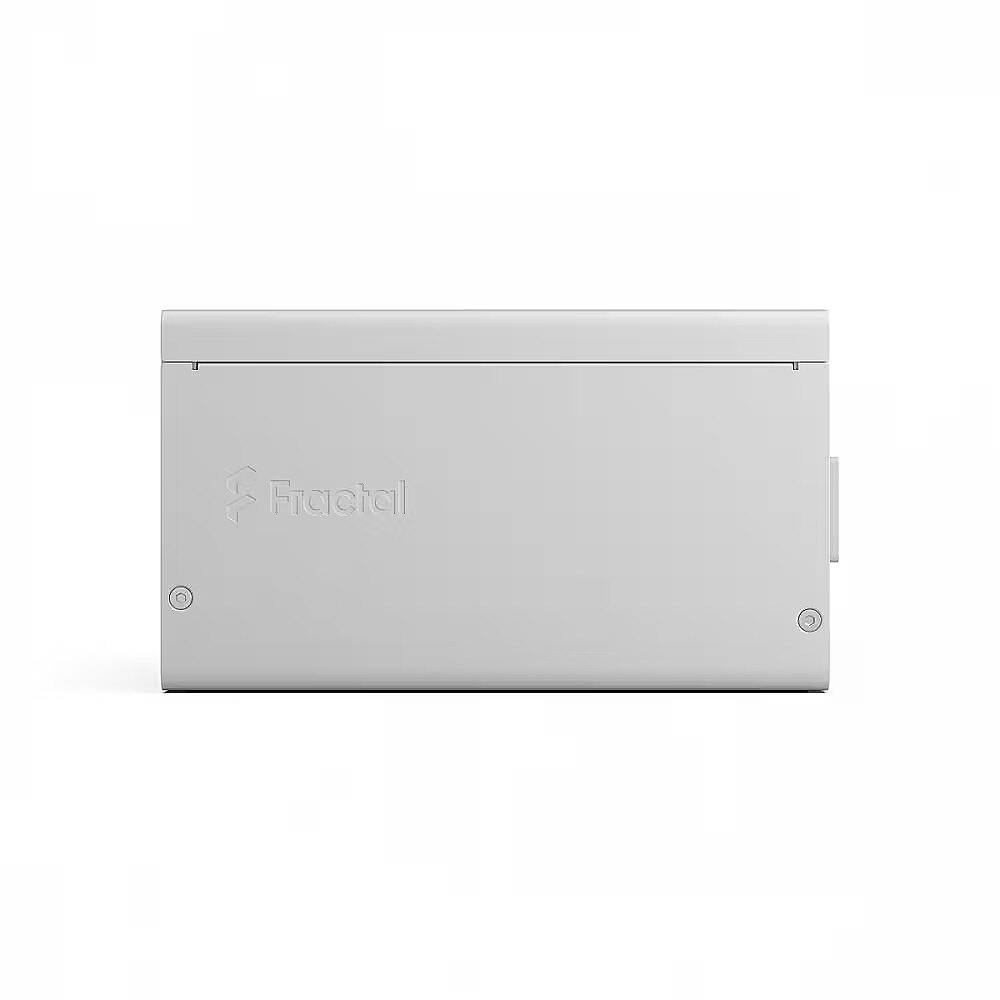

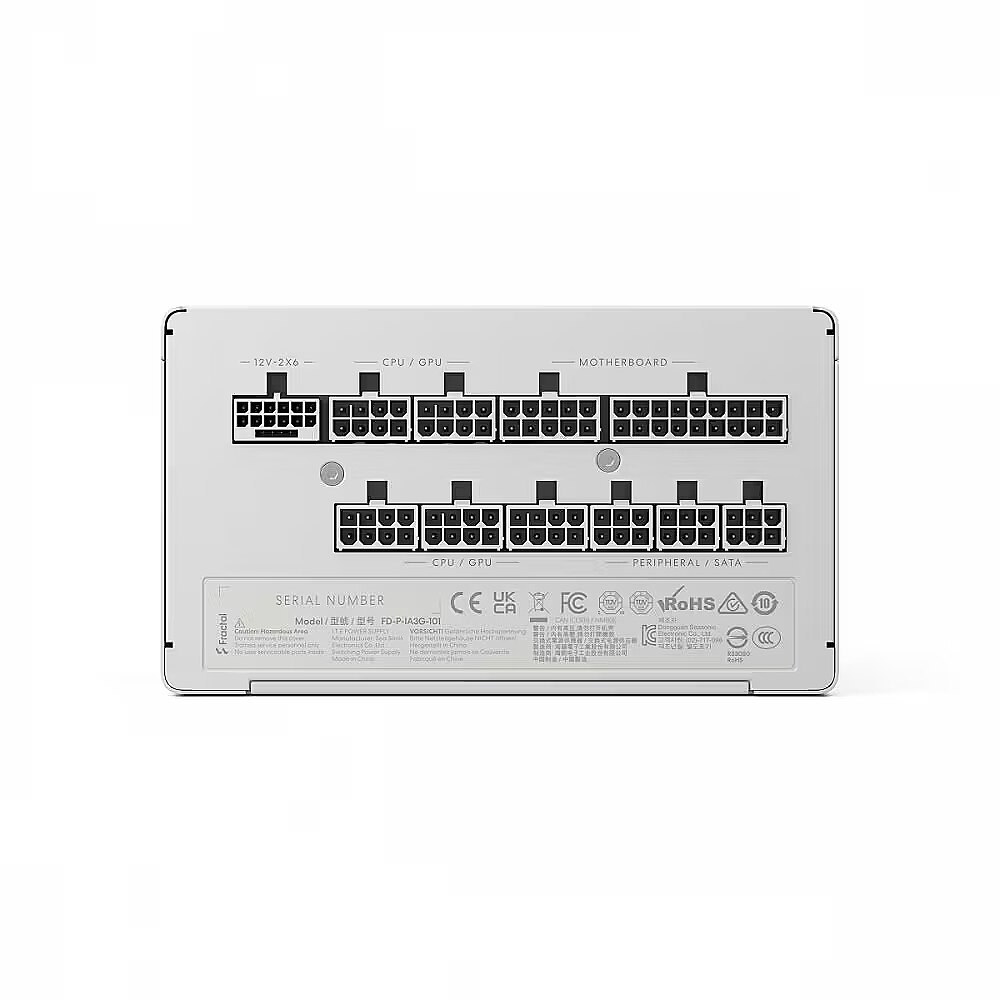

name - FDE Ion 3 GOLD 1000W 80+ GOLD White
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Number of USB 10p connectors - 0
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 1000 W
producer - Fractal Design
SATA power connectors - 10
vendpn - FD-P-IA3G-101-EU-WT
