Lian Li SP850 V2 Black, 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1

80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.1
Bearing technology Performance - FDB
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PSUs above 800 Watts
Category Code - PSU
code - G9P.SP0850G.B000.EU
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 840 W
Combined power (-12V) Power - 3.6 W
CPU power cable length Ports & interfaces - 60 cm
Depth Weight & dimensions - 100 mm
Description - PERFORMANCE SFX FORM FACTOR POWER SUPPLY
The SP V2 Gold is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components. AVAILABLE IN TWO COLORS & TWO WATTAGES
Choose the fully modular SFX PSU in black or white, with 850W or 750W options to perfectly match your build. COMPACT SIZE, BIG PERFORMANCE
Measuring 125 × 100 × 63.5 mm, this compact PSU saves valuable space inside the builds without compromising on power delivery. 80 PLUS GOLD CERTIFICATE
With 80 PLUS Gold certification, the SP V2 Gold delivers over 90% efficiency at 50% system load under 115V AC input conditions, ensuring high energy efficiency with stable power delivery and minimal energy loss. ATX 3.1 READY WITH 12V-2×6 CONNECTOR
The SP V2 Gold features a next-gen 12V-2×6 power connector compliant with the latest ATX 3.1 specification, providing direct support for PCIe 5.0 graphics cards and addressing the growing power demands of modern systems. LIAN LI CUSTOM 12V-2×6 POWER CABLE
LIAN LI’s in-house developed 12V-2×6 power cable features a custom-molded design combined with alloy copper soldered terminals to deliver superior stability and efficient power delivery. Built to meet the demanding needs of high-end graphics cards, this cable ensures safer, more durable connections for your cutting-edge system. Each cable is engineered for ease of use, with dual-color connector housings for intuitive installation, reinforced soldering for improved reliability, and a 20.5mm connector width optimized to prevent interference during GPU mounting. FDB FAN FOR QUIET COOLING

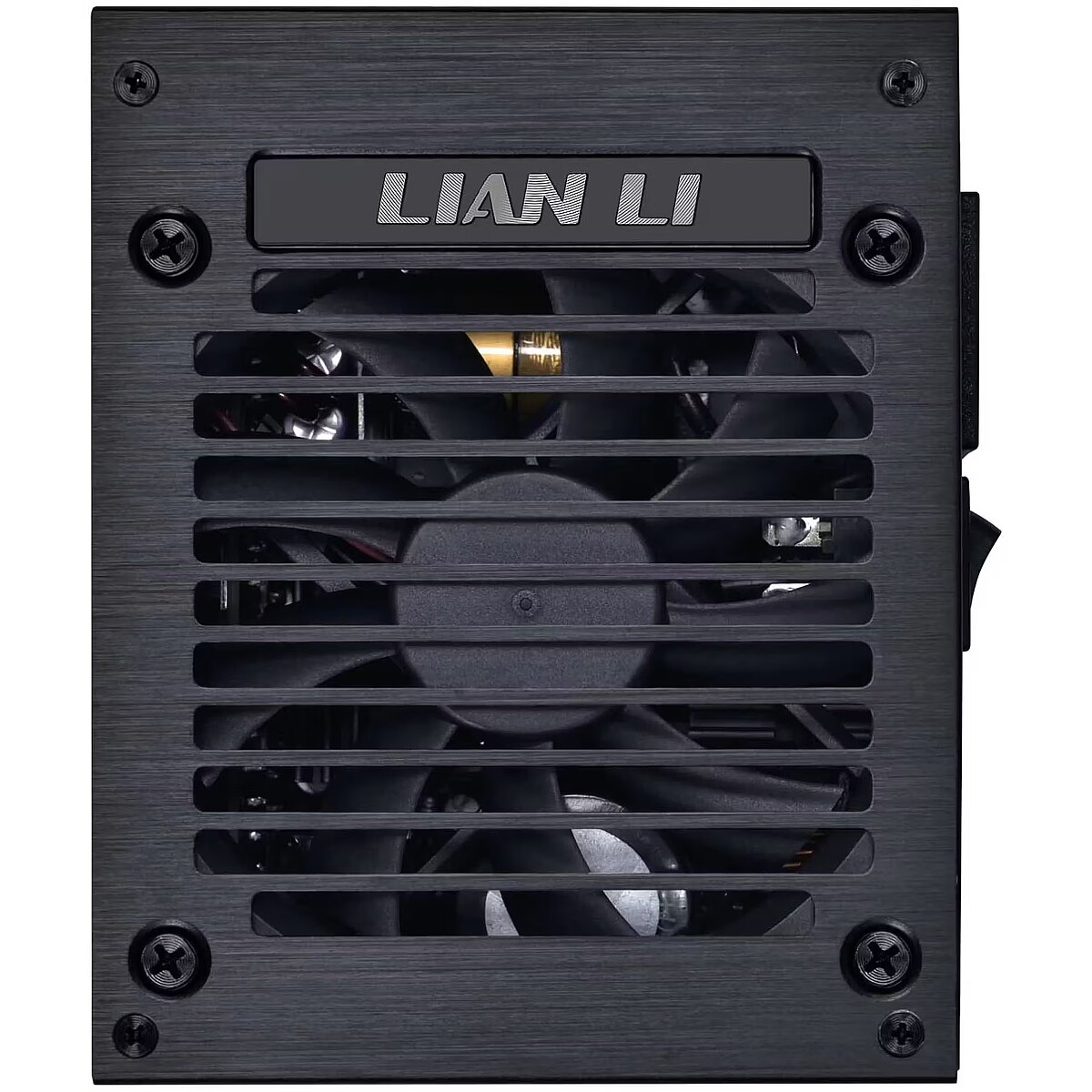

The SP V2 Gold utilizes a 92mm FDB fan to deliver efficient cooling with low noise. Even under sustained high workloads, it maintains stable performance while ensuring silent operation. JAPANESE ELECTROLYTIC CAPACITORS
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability. REFINED DESIGN WITH FULLY MODULAR CABLES

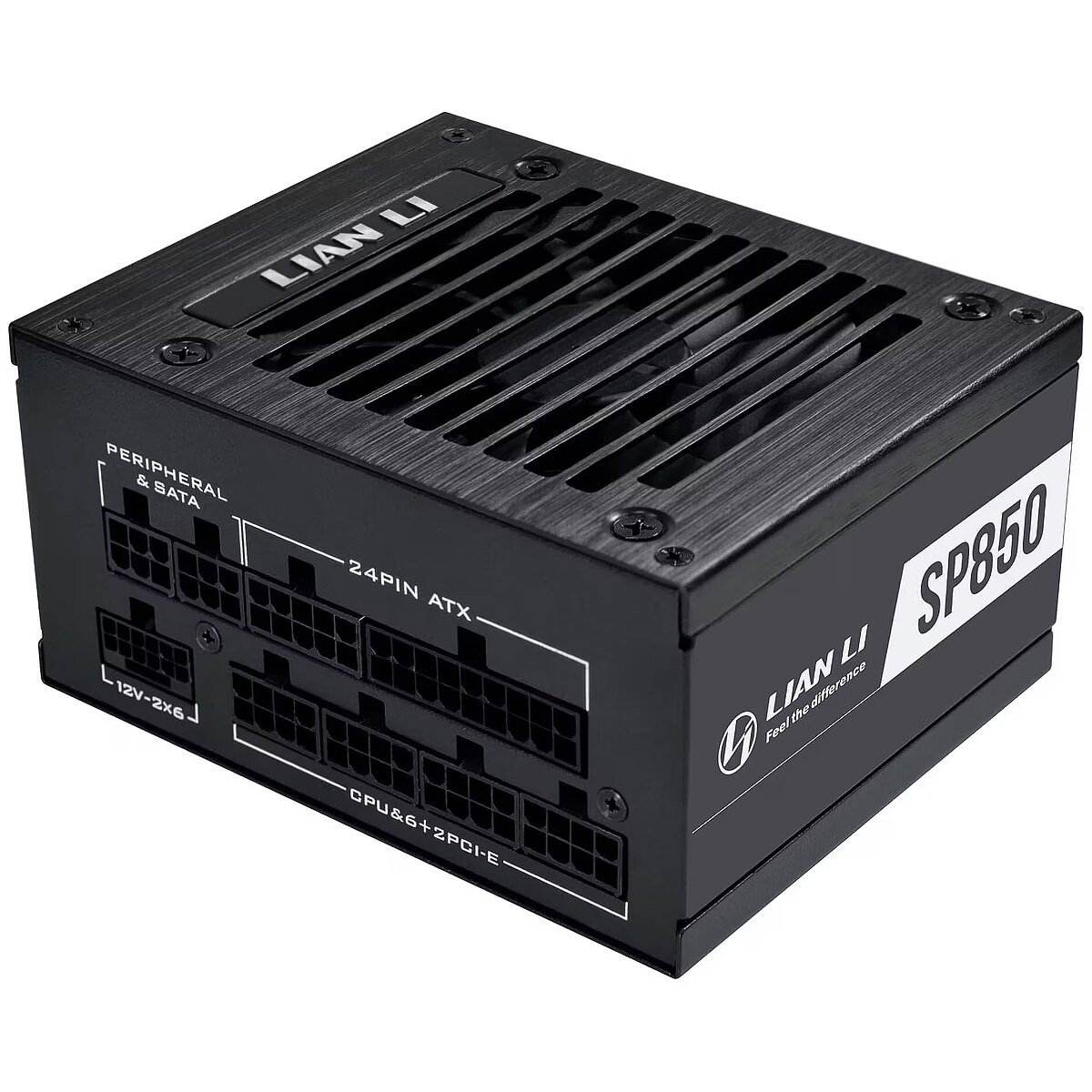

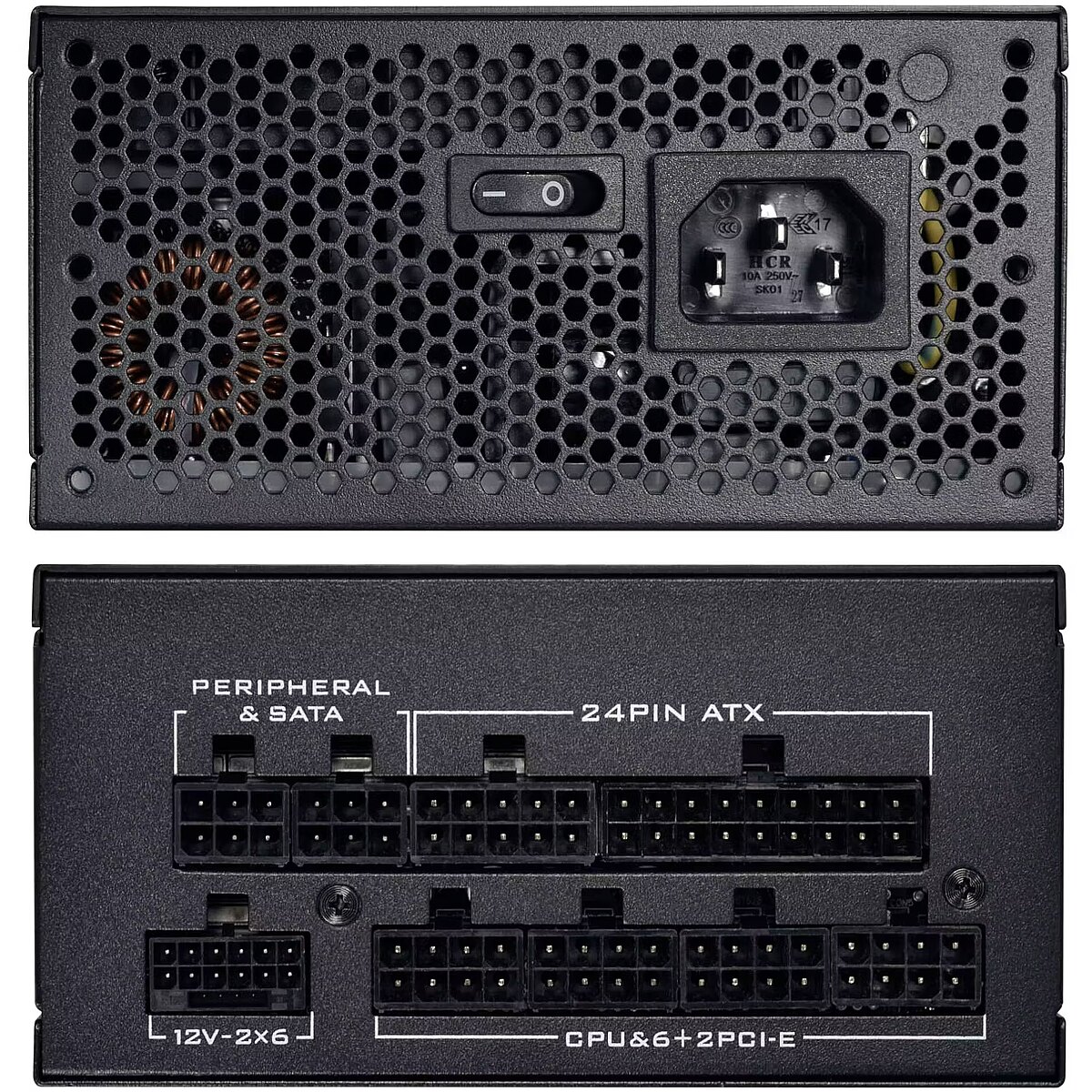

The SP V2 Gold features a fully modular cable system with all necessary braided cables included out of the box, reducing clutter and enhancing visual appeal. ENHANCED DURABILITY WITH EMBOSSED CABLE DESIGN
The embossed cable design enhances both durability and flexibility, ensuring long-lasting performance even under frequent use. Its unique textured surface helps reduce tangling and knotting, delivering a smoother installation experience and cleaner cable management. SUFFICIENT PROTECTION
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection) and inrush current limiter that make the PSU operating in stable condition.Compact 125 × 100 × 63.5 mm SFX size for space-limited builds80 PLUS Gold certified with 90%+ efficiency at 50% load (115V)ATX 3.1 & PCIe 5.0 ready with native 12V-2×6 GPU supportExclusive 12V-2×6 cable design prevents GPU clearance issues92 mm FDB fan with ZERO RPM mode for silent operationFully modular design with anti-tangle embossed cablesOffering comprehensive protection mechanisms, including OCP, OVP, SCP, OPP, UVP, OTP
ean - 4718466018083
Efficiency Power - 90%
EPS power connector (8-pin) Ports & interfaces - Yes
Fan diameter Design - 9.2 cm
Fan speed Design - 0 - 3000 RPM
Height Weight & dimensions - 63.5 mm
Input current Power - 5 - 10 A
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 70 A
Max output current (-12V) Power - 0.3 A
Model name - SP0850
Motherboard power cable length Ports & interfaces - 35 cm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
name - Lian Li SP850 V2 Gold Netzteil, modular, ATX 3.1 - 850 Watt, schwarz
Noise level Performance - 40 dB
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 7
Operating temperature (T-T) Operational conditions - 0 - 40 °C
PCI Express power cable length Ports & interfaces - 40 cm
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
PCI Express power connectors (8-pin) Ports & interfaces - 1
Peripheral (Molex) power cable length Ports & interfaces - 350 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 1
Power Factor Correction (PFC) type Power - Active
Power protection features Power - No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under temperature, Under voltage
Power supply unit (PSU) form factor Performance - SFX
Product colour Design - Black
Purpose Performance - PC
SATA power cable length Ports & interfaces - 350 mm
Summary - Lian Li SP V2 Gold. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 350 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 9.2 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 100 mm, Height: 63.5 mm
Total power Power - 850 W
Unit Box Height - 0.19
Unit Box Length - 0.25
Unit Box Width - 0.11
Unit Calculated Volume - 0.006186 cubm
Unit Calculated Weight - 1.87 kg
Units per Pallet - 0
Units per Shipping Box - 10
Vendor Homepage - https://lian-li.com/product/sp-v2/
Warranty - 24 months
Width Weight & dimensions - 125 mm
