Brand - Mars Gaming
BrandPartCode - MPIII650W
Category - Power Supply Units
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates - Compliance certificates - CE, RoHS
description_en - Dimensions: 150x140x85mm
Weight: 1300g
Wire type: Fixed
Fan: 120mm
Color: White
Extras: 85+ Eco-Friendly, Anti-Vibration System and Fan Speed Control Power: 650W
Max. Power: 7A
Input voltage: 200-240V 50/60Hz
PFC: Passive
Efficiency: 85%
Sound level: 14dB
Form Factor: ATX
Certifications: ATX12V, Haswell Ready, CE, ROHS
Protections: OPP, OVP, UVP, SCP
Connectors: 1x ATX MB 20+4 PIN, 1x EPS +12V 4+4 PIN, 3x SATA, 2x Molex 4 PIN, 1x PCIe 6+2 PIN

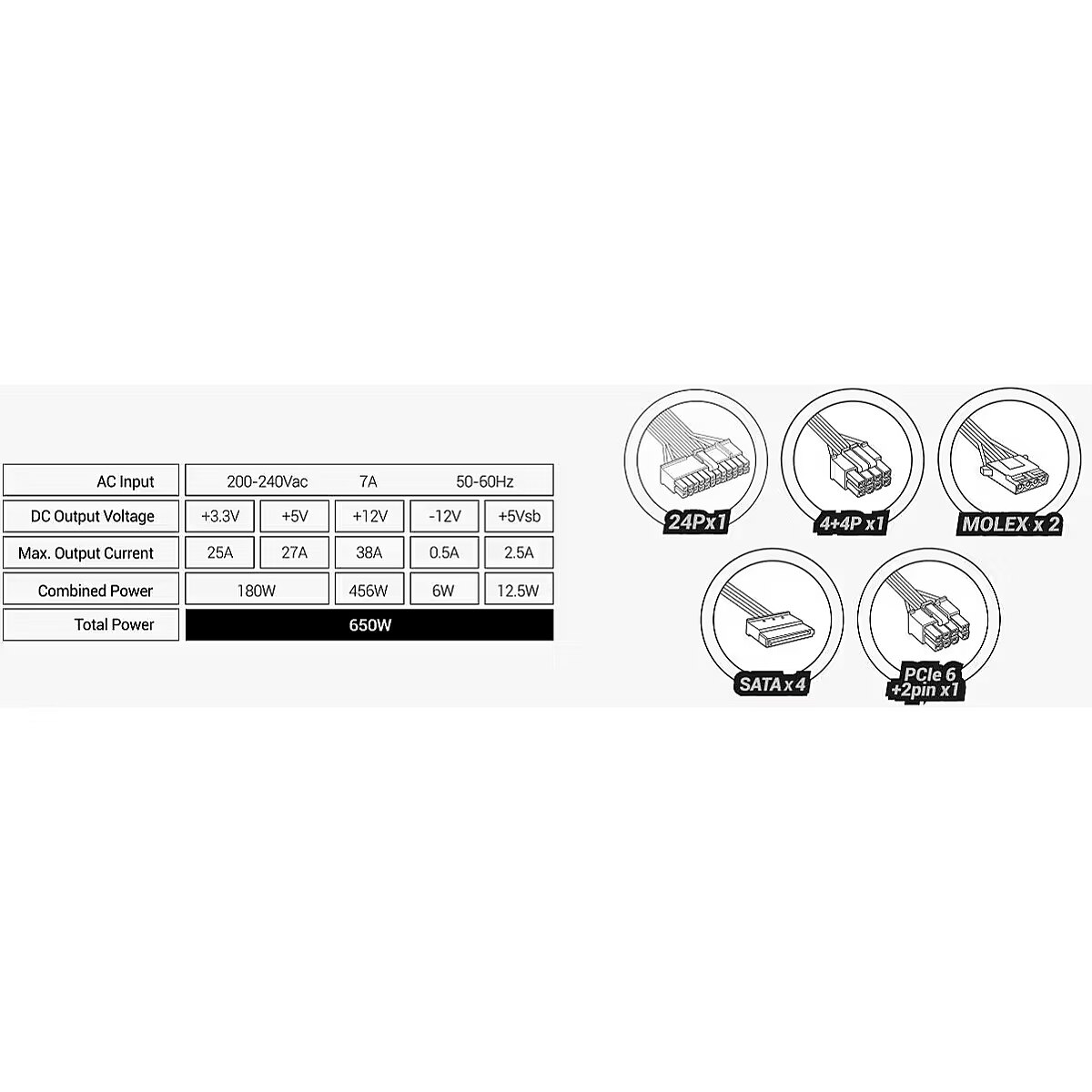

Voltage: +3.3V - 25A / +5V - 27A / +12V - 38A / -12V - 0.5A / +5VSB - 2.5A
description_lv - Izmēri: 150x140x85mm
Svars: 1300g
Vada tips: fiksēts
Ventilators: 120 mm
Krāsa: balts
Papildus: 85+ Eco Friendly, pretvibrācijas sistēma un ventilatora ātruma kontrole
Jauda: 650W
Maks. Jauda: 7A
Ieejas spriegums: 200-240V 50/60Hz
PFC: pasīvs
Efektivitāte: 85%
Skaņas līmenis: 14dB
Formas faktors: ATX
Sertifikāti: ATX12V, Haswell Ready, CE, ROHS
Aizsardzība: OPP, OVP, UVP, SCP
Savienotāji: 1x ATX MB 20+4 PIN, 1x EPS+12V 4+4 PIN, 3x SATA, 2x Molex 4 PIN, 1x PCIe 6+2 PIN
Spriegums: +3.3V - 25A / +5V - 27A / +12V - 38A / -12V - 0.5A / +5VSB - 2.5A
description_ru - Размеры: 150x140x85 мм
Вес: 1300г
Тип провода: фиксированный
Вентилятор: 120 мм
Цвет: белый
Дополнительно: эфективность 85%, антивибрационных систем и контроля скорости вращения вентилятора.
Мощность: 650W
Максимум. Мощность: 7А
Входное напряжение: 200-240 В, 50/60 Гц
PFC: Active
КПД: 85%
Уровень шума: 14 дБ
Форм-фактор: ATX
Сертификаты: ATX12V, Haswell Ready, CE, ROHS
Защиты: OPP, OVP, UVP, SCP
Разъемы: 1x ATX MB 20 + 4 PIN, 1x EPS + 12V 4 + 4 PIN, 3x SATA, 2x Molex 4 PIN, 1x PCIe 6+2 PIN
Напряжение: + 3.3V - 25A / + 5V - 27A / + 12V - 38A / -12V - 0.5A / + 5VSB - 2.5A
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - White
EAN - 8435693106807
gross_weight - 1.2 kg
GTIN - 8435693106807
LongDesc - MPIII650 POWER SUPPLY5 years warranty thanks to the latest high-precision SMD manufacturing technology, double-layer fiberglass PCB and A-grade components for total reliability. Maximum silence with the new AI-RPM technology. 99% DIGITAL APFC efficiency, 85% electric efficiency, extra-long black flat cables and all protection and safety systems included.5 YEARS WARRANTY. 85% EFFICIENCY650W of power85% EFFICIENCY5 YEARS WARRANTYAI-RPM SILENT TECHNOLOGY5 YEARS WARRANTY. TOTAL SECURITY. SMD.Thanks to the latest high-precision SMD manufacturing technology and the use of the highest quality and reliable A-grade components, the MPIII650 offers an extended 5-year performance warranty. Its ultra-stable SMD fabrication on a double-layer fiberglass PCB ensures extreme performance and reliability under any circumstances. In addition, the MPIII650 integrates the most advanced and complete electronic safety systems: OVP (over voltage protection), UVP (under voltage protection), OCP (overpower protection), OPP (overpower protection) and SCP EXTENDED (total internal and external short circuit protection). The MPIII650 has been developed in Europe and manufactured under the strictest European standards.ABSOLUTE SILENCE. AI-RPM AND FDB.Equipped with the latest AI-RPM fan control technology ideal for ensuring noise-free operation, the MPIII650 PSU features state-of-the-art intelligent thermal control based on advanced algorithms and multilevel control systems to keep the fan to a minimum. In addition, the MPIII650 features an industrial-grade fan with dynamic fluid bearing and extra-large motor to maximize its stability. All available technology to ensure minimum noise and maximum efficiency and durability. PROFESSIONAL EFFICIENCYWith 99% efficiency in the DIGITAL APFC system and 85% electric efficiency you will achieve a perfect balance between efficiency and consumption. In addition, its +12v single-rail technology allows you to install the most demanding hardware.OPTIMIZED CABLE DESIGNThe MIII650's cables are flat, black, and extra-long: a combination of features that make installation not only easier than ever, but also totally versatile for any mounting in any type of case. Build the ultimate PC with an oversized tower and enjoy your games in style.EPE HIGH PROTECTION PACKAGINGTo ensure that the MPIII650 power supply arrives in perfect condition it is fully protected by special packaging with a full shock absorption system.
LongProductName - MPIII650W
LongSummaryDescription - Mars Gaming MPIII650. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, Noise level: 14 dB. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, RoHS
Model - MPIII650W
Packaging data - Package depth - 238 mm
Packaging data - Package height - 205 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.55 kg
Packaging data - Package width - 125 mm
Performance - 80 PLUS certification - No
Performance - Bearing technology - FDB
Performance - Noise level - 14 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 180 W
Power - Combined power (+5V) - 180 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 456 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 85%
Power - Input current - 7 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 27 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 38 A
Power - Max output current (-12V) - 0.5 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power, Over voltage, Short circuit, Under voltage
Power - Total power - 650 W
Producer - Mars Gaming
ProductName - MPIII650
ShortSummaryDescription - Mars Gaming MPIII650, 650 W, 200 - 240 V, 50/60 Hz, 7 A, Active, 180 W
Title - Mars Gaming MPIII650 power supply unit 650 W 20+4 pin ATX ATX White
title_en - Mars Gaming MPIII650W Power Supply ATX 650W
title_lv - Mars Gaming MPIII650W Barošanas bloks ATX 650W
title_ru - Mars Gaming MPIII650W Блок питания ATX 650W
URL - https://www.marsgaming.eu/
WarrantyInfo -
weight - 0.9 kg
Weight & dimensions - Depth - 145 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 1.4 kg
Weight & dimensions - Width - 150 mm
