Brand - Gamer Storm
BrandPartCode - R-PN650D-FC0B-JGEU-V2
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Certification - P65
Certificates - Compliance certificates - CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN_code - 6933412741732
GTIN - 6933412741732
Logistics data - Warranty period - 10 year(s)

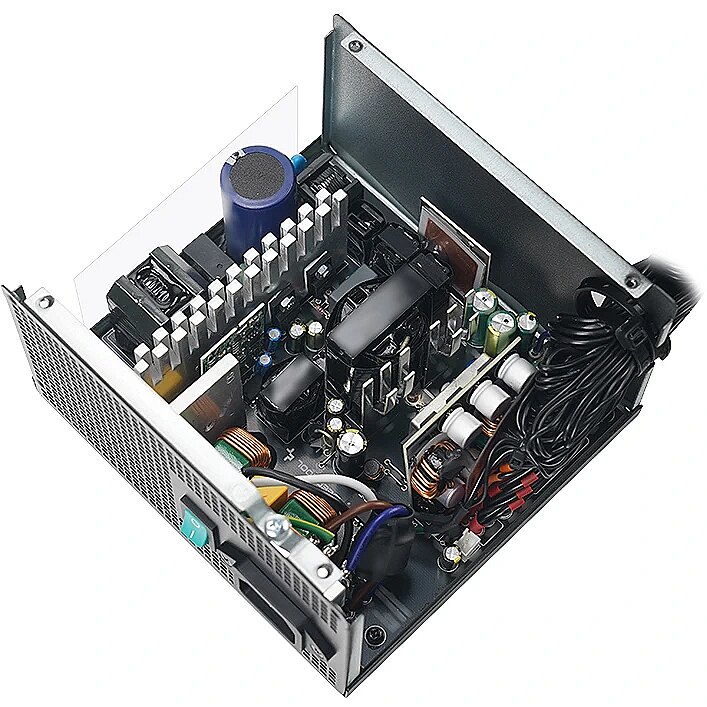

LongDesc - POWER YOU CAN TRUSTThrough the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN650D can keep the hold-up time to ≥ 16 ms under a high load of 80%.PCI-E 5.1 POWEREquipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2x6 cable, the PN650D provides up to 450W for modern GPUs.SLEEVED CABLESThe PN650D has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.DYNAMIC HYDRO BEARING FANThe PN650D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.HIGH QUALITY BUILDDue to the high quality of the parts utilized, the PN650D will operate at altitudes up to 5000 meters above sea level.PEACE OF MINDThe PN650D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.EXCELLENT COVERAGEThe PN650D is engineered and manufactured at such a high level that is offering a lengthy 10 years of trouble-free limited warranty coverage.
LongProductName - 650W, ATX12V V3.1, 120 mm, Active PFC, 80 PLUS Gold, 150 x 140 x 86 mm, Black
LongSummaryDescription - Gamer Storm PN650D. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 120,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Manufacturer - Deepcool
Manufacturer_code - R-PN650D-FC0B-JGEU-V2
Name - DeepCool PN650D, PC power supply, black, 650 watts
Operational conditions - Operating temperature (T-T) - 0 - 40 °C

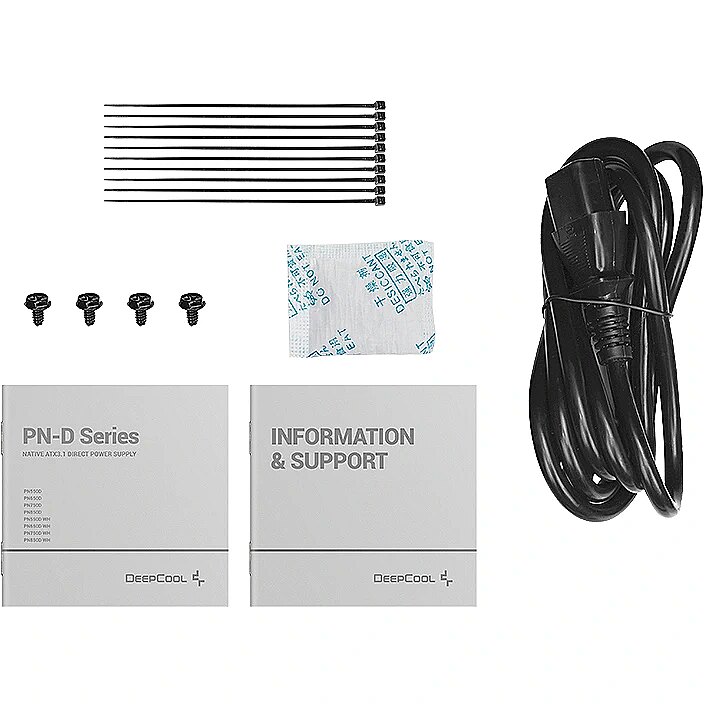

Other features - Cable ties included - Yes
Other features - Screws included - Yes
Packaging content - Cables included - AC
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - Hydro bearing
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power cables - 2
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 55 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 120 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 120,450 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 10.0 - 5.0 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge and inrush, Under voltage
Power - Total power - 650 W
ProductName - PN650D
ShortSummaryDescription - Gamer Storm PN650D, 650 W, 100 - 240 V, 50/60 Hz, 10.0 - 5.0 A, Active, 100 W
Technical details - Sustainability certificates - ErP, Triman
Title - Gamer Storm PN650D power supply unit 650 W 20+4 pin ATX ATX Black
URL - https://www.gamerstorm.com/
WarrantyInfo - 10-year
Weight - 1,50
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
