8-pin 12V power connectors - 1
Accessories included -
ATX version - 3.0
Brand - Zalman
BrandPartCode - ZM750-GV3
Category - Power Supply Units
Certificates - Compliance certificates - CB, CE, EAC, KC, RCM, RoHS
Certificates 80+ - 80 PLUS Bronze
Description - GigaMax3 power supply ETA Silver GigaMax3 has an ETA Silver performance rating, which means it is guaranteed to deliver 85% typical performance. Lambda Not only the efficiency of power supplies is assessed, but also the noise they generate. The GigaMax 3 series is Lambda rated for a certified silent power supply. PCIe 5.0 and 12VHPWR Ready! Compatible with ATX 3.0, 100% ready for Intel and AMD PCIe 5.0 Ready Supports dedicated 16-pin PCIe 5.0 connector for the latest graphics cards. EU 80 PLUS Bronze 230 V certified 80PLUS Bronze guarantees efficiency of 85%, 88%, 85% at 20%, 50% and 100% load, significantly reducing the overall energy consumption of the system. Higher power supply efficiency means less leakage current, which means less heat, high-frequency noise and fan noise. Semi-modular power supply The semi-modular design minimizes resistance and voltage drop across cables and lowers impedance to further increase energy efficiency by connecting only the cables your system needs to allow smooth airflow to cool the system.
Design - Fan diameter - 12 cm
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 190 mm
dimension height - 280 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 2100 g
dimension width - 110 mm
ean - 8809213765568
Fan - 12 cm
Floppy power connectors - 0
GTIN - 8809213765568
guarantee - 60
guarantee_type - normal
LongDesc - Cybenetics ETA SILVERThe GigaMax3 has an ETA Silver efficiency rating, meaning it has a guaranteed typical efficiency of 85%.Cybenetics LAMBDANot only the efficiency of the power supplies is evaluated, also the noise generated by it.GigaMax 3 series has Lambda grade for certificated silent PSU.Intel ATX 3.1 guide compatiblePCIe 5.1 & 12V-2x6 Ready!ATX 3.1 compatible100% ready for Intel and AMDPCIe 5.1 ReadySupports a dedicated 16pin PCIe 5.1 connector for the latest graphics cards80 PLUS Bronze 230V EU Certified80PLUS Bronze guarantees 85%, 88%, 85% efficiency with 20%, 50% and 100% load rates, significantly reducing overall system power consumption. The higher efficiency of the PSU means that there is less leakage of current, which means less heat, high frequency noises, and fan noise.Semi-modular PSUSemi modular design minimizes resistance and voltage drop on the cables and lowers impedance to further enhance energy efficiency, connecting only the cables your system needs to allow for smooth airflow to cool the system.Active PFC With 99% Maximum Power FactorActive PFC system with maximum power factor of 99% providing consistent and stable output as well as high energy efficiency. High efficiency ensures safe, stable system operation with low component noise, less heat from parts, and minimal fluctuation of power supply. Built-In EMI Filter For Noise ReductionEMI filter is installed to suppress frequency that causes noise for better system operation.12V DC-TO-DC Convertor With 100% AvailabilityThe power supply supports a wide range of PC components, minimizing variations in output voltage, maximizing 12V DC rail output to provide a stable system operationBuilt-In High PerformanceTaiwanese Capacitor That Handles Up To 221˚FHighly reliable Japanese capacitor used to supply stable voltage even at high temperatures up to 221˚FAluminum Solid CapacitorAll capacitors in the power supply are top quality and very reliable in supplying stable power even at high temperature.Multiple Protection Circuit SystemMultiple protection circuit system protects your systemOver Power Protection, Over Voltage Protection,Under Voltage Protection, Over Current Protection,Short Circuit Protection, Over Temperature ProtectionCertifications (Domestic/Overseas)ZALMAN’s power supply has acquired many domestic and overseas certifications to ensure a safe and stable PC experience for all our users.Highly Energy-Efficient Standby Power SupplyZALMAN’s power supply has such remarkable energy efficiency, that during standby the power supply can be kept under 0.5W to avoid any unnecessary power consumption.The power supply has acquired ErP LOT 6 which passed european energy saving standards for environmental friendly and energy efficient experience for users. Eco-Friendly ProductsAll Materials Included Are Environmentally Safe And Harmless.RoHS CompliantCertified products are environmentally safe that do not cause harm to the human body.Certification is received when XRF testing determines that the 10 hazardous substances is below the standard value for the electronic products exported to europe.Unlike other inexpensive products, ZALMAN’s products are produced from the beginning with RoHS standards in mind. Intel and AMD RYZEN 100% Compatible and ReadyMeets all the needs of Intel and AMD RYZEN processors for high performance PC users.Compact sizeStandard ATX size provides wide compatibilityFDB (Fluid Dynamic Bearing)Quiet and Long Lifespan Cooling TechnologyFDB(Fluid Dynamic Bearing) has benefits of low noise and long lifespan.it discharges internal heat quickly and provides sufficient cooling at a low RPM to maximize stable, safe power supply.FDB (Fluid Dynamic Bearing) FanFDB, Fluid bearing type is a thin lubricant layer that replaces the bearing for durable, quiet, and long lifespan.FDB Fan stays quiet even for long usageUnlike other conventional bearing fan, FDB fan stays extremely quiet even after a long period of usage.Honeycomb VentsHoneycomb vents provide superior performance and ventilation, discharging hot air quickly

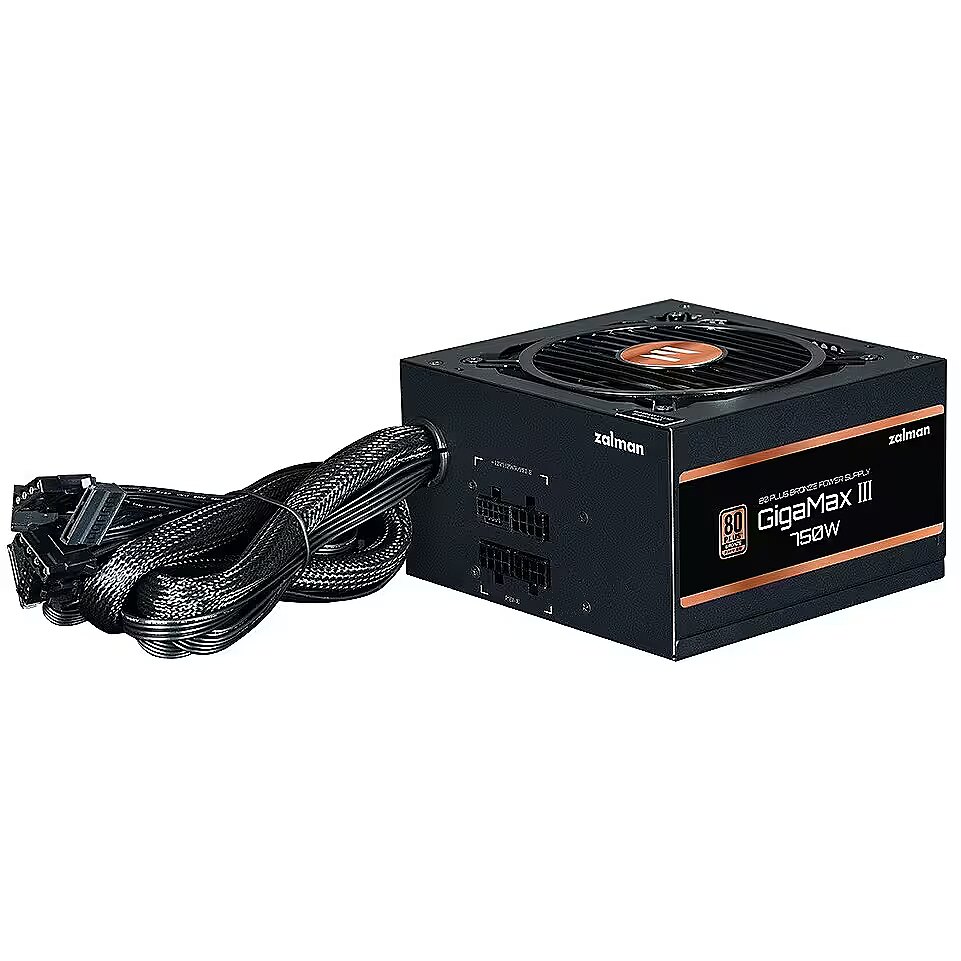

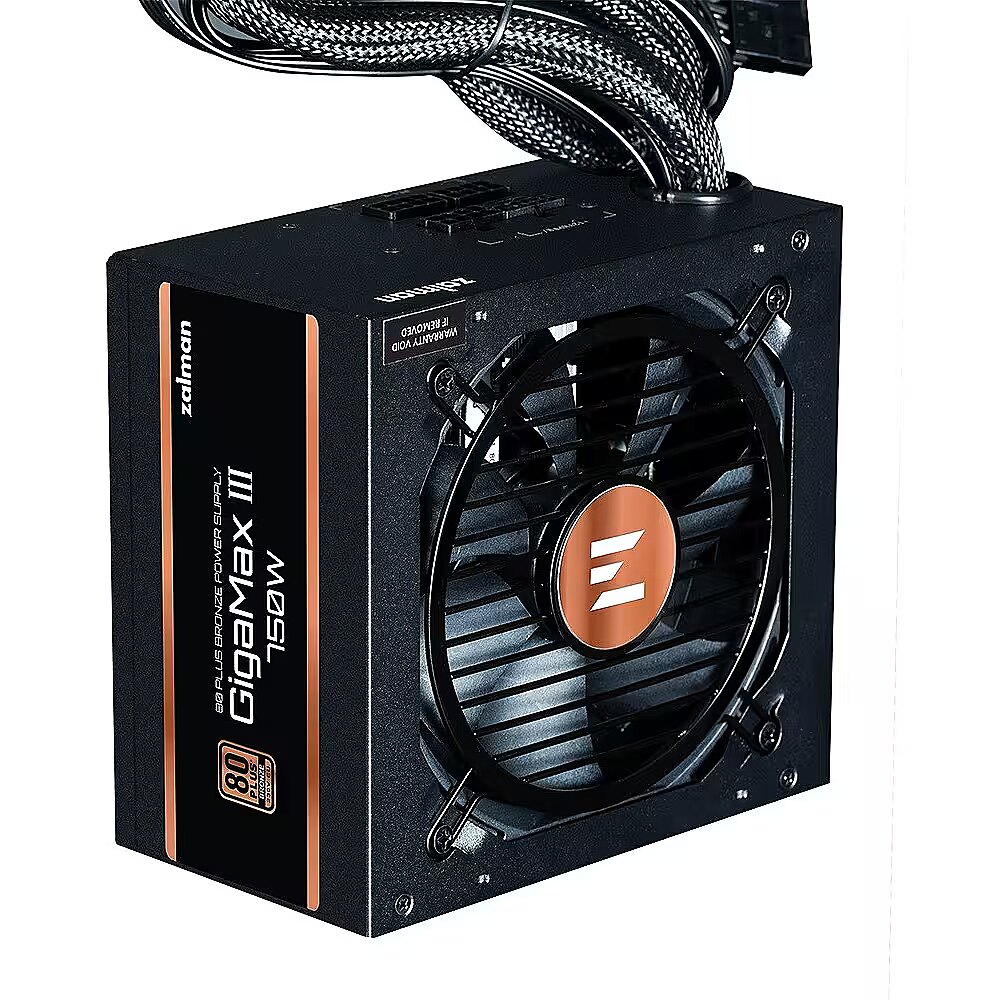

LongProductName - GigaMax III 750W, ATX Ver.3.1, Active PFC, 80 PLUS BRONZE
LongSummaryDescription - Zalman GigaMax III. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, KC, RCM, RoHS
Modular power supply - Semi
MOLEX power connectors - 0
name - ZALMAN GigaMax III 750W 80+ BRONZE ATX 3.0
Number of power connectors 12VHPWR - 0

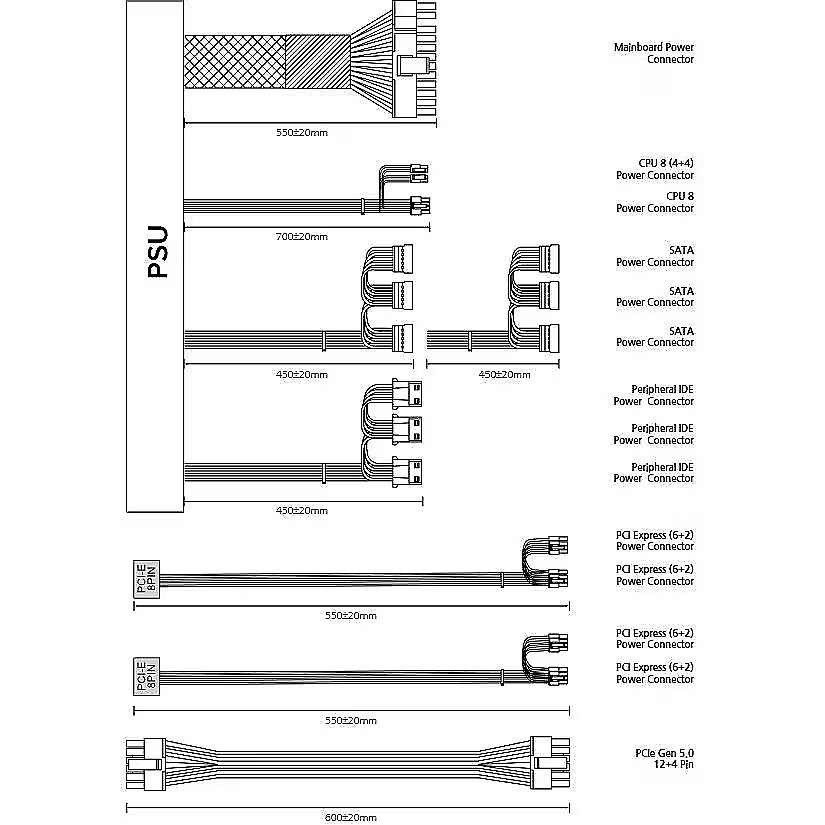

Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating temperature (T-T) - 10 - 40 °C
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Semi-Modular
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Input current - 6 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Zalman
ProductName - GigaMax III
SATA power connectors - 3
ShortSummaryDescription - Zalman GigaMax III, 750 W, 200 - 240 V, 50/60 Hz, 6 A, Active, 120 W
Title - Zalman GigaMax III power supply unit 750 W ATX Black
URL - https://www.zalman.com/EN/Product/ProductDetail.do?pageIndex=1&pageSize=10&productSeq=1491&searchCategory1=0&searchCategory2=-99&searchCategory3=-99&searchKey=&searchWord=ZM750-GV3
vendpn - ZM750-GV3
WarrantyInfo -
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.7 kg
Weight & dimensions - Width - 140 mm
