Accessories included - EAP110-Outdoor Mounting kit Waterproof rubber insert Waterproof antennas Quick installation guide
Antenna - Detachable external
Antenna - Antenna direction type - Omni-directional
Antenna - Antenna features - Detachable antenna
Antenna - Antenna gain level (max) - 3 dBi
Antenna - Antennas quantity - 2
Antenna - Antenna type - External
Antenna > Antenna type - 2xExternal
Antenna gain - 3 dBi
Available bandwidth - 300 Mbps
Brand - TP-Link
BrandCode - TPLINK
BrandPartCode - EAP113-OUTDOOR
Category - Root/Electronics/Networks and communication/Access points
Category - Wireless Access Points
Category Code - WOD
Certificates - CE FCC RoHS
Certificates - Certification - CE, FCC, RoHS
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Code - EAP113-outdoor
Color - White
Dane techniczne: Akcesoria - zestaw montażowy
Dane techniczne: Częstotliwość - 2.4 GHz
Dane techniczne: Gwarancja - 5 lat w serwisie sprzedawcy
Dane techniczne: Głębokość - 37.7 mm
Dane techniczne: Inne - IP65
Dane techniczne: LAN 10/100 Mb/s - tak
Dane techniczne: Producent - TP-Link
Dane techniczne: Przeznaczenie - biznesowe
Dane techniczne: Prędkość transmisji - 300 Mbps
Dane techniczne: Rodzaj - zewnętrzny
Dane techniczne: Standard - Wi-Fi 4 (802.11b/g/n)
Dane techniczne: Szerokość - 46 mm
Dane techniczne: Szyfrowanie - 64/128/152-bit WEP
Dane techniczne: Szyfrowanie - filtrowanie adresów MAC
Dane techniczne: Szyfrowanie - WPA
Dane techniczne: Szyfrowanie - WPA-PSK
Dane techniczne: Szyfrowanie - WPA2 Enterprise
Dane techniczne: Szyfrowanie - WPA2-PSK
Dane techniczne: Temperatura pracy - -30 do 65 °C
Dane techniczne: Wysokość - 214.9 mm
Dane techniczne: Zarządzanie - aplikacja (Android)
Dane techniczne: Zarządzanie - aplikacja (iOS)
Dane techniczne: Zarządzanie - aplikacja Omada
Dane techniczne: Zasilanie - PoE 48V
Data exchange - WiFi - Wi-Fi 4 (n)
Description - 300Mbps Wireless N Outdoor Access Point Ideal for Outdoor Environment: IP65 weatherproof enclosure for outdoor Wi-Fi applications. Fast Wi-Fi: Up to 300Mbps Wi-Fi with 2×2 MIMO. Long-Range Coverage: Dedicated high-power amplifier and professional antennas. Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. PoE Support: Support both standard 802.3af and 48V Passive PoE for flexible installations.
Description - EAP113-Outdoor Wireless, outdoor access point, N300 standard
Perfect for outdoor environments: The access point has an IP65-rated housing. Fast Wi-Fi: Wi-Fi speeds reach up to 300Mbps thanks to 2×2 MIMO technology. Long range: High-power amplifier and professional antennas. Omada SDN Integration: Centralized Cloud Management and Intelligent Monitoring. Central management: Cloud access and the Omada application ensure easy and convenient management. PoE support: Support of the 802.3af standard and 48V Passive PoE allows easy installation. Secure Guest Network: Multiple access authentication methods (SMS/Voucher, etc.) and extensive wireless security technologies. Top-class design Thanks to the well-thought-out design of the housing, antennas and flexible power supply and installation options, EAP113-Outdoor is perfect for both inside and outside any building. Detachable antennas EAP113-Outdoor has two detachable omnidirectional antennas, which allows them to be easily replaced if necessary. Long-distance data transmission High transmission power and two powerful omnidirectional antennas make EAP113-Outdoor provide a stable wireless network with a range of up to 200m when located outside the building. Waterproof case designed for outdoor environments The IP65 certificate obtained during testing guarantees that the access point will withstand even the harshest weather conditions. Integration with the Omada SDN platform The Omada Software Defined Networking (SDN) platform integrates network devices such as Access Points, Switches and Routers to provide 100% centralized cloud management and a highly scalable network managed from a single interface. Easy management with the Omada app With easy-to-follow instructions, it only takes a few minutes to configure the settings you need in the Omada app. Monitor the network status, manage clients, change settings at any time, all from your smartphone or tablet.
Design - International Protection (IP) code - IP65
Design - Placement - Pole, Wall
Design - Product colour - White

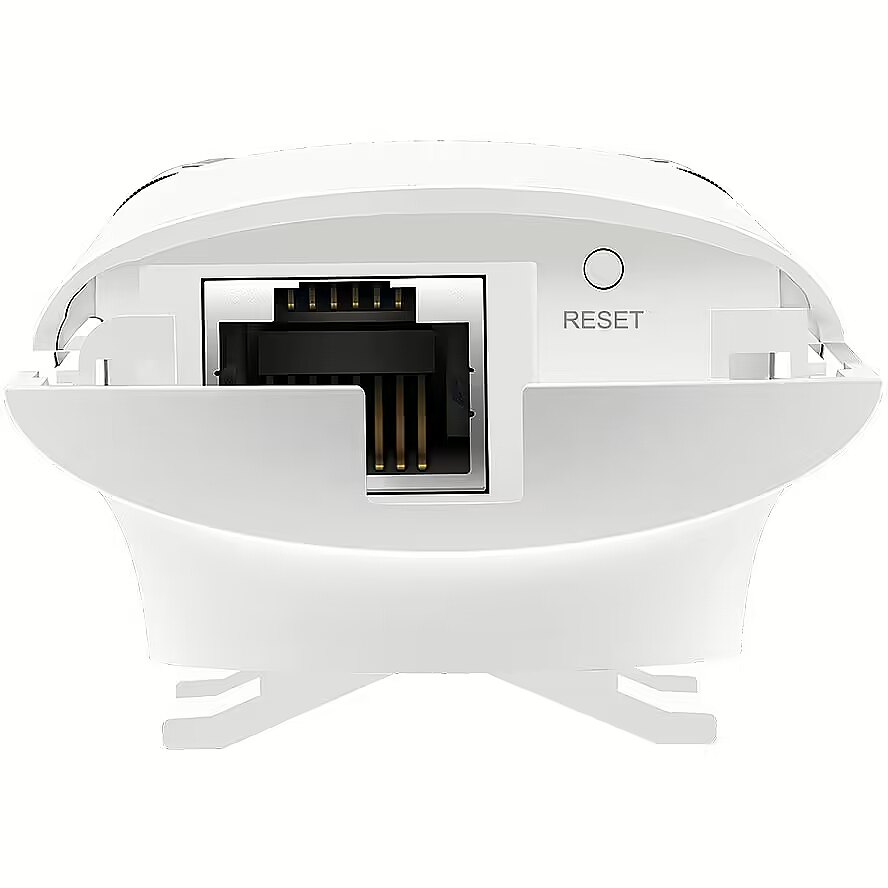

Design - Reset button - Yes
Designation - CE+WEEE
dimension depth - 100 mm
dimension height - 270 mm

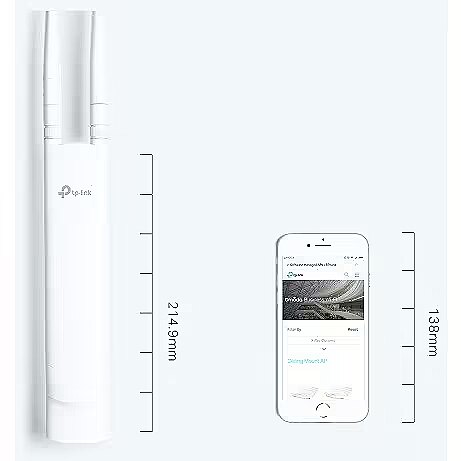

Dimensions - 214.9 × 46 × 37.7 mm
Dimensions - depth - 2.67
Dimensions - height - 21.49
Dimensions - width - 4.6
dimension weight - 400 g
dimension width - 140 mm
EAN - 4895252503494
ean - 4895252503494
Eans - 4895252503494
Environment requirements - Permissible operating temperature: -30°C - 65°C Permissible storage temperature: -40°C~70°C Permissible air humidity: 10% ~ 90%, non-condensing Permissible storage humidity: 5%~95%, non-condensing
Features - 2.4 GHz - Yes
Features - 5 GHz - No
Features - 6 GHz - No
Features - Maximum data transfer rate - 300 Mbit/s
Features - Networking standards - IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features - Quality of Service (QoS) support - Yes
Features - Rate limiting - Yes
Features - Transmitting power (CE) - 20 dBm
Features - Transmitting power (FCC) - 22 dBm
Features - Virtual LAN features - VLAN mapping
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Features - Wireless isolation - Yes
Features > MU-MiMO - No
Functions - configuration using app
General parameters - colour - white
General parameters - manufacturer - TP-Link
General parameters - type of networking device - access point
GrossWeight - 0.5000
Group - IT > IT ACCESSORIES > NETWORK GEAR > ROUTERS
GTIN - 4895252503494
guarantee - 60
guarantee_type - normal
Height - 0.2700
I/O ports - 1 x 10/100/1000 Mbit/s
IEEE 802.11b Network standard - Yes
IEEE 802.11g Network standard - Yes
IEEE 802.11n Network standard - Yes
Included Accessories - • Mounting Kits
• Waterproof Rubber Insert
• Waterproof Antennas
• Installation Guide
Interfaces - LAN (network, RJ45) - 1
Interfaces - LAN (RJ45) - 10/100
Interfaces - WiFi standards - IEEE 802.11b
Interfaces - WiFi standards - IEEE 802.11g
Interfaces - WiFi standards - IEEE 802.11n
Length - 0.1000
Link - https://www.tp-link.com/no/business-networking/outdoor-ap/eap113-outdoor/
LongDesc - Superior Wi-Fi Coverage for Outdoor EnvironmentsExcellent Hardware DesignsWith the special design of its antenna, appearance, power options and installation methods, EAP113-Outdoor can perfectly fit for different scenarios both indoors and outdoors.Detachable AntennasEAP113-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.Delicate Appearance Even Better for Indoor ApplicationsEAP113-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.5 in (214.9 × 46 × 37.7 mm)Supports Passive PoE for Easy Outdoor Set upEAP113-Outdoor supports both 802.3af PoE and 48V Passive PoE power supply, can be either powered by a PoE switch or a PoE adapter.Flexible DeploymentEAP113-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.Wi-Fi That Goes the DistanceWith high transmission power and two high-gain omnidirectional antennas,EAP113-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.Specially Designed Weatherproof Enclosure for Outdoor EnvironmentRated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition.Seamless Integrated into Omada SDN PlatformThe Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.Easy Management with the Omada AppFollow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
LongDescription EN - Fast and stable outdoor connectivityThe EAP113-Outdoor delivers Wi-Fi speeds of up to 300 Mbps with 2×2 MIMO and a high-power amplifier. Equipped with two detachable high-gain antennas, it ensures reliable wireless coverage of up to 200 metres, ideal for gardens, courtyards, and larger outdoor areas. Weatherproof and durable designWith an IP65-rated enclosure, the access point is protected against dust, rain, and sun exposure. It also includes lightning and ESD protection, ensuring dependable performance in tough environments. Flexible deployment with PoESupporting both standard 802.3af PoE and 48V Passive PoE, the EAP113-Outdoor offers versatile power options. Mounting kits allow for easy installation on walls or poles, adapting seamlessly to your setup. Seamless Omada SDN integrationFully integrated into the Omada SDN platform, this access point enables centralised cloud management, intelligent monitoring, and scalable deployment. With the free Omada app, you can configure, monitor, and manage your network conveniently from your smartphone or tablet.
LongDescription ET - Kiire ja stabiilne ühendus õues
EAP113-Outdoor pakub kuni 300 Mbps Wi-Fi kiirust 2×2 MIMO ja võimsa võimendiga. Kahe eemaldatava kõrge võimendusega antenniga tagab see usaldusväärse levi kuni 200 meetri ulatuses, sobides aedadesse, sisehoovidesse ja suurtele välialadele.
Ilmastikukindel ja vastupidav disain
IP65 standardile vastav korpus kaitseb tolmu, vihma ja päikesekiirguse eest. Seade on varustatud ka pikse- ja ESD-kaitsega, et tagada töökindlus karmides tingimustes.
Paindlik paigaldus PoE abil
Toetab nii 802.3af standardset PoE-d kui ka 48V Passive PoE-d, pakkudes mitmekülgseid toitevalikuid. Kaasasolevad kinnitused võimaldavad lihtsat seinale või mastile paigaldamist.
Sujuv Omada SDN integratsioon
Täielikult integreeritud Omada SDN platvormiga, mis võimaldab tsentraalset pilvehaldust, nutikat monitoorimist ja skaleeritavat võrgujuhtimist. Tasuta Omada äpiga saab võrku seadistada, jälgida ja hallata mugavalt otse nutiseadmest.
LongDescription LV - Ātrs un stabils savienojums āra apstākļosEAP113-Outdoor nodrošina Wi-Fi ātrumu līdz 300 Mb/s ar 2×2 MIMO tehnoloģiju un jaudīgu pastiprinātāju. Divas augstas veiktspējas antenas sniedz uzticamu pārklājumu līdz 200 metriem, padarot šo piekļuves punktu piemērotu gan pagalmiem, gan plašākām teritorijām. Laikapstākļu un triecienizturīgs dizainsIerīce ir aprīkota ar IP65 laikapstākļu izturīgu korpusu, kas pasargā to no putekļiem, lietus un saules ietekmes. Turklāt tā nodrošina zibens un ESD aizsardzību, kas paaugstina sistēmas uzticamību ilgtermiņā. Elastīga uzstādīšana un PoE barošanaEAP113-Outdoor atbalsta gan standarta 802.3af PoE, gan 48V Passive PoE, ļaujot izvēlēties piemērotāko barošanas veidu. Pateicoties komplektā iekļautajiem stiprinājumiem, to var viegli uzstādīt uz sienas vai staba. Integrācija ar Omada SDNPiekļuves punkts tiek pilnībā integrēts Omada SDN tīkla pārvaldības platformā, kas nodrošina centralizētu kontroli, elastīgu mērogojamību un vienkāršu tīkla uzraudzību. Ar bezmaksas Omada lietotni jūs varat konfigurēt iestatījumus un sekot līdzi tīkla statusam tieši no viedtālruņa vai planšetdatora.
LongProductName - 300Mbps Wireless N Outdoor Access Point
LongSummaryDescription - TP-Link EAP113-Outdoor. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise,.... Power over Ethernet (PoE). Product colour: White
Management, monitoring, configuration - Omada app Central management Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada software controller Cloud Access - Requires the use of an OC300, OC200, or Omada Software Controller. Email notifications Diode switch Access control by MAC addresses SNMP v1, v2c System log - Local and remote SSH Browser management - HTTP/HTTPS L3 Management Multi-site management VLAN management
Management features - Syslog - Yes
MediumDescription EN - The TP-Link EAP113-Outdoor delivers reliable, high-speed Wi-Fi outdoors with up to 300 Mbps throughput. Featuring a powerful amplifier, high-gain antennas, and IP65 weatherproof protection, it ensures stable coverage even in challenging conditions. With PoE support and full integration into the Omada SDN platform, it offers flexible installation and easy cloud-based management. • Up to 300 Mbps with 2×2 MIMO• Stable coverage up to 200 m• IP65 weatherproof enclosure• PoE support (802.3af and 48V Passive PoE)• Omada SDN and Omada app integration
MediumDescription ET - TP-Link EAP113-Outdoor tagab töökindla ja kiire Wi-Fi ühenduse õues, pakkudes kuni 300 Mbps läbilaskevõimet. Võimsa võimendi, kõrge võimendusega antennide ja IP65 ilmastikukindla korpusega säilitab see stabiilse levi ka keerulistes tingimustes. PoE toetus ja täielik ühilduvus Omada SDN platvormiga muudavad paigaldamise paindlikuks ja haldamise lihtsaks.
• kuni 300 Mbps 2×2 MIMO-ga
• stabiilne levi kuni 200 m
• IP65 ilmastikukindel korpus
• PoE tugi (802.3af ja 48V Passive PoE)
• Omada SDN ja Omada äpi integratsioon
MediumDescription LV - TP-Link EAP113-Outdoor nodrošina stabilu un ātru bezvadu savienojumu āra apstākļos ar ātrumu līdz 300 Mb/s. Ierīce ir aprīkota ar jaudīgu pastiprinātāju, augstas veiktspējas antenām un IP65 aizsardzību pret laikapstākļiem. Tā atbalsta PoE barošanu un Omada SDN platformu, ļaujot vienkārši pārvaldīt tīklu caur mākoni vai lietotni. • Līdz 300 Mb/s ar 2×2 MIMO tehnoloģiju
• Stabils pārklājums līdz 200 m attālumā
• IP65 laikapstākļu izturīgs korpuss
• PoE barošanas atbalsts (802.3af un 48V Passive PoE)
• Integrācija ar Omada SDN un Omada mobilo lietotni
Model name - EAP113-OUTDOOR
name - EAP113-Outdoor Access Point N300
Name - TP-Link EAP113-Outdoor
Name - TP-LINK | 300Mbps Wireless N Outdoor Access Point | EAP113 | 802.11n | 300 Mbit/s | Ethernet LAN (RJ-45) ports 1 | MU-MiMO No | PoE in | Antenna type 2xExternal
Name EN - TP-Link EAP113-Outdoor 300Mbps Outdoor Access Point
Name ET - TP-Link EAP113-Outdoor 300Mbps Outdoor Access Point
NameInWeb EN - TP-Link Wireless N Outdoor Access Point EAP113-Outdoor, 300Mbps, white - Outdoor Access Point
NameInWeb ET - TP-Link Wireless N Outdoor Access Point EAP113-Outdoor, 300Mbps, valge - Väline ühenduspunkt
NameInWeb LV - TP-Link Wireless N Outdoor Access Point EAP113-Outdoor, 300Mbps, balta - āra piekļuves punkts
Name LV - TP-Link EAP113-Outdoor 300Mbps Outdoor Access Point
NetWeight - 0.4000
Network architecture - GigabitEthernet
Network Device Type - Wireless Access Point
Networking > Wi-Fi - Yes
Networking > Wi-Fi standards - 802.11n/g/b
Number of antennas - 2
Number of antennas - 3
Operating frequency - 2,4 GHz
Operating temperature range - -30–65 ℃
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -30 - 65 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross height (mm) - 106.00 mm
Package features > Gross width (mm) - 170.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 355 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Antenna included - Yes
Packaging content - Mounting kit - Yes
Packaging content - Quantity per pack - 1 pc(s)
Performance > Ethernet LAN data rates - 300 Mbit/s
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces > Ethernet LAN (RJ-45) ports - 1
Ports & interfaces > POE - PoE in
Power - DC voltage range - 48 V
Power - Power consumption (typical) - 4.11 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) type supported - Passive PoE
Power supply - 48V Passive PoE (pins +4.5, pins -7.8) 802.3af PoE
Producent: Nazwa producenta / importera - TP-Link
TP-Link Polska sp. z o.o.
Ożarowska 40/42
05-850 Duchnice
producer - TP-LINK
Producer - TP-Link
ProducerCode - EAP113-Outdoor
ProductCode - EAP113-OUTDOOR
ProductionCountry - CN
ProductName - EAP113-Outdoor
Product Net Weight - 0.4 kg
SalesUnitOfMeasureCode - tk
Security - Authentication via welcome page Access control MAC address filtering Isolation of wireless clients SSID to VLAN mapping Unauthorized AP detection 802.1X support 64/128/152-bit WEP/WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK encryption
Security - Access Control List (ACL) - Yes
Security - MAC address filtering - Yes
Security - Number of SSID supported - 8
Security - Security algorithms - 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Security - Service Set Identifier (SSID) features - Multiple SSIDs
ShortDescription -
ShortSummaryDescription - TP-Link EAP113-Outdoor, 2.4 GHz, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise,...
Software -
Special functions - Multi-SSID (Up to 8 SSIDs) On/Off wireless network Automatic channel selection Transmission power control QoS (WMM) Band balancing Bandwidth control Restart schedule Wireless network schedule Wireless statistics based on SSID/AP/client
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Sustainability - Sustainability compliance - Yes
System Requirements - Microsoft Windows XP Vista Windows 7 Windows 8 Windows 10 Windows 11 Linux
TariffNo - 85176200
Technical details > Gross weight - 0.58 kg
Technical details > Net weight - 0.38 kg
Technical details > Producer - TP-LINK
Technical details > Producer product family - 300Mbps Wireless N Outdoor Access Point
Technical details > Producer product name - EAP113
Title - TP-Link EAP113-Outdoor 300 Mbit/s White Power over Ethernet (PoE)
Unit Box Height - 0.1
Unit Box Length - 0.275
Unit Box Width - 0.142
Unit Calculated Volume - 0.004557 cubm
Unit Calculated Weight - 0.5 kg
UnitOfMeasureCode - tk
UnitsPerPackage - 1
Units per Shipping Box - 20
URL - https://www.tp-link.com/fi/business-networking/outdoor-ap/eap113-outdoor/
Vendor Homepage - www.tp-link.com/fi/business-networking/outdoor-ap/eap113-outdoor/#specifications
vendpn - EAP113-outdoor
Volume - 0.00378000
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
Weight & dimensions - Depth - 46 mm
Weight & dimensions - Height - 37.7 mm
Weight & dimensions - Width - 214.9 mm
Width - 0.1400
Wireless Frequency Range - 2.4 GHz
Wireless LAN features > Wi-Fi band - 802.11n
