Accessories included - Wi-Fi router 6 EX220 Power supply RJ45 Ethernet cable Quick installation guide
Antenna - Fixed external
Antenna - Antenna design - External
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antennas quantity - 4
Antenna - Transmit power - CE: Antenna > Antennas quantity - 4
Antenna > Antenna type - External
Antenna gain - 5 dBi
Brand - TP-Link
BrandPartCode - EX220
Category - Wireless Routers
Certificates - Certification - FCC
Certificates - Compliance certificates - CE
Code - EX220
Color - Black
Description - AX1800 EX220 dual-band Wi-Fi router 6 Next-generation 1.8Gbps speeds: Enjoy smooth streaming, downloading and online gaming without buffering with WiFi speeds reaching up to 1.8Gbps. Dual-band Wi-Fi 6: The latest Wi-Fi 6 technology delivers higher speeds, more capacity and less network load. Connect more devices: Wi-Fi 6 using revolutionary OFDMA technology enables simultaneous data transfer to more devices and reduced latency. Long range: Beamforming and four antennas ensure a strong wireless signal towards all devices. EasyMesh: Provides WiFi coverage throughout the home with the Mesh technology standard. Easy setup: Configure the router in minutes using the TP-Link Aginet app. TR-069 remote management: Support for TR-098, TR-181, TR-111, TR-104 and TR-143. The new generation of Wi-Fi has just arrived Wi-Fi 6 (802.11ax) may prove to be the biggest advancement in Wi-Fi development, delivering huge increases in speed and total capacity. The popularity of Wi-Fi 6 is growing with the number of devices operating on this standard. This is the right time to upgrade your router to the latest generation of Wi-Fi! Dual-band Wi-Fi 6 with speeds of up to 1.8Gbps Every action is faster and smoother with higher Wi-Fi speeds. The 2.4GHz and 5GHz bands have been upgraded to the latest generation of Wi-Fi, making them ideal for 4K streaming, online gaming and fast downloads. More high-speed connections Enjoy smooth gaming, video streaming and live broadcasts simultaneously. OFDMA enhances your WiFi by allowing multiple clients to share a single band at the same time, reducing latency and jitter. OFDMA OFDMA technology splits a single spectrum into multiple units and ensures different devices can share a single transmission stream - improving network performance and reducing latency. Long range Wi-Fi Beamforming technology, together with four high-gain antennas, ensures that your home's WiFi signal is covered and sends a signal towards every device. Create a flexible and smart WiFi Mesh network The EX220 is compatible with EasyMesh. This router can create a unified WiFi Mesh network covering your entire home with an additional EX220, or another TP-Link EasyMesh model. WPA3 - a higher level of network security With the latest WPA3 protocol, your home network gets better protection and uninterrupted operation. It is guarded by a harder-to-break Wi-Fi password encryption key and enhanced protection against brute force attacks. Gigabit broadband access Gigabit Ethernet ports allow you to harness the full potential of up to 1Gbps broadband. Connect your computers, Smart TVs and games consoles to the Gigabit Ethernet LAN ports to enjoy fast and stable wired connections. Easy set-up and use Whether you prefer the intuitive Aginet app or the extensive web interface, you can configure your device in minutes. The Aginet app allows you to manage your network settings from your smartphone and tablet. TR-069 remote management support ISPs can remotely configure and manage devices via ACS (Auto-Configuration Sever). High-level operations are supported by the TR-181, TR-111, and TR-143 protocols. The Aginet solution: an end-to-end management system for ISPs The Aginet solution offers ISPs a powerful and flexible platform for managing multiple devices. Features such as dynamic service provisioning, Zero-Touch software updates, remote troubleshooting and WiFi Mesh network diagnostics are available.
Design - Built-in display - No
Design - Indication light - Yes
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product type - Tabletop router
Designation - CE+WEEE
dimensionalWeight - 1188
dimension depth - 75 mm
dimension height - 240 mm
Dimensions - 260,2 x 135 x 41,6 mm
dimension weight - 780 g
dimension width - 330 mm
EAN - 4897098684764
ean - 4897098684764
Environment requirements - Permissible operating temperature: 0-40 C Permissible storage temperature: -40-60 C Permissible humidity: 10%-90%, non-condensing Permissible storage humidity: 5%-90%, non-condensing
Features > Mesh Support - Yes
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - Yes
GTIN - 4897098684764
GTIN - 4897098686232
guarantee - 36
guarantee_type - normal

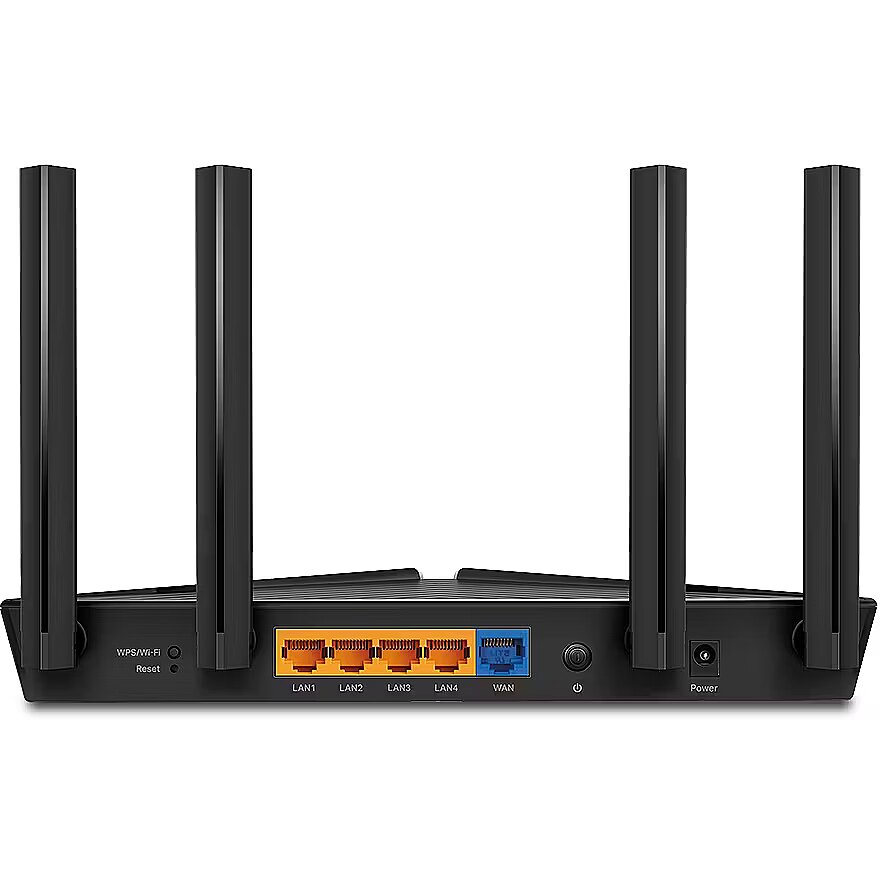

I/O ports - 1 x WAN (RJ-45)
I/O ports - 4 x 10/100/1000 Mbit/s
Link - https://service-provider.tp-link.com/wifi-router/ex220/
LongDesc - Explore the NewEra of WiFiAX1800 Dual Band Wi-Fi 6 RouterThe Next Generation of WiFi is Upon UsWi-Fi 6 (802.11ax) could turn out to be the most significant advancement in WiFi development, delivering a huge boost in speed and total capacity. Mainstream adoption of Wi-Fi 6 is inching ever closer with more and more AX clients available. It's the right time to upgrade your router to the newest generation of WiFi !Dual-Band Wi-Fi 6 Up to 1.8 GbpsEvery application feels more fluid with drastically improved Wi-Fi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading.More Connections at High SpeedEnjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.OFDMAOFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency. Extensive WiFi CoverageBeamforming technology, and four high-gain antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.Create Smart Mesh WiFi with Great FlexibilityEX220 is compatible with EasyMesh. It can form a unified mesh WiFi network, seamlessly covering the entire home together with added-on EX220 or other TP-Link EasyMesh models.WPA3—The Next Level of CybersecurityThe latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.Gigabit Broadband Internet AccessThe Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast and reliable wired connections.Easy Setup and UseWhether you prefer the intuitive Aginet app or the powerful web interface, you can set up your device in minutes. The Agient app allows you to manage network settings from your smart phone or tablet.Support TR-069 Remote ManagementISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations support TR-181, TR-111, and TR-143 protocols.Aginet Solution:End-to-End Management System for ISPsAginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.
LongProductName - 2.4 GHz (574 Mbps), 5 GHz (1201 Mbps), 802.11 a/b/n/ac/ax, 10/100/1000 Mbps RJ45 WAN, 4x 10/100/1000 Mbps RJ45, 260.2x135x41.6 mm
LongSummaryDescription - TP-Link AX1800 Dual Band Wi-Fi 6 Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1800 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: SSID, WPA, WPA2, WPA3, Firewall security: SPI. Supported network protocols: IPv4, IPv6
Management, monitoring, configuration - WAN type: Dynamic IP Static IP PPPoE PPTP L2TP(Multi-EWAN) Port forwarding Virtual servers Port Triggering UPnP DMZ Dynamic DNS: DynDns NO-IP VPN Pass-Through: IPSec PPTP L2TP Access Control: Parental controls White list Blacklist Firewall: DoS SPI Firewall IP and MAC address binding Management: Access control Remote management TR-069(TR-098/TR-181) TR-111 TR-143 Operating modes: Router Access point VPN server: PPTP OpenVPN IPSec
Management features - MIMO - Yes
Management features - MU-MIMO technology - Yes
Management features - Reset button - Yes
Management features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Management features - Wireless statistics - Yes
Management features - WPS push button - Yes
Mobile network - 3G - No
Mobile network - 4G - No
Mobile network - 5G - No
Model - EX220
name - Router EX220 AX 1800 4LAN 1WAN
Name - TP-LINK AX1800 Dual Band Wi-Fi 6 Router | EX220 | 802.11ax | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 4 | Mesh Support Yes | MU-MiMO Yes | No mobile broadband | Antenna type External
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.11a
Network - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Network - Networking standards - IEEE 802.11ac
Network - Networking standards - IEEE 802.11ax
Network - Networking standards - IEEE 802.11b
Network - Networking standards - IEEE 802.11g
Network - Networking standards - IEEE 802.11k
Network - Networking standards - IEEE 802.11n
Network - Networking standards - IEEE 802.11r
Network - Networking standards - IEEE 802.11v
Network - Port forwarding - Yes
Network - Port triggering - Yes
Network - VPN Passthrough - Yes
Network - VPN support - PPTP, OpenVPN, IPSec
Network - Wireless radio - Yes
Network architecture - GigabitEthernet
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Other features - Buttons: Power, Reset, WPS/Wi-Fi Transmission speed: 1201 Mbps in the 5 GHz band and 574 Mbps in the 2.4 GHz band EasyMesh compatible
Other features - Input current - 1 A
Other features - Input voltage - 12 V
Other features > Ethernet LAN (RJ-45) ports - 4
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 102.00 mm
Package features > Gross height (mm) - 16.00 mm
Package features > Gross width (mm) - 53.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1538 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Antenna included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quick installation guide - Yes
Packaging data - Number of products included - 1 pc(s)
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Power - External power adapter - Yes
Power - Power source type - DC
Power supply - 12V/1A
producer - TP-LINK
producerCode - EX220
ProductName - AX1800 Dual Band Wi-Fi 6 Router
productName - TP-Link AX1800 Dual Band Wi-Fi 6 Router
productSize - Normal
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Protocols - Supported network protocols - IPv4, IPv6
Protocols - Universal Plug and Play (UPnP) - Yes
Safety warning - Warnings - Avoid contact with liquids as this may cause electric shock.
Safety warning - Warnings - Do not open the appliance housing - risk of electric shock.
Safety warning - Warnings - The product may emit radio waves that may interfere with other electronic devices.
Security - WPA/WPA2/WPA3 encryption
Security - Access Control List (ACL) - Yes
Security - DMZ support - Yes
Security - DoS attack prevention - Yes
Security - Firewall - Yes
Security - Firewall security - SPI
Security - Guest access - Yes
Security - Schedule access - Yes
Security - Security algorithms - SSID
Security - Security algorithms - SSID, WPA, WPA2, WPA3
Security - Security algorithms - WPA
Security - Security algorithms - WPA2
Security - Security algorithms - WPA3
Security - Stateful Packet Inspection (SPI) - Yes
ShortSummaryDescription - TP-Link AX1800 Dual Band Wi-Fi 6 Router, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, Black, Tabletop router
sizeX - 75
sizeY - 240
sizeZ - 330
Software -
Special functions - Muti-SSID TX Beamforming MU-MIMO DL/UL OFDMA Airtime Fairness Guest network
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11k
Standards - 802.11n
Standards - 802.11r
Standards - 802.11v
Standards - IPv4
Standards - IPv6
Sustainability - Sustainability compliance - Yes
System Requirements - Microsoft Windows 98SE/NT/2000/XP/Vista/7/8.1/10.11, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Contract with an Internet service provider (Internet access)
System requirements - Browser supported - Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details > Gross weight - 0.65 kg
Technical details > Net weight - 0.45 kg
Technical details > Producer - TP-LINK
Technical details > Producer product family - AX1800 Dual Band Wi-Fi 6 Router
Technical details > Producer product name - EX220
Title - TP-Link AX1800 Dual Band Wi-Fi 6 Router
Type - xDSL
URL - https://service-provider.tp-link.com/wifi-router/ex220/
vendpn - EX220
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
WAN connection - WAN connection type - RJ-45
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 786
Weight & dimensions - Depth - 135 mm
Weight & dimensions - Height - 41.6 mm
Weight & dimensions - Width - 260.2 mm
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 574 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 1800 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 1201 Mbit/s
Wireless LAN features > Wi-Fi band - 802.11ax
