Brand - TP-Link
BrandPartCode - HX220(1-PACK)
Category - Mesh Wi-Fi Systems
Certificates - Certification - CE, FCC
Certificates - Compliance certificates - CE
Code - HX220(1-pack)
Design - LED indicators - Yes
Design - Product colour - White
Design - Product type - Mesh router
Design - Reset button - Yes
EAN - 4897098684665
Features - Firewall security - SPI Firewall
Features - Mobile operating systems supported - Android 4.4, iOS 9.0
Features - Parental control - Yes
Features - Port forwarding - Yes
Features - Quality of Service (QoS) support - Yes
Features - SSID Broadcast - Yes
Features - Supported WAN type - Dynamic IP, Static IP, PPPoE
Features - Transmitting power (CE) - 20 - 23 dBm
Features - Transmitting power (FCC) - 30 dBm
GTIN - 0840030704666
GTIN - 840030704666
GTIN - 4897098684665
GTIN - 4897098686003
LongDesc - Fast. Stable. Everywhere.AX1800 Whole Home Mesh WiFi SystemAdvanced Mesh Powered by WiFi 6Armed with WiFi 6 technology, HX220 provides faster speeds up to 1.8 Gbps for buffer-free 8K/4K streaming and gaming even with all smart home, mobile, and other electronic devices connected.Extensive WiFi CoverageBeamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.Whole Home CoverageEmpowered by EasyMesh technology, HX220 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HX220 whenever you want.Seamless Roaming with One WiFi NameAll units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.Stable Connections, No More BufferingEnhanced by WiFi 6, featuring with OFDMA and MU-MIMO technology**, HX220 allows you to connect over 250+ devices. Enjoy a more efficient network that loads faster without dragging down performance.2-in-1 Router and Access PointFlexible and multifunctional, HX220 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.More Ethernet Ports for More OptionsEach unit has 3 Gigabit Ethernet ports for fast and reliable wired connections. Supports wired Ethernet Backhaul for more stable speeds.Easy to Set Up and UseYou can set up your device in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage network settings from your smart phone or tablet.Support TR-069 Remote ManagementISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.Aginet Solution: End-to-End Management System for ISPsThe Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.
LongProductName - 2.4 GHz (574 Mbps), 5 GHz (1201 Mbps), 802.11a/b/g/n/ac/ax, 3× Gigabit Ports, 100 x 100 x 89.5 mm
LongSummaryDescription - TP-Link AX1800 Whole Home Mesh WiFi System. Product colour: White, Product type: Mesh router. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Firewall security: SPI Firewall, Transmitting power (CE): 20 - 23 dBm, Transmitting power (FCC): 30 dBm. AC input voltage: 12 V, AC adapter input current: 1 A. Compliance certificates: CE, Certification: CE, FCC
Name - TP-LINK HX220 AX1800 Whole Home Mesh WiFi System
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 110.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 110.00 mm
Package features > Palette Qty - 1428 pc(s)
Package features > Paper/Pasteboard - 90.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Ethernet cable - Yes
Packaging content - Number of products included - 1 pc(s)
Packaging content - Number of units included - 1 pc(s)

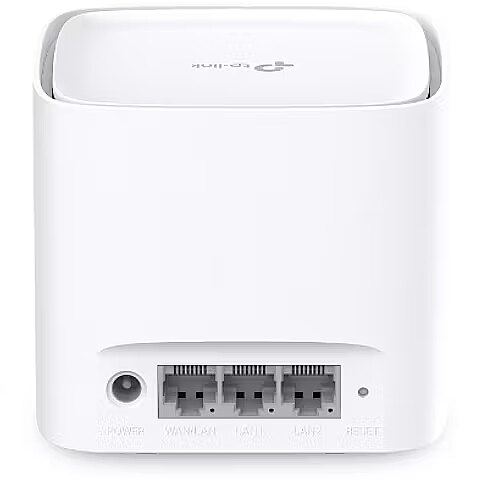

Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces - Ethernet WAN - Yes
Power - AC adapter input current - 1 A
Power - AC input voltage - 12 V
ProductName - AX1800 Whole Home Mesh WiFi System
ShortSummaryDescription - TP-Link AX1800 Whole Home Mesh WiFi System, White, Mesh router, Dual-band (2.4 GHz / 5 GHz), Wi-Fi 6 (802.11ax), 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), 574 Mbit/s
Technical details > Gross weight - 0.60 kg
Technical details > Net weight - 0.50 kg
Technical details > Producer - TP-LINK
Title - TP-Link AX1800 Whole Home Mesh WiFi System
URL - https://service-provider.tp-link.com/home-wifi-system/hx220/
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 89.5 mm
Weight & dimensions - Width - 100 mm
Wireless LAN features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
Wireless LAN features - Security algorithms - WMM, WPA, WPA2, WPA3
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 574 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 1201 Mbit/s
