Brand - Viewsonic
BrandPartCode - LS751HD
Category - Data Projectors
Category 1 - Beamer & Zubehör
Category 2 - Beamer
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Market positioning - Business
Design - Product colour - White
Design - Product type - Standard throw projector
Display - Built-in display - No
EAN - 0766907019940
Features - HDCP - Yes
Features - HDCP version - 1.4/2.2
Features - Interactive - No
Features - Noise level - 32 dB
Features - Noise level (economic mode) - 29 dB
Features - Number of OSD languages - 27
Features - On Screen Display (OSD) - Yes
Features - On Screen Display (OSD) languages - Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Vietnamese
GTIN - 0766907019940
GTIN - 766907019940
Lens system - Aperture range (F-F) - 2.5 - 3.26
Lens system - Digital zoom - 2x
Lens system - Focal length range - 20.911 - 32.62 mm
Lens system - Focus - Manual
Lens system - Offset - 136%
Lens system - Optical zoom - 1.6x
Lens system - Throw ratio - 1.4 - 2.24
Lens system - Vertical lens shift range - 0 - 18%
Lens system - Zoom capability - Yes
Lens system - Zoom type - Manual
Light source - Light source type - Laser
Light source - Service life of light source - 20000 h
Light source - Service life of light source (economic mode) - 30000 h
Logistics data - Quantity per pack - 1 pc(s)

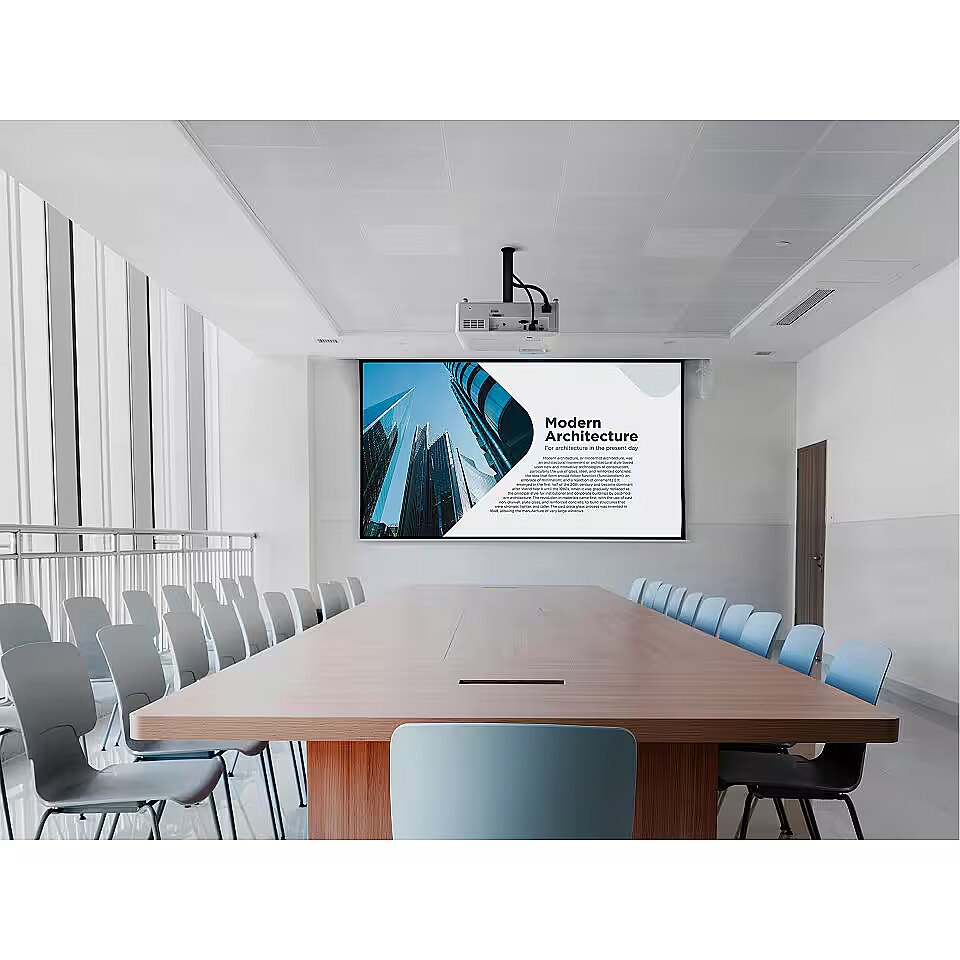

LongDesc - The Luminous Superior series is ViewSonic’s lamp-free high brightness lineup for both commercial and educational spaces. The LS751HD adopts industry-leading 2nd generation laser phosphor technology and delivers 5,000 ANSI Lumens while eliminating the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering the total cost of ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering up to 300” large images with 1080p high resolution and vivid colors no matter if you're in a boardroom, lecture hall, or public space. The projector boasts high installation flexibility with vertical lens shift, 1.6x optical zoom, easy image adjustment with H/V keystone and 4 corner correction, and diverse applications with 360° projection and portrait mode. The LS751HD also comes with HDMI 2.0b, ensuring access to original 4K quality content with HDR/HLG supported.2nd Generation Laser Phosphor TechnologyThe LS710HD adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.High Brightness for Large VenuesThanks to 4,200 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy with 1080p Full HD resolution which are perfectly suitable for large spaces with a lot of ambient light.Ultra-Large Screen with Lower Cost-per-inchThe projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.V Lens Shift for Flexible InstallationThe tool-free, lens shift control knobs make adjusting the projection lens up and down easy. Welcome flexible installation options with an adjustable range (V: 0%, -18%) and fewer placement restrictions.Effortless Image AdjustmentHorizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.Adaptable to Any Environment with Optical ZoomEquipped with a 1.6x optical zoom lens, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design. Lighter Weight and Compact SizeThe LS751HD is 24% lighter of weight and 34% smaller in size compared to its predecessor, which reduces the cost of transportation and enhances the ease of installation.Effortless Image AdjustmentHorizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.Versatile ApplicationThe projector can freely rotate at any angle vertically allowing projection onto ceilings, walls, or floors. The portrait mode enables users to turn the projector 90 degrees to increase the vertical field of view and add more applications for projection mapping, staging, and advertising.HDMI 2.0b Supporting 4K/HDR/HLGThe projector comes with an HDMI 2.0b / HDCP 2.2 port, providing you access to original 4K quality content with HDR/HLG supported at a 60Hz frame rate from external devices (e.g. Roku stick, 4K Blu-ray player), producing the brightest whites, deepest blacks, and more detailed visuals. Present the Best with Vibrant ColorsImpress any audience with ViewSonic’s exclusive color technology, elevating your presentation with a true-to-life color experience.Centralized Control for Management EfficiencyThe LS751HD is compatible with Crestron, AMX, PJ Link, ATEN and Extron systems and comes equipped with ViewSonic vController, an easy-to-use network management tool.Non-stop 24/7 OperationThe advanced cooling design enables 24/7 operation without degradation of image quality or work performance, making the projector ideal for applications that require continuous use.A Simpler Way to Update Projector SoftwareSkip trips to the service center by keeping software up to date easily via USB cable connection with your laptop.*The latest projector software update can be found in the download section at the bottom of the page when available.USB Type A Power SupplyThe built-in 5V/1.5A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.
LongProductName - Full HD, 5000 ANSI, 3000000:1, 1.07 B, 2, 15W x2, RJ45, HDMI, Audio-out, RS232, USB, 100-240 V, 4.5 kg
LongSummaryDescription - Viewsonic LS751HD. Projector brightness: 5000 ANSI lumens, Projector native resolution: 1080p (1920x1080), Contrast ratio (typical): 3000000:1. Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 20.911 - 32.62 mm, Aperture range (F-F): 2.5 - 3.26. Analog signal format system: NTSC, PAL, SECAM, Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p. Serial interface type: RS-232, HDMI connector type: Full-size, Service port type: USB Type-A
Manufacturer - Viewsonic
MPN - LS751HD
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of built-in speakers - 2
Multimedia - RMS rated power - 30 W
Name - Viewsonic Beamer LS751HD 5000 Lumen F-HD Laser DLP
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Smart TV - No
Network - Wi-Fi - No
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Quick start guide - Yes

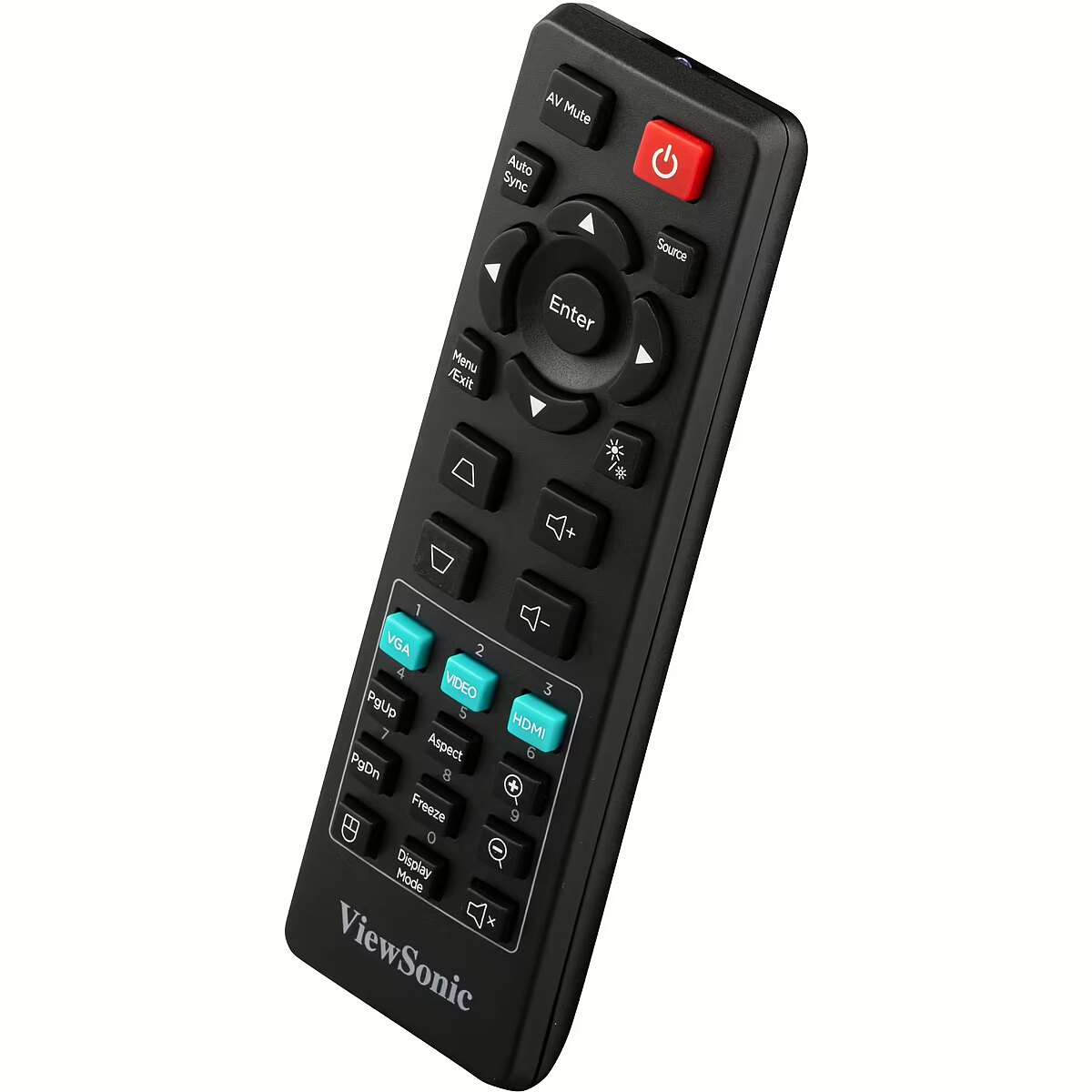

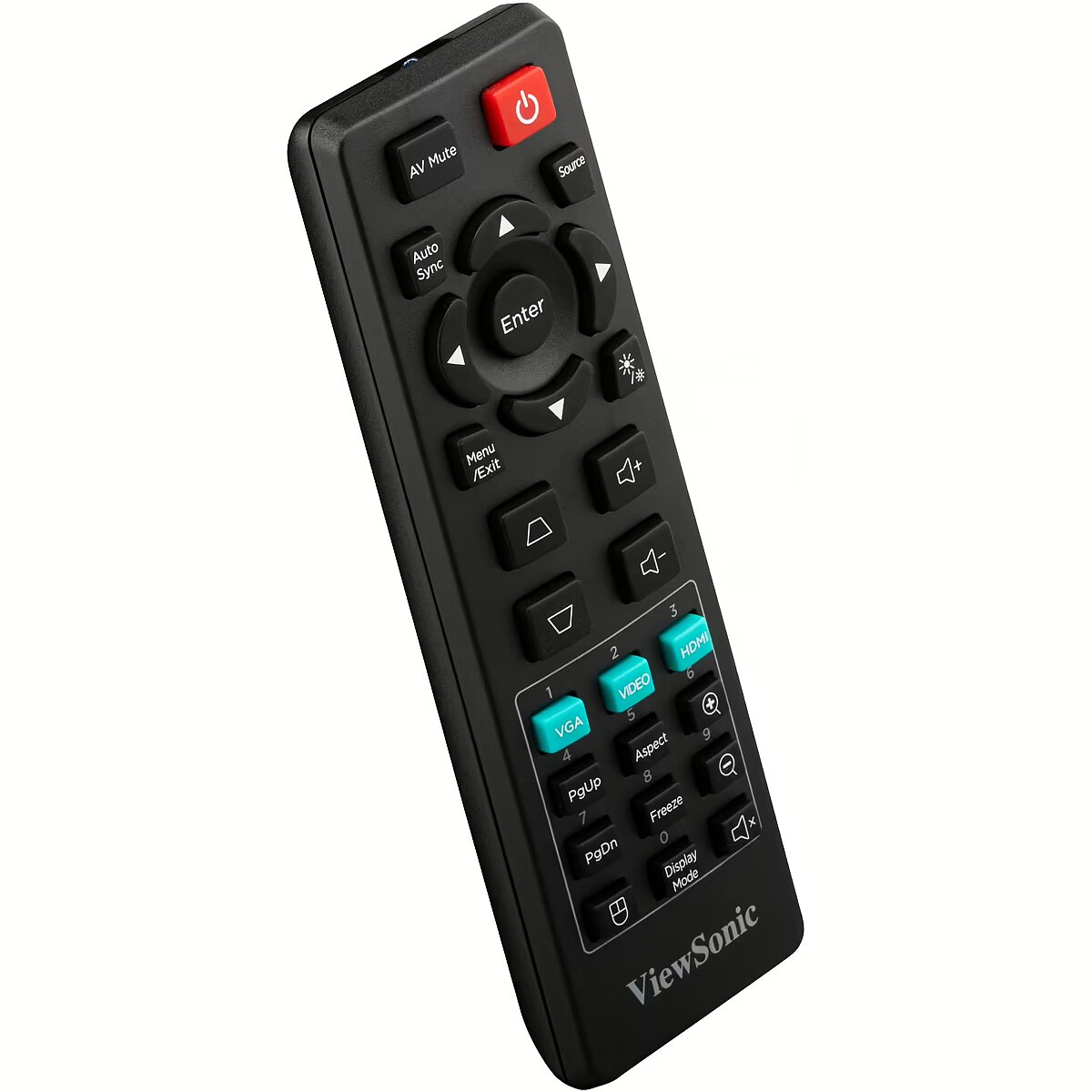

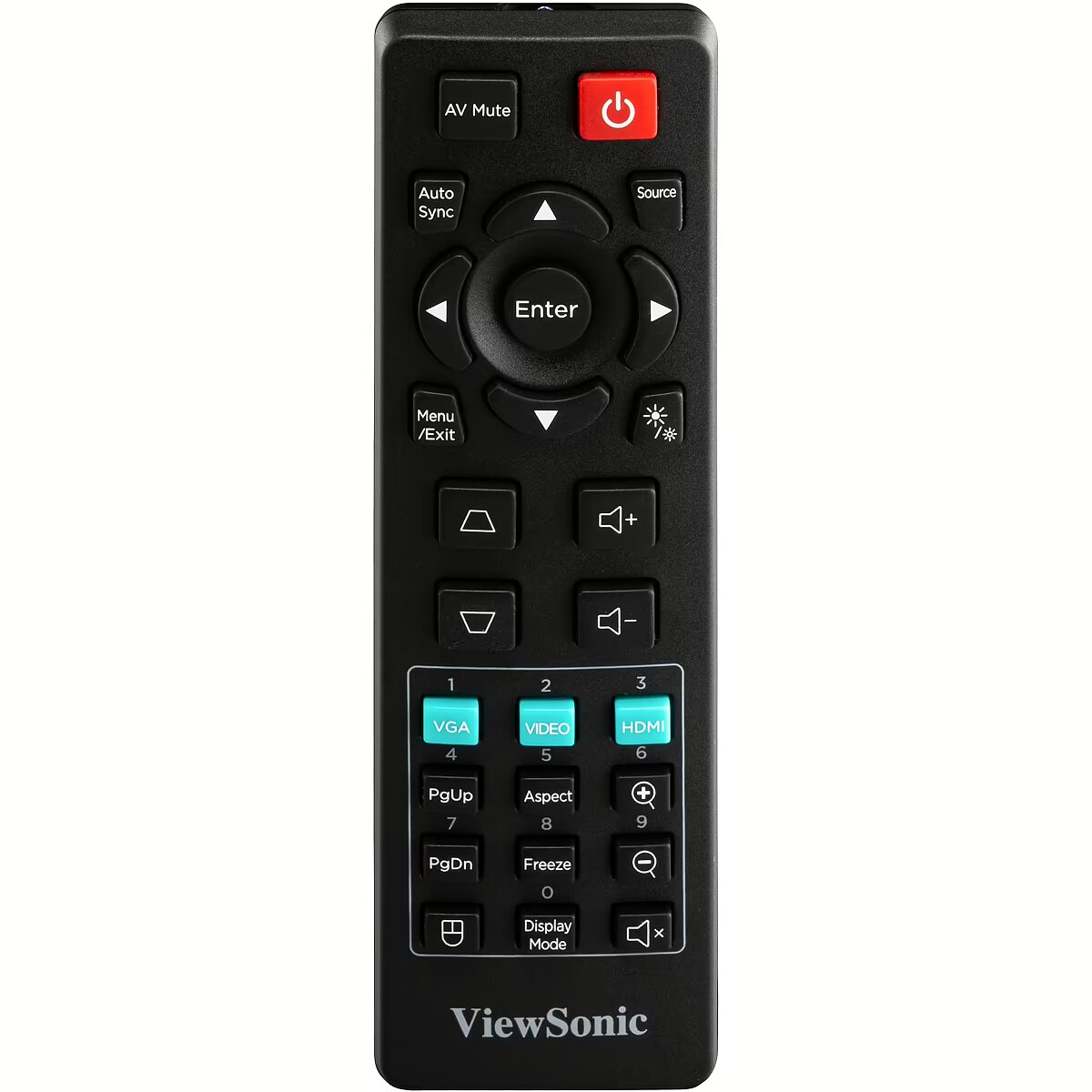

Packaging content - Remote control included - Yes
Packaging content - Warranty card - Yes

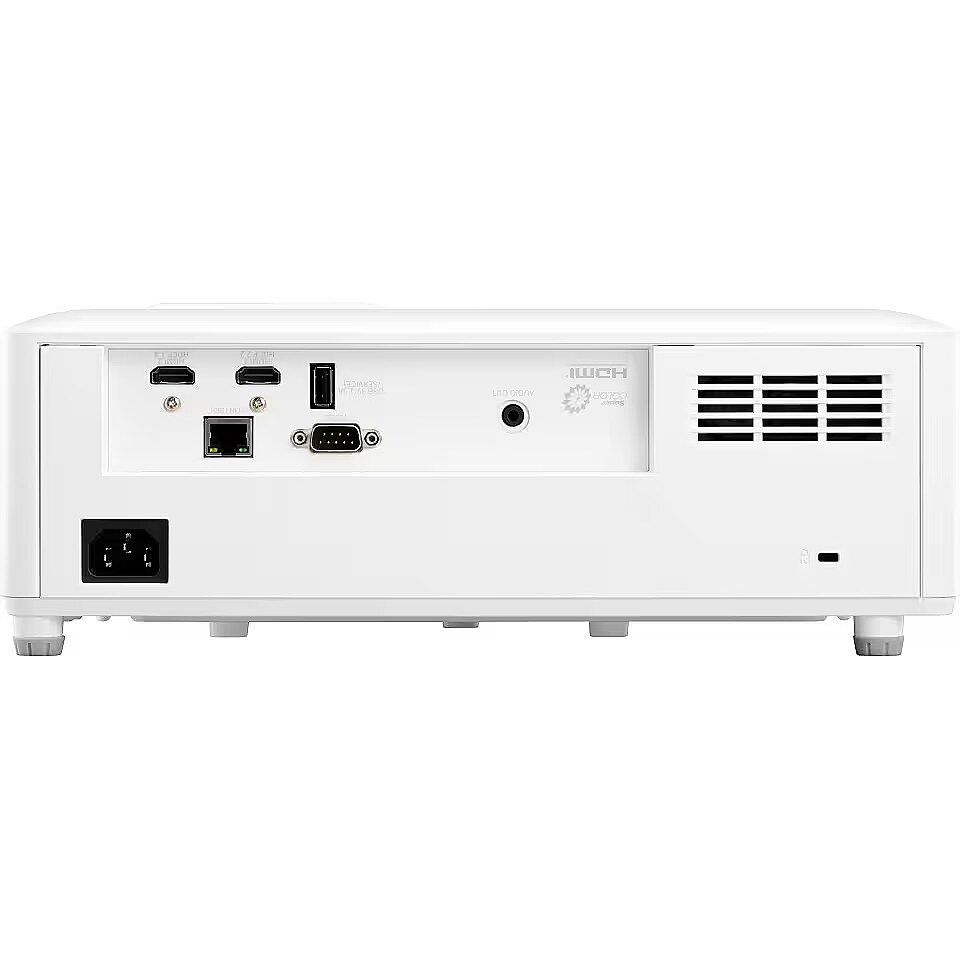

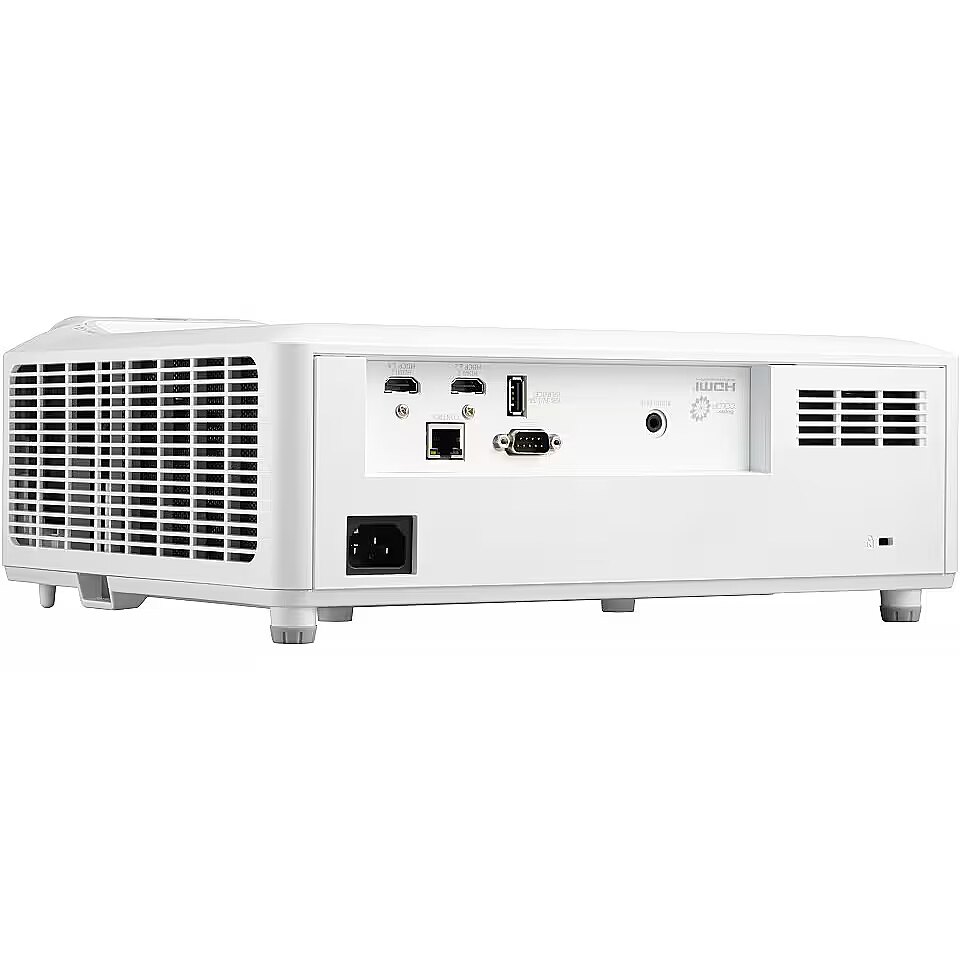

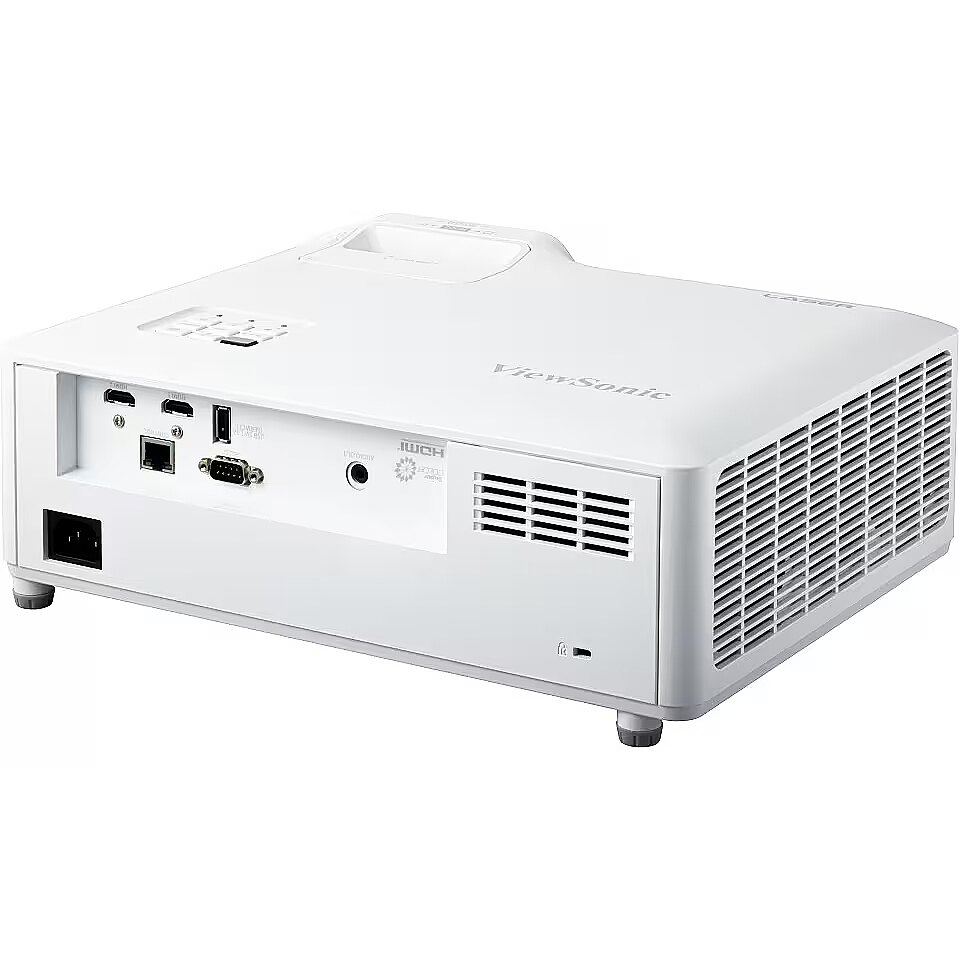

Ports & interfaces - AC (power) in - Yes
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI connector type - Full-size
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Service port type - USB Type-A
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 2.0 Type-A ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 245 W
Power - Power source - AC
ProductName - LS751HD
Projector - Contrast ratio (typical) - 3000000:1
Projector - Horizontal scan range - 15 - 102 kHz
Projector - Keystone correction, horizontal - -30 - 30°
Projector - Keystone correction, vertical - -30 - 30°
Projector - Native aspect ratio - 16:9
Projector - Number of colours - 1.07 billion colours
Projector - Projection distance - 0.93 - 14.88 m
Projector - Projector brightness - 5000 ANSI lumens
Projector - Projector native resolution - 1080p (1920x1080)
Projector - Screen size compatibility - 762 - 7620 mm (30 - 300")
Projector - Smart projector - No
Projector - Vertical scan range - 23 - 120 Hz
ShortSummaryDescription - Viewsonic LS751HD, 5000 ANSI lumens, 1080p (1920x1080), 3000000:1, 16:9, 762 - 7620 mm (30 - 300"), 0.93 - 14.88 m
Storage - Card reader integrated - No
Technical details - Image lag time - 49.9 ms

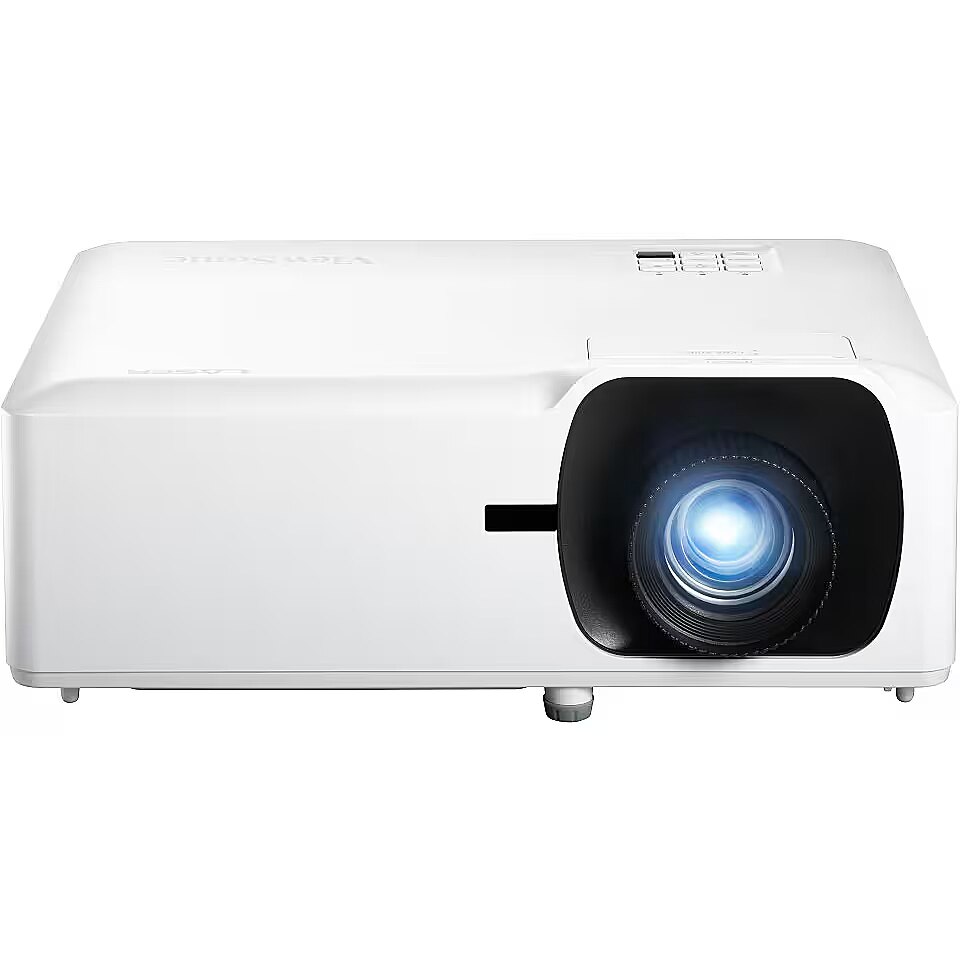

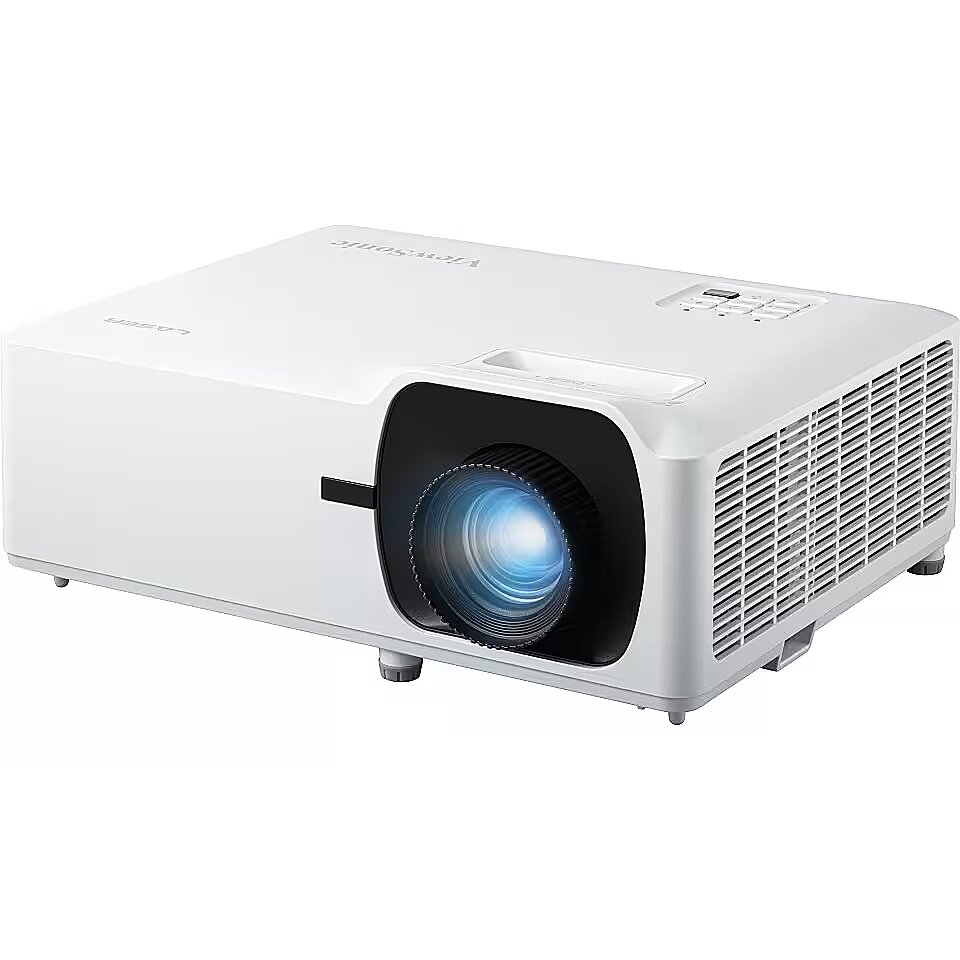

Title - Viewsonic LS751HD data projector Standard throw projector 5000 ANSI lumens 1080p (1920x1080) White
URL - https://www.viewsonic.com/global/products/projectors/LS751HD
Video - 3D - No
Video - Analog signal format system - NTSC, PAL, SECAM
Video - Full HD - Yes
Video - Supported video modes - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
WarrantyInfo -
Weight - 6.3
Weight & dimensions - Depth - 265 mm
Weight & dimensions - Height - 131.5 mm
Weight & dimensions - Package depth - 195 mm
Weight & dimensions - Package height - 387 mm
Weight & dimensions - Package weight - 6.6 kg
Weight & dimensions - Package width - 496 mm
Weight & dimensions - Weight - 4.5 kg
Weight & dimensions - Width - 337 mm
