ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Cables included Packaging content - SATA
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Compatible processor series Processor - Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9
Component for Features - PC
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 208 mm
Description - Intel B760 chipset
With the Intel® B760 chipset and the 12th/13th generation Intel® Core™ i9/ i7/ i5/ i3 processors and Intel® Pentium® processors, you will immediately be at the forefront of the battlefield, fueled by mind-blowing power and performance. From content creation to gaming, the Intel B760 chipset provides you with the power and performance you need. HD Audio
Provides high quality sound with minimal loss of audio fidelity. HDMI 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data. DVI
DVI is better than VGA for LCD displays since it is digital while VGA is analog. For LCD displays, the picture is digitized pixel per pixel. Through DVI, the panel gets data for each pixel, so the picture generated in the Graphics device matches the pixels on the panel itself. DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware. Integrated HDMI with HDCP
Onboard HDMI connector allows full video & audio support. It has industry-leading high definition video qualitySupports 12th/13th/14th Generation Intel Core ProcessorIntel B760 single chip architectureSupports 2-DIMM DDR5 up to 96 GB MemorySupports PCIe 4.0Supports PCIe 4.0 M.2 (64Gb/s)Supports HDMI 4K2KSupports USB 3.2 Gen1Support WiFi 6 & 6E module (No WiFi card included)Support 2.5G LAN
dimensionalWeight - 712
DVI-D ports quantity Rear panel I/O ports - 1
EAN_code - 4712960686892
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Yes
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
HDMI ports quantity Rear panel I/O ports - 1
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of M.2 (E) slots - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
LAN controller Network - Realtek RTL8125B
Manufacturer - Biostar
Manufacturer_code - B760MX2-E
Maximum internal memory Memory - 64 GB
Maximum number of SMP processors Processor - 1
Memory - Maximum internal memory - 64 GB
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 6000
Memory - Supported memory types - DDR5-SDRAM
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Model - B760MX2-E
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel B760
Motherboard form factor Features - micro ATX
Name - Biostar B760MX2-E - Socket 1700 - motherboard
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Yes (no WiFi card included) - Yes (no WiFi card included)
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging content - Set contents - WiFi antenna accessories
PC health monitoring Features - Fan/Temperature/Voltage
PCI Express x1 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Power source type Features - ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium®
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
producerCode - B760MX2E
productName - Biostar B760MX2-E D4 motherboard Intel B760 LGA 1700 micro ATX
productSize - Normal
PS/2 ports quantity Rear panel I/O ports - 1
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes

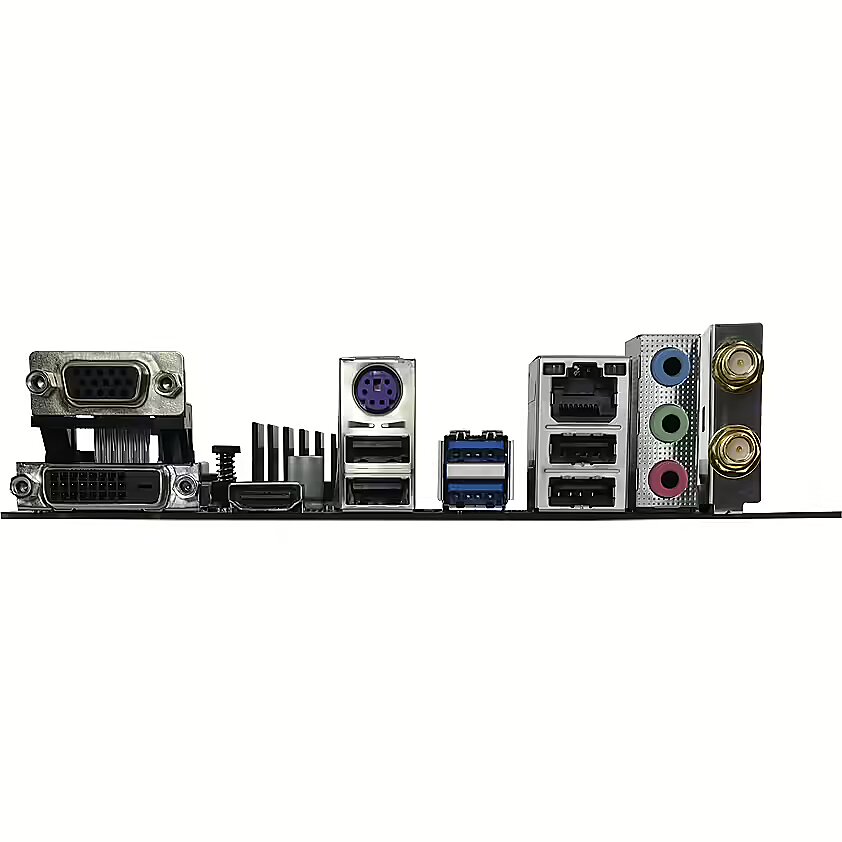

Rear panel I/O ports - Audio ports quantity - 3
Rear panel I/O ports - DVI ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Number of Wi-Fi antenna ports - 1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
sizeX - 270
sizeY - 60
sizeZ - 220
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Biostar B760MX2-E. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory clock speeds Memory - 1866/2133/2400/2666/2933/3200/3600/3800/4000/4400 MHz
Supported memory types Memory - DDR4-SDRAM
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
TPM connector Internal I/O - Yes
Unit Box Height - 0.06
Unit Box Length - 0.27
Unit Box Width - 0.22
Unit Calculated Volume - 0.003564 cubm
Unit Calculated Weight - 0.781 kg
Units per Shipping Box - 1
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
Vendor Homepage - https://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1097#specification
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36 months
warrantyLength - 24
warrantyType - G
Weight - 0,80
weight - 780
Weight & dimensions - Depth - 208 mm
Weight & dimensions - Width - 236 mm
Wi-Fi Network - No
Width Weight & dimensions - 236 mm
Windows operating systems supported Features - Windows 10 x64/Windows 11 x64
