Brand - MSI
BrandPartCode - PRO H810M-B
Category - Motherboards
Code - PRO H810M-B
dimensionalWeight - 1055
EAN - 4711377337977
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H810
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 11
GTIN - 4711377337977
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CD/AUX audio in - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of RGB LED pin headers - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 3
LongDesc - PRO H810M-B offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with 2.5G LAN and PCIe 5.0, ready for the Intel® Core™ Ultra processors.The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.AI Engineprovides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.AI LAN MANAGERoptimizes networking performance and minimizes latency, providing a seamless online experience.Frozr AI Coolingautomatically adjusts fan duty to make sure the system stays in cool, stable and high performance.AI Boostis an MSI exclusive feature. It overclocks NPU to improve higher AI performance.The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.EZ DEBUG LEDOnboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.EZ Memory Detection LEDThis LED lights up when it detects faulty memory in slots, eliminating guesswork from troubleshooting.CORE BOOSTCore Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCEA huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO H810M-B is ready to deliver the world-class memory performance.Transient Voltage Suppressors (TVS)Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENTConnect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI’s premium network solution provides incredible data transfer speed for demanding users.FAST AND FUTURE-READY STORAGEMSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LongProductName - LGA1851, DDR5, UDIMM, HDMI, DP, H810, PCI-E 5, ALC897, M.2
LongSummaryDescription - MSI PRO H810M-B. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 4800,6400 MHz
Memory - Supported memory types - DDR5-SDRAM
Name - MSI PRO H810M-B | MSI
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 256 mm
Package features > Gross height (mm) - 280 mm
Package features > Gross width (mm) - 270 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 89 pc(s)
Package features > Paper/Pasteboard - 350.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > TI weight (kg) - 0.08 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.0193536 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
producerCode - PRO H810M-B
ProductName - PRO H810M-B
productName - Płyta główna MSI PRO H810M-B
productSize - Normal

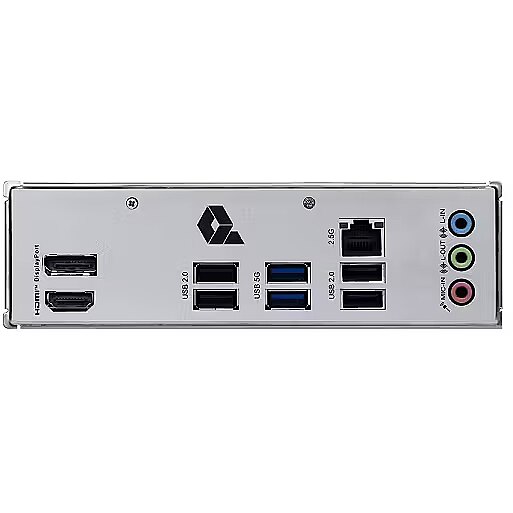

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
ShortSummaryDescription - MSI PRO H810M-B, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 128 GB, Non-ECC
sizeX - 290
sizeY - 260
sizeZ - 70
Storage controllers - Supported storage drive interfaces - SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 2.00 kg
Technical details > Net weight - 1.60 kg
Technical details > Producer - MSI
Title - MSI PRO H810M-B motherboard Intel H810 LGA 1851 (Socket V1) micro ATX
URL - https://www.msi.com/Motherboard/PRO-H810M-B/Specification
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 975
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 220 mm
