12V power connector Internal I/O - Yes

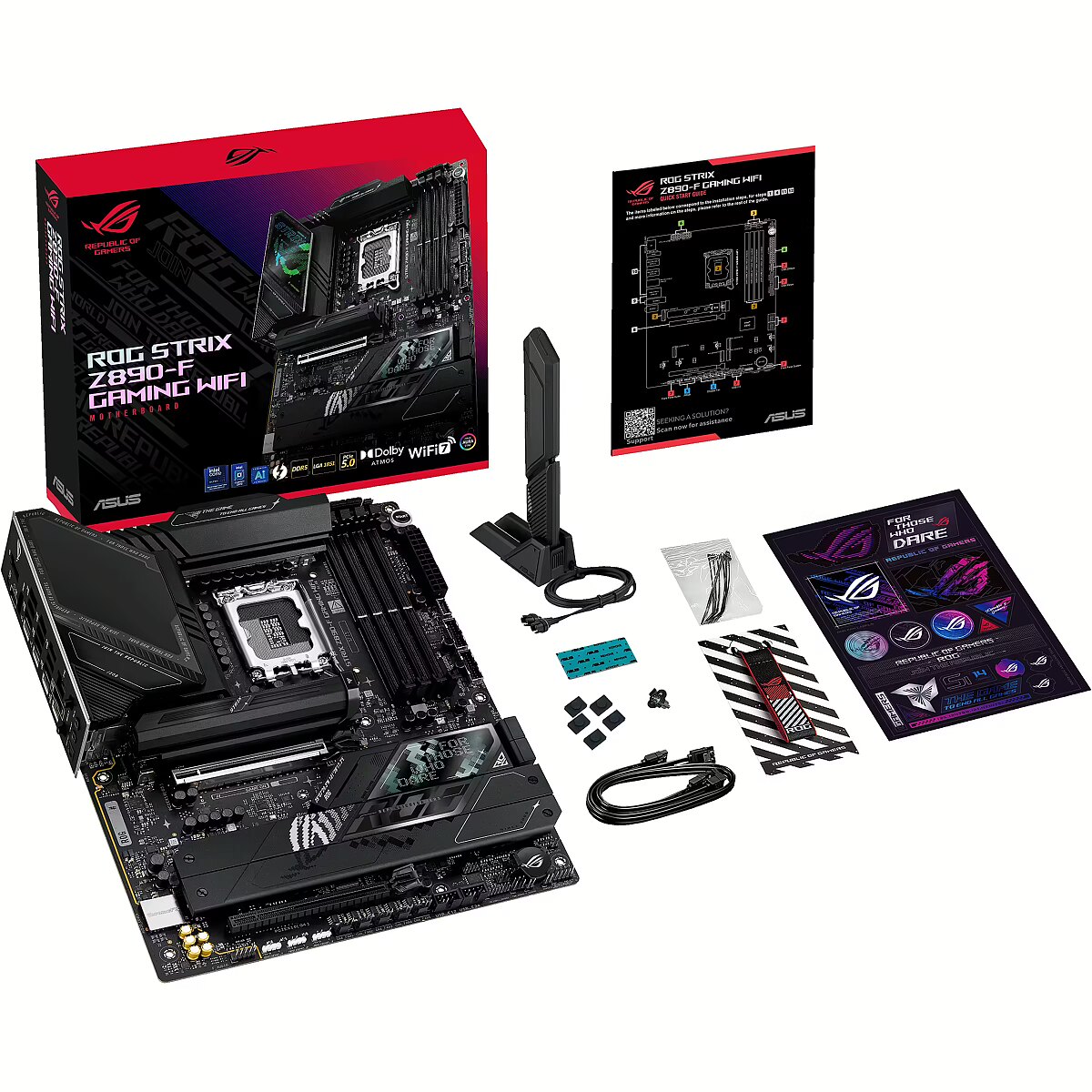

Accessories included - 2 x SATA 6Gb/s cables M.2 22110 thermal pad ASUS WiFi Q antenna Cable tie pack M.2 Q-Latch pack ROG keychain ROG Strix stickers 3 x M.2 rubber packs Quick start guide
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC4080
Audio output channels Features - 7.1 channels
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.4
Brand - ASUS
BrandPartCode - 90MB1I40-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - other
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chassis intrusion connector Internal I/O - Yes
Chipset manufacturer - Intel
Chipset type - Intel Z890 Chipset
Clear CMOS button BIOS - Yes
code - 90MB1I40-M0EAY0
COM connector / port - No
Compatible processor series Processor - Intel Core Ultra (Series 2)
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel Z890
Dane techniczne: Grupa produktowa - Płyty główne Asus
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Asus
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - ATX
Depth Weight & dimensions - 244 mm

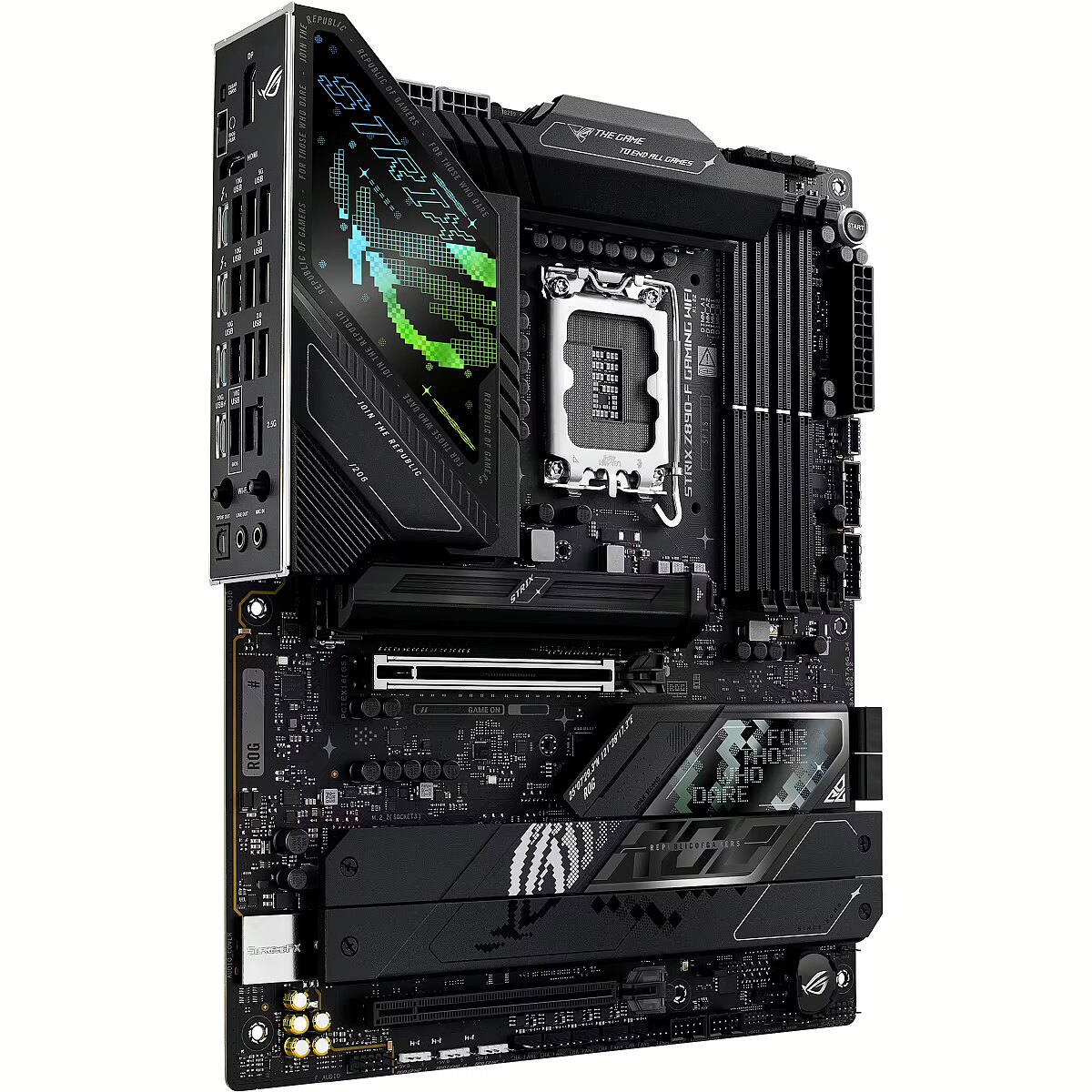

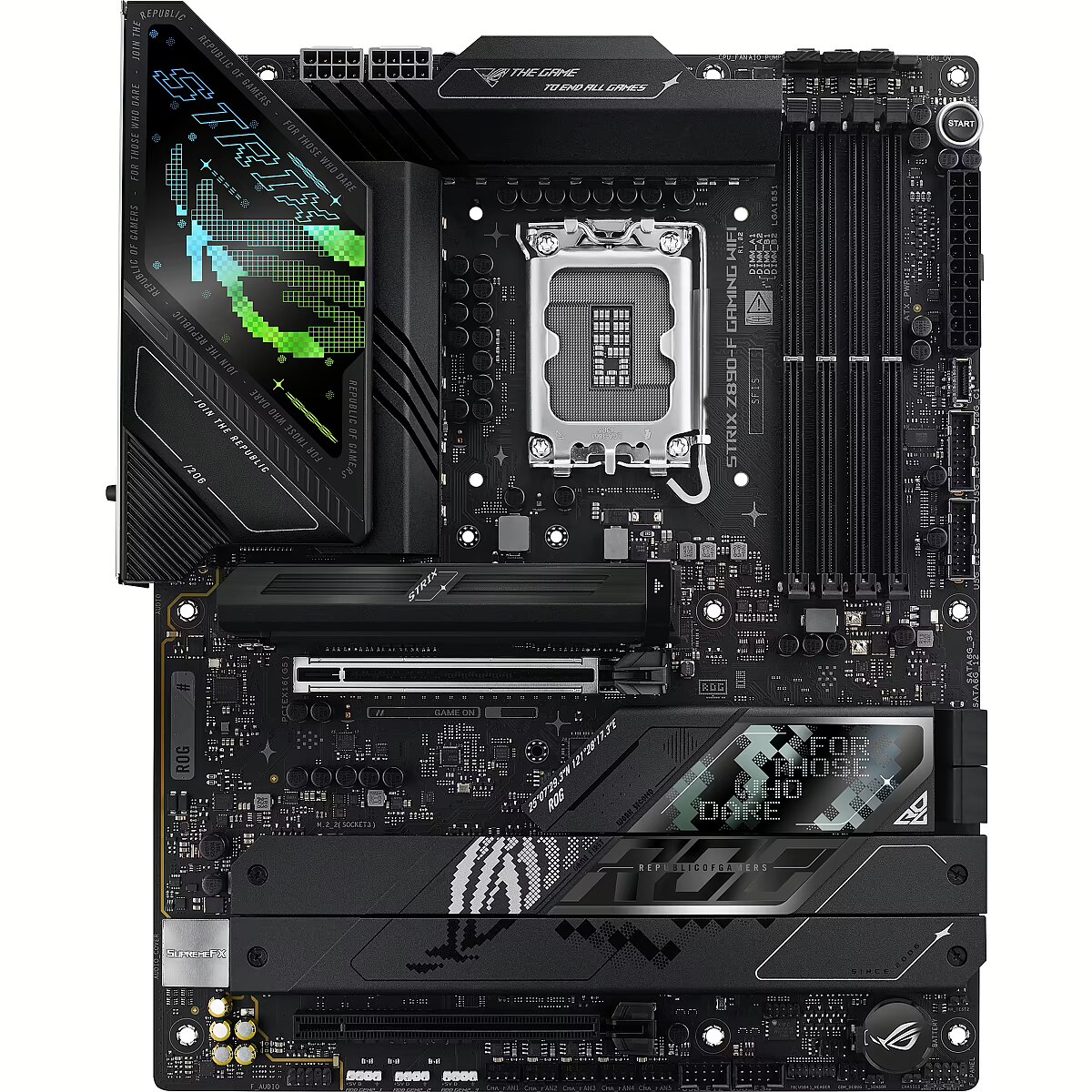

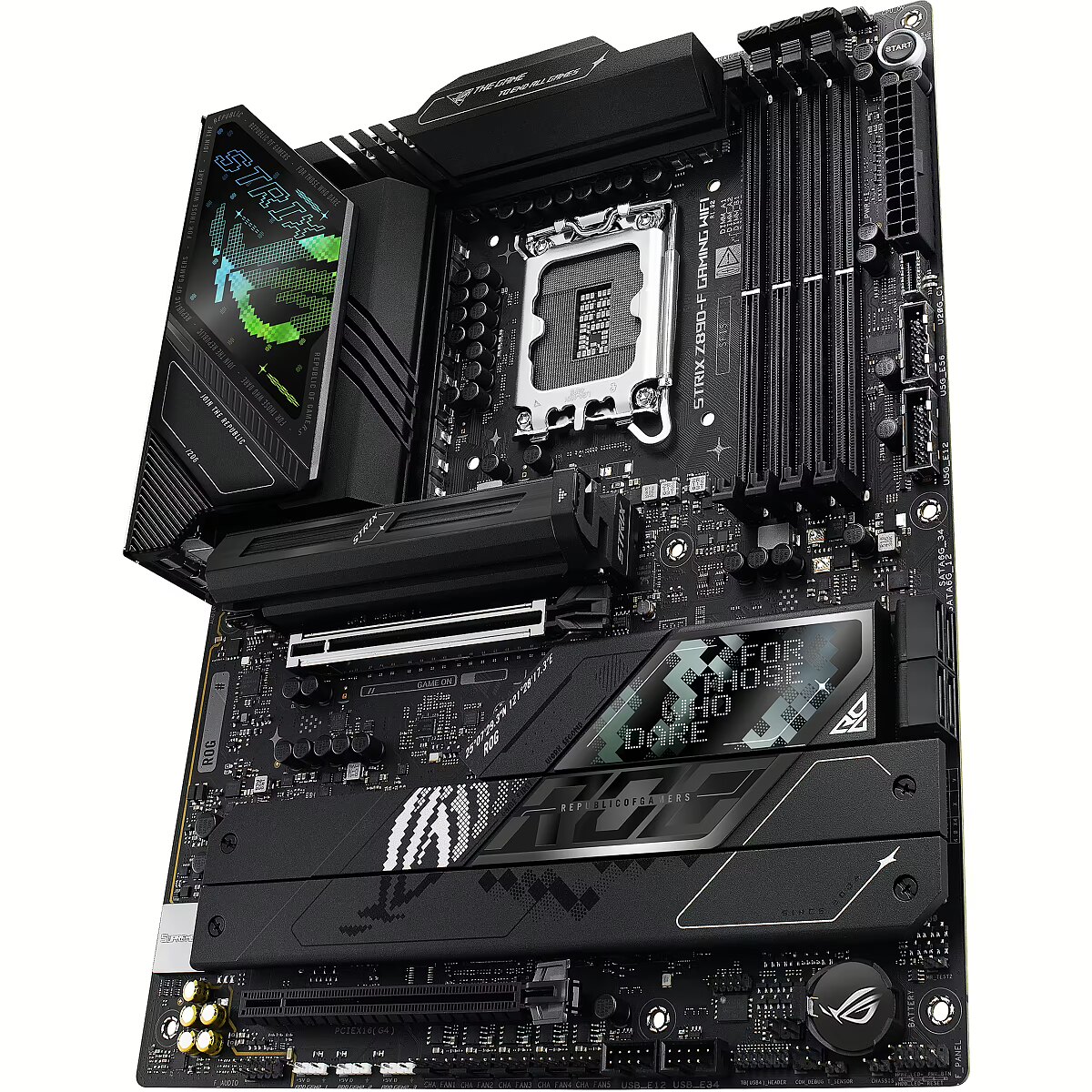

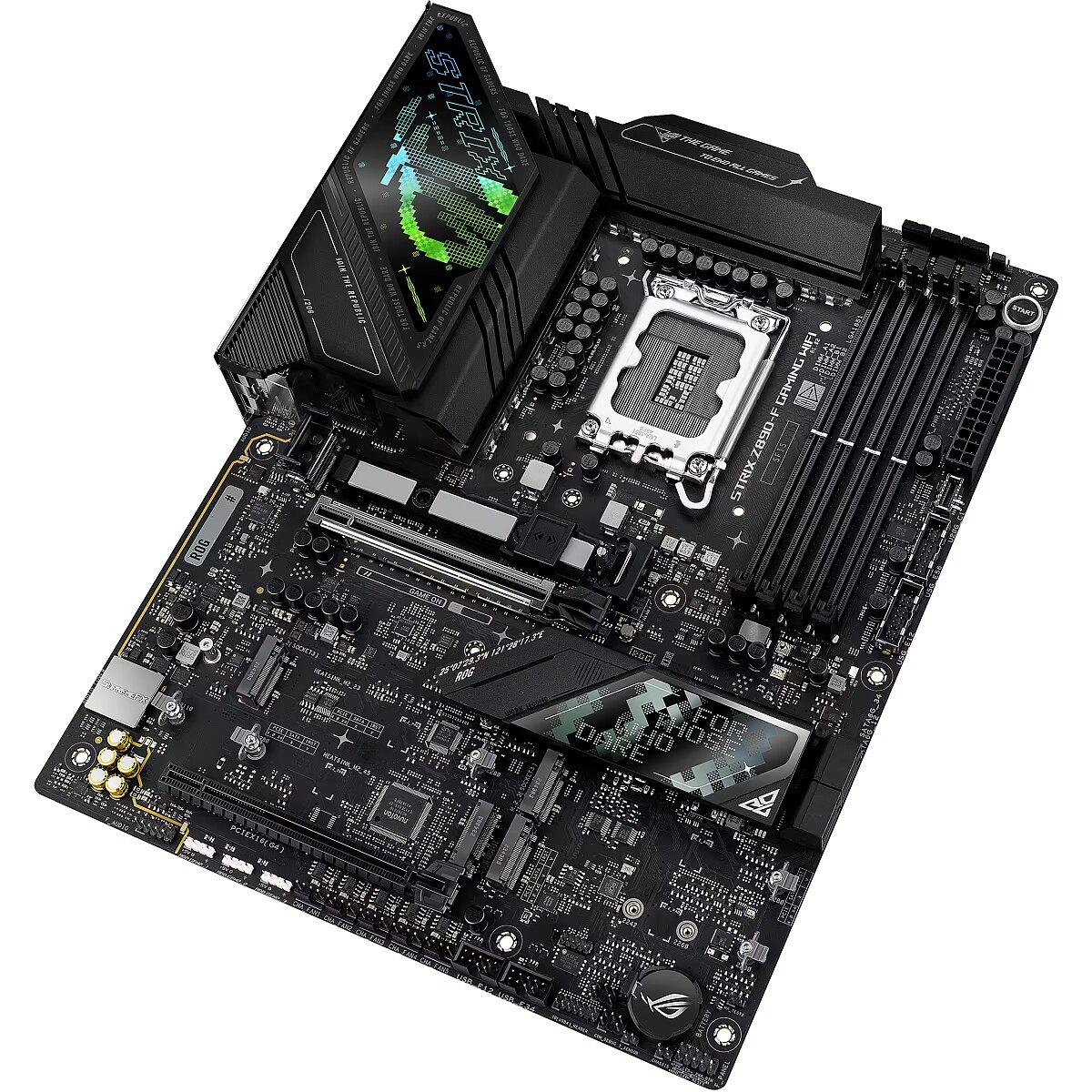

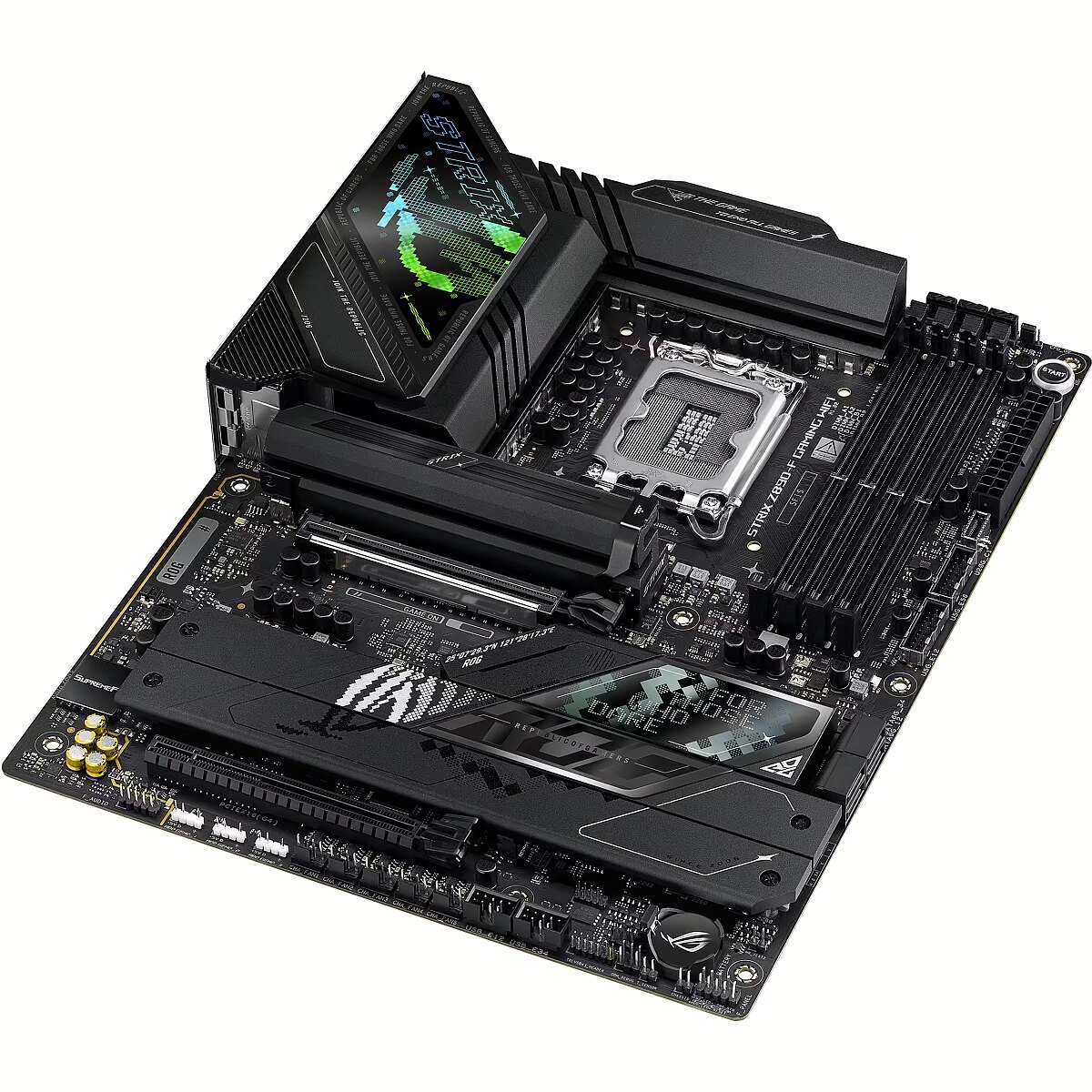

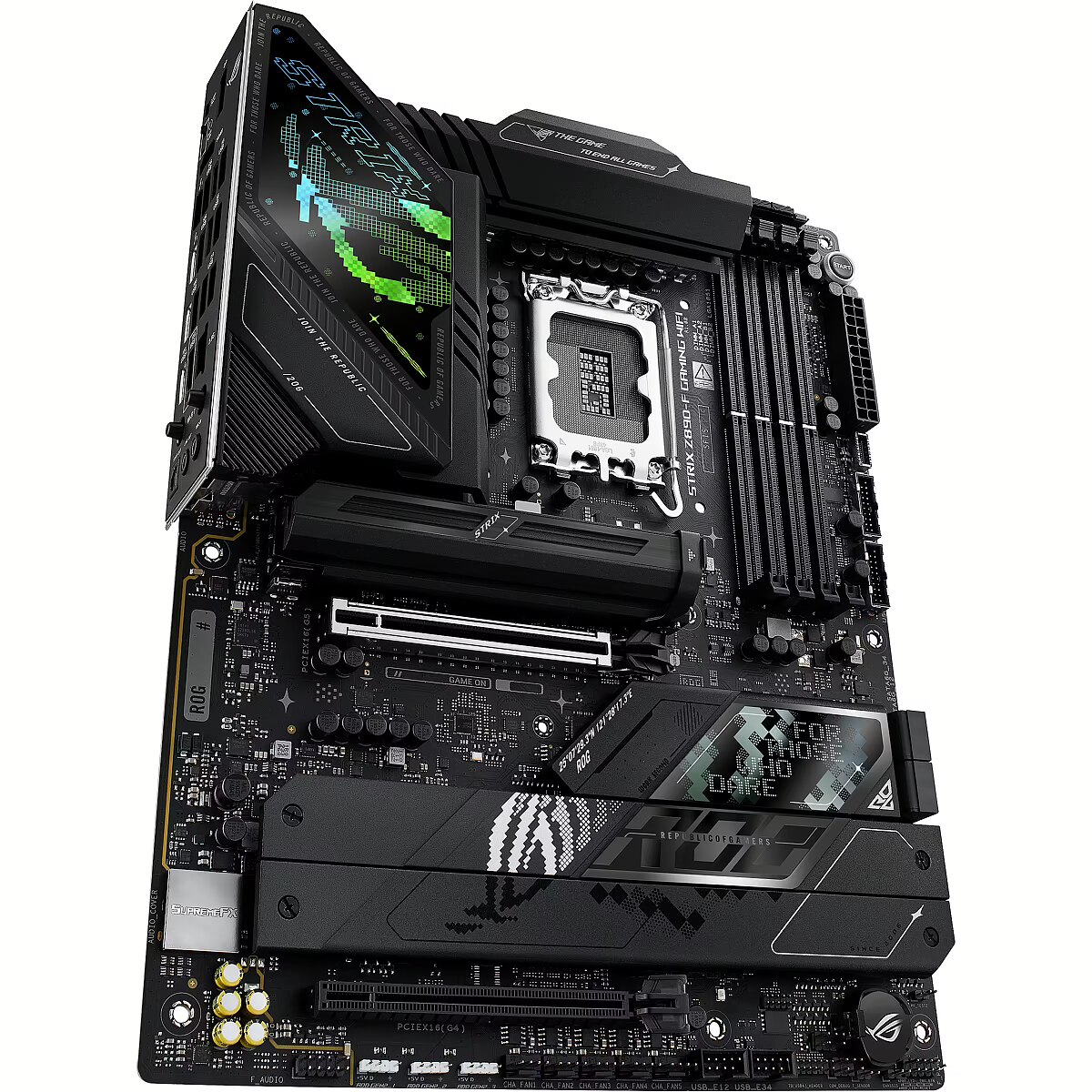

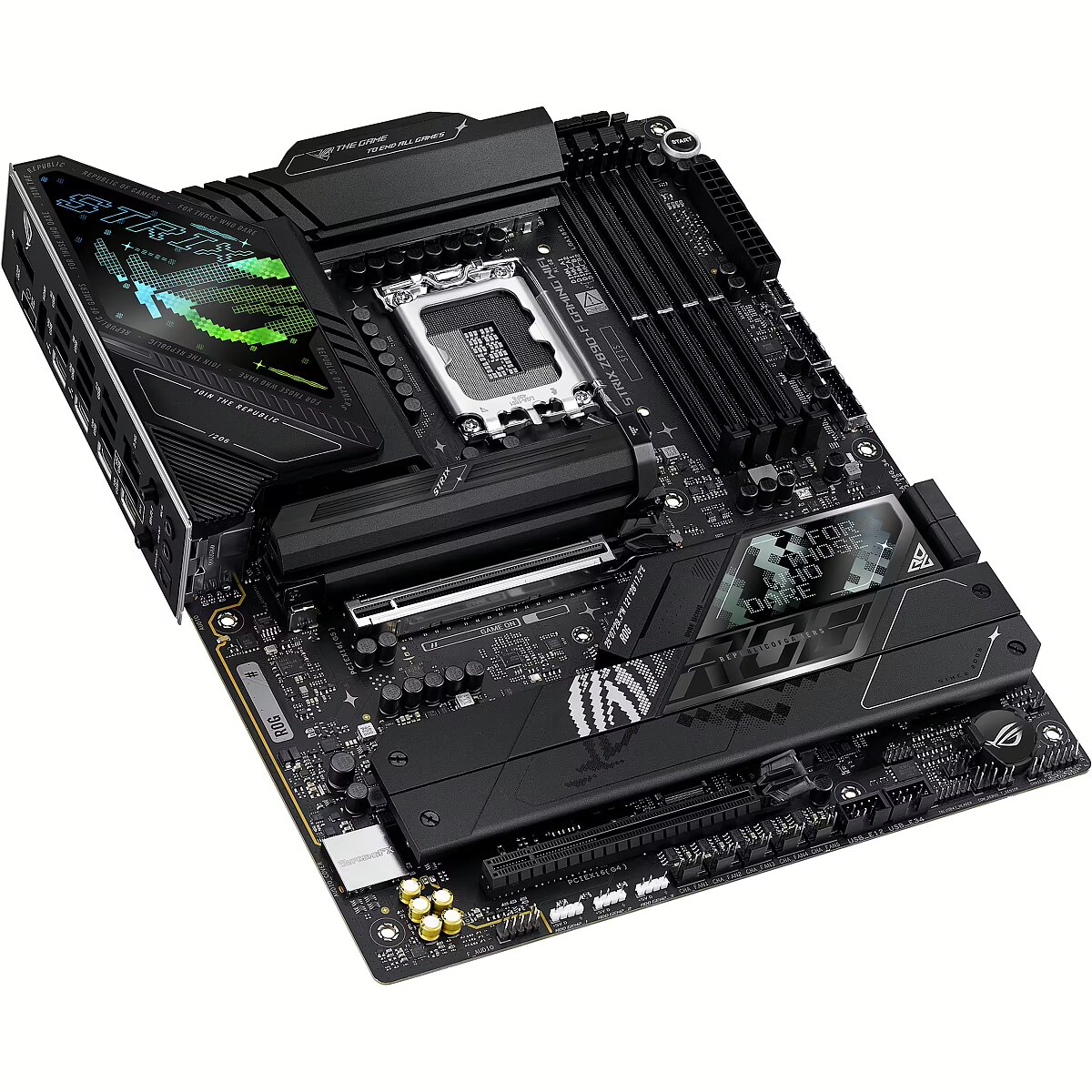

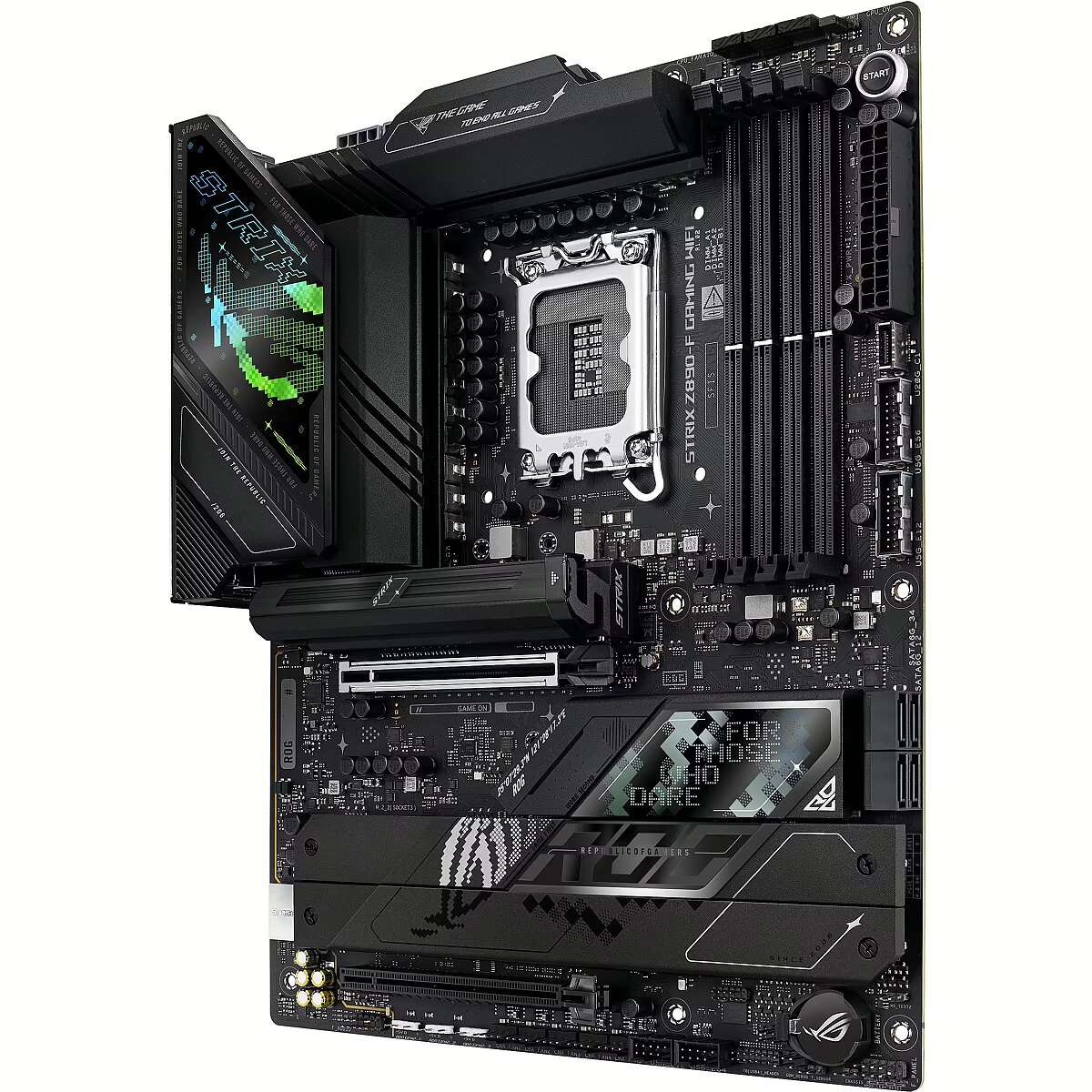

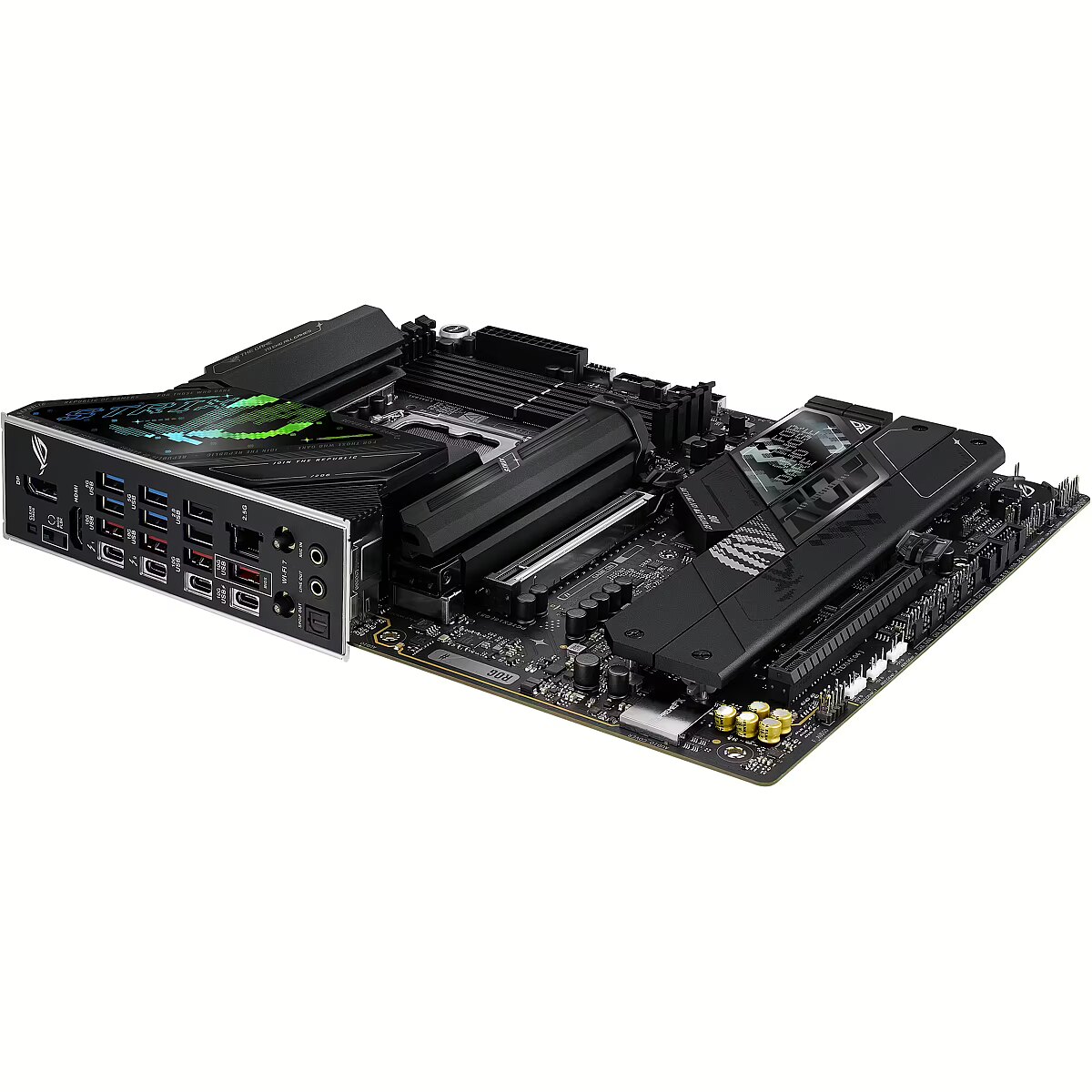

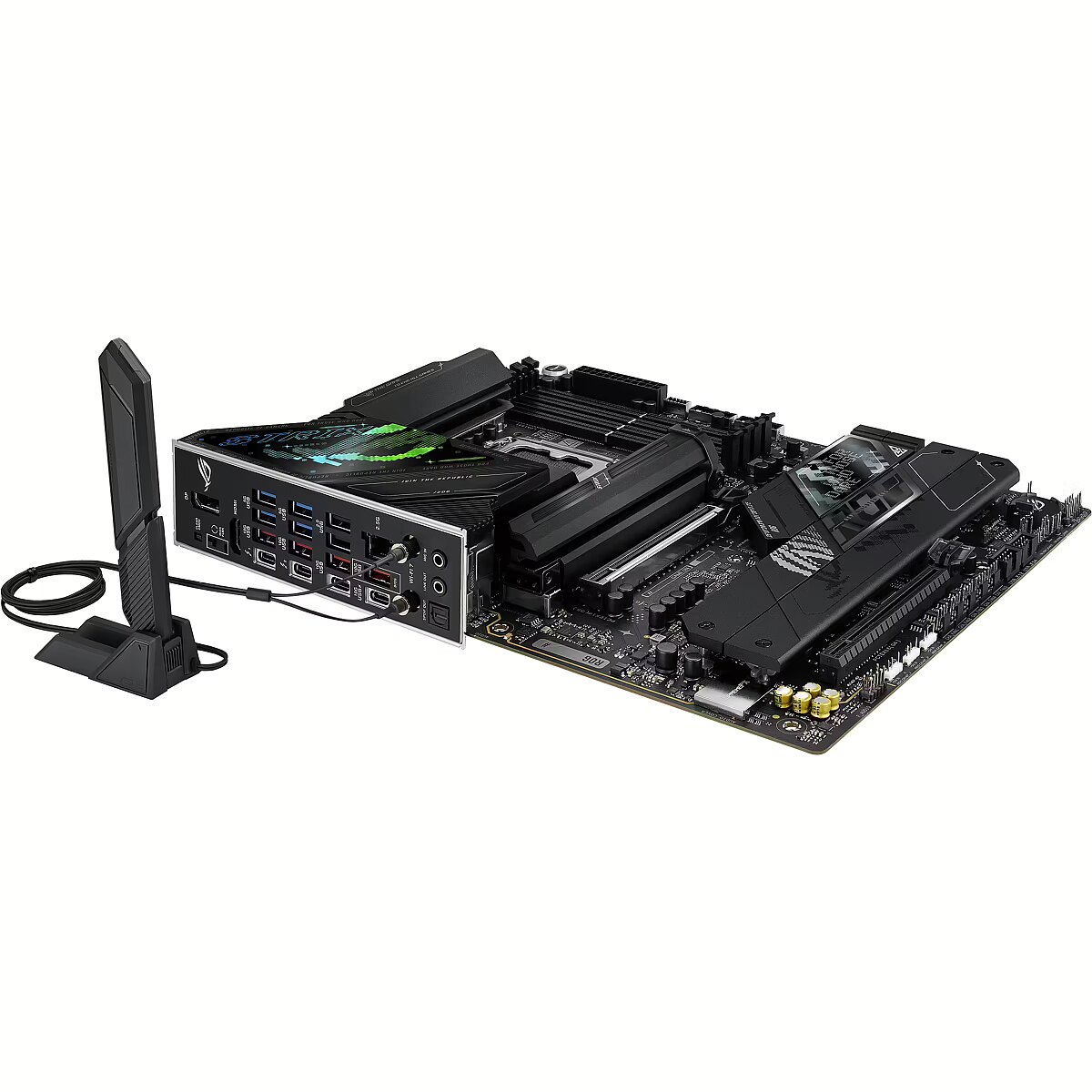

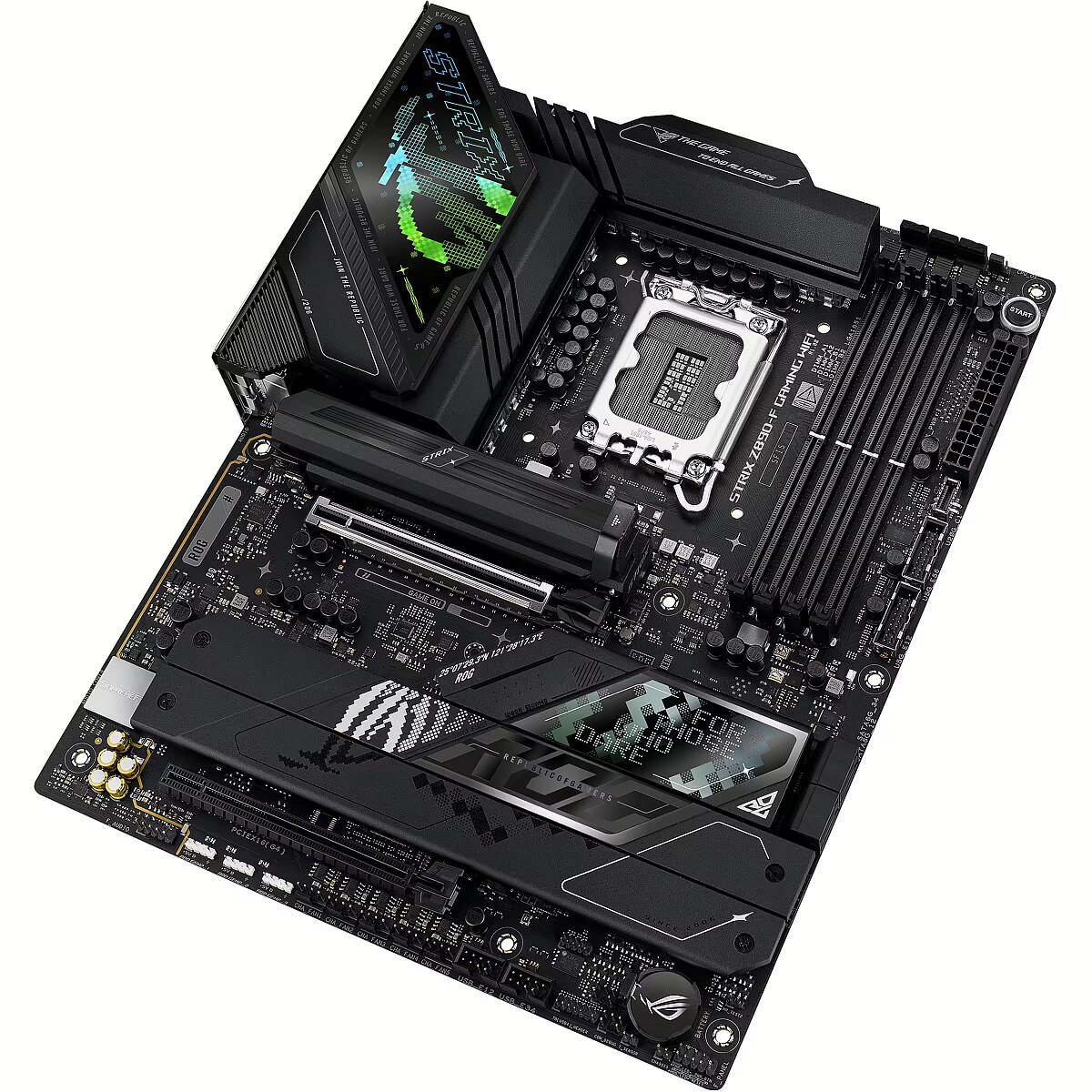

Description - ROG STRIX Z890-F gaming wifi
With NPU boosting and cutting-edge AI solutions, the ROG STRIX Z890-F Gaming WiFi supports advanced AI-driven PC applications. Equipped with Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, it delivers blazing-fast data transfers, unparalleled connectivity and a customizable aesthetic that can be either subtle or bold.
Description - ROG STRIX Z890-F Gaming WiFi
With NPU boosting and cutting-edge AI solutions, the ROG STRIX Z890-F Gaming WiFi supports advanced AI-powered computing applications. Equipped with Thunderbolt 4, PCIe 5.0, and Polymo lighting, it delivers lightning-fast data transfers, unparalleled connectivity, and a customizable aesthetic that can be subtle or bold.
description_en - ASUS ROG STRIX Z890-F a high-performance gaming motherboard designed for enthusiasts and gamers. Features advanced cooling technologies, support for high-speed DDR5 memory, and powerful GPUs via PCIe 5.0. Perfect for building gaming PCs with RGB lighting and full compatibility with the ROG ecosystem.
Specifications: Form factor: ATX Chipset: Intel Z890 CPU support: Intel 14th Gen Memory slots: 4 × DDR5, up to 128GB Graphics support: 3 × PCIe 5.0 x16 Storage: 5 × M.2, 6 × SATA 6Gb/s Networking: 2.5 Gb Ethernet, Wi-Fi 6E Audio: ROG SupremeFX 7.1 channel USB: 2 × USB-C, 8 × USB 3.2, 4 × USB 2.0 Features: reinforced PCIe slots, Advanced Cooling, Aura Sync RGB, ROG ecosystem
description_lv - ASUS ROG STRIX Z890-F augstas veiktspējas spēļu mātesplate entuziastiem un spēlētājiem. Aprīkota ar modernām dzesēšanas tehnoloģijām, atbalstu ātrai DDR5 atmiņai un jaudīgām videokartēm PCIe 5.0 slotos. Ideāli piemērota spēļu datoru būvei ar RGB apgaismojumu un pilnu saderību ar ROG ekosistēmu.
Specifikācijas: Formāts: ATX Čipsets: Intel Z890 Procesora atbalsts: Intel 14. paaudze Atmiņas sloti: 4 × DDR5, līdz 128 GB Grafikas atbalsts: 3 × PCIe 5.0 x16 Glabāšana: 5 × M.2, 6 × SATA 6 Gb/s Tīkla iespējas: 2.5 Gb Ethernet, Wi-Fi 6E Audio: ROG SupremeFX 7.1 kanāli USB: 2 × USB-C, 8 × USB 3.2, 4 × USB 2.0 Īpašības: pastiprināti PCIe sloti, Advanced Cooling, Aura Sync RGB, ROG ekosistēma
description_ru - ASUS ROG STRIX Z890-F игровая материнская плата для энтузиастов и геймеров, обеспечивающая высокую производительность и широкий функционал. Оснащена передовыми технологиями охлаждения, поддержкой высокоскоростной памяти DDR5 и мощных видеокарт через PCIe 5.0. Идеальна для сборки игровых ПК с эксклюзивной RGB-подсветкой и полной совместимостью с ROG экосистемой.
Характеристики: Форм-фактор: ATX Чипсет: Intel Z890 Процессор: поддержка Intel 14-го поколения Слоты памяти: 4 × DDR5, до 128 ГБ Поддержка графики: 3 × PCIe 5.0 x16 Хранилище: 5 × M.2, 6 × SATA 6 Гбит/с Сетевые возможности: 2.5 Gb Ethernet, Wi-Fi 6E Аудио: ROG SupremeFX 7.1-канальный USB: 2 × USB-C, 8 × USB 3.2, 4 × USB 2.0 Особенности: усиленные PCIe слоты, Advanced Cooling, Aura Sync RGB, ROG экосистема
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Intel Core Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
dimensionalWeight - 1440
dimension depth - 70 mm
dimension height - 275 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2422 g
dimension width - 360 mm
DisplayPorts quantity Rear panel I/O ports - 1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC4082 7.1)
ean - 4711387755921
EAN - 4711387755921
Eans - 4711387755921
EAN_code - 4711387755921
ECC ?ompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 5 x M.2
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

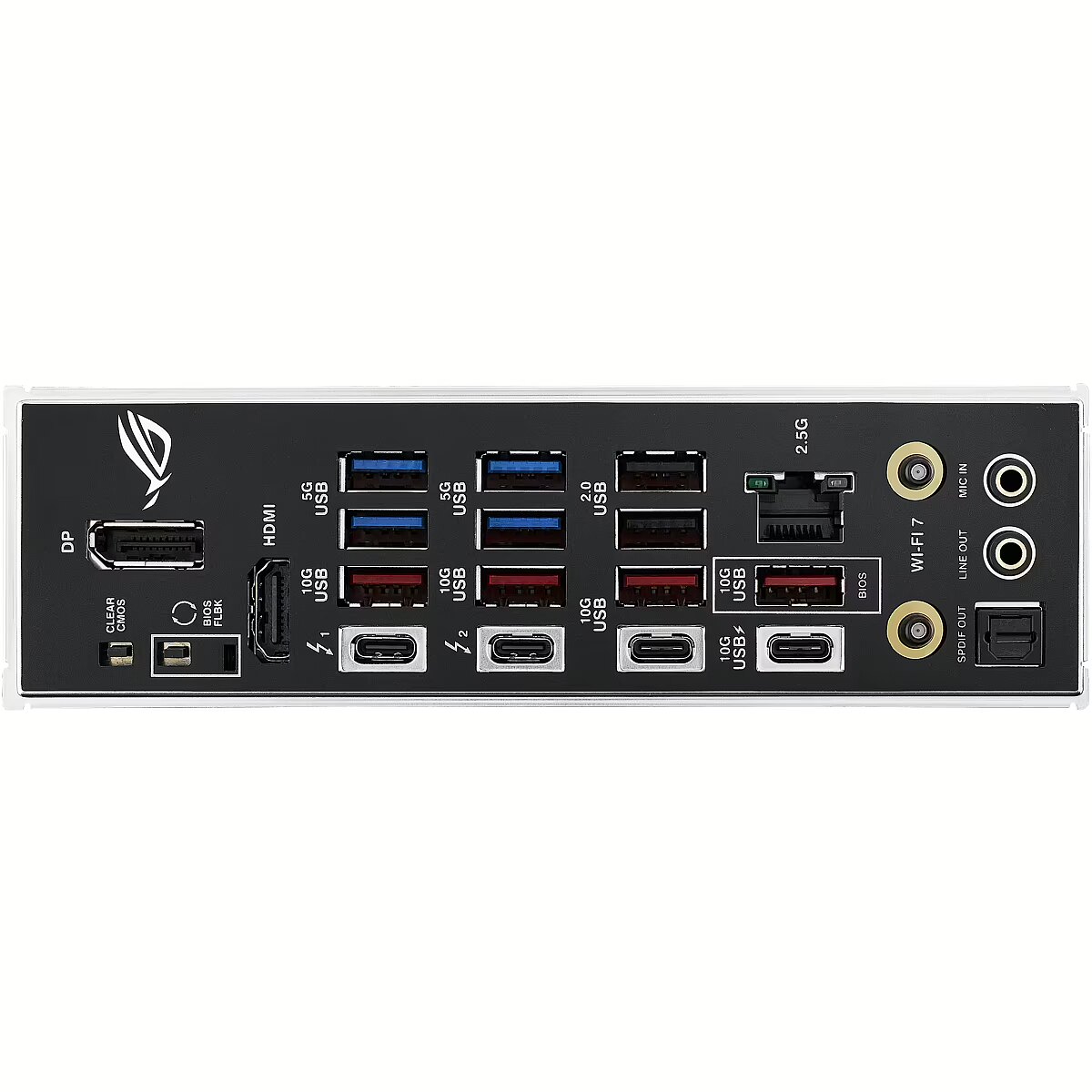

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB BIOS Flashback button
External connectors - 1 x Wi-Fi Module
External connectors - 2 x Thunderbolt 4
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.1 Type-C
External connectors - 4 x USB 3.0
External connectors - 4 x USB 3.1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form factor - ATX
Front panel audio connector Internal I/O - Yes
Graphics - 1 x DisplayPort** 1 x HDMI port*** 2 x Intel Thunderbolt 4 (USB Type-C) ports support DisplayPort and Thunderbolt video output**** * Graphics specifications may vary depending on processor type. For updates, please visit www.intel.com.
** Supports up to 8K@60Hz with DSC as per DisplayPort 1.4a specification.
*** Supports 4K@60Hz as per HDMI 2.1 specification.
**** Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8 Gbps or 16 Gbps/16 Gbps. For supported resolutions, see DisplayPort 2.1 specification.
***** VGA resolution support depends on processor or graphics card resolutions.
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
gross_weight - 1.7 kg
GTIN - 0197105755925
GTIN - 197105755925
GTIN - 4711387755921
guarantee - 36
guarantee_type - normal
HDMI ports quantity Rear panel I/O ports - 1
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 2.5Gb Ethernet)
LongDesc - ROG STRIX Z890-F gaming wifiWith NPU boosting and cutting-edge AI solutions, the ROG STRIX Z890-F Gaming WiFi supports advanced AI-driven PC applications. Equipped with Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, it delivers blazing-fast data transfers, unparalleled connectivity and a customizable aesthetic that can be either subtle or bold.
LongProductName - Intel Z890, LGA1851, 4 x DIMM slots, max. 192GB, DDR5, Intel 2.5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4, 256 Mb Flash ROM, UEFI AMI BIOS, ATX
LongSummaryDescription - ASUS ROG STRIX Z890-F GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
Manufacturer - Asus
Manufacturer_code - 90MB1I40-M0EAY0
Max. number of SATA devices - 4
Maximum internal memory Memory - 192 GB
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8600 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - ROG STRIX Z890-F
Model - ROG STRIX Z890-F GAMING WIFI
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel Z890
Motherboard form factor Features - ATX
name - ASUS ROG STRIX Z890-F Gaming Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
Name - ASUS ROG STRIX Z890-F GAMING WIFI
Name - ASUS ROG STRIX Z890-F GAMING WIFI - Socekt 1851 - motherboard (black)
name - Motherboard ROG STRIX Z890-F GAMING WIFI s1851 4DDR5 TB4 ATX/90MB1I40-M0EAY0
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless and Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands** Supports Wi-Fi 7 320 MHz band, up to 5.8 Gbps transfer speeds. Bluetooth v5.4*** *Wi-Fi features may vary by operating system.
For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
**The Wi-Fi 6 GHz frequency band and bandwidth regulations may vary by country.
***Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of chassis fan connectors Internal I/O - 5
Number of DDR5 slots - 4
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 5
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 9
On-board graphics card Graphics - No
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x USB C
Onboard connectors - 1x CPU/DRAM overvoltage jumper
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x 4pin Chassis fan
Onboard connectors - 5 x M.2
Other information -
Package depth Packaging data - 273 mm
Package height Packaging data - 68 mm
Package weight Packaging data - 1980 g
Package width Packaging data - 353 mm
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.98 kg
Packaging data - Package width - 353 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 192 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
Parallel processing technology support Graphics - Not supported
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor family - Intel Core Ultra
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
Producent: Nazwa producenta / importera - AsusASUS COMPUTER GmBHHARKORT STR. 21-2340880 RATINGENNiemcyEmail: https://www.asus.com/support/Product/ContactUs/Services/questionform/?lang=en&utm_source=asus-qr&utm
producer - Asus
Producer - ASUS
Producer - Asus
producerCode - 90MB1I40-M0EAY0
ProducerCode - ROG STRIX Z890-F GAMING WIFI
Product colour Features - Black
productName - ASUS ROG STRIX Z890-F GAMING WIFI Intel Z890 LGA 1851 (Socket V1) ATX motherboard
ProductName - ROG STRIX Z890-F GAMING WIFI
Product Net Weight - 1.7 kg
productSize - Normal
RAID - Yes
RAID levels Storage controllers - 0/1/5
RAID support Storage controllers - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
S/PDIF out port Rear panel I/O ports - Yes
ShortDescription - Socket 1851| Chipset Intel Z890 | DDR5 |
ShortSummaryDescription - ASUS ROG STRIX Z890-F GAMING WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 192 GB, DIMM
sizeX - 300
sizeY - 300
sizeZ - 80
Software - ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS AI Advisor
ASUS Driver Hub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
NPU Boost
Sound card - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sensing for front and rear headphone outputs Supports: jack detection, streaming, and front-panel microphone jack remapping High-quality stereo playback output with a 120 dB SNR and recording input with a 110 dB SNR Supports playback up to 32-bit/384 kHz on the front panel Audio Features SupremeFX Shielding Technology Savitech SV3H712 Amplifier Gold-plated audio jacks Rear optical S/PDIF output Premium audio capacitors Audio shield *A chassis with an HD audio module on the front panel is required for 7.1 Surround Sound audio output.
**The rear-panel LINE OUT port does not support surround sound. If you want to enjoy surround sound, connect your audio output device to the audio jack on the front panel of the case or use a USB audio device.
Special functions - Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Rear USB 10Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max 2.5A
- Compatible with PD3.0
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - ASUS ROG STRIX Z890-F GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) Memory - 8600 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 11
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
Thunderbolt headers Internal I/O - 1
Thunderbolt ports quantity Rear panel I/O ports - 2
Title - ASUS ROG STRIX Z890-F GAMING WIFI Intel Z890 LGA 1851 (Socket V1) ATX
title_en - Asus ROG STRIX Z890-F Motherboard
title_lv - Asus ROG STRIX Z890-F Pamatplate
title_ru - Asus ROG STRIX Z890-F Материнская плата
Top Wi-Fi standard Network - Wi-Fi 7 (802.11be)
Unbuffered memory Memory - Yes
Unit Box Height - 0.07
Unit Box Length - 0.275
Unit Box Width - 0.355
Unit Calculated Volume - 0.008186 cubm
Unit Calculated Weight - 2.6 kg
Units per Shipping Box - 4
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 2x2 connectors Internal I/O - 1
USB ports at back panel - 14
USB ports on motherboard - 9
Vendor Homepage - https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/
vendpn - ROG STRIX Z890-F GAMING WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1.3 kg
Weight - 2,41
weight - 1700
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Wi-Fi Network - Yes
Width Weight & dimensions - 305 mm
Windows operating systems supported Features - Windows 11
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x Thunderbolt 4 (USB Type-C)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 4 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 2 x Thunderbolt 4
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
