12V power connector Internal I/O - Yes
ACPI version BIOS - 5.0
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Brand - GIGABYTE
BrandPartCode - H610M H V2
Bundled software Packaging content - Norton Internet Security (OEM version)
LAN bandwidth management software
Cables included Packaging content - SATA
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset manufacturer - Intel
Chipset type - Intel H610 Express Chipset
Clear CMOS button BIOS - Yes
Clear CMOS jumper BIOS - Yes
Code - H610M H V2 G1.0
COM connector / port - Yes
Compatible processor series Processor - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Component for Features - PC
Cooling type Features - Active
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
CPU socket - LGA1700
Depth Weight & dimensions - 196 mm
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeSupports Intel® Core™ 14th/ 13th /12th processorsDual Channel Non-ECC Unbuffered DDR5, 2 DIMMs4+1+1 Hybrid Digital VRM DesignGbE LAN with Bandwidth ManagementNVMe PCIe 3.0 x4 M.2High Quality Audio Capacitors and Audio Noise GuardSmart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOPGIGABYTE APP Center, Simple and Easy UseAnti-Sulfur Resistors Design
Description - Intel H610 Motherboard with Hybrid VRM 4+1+1 Design, PCIe 4.0, Gen3 x4 M.2, Anti-Sulfur Resistors, Smart Fan 6* Intel Core 14th, 13th, and 12th Generation processors Dual-channel, unbuffered DDR5 non-ECC, 2 DIMM slots Hybrid digital 4+1+1 design GbE LAN with bandwidth management NVMe PCIe 3.0 x4 M.2 High-quality audio capacitors with audio noise protection Smart Fan 6 with multiple temperature sensors, hybrid fan headers, and FAN STOP functionality GIGABYTE App Center for simple and easy management Anti-sulfur resistor design
Designation - CE+WEEE
Desktop Management Interface (DMI) version BIOS - 2.7
Detailed data on disk/drive interfaces - Expansion Slots: 1 × PCI Express x16 slot - Supports PCIe 4.0, running at x16 1 × PCI Express x1 slot - Supports PCIe 3.0, running at x1 Chipset Storage Connectors: 1 × M.2 connector (Socket 3, M key, supports 2280/2260 PCIe 3.0 x4/x2 SSDs) 4 × SATA 6Gb/s connectors
dimensionalWeight - 697
dimension depth - 50 mm
dimension height - 245 mm
Dimensions - 22.3 x 19.6 cm
dimension weight - 695 g
dimension width - 265 mm
DisplayPorts quantity Rear panel I/O ports - 2
DVI-D ports quantity Rear panel I/O ports - 1
EAN - 4719331859985
ean - 4719331859985
EAN_code - 4719331859985
ECC сompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1

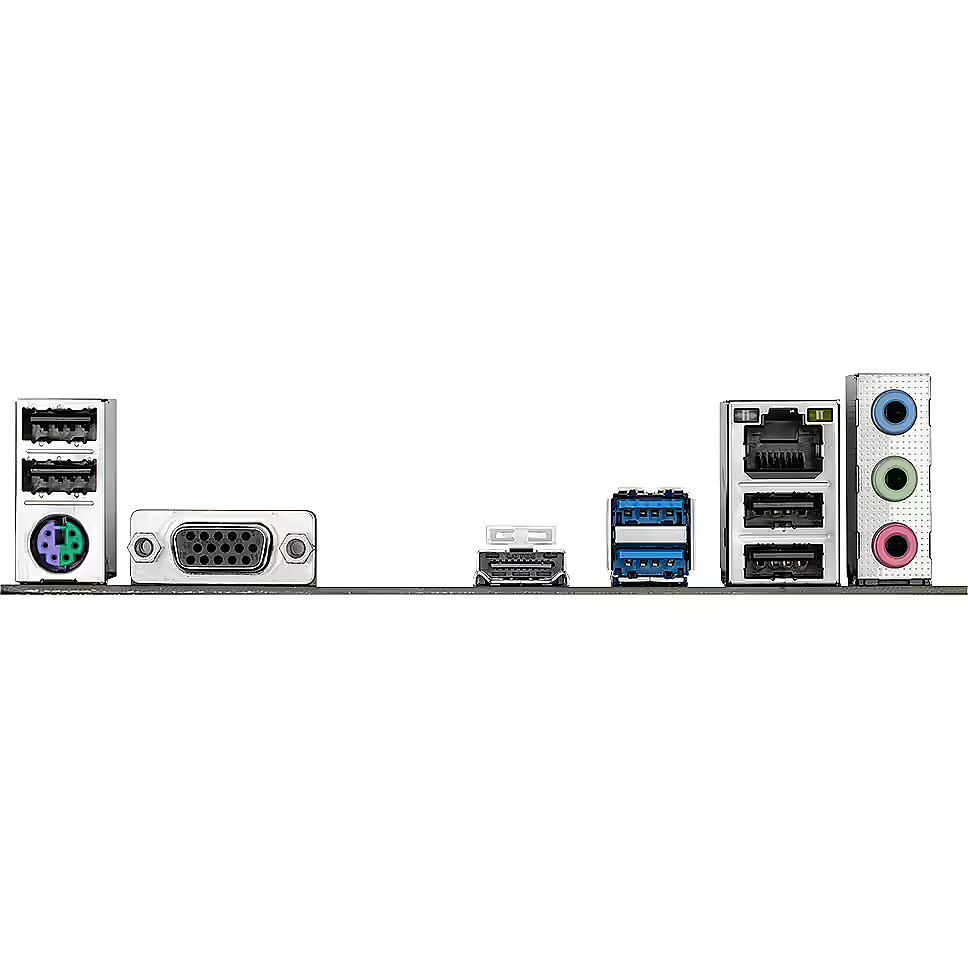

External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Generation - Fourteenth
Generation - Thirteenth
Generation - Twelve
Graphics - Integrated Graphics Support: Intel HD Graphics Video Outputs: 1 × D-Sub port - Supports up to 1920×1200 @ 60 Hz 1 × HDMI port - Supports up to 4096×2160 @ 60 Hz Supports HDMI 2.1 and HDCP 2.3 Supports native HDMI 2.1 TMDS ports
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Graphics card family Graphics - Intel
Graphics card Graphics - HD Graphics
GTIN - 4719331859985
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 3
Height Weight & dimensions - 35 mm
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Link - https://www.gigabyte.com/Motherboard/H610M-H-V2-rev-10#kf
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - H610M H V2
Max. number of SATA devices - 4
Maximum internal memory Memory - 96 GB
Maximum internal memory supported by processor Processor - 96 GB
Maximum resolution Graphics - 4096 x 2304 pixels
Max memory size - 128 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 5600 MHz
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5600, 5200, 4800, 4400 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - H610M H V2
Model - H610M H V2 (rev. 1.0)
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610 Express
Motherboard form factor Features - micro ATX
MPN - H610M H V2
Name - GA-H610M H V2 (1700) (D)
Name - GIGABYTE H610M H V2 - Socket 1700 - motherboard
Name - Gigabyte | H610M H V2 G1.0 | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
name - Motherboard H610M H V2 s1700 2DDR5 HDMI/DSUB M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Number of battery cells Battery - 1
Number of DDR5 slots - 2
Number of HDDs supported Storage controllers - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x Speaker header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Package depth Packaging data - 265 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265 mm
Package features > Gross height (mm) - 54 mm
Package features > Gross width (mm) - 265 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 228 pc(s)
Package features > Paper/Pasteboard - 200 g
Package features > Plastic (No PET) - 80 g
Package features > Tare weight (kg) - 0.28 kg
Package features > Volume (m3) - 0.00379215 m³
Package features > WEEE tax - No
Package height Packaging data - 54 mm
Package weight Packaging data - 694 g
Package width Packaging data - 265 mm
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 694 g
Packaging data - Package width - 265 mm
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - Fan, Temperature, Voltage, Water cooling
PCI Express x1 slots Expansion slots - 1
PCI Express x16 slots Expansion slots - 1
Power source type Features - ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 96 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
Processor family - Intel Pentium Gold
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
producer - Gigabyte
producerCode - H610M H V2
Product colour Features - Black
productName - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
Products per shipping (inner) case Logistics data - 1 pc(s)
PS/2 ports quantity Rear panel I/O ports - 1
RAID - No
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RGB LED pin header Internal I/O - Yes
Serial port headers Internal I/O - 1
ShortSummaryDescription - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 96 GB, DDR5-SDRAM
sizeX - 270
sizeY - 235
sizeZ - 55
Software - Norton Internet Security (OEM version) LAN bandwidth management software Service has been discontinued due to termination of the software provider agreement.
Sound card - Audio Codec: Realtek High Definition Audio support Audio Channels: 2 / 4 / 5.1 / 7.1 The functionality of the audio jacks can be changed via audio software. To configure 7.1-channel audio, adjust the settings in the audio software.
Special functions - APP Center support
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS support EasyTune Smart Backup System Information Viewer Q-Flash support
Storage controllers - Number of HDDs supported - 1
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
Supported memory clock speed (max) Memory - 5600 MHz
Supported memory clock speeds Memory - 5600, 5200, 4800, 4400 MHz
Supported memory module capacities Memory - 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.23 kg
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - H610M H V2 G1.0
Title - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.24
Unit Box Length - 0.27
Unit Box Width - 0.05
Unit Calculated Volume - 0.00324 cubm
Unit Calculated Weight - 0.5 kg
Units per Shipping Box - 1
URL - https://www.gigabyte.com/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB connector type Rear panel I/O ports - USB Type-A
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - https://www.gigabyte.com/
vendpn - H610M H V2
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
Warranty period Technical details - 3 year(s)
warrantyType - G
Weight - 0,70
Weight - 0.7
weight - 690
Weight & dimensions - Depth - 196 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
Wi-Fi Network - No
Width Weight & dimensions - 230 mm
Windows operating systems supported Features - Windows 10 x64, Windows 11 x64
