Battery - Battery capacity - 220 mAh
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B550 X EAGLE WF6E
Category - Motherboards
Category1 - Mainboards
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset manufacturer - AMD
Chipset type - AMD B550
COM connector / port - No
CPU socket - Socket AM4
Description - AMD Socket AM4 : Supports AMD Ryzen(TM) 5000 / 4000 / 3000 Series Processors Hybrid Digital twin 8+2 phases VRM solution Dual Channel DDR4 : 4*DIMMs with XMP Memory Module Support WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation PCIe EZ-Latch : PCIe slot with Quick Release & Screwless Design M.2 EZ-Latch Plus/ Click : M.2 slots and heatsinks with screwless design Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 4.0 x4 Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking : 2.5GbE LAN & Wi-Fi 6E Extended Connectivity : HDMI
Description1 - GIGABYTE Mainboard B550 X EAGLE WIFI6E - ATX - Socket AM4 - AMD B550
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) SATA 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
dimension depth - 80 mm
dimension height - 300 mm
Dimensions - 30.5cm x 24.4cm
dimension weight - 2060 g
dimension width - 350 mm
ean - 4719331883331
EAN - 4719331883331
EAN_code - 4719331883331
Expansion slots - 1 x PCIe x 16
Expansion slots - 2 x M.2
Expansion slots - 4 x PCIe x 16
Expansion slots - 1st M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 largest key size - 22110
Expansion slots - 2nd M.2 highest PCI Express generation - 3.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 1 Type-C
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU, Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Dark brown
Features - Windows operating systems supported - Windows 11 x64, Windows 10 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Graphics - Integrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - HDCP version - 2.3
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331883331
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - AMD Ryzen 5000 G-Series CPUs, 8+2 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2
LongSummaryDescription - GIGABYTE B550 X EAGLE WIFI6E Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, PCI Express 3.0, PCI Express 4.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
ManufacturerID - B550 X EAGLE WF6E
Manufacturer_code - B550 X EAGLE WF6E
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Maximum internal memory per slot - 32 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory type - DDR4
Model - B550 X EAGLE WF6E
Name - GigaByte B550 X EAGLE WF6E
name - Motherboard B550 X EAGLE WF6E AM4 4DDR4 ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - WLAN controller model - MediaTek MT7902
Network interface - 1 x 100/1000/2500Base-T
Network interface - Bluetooth
Network interface - LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module MediaTek Wi-Fi 6E MT7902 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 2.04 kg
PackageHeight - 85
PackageLength - 347
PackageWeight - 2000
PackageWidth - 294
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
Packaging content - Screws included - Yes
Packaging data - Package depth - 294 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.46 kg
Packaging data - Package width - 345 mm
Processor - Compatible processor series - AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
producer - Gigabyte
ProductName - B550 X EAGLE WIFI6E Motherboard
RAID - Yes

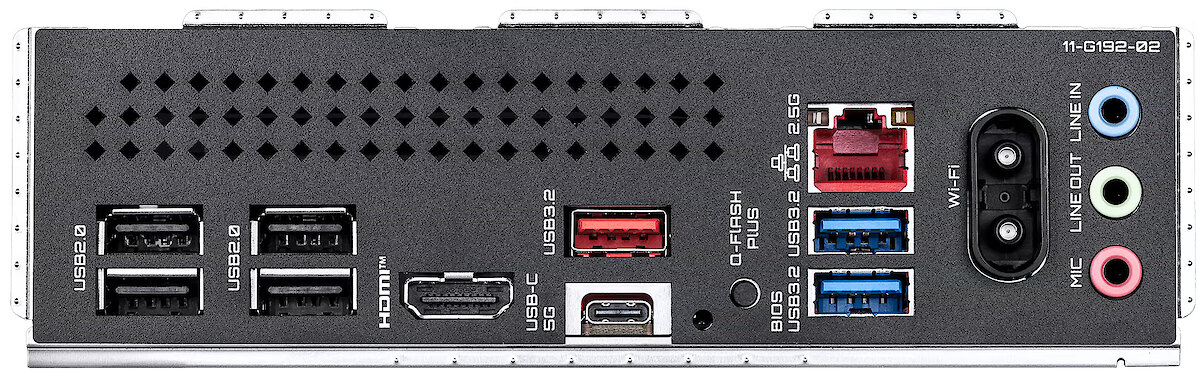

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
ShortSummaryDescription - GIGABYTE B550 X EAGLE WIFI6E Motherboard, AMD, Socket AM4, AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, Socket AM4, DDR4-SDRAM, 128 GB
Software - Norton(R) Internet Security (OEM version)
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Special functions - Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, NVMe, PCI Express 3.0, PCI Express 4.0, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)

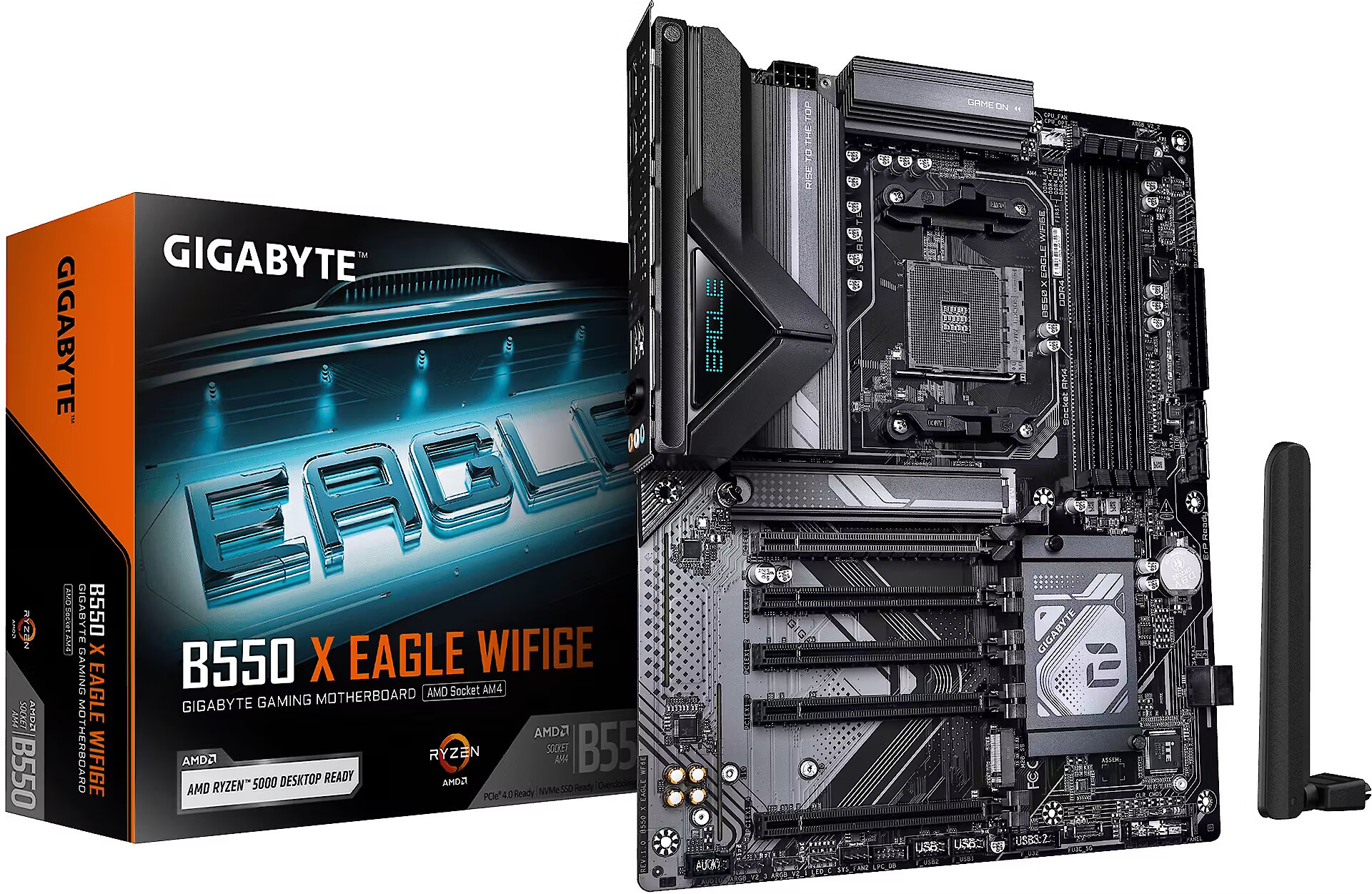

Title - GIGABYTE B550 X EAGLE WIFI6E Motherboard
URL - https://www.gigabyte.com/
USB ports at back panel - 8
USB ports on motherboard - 7
vendpn - B550 X EAGLE WF6E
WarrantyInfo - 3 years
WEEE - DE83654239
Weight - 1,50
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
