BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
category_en - Computers & Components > Computer components > Motherboards > AMD motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
description_en - The ASRock X870E Taichi OCF is a high-end ATX motherboard designed for enthusiasts, overclockers, and high-performance gaming and creator systems. Built on the AMD X870E chipset and supporting AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket, this board delivers robust power delivery, advanced DDR5 memory support, comprehensive storage options, and abundant modern connectivity, including USB4 and Wi-Fi 7.
Specifications: Form Factor: ATX (30.5 × 24.4 cm) Chipset: AMD X870E CPU Socket: AM5 CPU Support: AMD Ryzen 7000 / 8000 / 9000 series Power Design: 25-phase robust VRM Memory: DDR5 up to 128 GB, XMP/EXPO support (2 slots) Expansion Slots: 2 × PCIe 5.0 x16, 1 × PCIe 4.0 x4 Storage: Up to 6× M.2 (PCIe 5.0 / PCIe 4.0), 2× SATA 6 Gb/s USB: Multiple USB4 Type-C, USB 3.2 Gen2, USB 3.2 Gen1, USB2.0 Video Outputs: HDMI 2.1, Display support via USB4 Audio: 5.1-channel HD audio with enhanced DAC Networking: 5 GbE LAN + Wi-Fi 7 + Bluetooth 5.4 Cooling & Extras: Heatsinks on VRM and SSD slots, onboard buttons and debug features
description_lv - ASRock X870E Taichi OCF ir augstas klases ATX mātesplate, paredzēta entuziastiem, overklokeriem un jaudīgiem spēļu vai radošiem datoriem. Balstīta uz AMD X870E čipsetu un atbalsta AMD Ryzen 7000, 8000 un 9000 sērijas procesorus ar AM5 ligzdu. Plate nodrošina stabilu enerģijas padevi, augstas veiktspējas DDR5 atmiņu, plašas uzglabāšanas iespējas un modernu savienojamību, tostarp USB4 un Wi-Fi 7.
Tehniskās īpašības: Formāts: ATX (30,5 × 24,4 cm) Čipsets: AMD X870E CPU ligzda: AM5 Procesoru atbalsts: AMD Ryzen 7000 / 8000 / 9000 Barošanas shēma: 25-fāzu efektīvs VRM Atmiņa: DDR5 līdz 128 GB, XMP/EXPO atbalsts (2 sloti) Paplašināšanas spraugas: 2 × PCIe 5.0 x16, 1 × PCIe 4.0 x4 Uzglabāšana: Līdz 6× M.2 (PCIe 5.0 / PCIe 4.0), 2× SATA 6 Gb/s USB: Daudz USB4 Type-C, USB 3.2 Gen2, USB 3.2 Gen1, USB2.0 Video izvadi: HDMI 2.1, displeja atbalsts caur USB4 Audio: 5.1 HD audio ar uzlabotu DAC Tīkls: 5 GbE LAN + Wi-Fi 7 + Bluetooth 5.4 Dzesēšana & papildfunkcijas: Radiatori VRM un SSD, iebūvētas pogas un diagnostikas rīki
description_ru - ASRock X870E Taichi OCF — высокопроизводительная материнская плата формата ATX, созданная для энтузиастов, оверклокеров и мощных игровых / профессиональных ПК. Основана на новом чипсете X870E и совместима с процессорами AMD Ryzen серии 7000, 8000 и 9000 на сокете AM5. Плата предлагает продвинутую систему питания, поддержку высокоскоростной памяти DDR5, расширенные интерфейсы ввода-вывода и множество современных разъёмов для накопителей и периферии.
Технические характеристики: Форм-фактор: ATX (30,5 × 24,4 см) Чипсет: AMD X870E Сокет CPU: AM5 Поддержка процессоров: AMD Ryzen 7000 / 8000 / 9000 Питание: 25-фазная схема с мощными силовыми элементами Память: DDR5, до 128 ГБ, поддержка XMP и EXPO (2 слота) PCIe: 2 × PCIe 5.0 x16, 1 × PCIe 4.0 x4 M.2 и накопители: до 6× M.2 (включая PCIe 5.0 и PCIe 4.0) + 2× SATA 6 Гбит/с USB порты: множество USB4 Type-C, USB 3.2 Gen2, USB 3.2 Gen1 и USB 2.0 Видеовыходы: HDMI 2.1, USB4 с поддержкой дисплея Аудио: 5.1-канальный HD-аудиокодек с улучшенным ЦАП Сеть: 5 Гбит Ethernet + Wi-Fi 7 + Bluetooth 5.4 Система охлаждения: большие радиаторы на силовых узлах и M.2 Дополнительно: расширенные кнопки управления и диагностики на плате
dimensionalWeight - 1814
EAN - 4711581492509
EAN_code - 4711581492509
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 5.1 channels
Features - Certification - - FCC, CE- ErP/EuP ready
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
Graphics - HDCP - Yes
Graphics - HDCP version - 2.3
gross_weight - 1.7 kg
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of SATA III connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 2
Manufacturer - Asrock
Manufacturer_code - 90-MXBTG0-A0UAYZ
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Model -

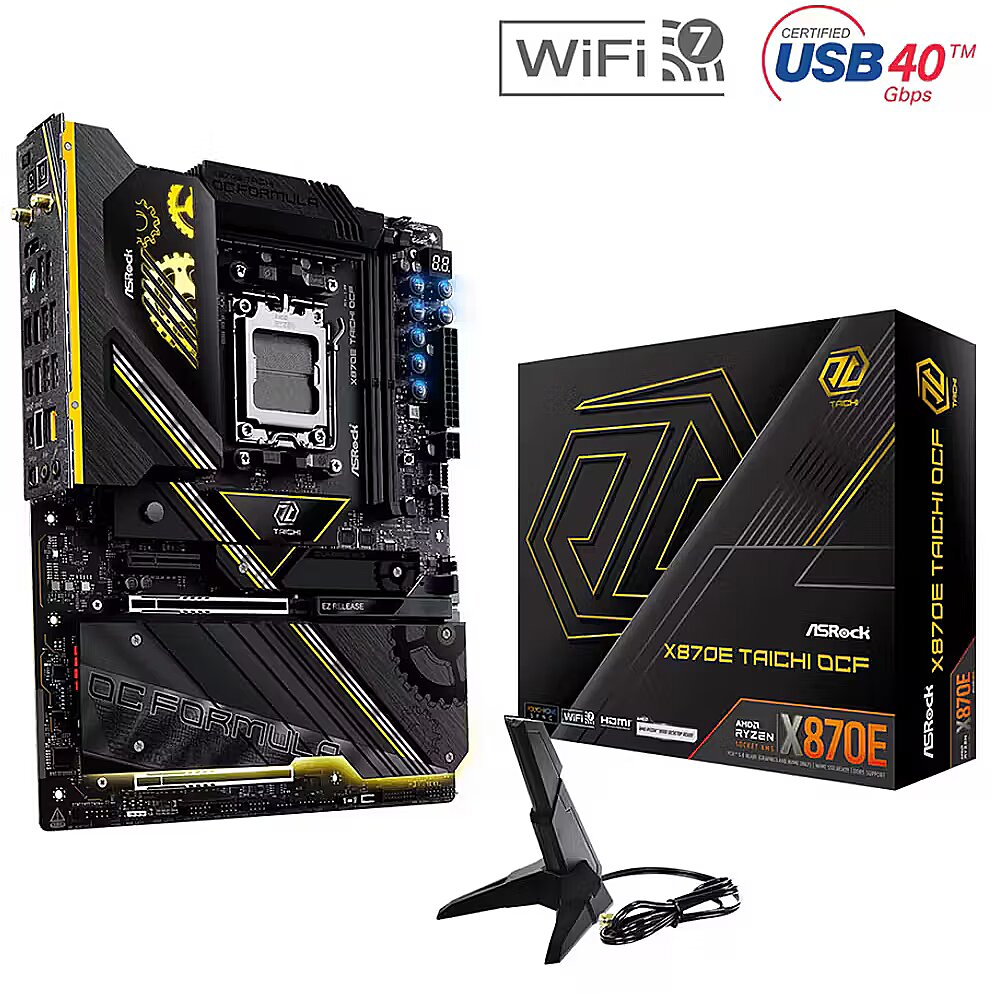

Name - ASRock X870E Taichi OCF - Socket AMD AM5
Network - Antenna type - 2x2
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8126
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11 axe
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Packaging content - Antenna included - Yes
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Producer - ASRock
producerCode - X870E TAICHI OCF
productName - Asrock X870E TAICHI OCF motherboard
productSize - Normal
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 7
Rear panel I/O ports - USB4 Gen 3x2 ports quantity - 2
sizeX - 315
sizeY - 360
sizeZ - 80
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
title_en - Asrock X870E TAICHI OCF Motherboard ATX
title_lv - Asrock X870E TAICHI OCF Mātesplate ATX
title_ru - Asrock X870E TAICHI OCF Mатеринская плата ATX
warrantyLength - 36
warrantyType - G
Weight - 0,00
weight - 1.5 kg
weight - 3530
Weight & dimensions - Depth - 267 mm
Weight & dimensions - Width - 305 mm
