1st M.2 highest PCI Express generation Expansion slots - 5.0
1st M.2 largest key size Expansion slots - 2580
2nd M.2 highest PCI Express generation Expansion slots - 5.0
2nd M.2 largest key size Expansion slots - 2280
3rd M.2 highest PCI Express generation Expansion slots - 4.0
3rd M.2 largest key size Expansion slots - 2280
4th M.2 highest PCI Express generation Expansion slots - 4.0
4th M.2 largest key size Expansion slots - 2280
5th M.2 highest PCI Express generation Expansion slots - 4.0
5th M.2 largest key size Expansion slots - 2280
ACPI version BIOS - 5.0
Antenna included Packaging content - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC1220-VB/ESS 9118
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 512 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 512 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.4
Brand - GIGABYTE
BrandPartCode - X870E A MASTER X ICE
Bundled software Packaging content - Norton® Internet Security (OEM version)
Category - Motherboards
Category Code - MBA
Chassis intrusion connector Internal I/O - Yes
Clear CMOS button BIOS - Yes
Clear CMOS jumper BIOS - Yes
Compatible processor series Processor - AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Component for Features - PC
Cooling type Features - Passive
Country of origin Logistics data - Taiwan
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 244 mm
Description - GIGABYTE X870E A MASTER X ICE Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology. X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 18+2+2 phases VRM solution PCIe EZ-Latch Plus Duo: One click for screwless & quick release on dual PCIe slots WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks Ultra-Fast Storage: 5*M.2 slots, including PCIe 5.0 x4 Fast Networking: 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
Desktop Management Interface (DMI) version BIOS - 2.7
Digital audio optical out Rear panel I/O ports - 1
DirectX version Graphics - 12.0
DisplayPort version Rear panel I/O ports - 1.4
ECC сompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 10 Gigabit Ethernet/2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 2
Ethernet LAN Network - Yes
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2580
Expansion slots - 2nd M.2 highest PCI Express generation - 5.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 2280
Expansion slots - 4th M.2 highest PCI Express generation - 4.0
Expansion slots - 4th M.2 largest key size - 2280
Expansion slots - 5th M.2 highest PCI Express generation - 4.0
Expansion slots - 5th M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
Features - Audio chip - Realtek ALC1220-VB/ESS 9118
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU, Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - White
Features - Windows operating systems supported - Windows 11 x64
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331876517
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 35 mm
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 6
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 3
Internal I/O - Number of noise detection headers - 1
Internal I/O - Number of RGB LED pin headers - 5
Internal I/O - Number of SATA III connectors - 2
Internal I/O - Number of temperature sensor headers - 2
Internal I/O - Number of water pump connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
LAN controller Network - Realtek RTL8126/Realtek RTL8127
Line-in Rear panel I/O ports - Yes
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - Taiwan
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - X870E AORUS MASTER X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4
LongSummaryDescription - GIGABYTE X870E AORUS MASTER X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Maximum internal memory Memory - 256 GB
Maximum internal memory per slot Memory - 64 GB
Maximum resolution Graphics - 4096 x 2304 pixels
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9000 MHz
Memory - Supported memory clock speeds - 9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Model - X870E A MASTER X ICE
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD X870E
Motherboard form factor Features - ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8126, Realtek RTL8127
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - WLAN controller model - MediaTek MT7927
Number of battery cells Battery - 1
Number of chassis fan connectors Internal I/O - 6
Number of CPU fan connectors Internal I/O - 2
Number of EPS power connectors (8-pin) Internal I/O - 3
Number of HDDs supported Storage controllers - 2
Number of M.2 (M) slots Expansion slots - 5
Number of memory slots Memory - 4
Number of noise detection headers Internal I/O - 1
Number of RGB LED pin headers Internal I/O - 5
Number of SATA III connectors Internal I/O - 2
Number of storage drives supported Storage controllers - 7
Number of temperature sensor headers Internal I/O - 2
Number of water pump connectors Internal I/O - 2
Other features - Weight - 3.82 kg
Package depth Packaging data - 310 mm
Package height Packaging data - 92 mm
Package weight Packaging data - 4380 g
Package width Packaging data - 340 mm
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
Packaging content - Screws included - Yes
Packaging data - Package depth - 310 mm
Packaging data - Package height - 92 mm
Packaging data - Package weight - 4.38 kg
Packaging data - Package width - 340 mm
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - CPU/Fan/Temperature/Voltage/Water cooling
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 2
Power source type Features - ATX
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM5
Product colour Features - White
ProductName - X870E AORUS MASTER X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4
Products per shipping (inner) case Logistics data - 1 pc(s)
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes

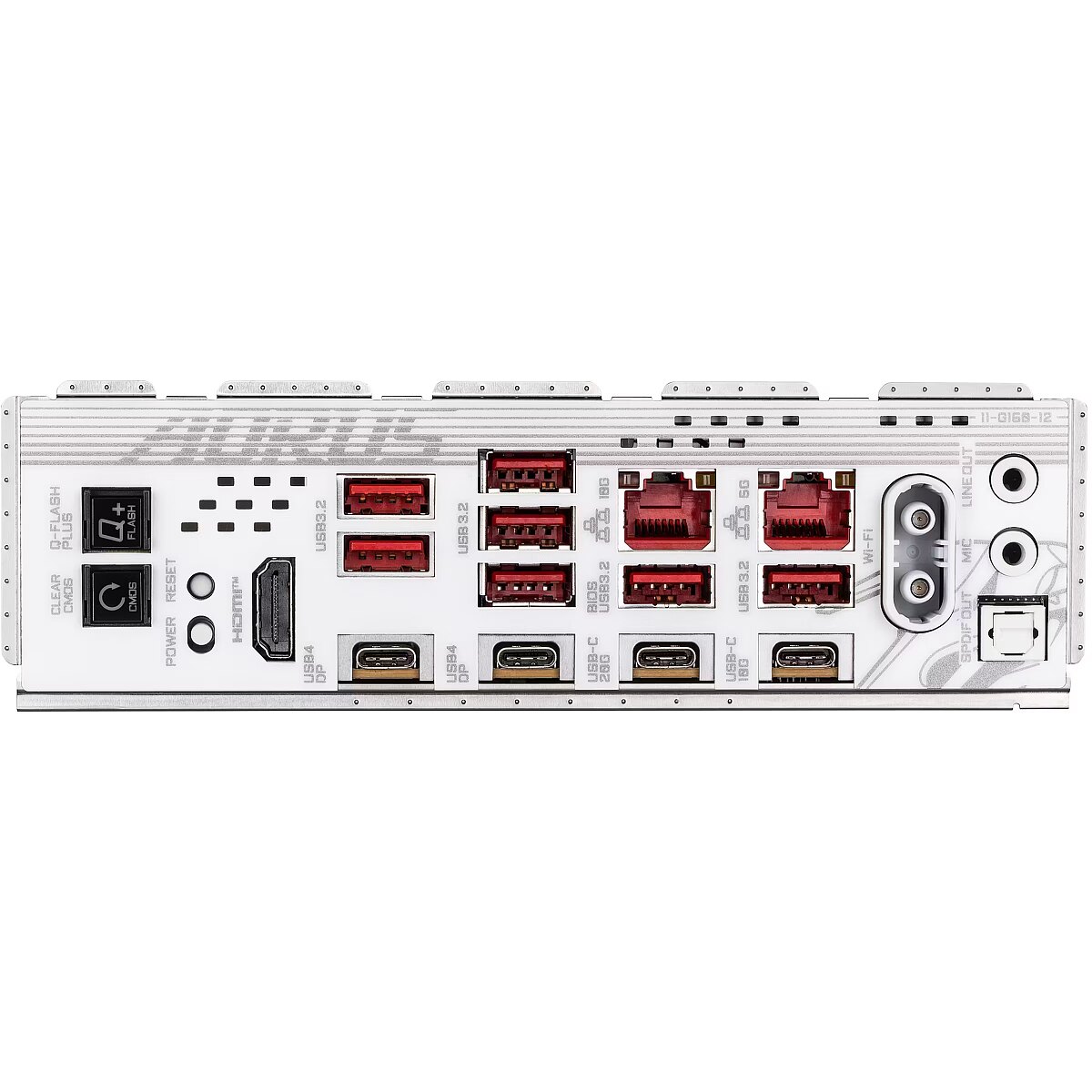

Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 7
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 2
RGB LED pin header Internal I/O - Yes
S/PDIF out port Rear panel I/O ports - Yes
Screws included Packaging content - Yes
ShortSummaryDescription - GIGABYTE X870E AORUS MASTER X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
Storage controllers - Number of HDDs supported - 2
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE X870E AORUS MASTER X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Supported memory clock speed (max) Memory - 9000 MHz
Supported memory clock speeds Memory - 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000 MHz
Supported memory types Memory - DDR5-SDRAM
Supported processor sockets Processor - Socket AM5
Supported storage drive interfaces Storage controllers - M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE X870E AORUS MASTER X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4
Top Wi-Fi standard Network - Wi-Fi 7 (802.11be)
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.31
Unit Box Length - 0.34
Unit Box Width - 0.095
Unit Calculated Volume - 0.010013 cubm
Unit Calculated Weight - 3.8 kg
Units per Shipping Box - 1
URL - https://www.gigabyte.com/
USB 2.0 connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2x2 connectors Internal I/O - 1
USB 3.2 Gen 2x2 Type-C ports quantity Rear panel I/O ports - 1
USB4 Gen 2x2 ports quantity Rear panel I/O ports - 2
Vendor Homepage - https://www.gigabyte.com/
Warranty - 36 months
WarrantyInfo - 3 years
Warranty period Technical details - 3 year(s)
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
Weight Other features - 3820 g
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Width Weight & dimensions - 305 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Windows operating systems supported Features - Windows 11 x64
WLAN controller model Network - MediaTek MT7927
