BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1KW0-M0EAY0
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
EAN - 4711387941874
EAN_code - 4711387941874
Expansion slots - 1st M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC1220P
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - AMD B850
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - White
Features - Windows operating systems supported - Windows 11
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387941874
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of RGB LED pin headers - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1

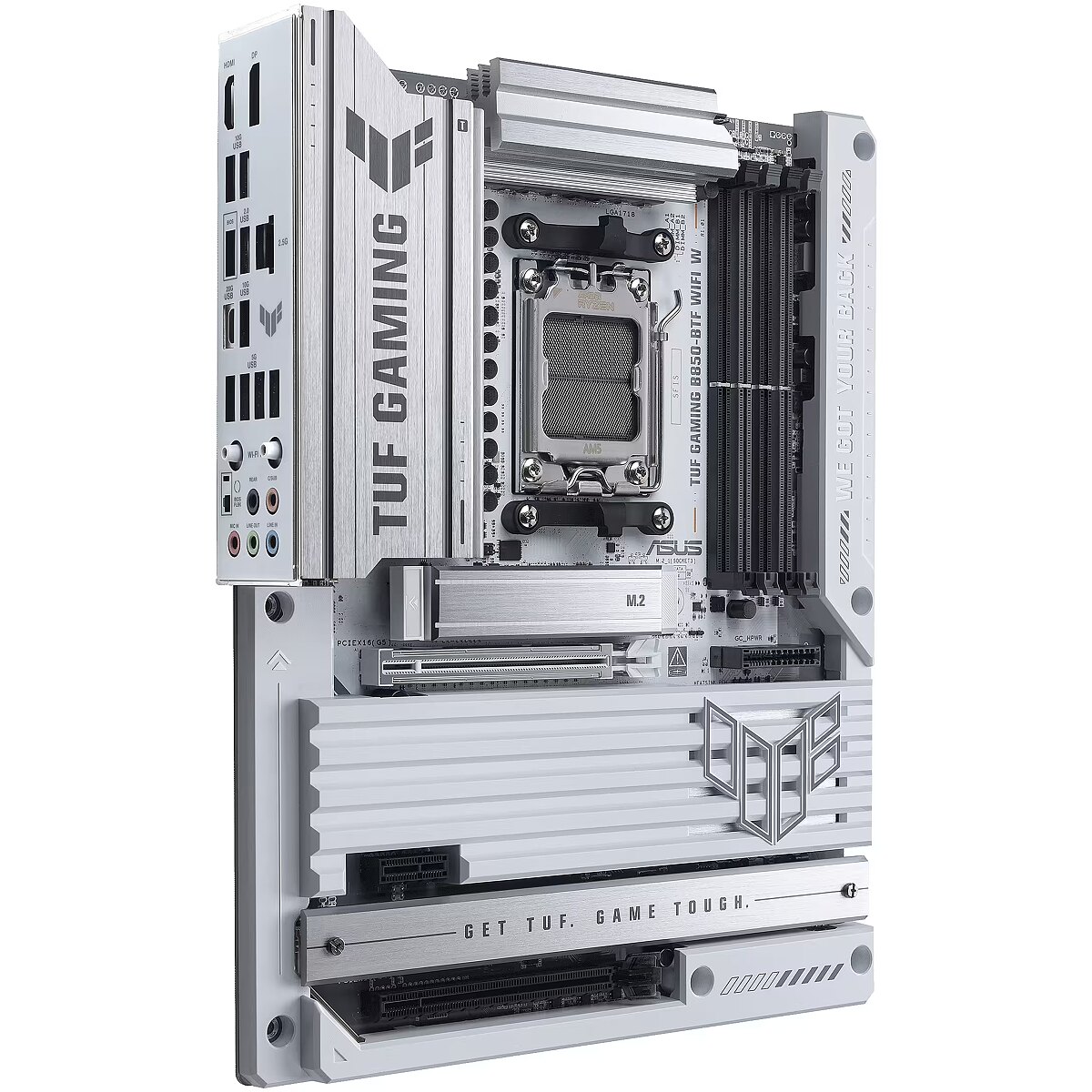

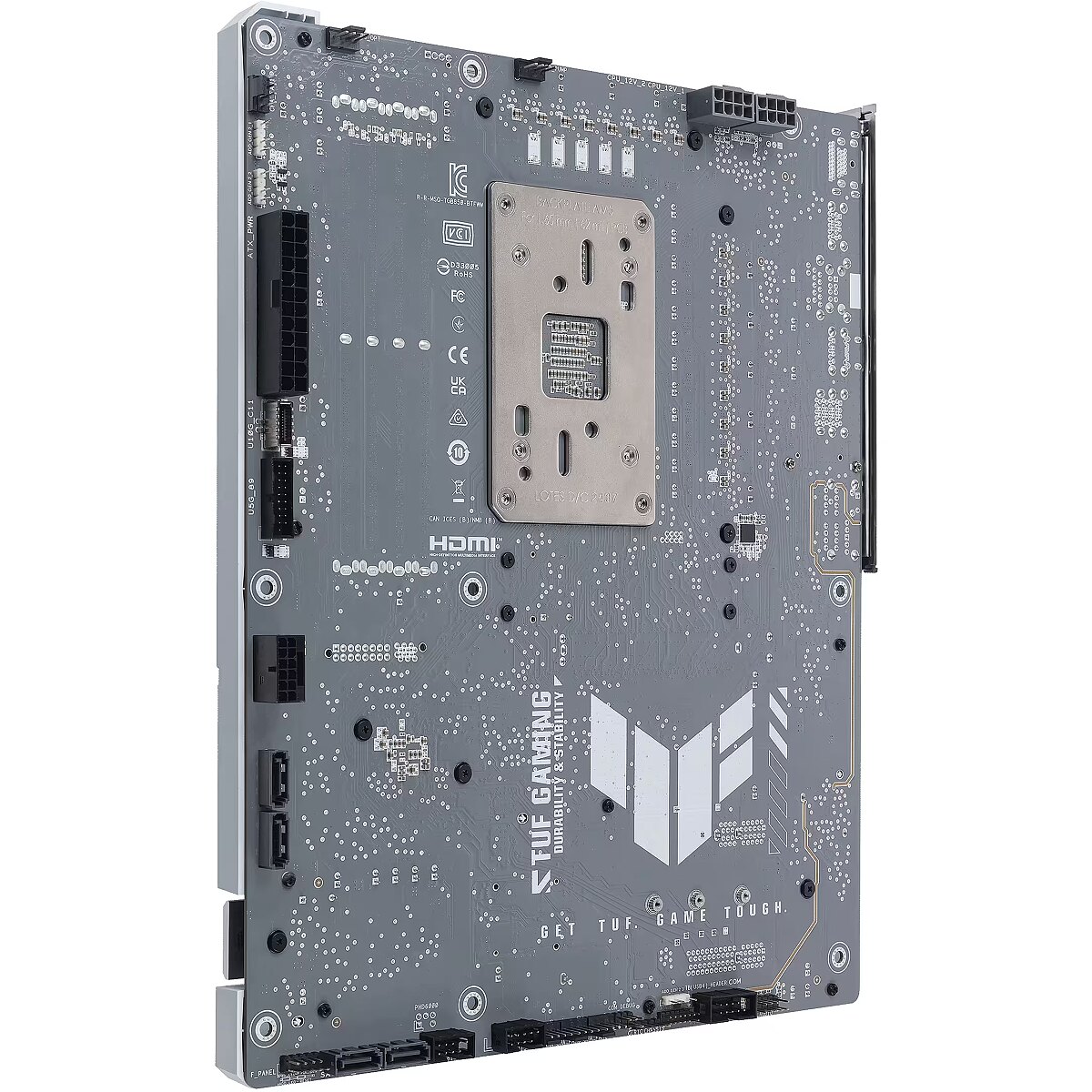

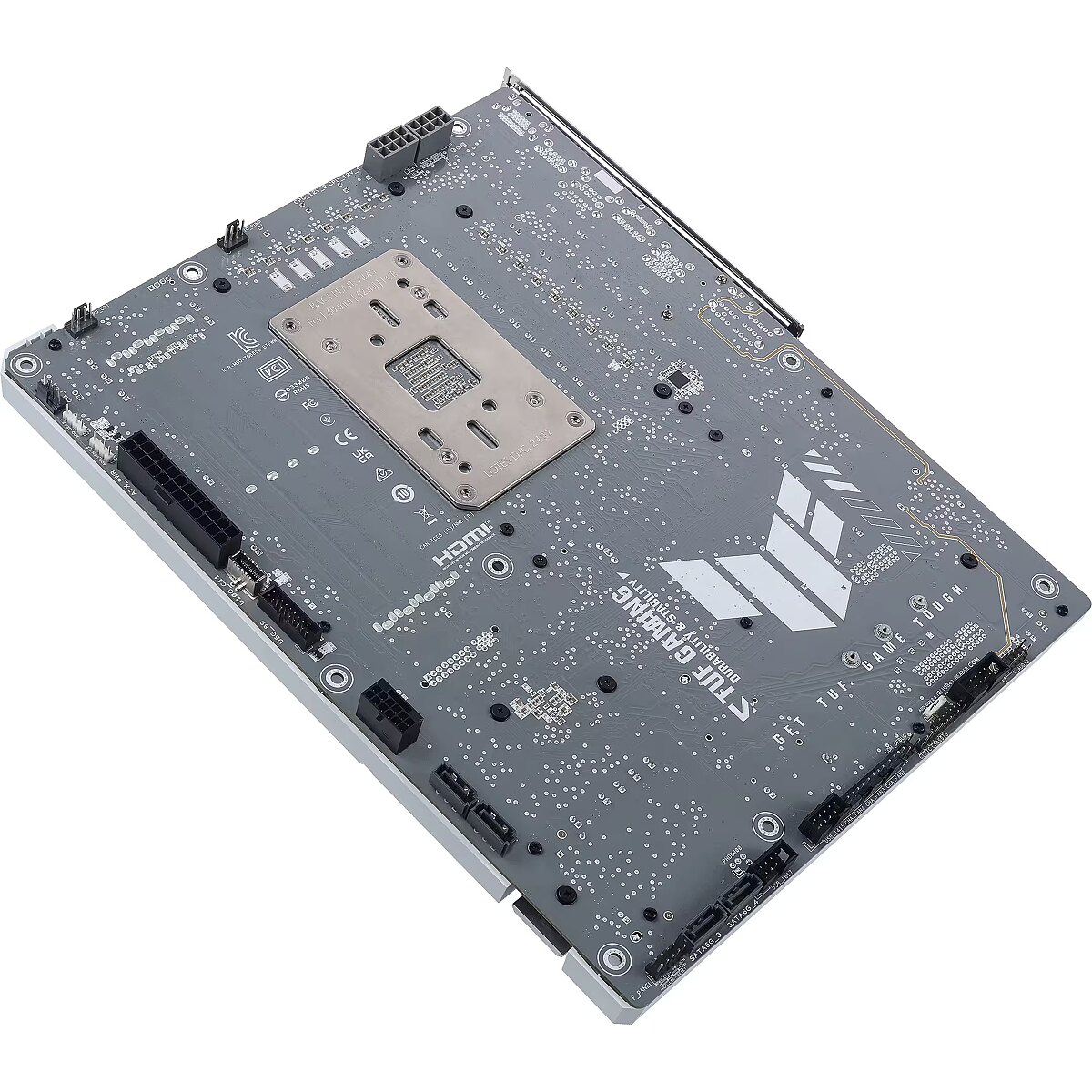

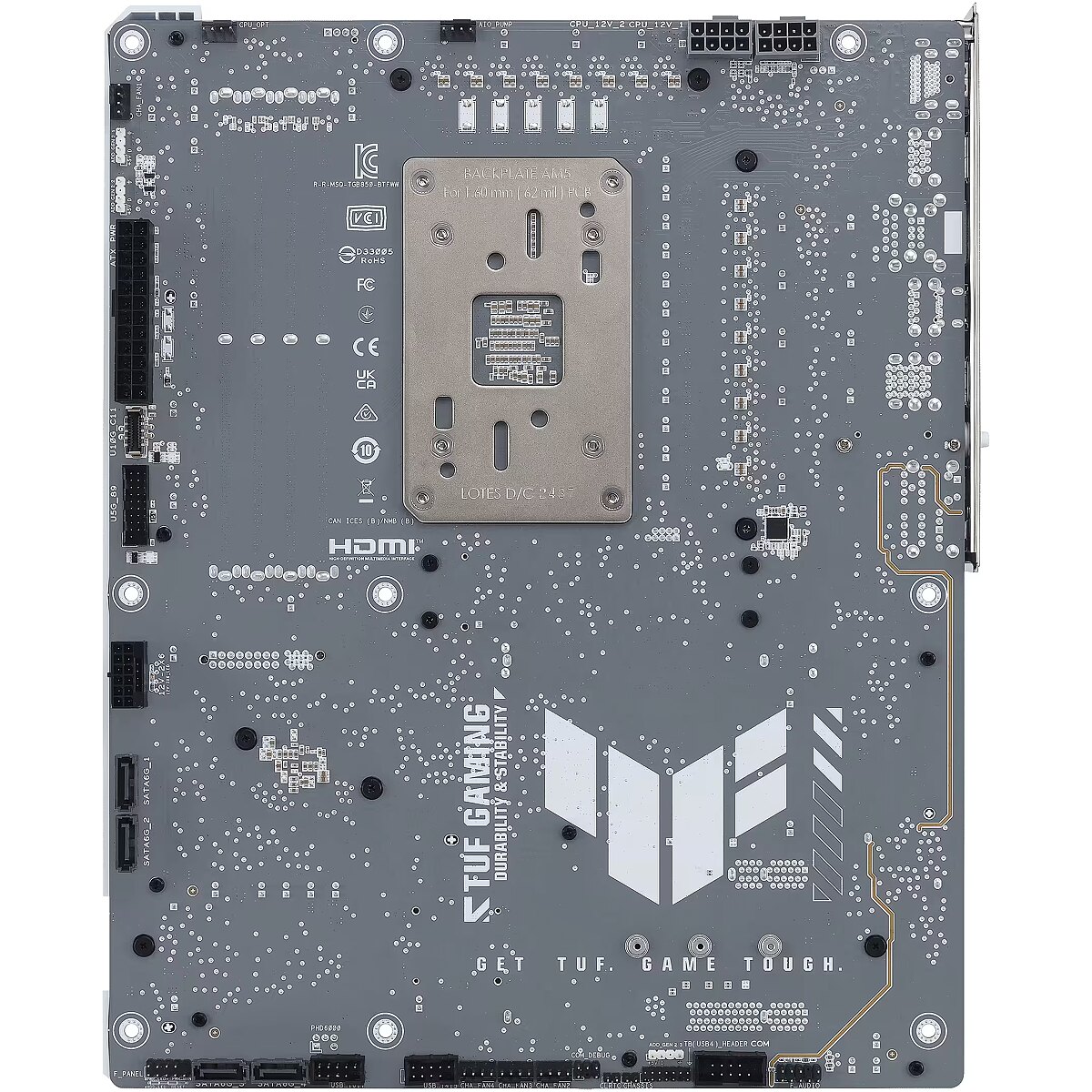

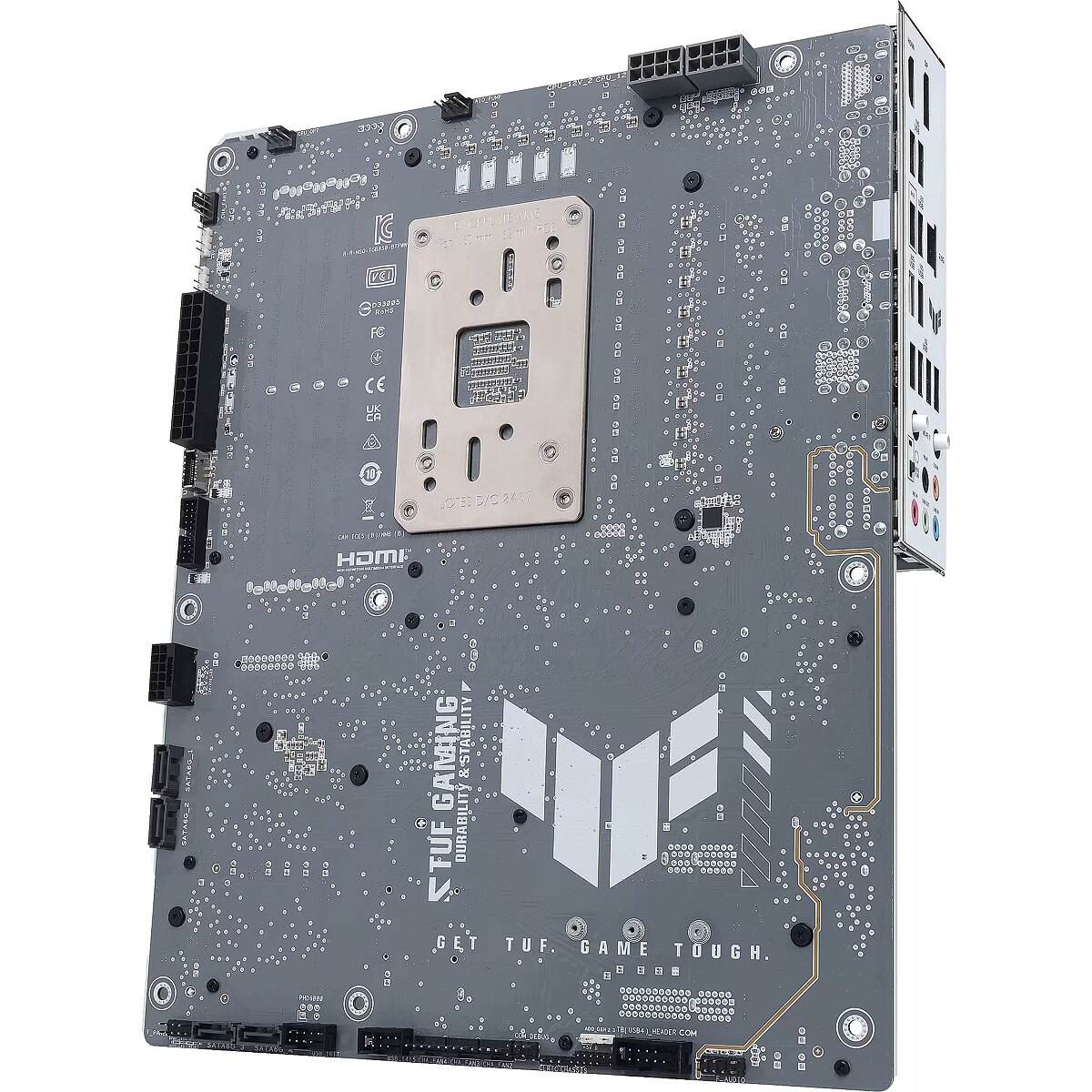

LongDesc - TUF GAMING B850-BTF WIFI WTUF GAMING B850-BTF WIFI W takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance. This platform delivers the power and connectivity that advanced AI PC applications demand.
LongProductName - AMD B850, AM5, 4 x DIMM slots, max. 256GB DDR5, Realtek 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), 256Mb Flash ROM, UEFI AMI BIOS, ATX
LongSummaryDescription - ASUS TUF GAMING B850-BTF WIFI W. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer_code - 90MB1KW0-M0EAY0
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
MPN - 90MB1KW0-M0EAY0

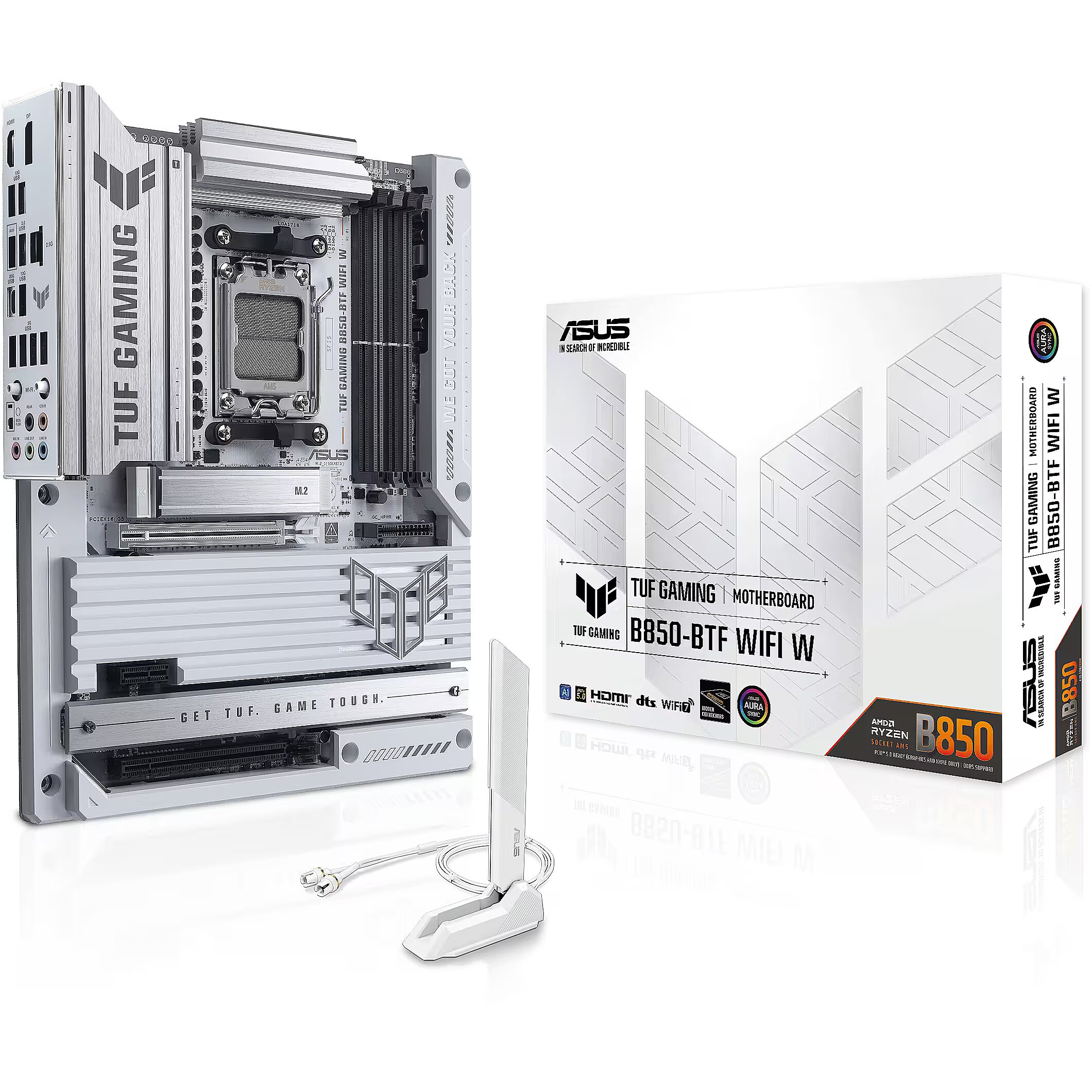

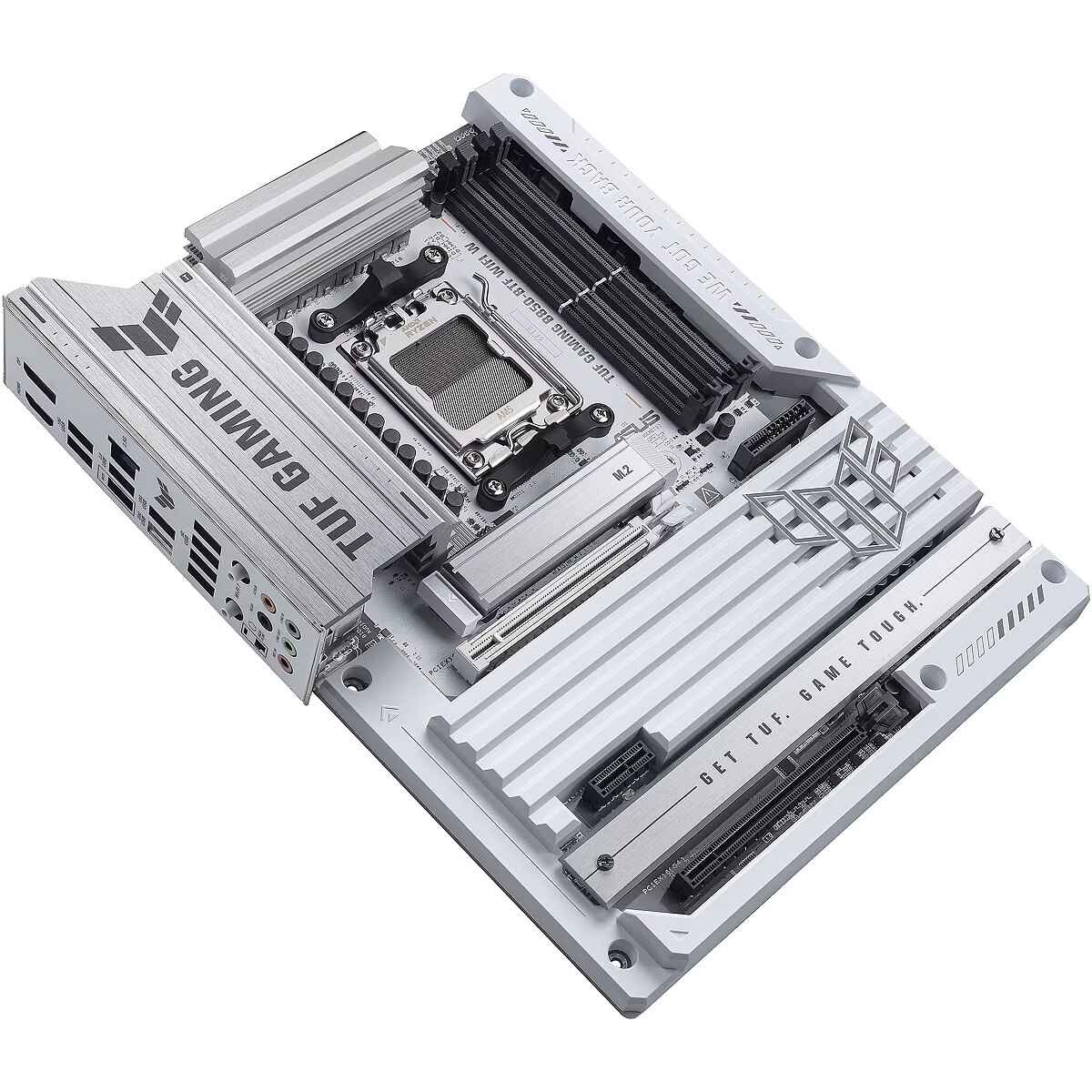

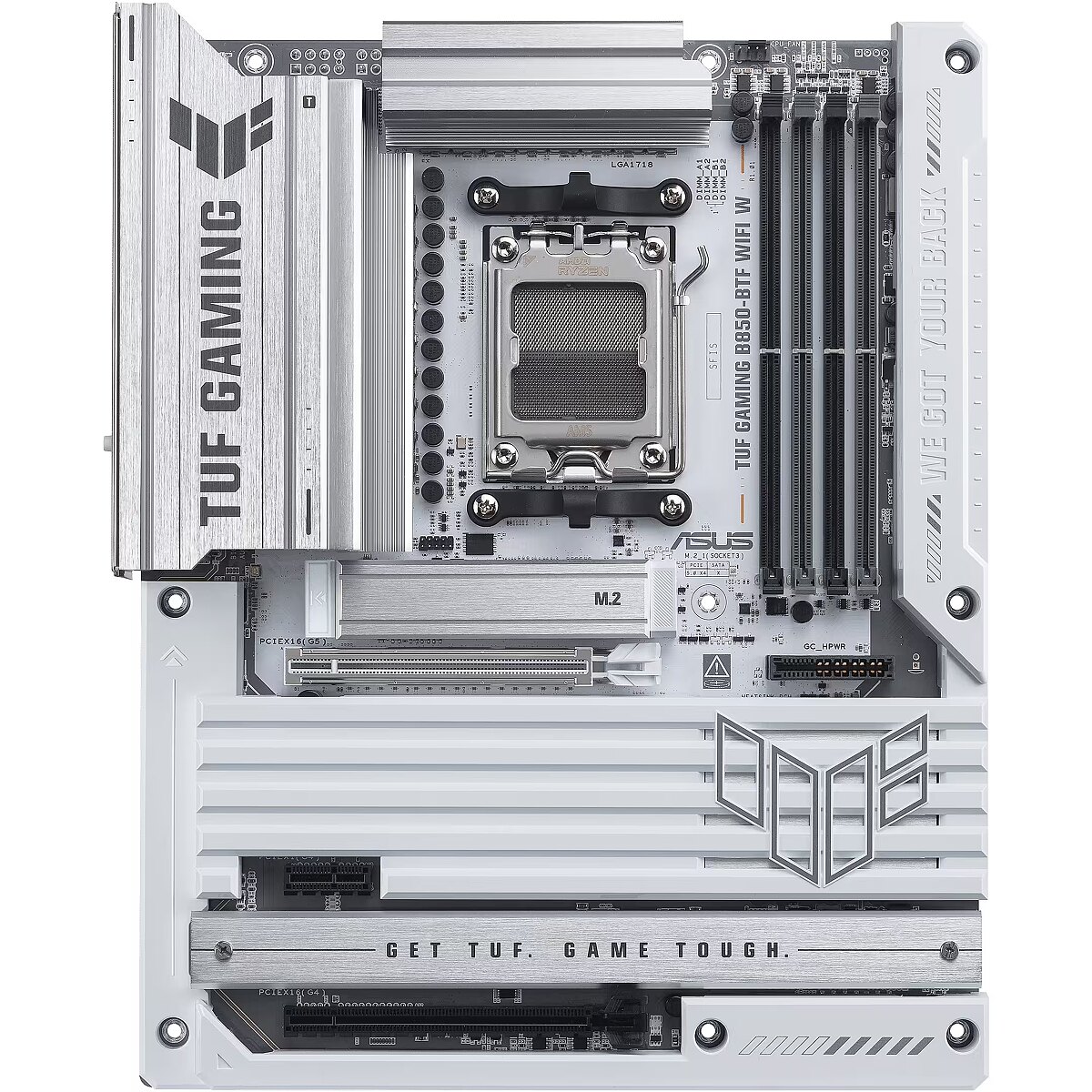

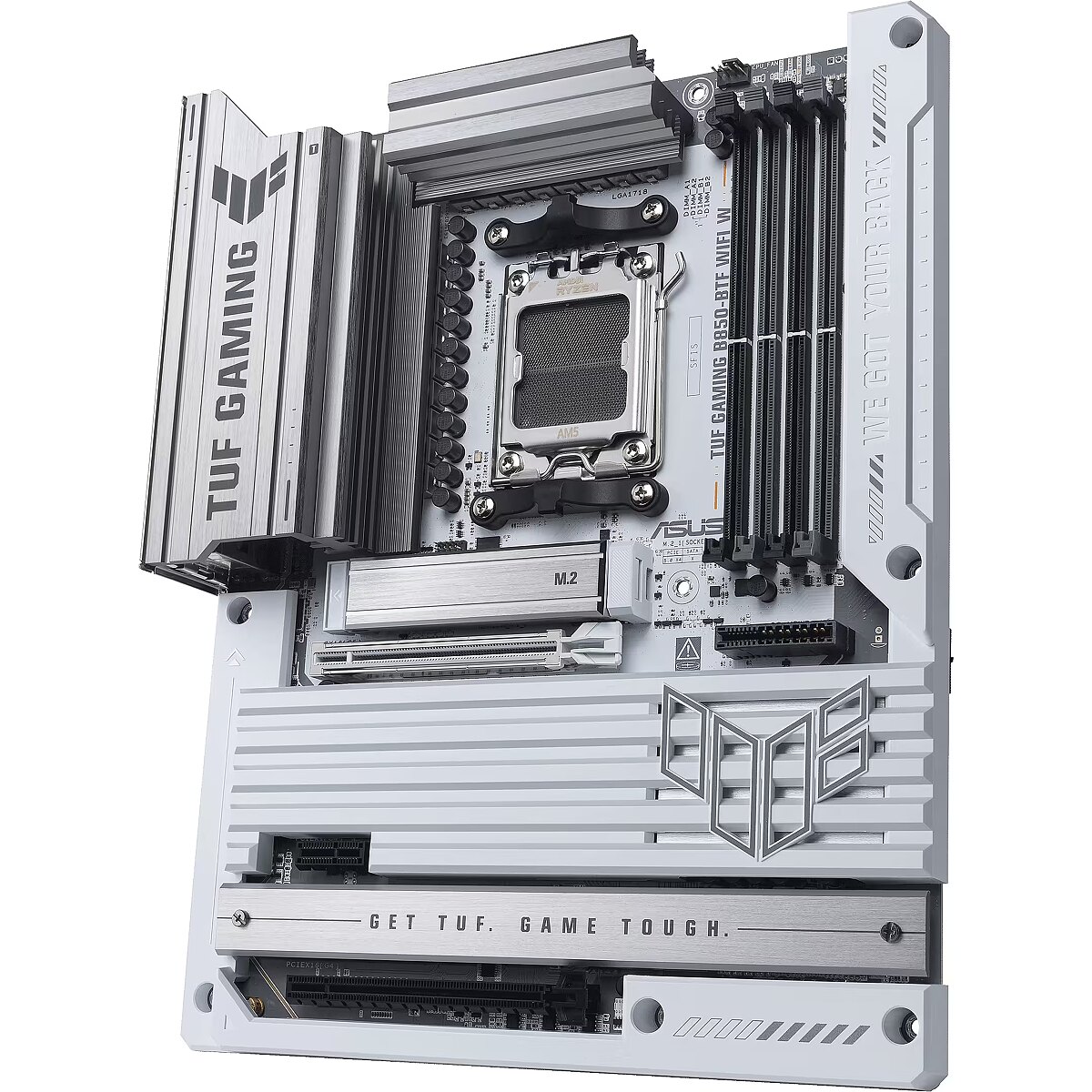

Name - ASUS TUF GAMING B850-BTF WIFI W - Socket AM5 motherboard
Name - MB ASUS TUF GAMING B850-BTF WIFI W
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Other features - Weight - 1.44 kg

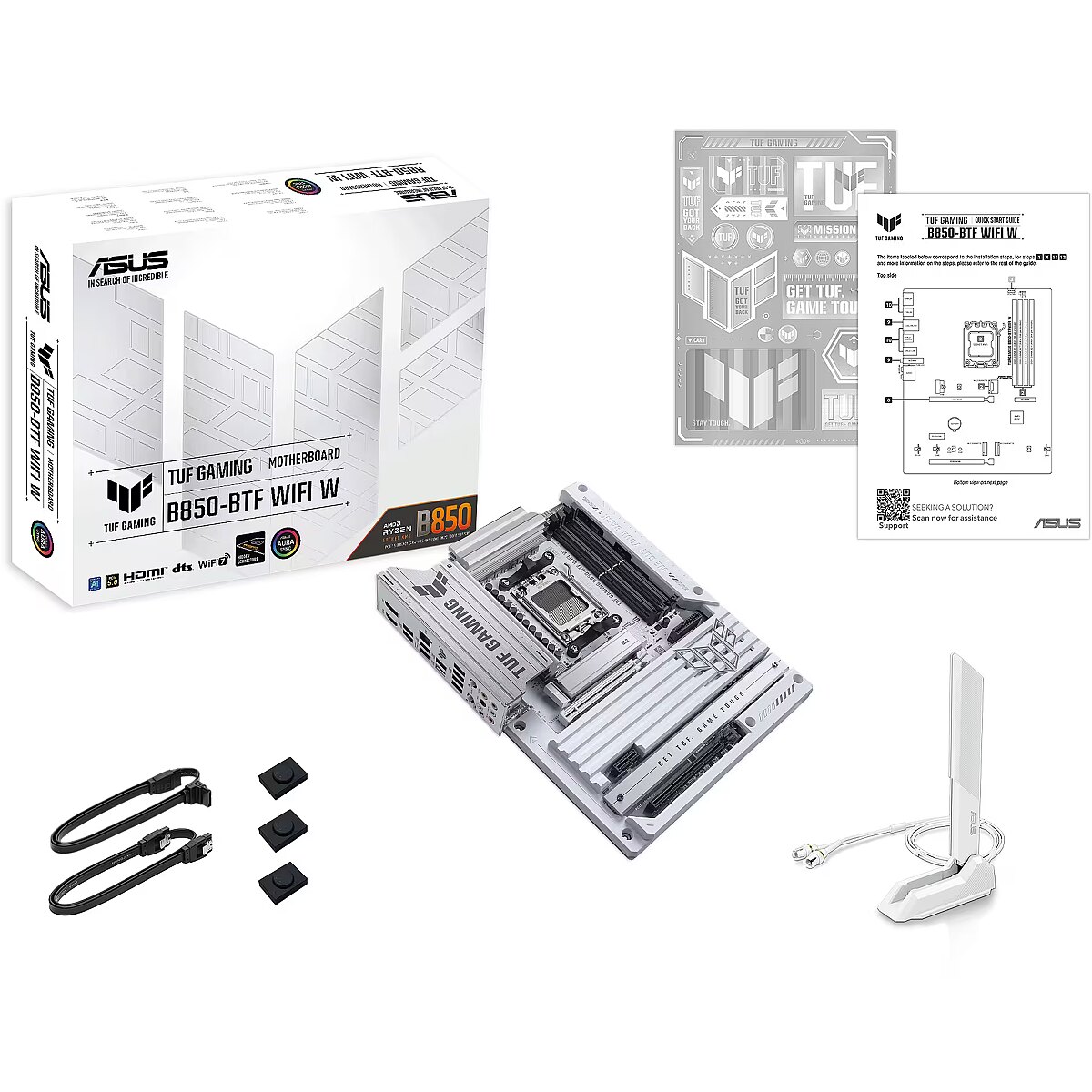

Packaging content - Antenna included - Yes
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 2.04 kg
Packaging data - Package width - 353 mm
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
ProductName - TUF GAMING B850-BTF WIFI W

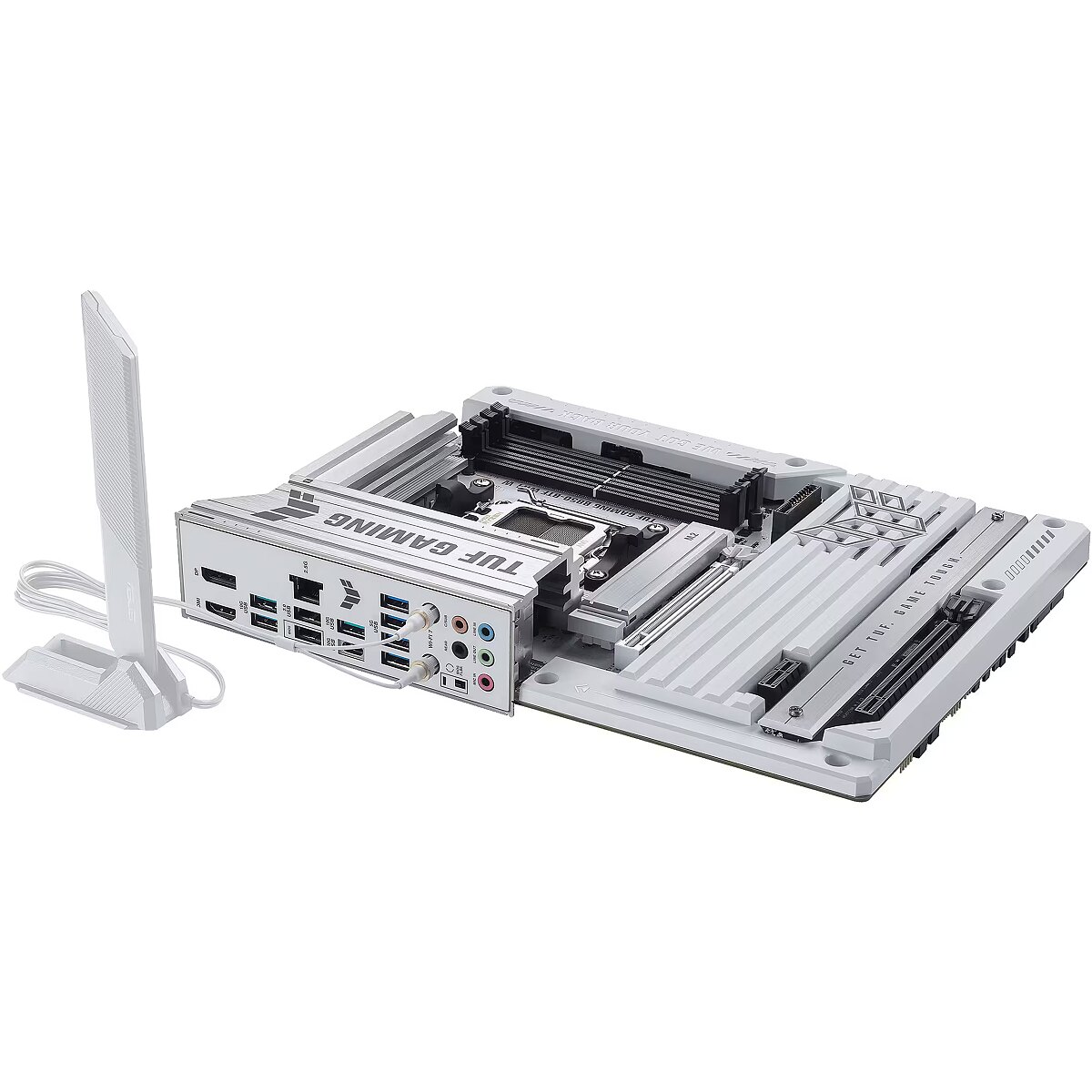

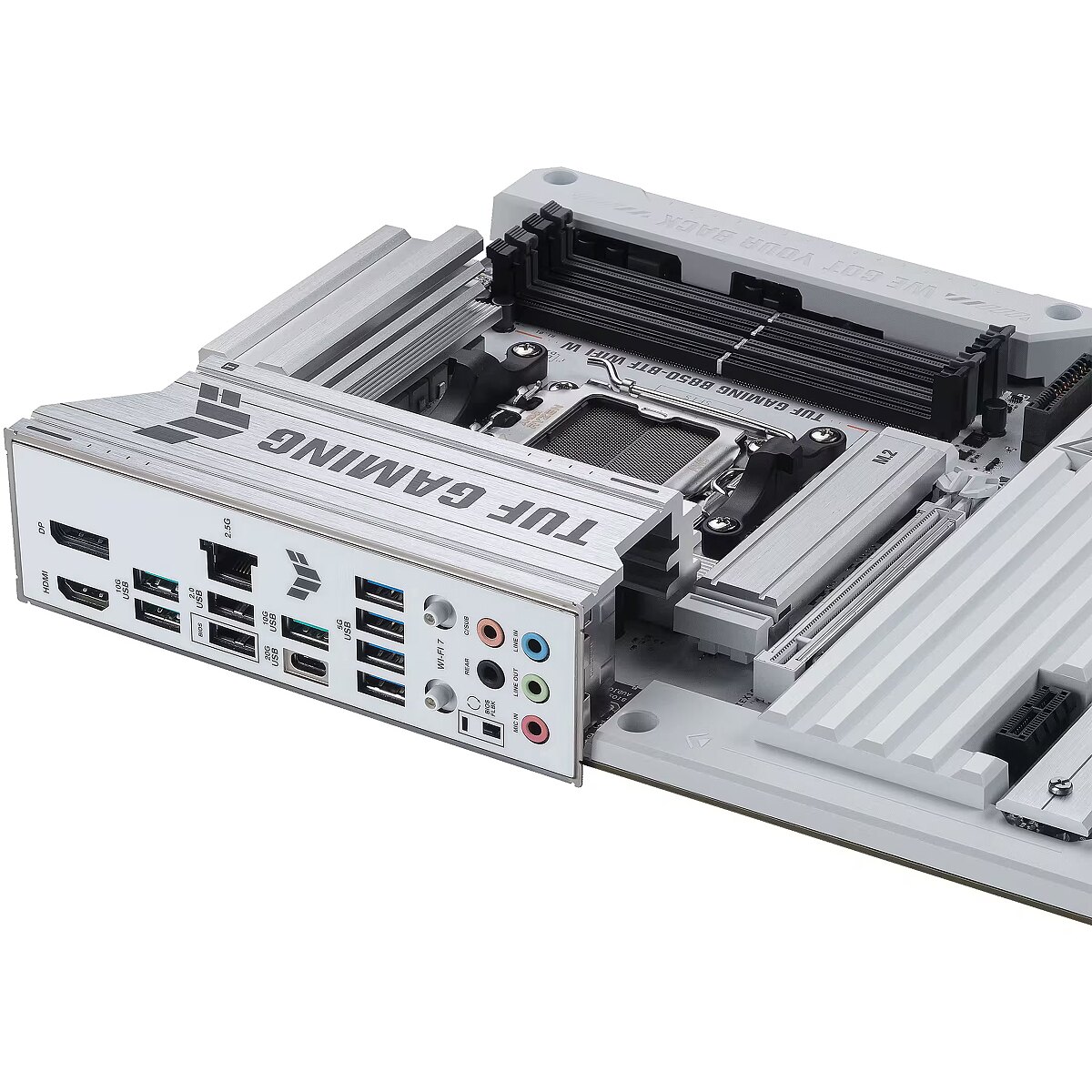

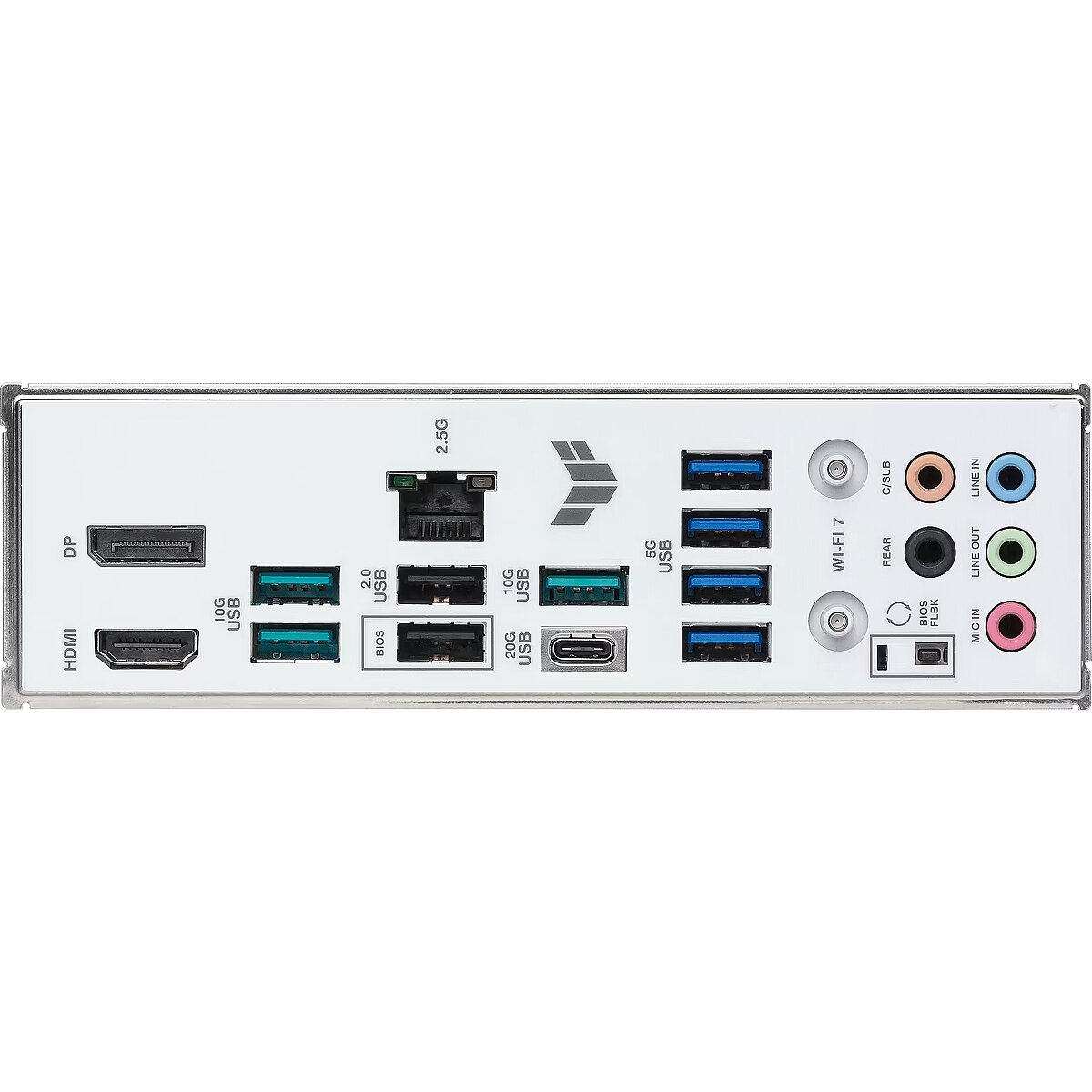

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
ShortSummaryDescription - ASUS TUF GAMING B850-BTF WIFI W, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, DDR5-SDRAM, 256 GB, DIMM
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS TUF GAMING B850-BTF WIFI W AMD B850 Socket AM5 ATX
URL - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850-btf-wifi-w/
WarrantyInfo -
Weight - 2,10
Weight - 2.093
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 57 mm
Weight & dimensions - Width - 305 mm
